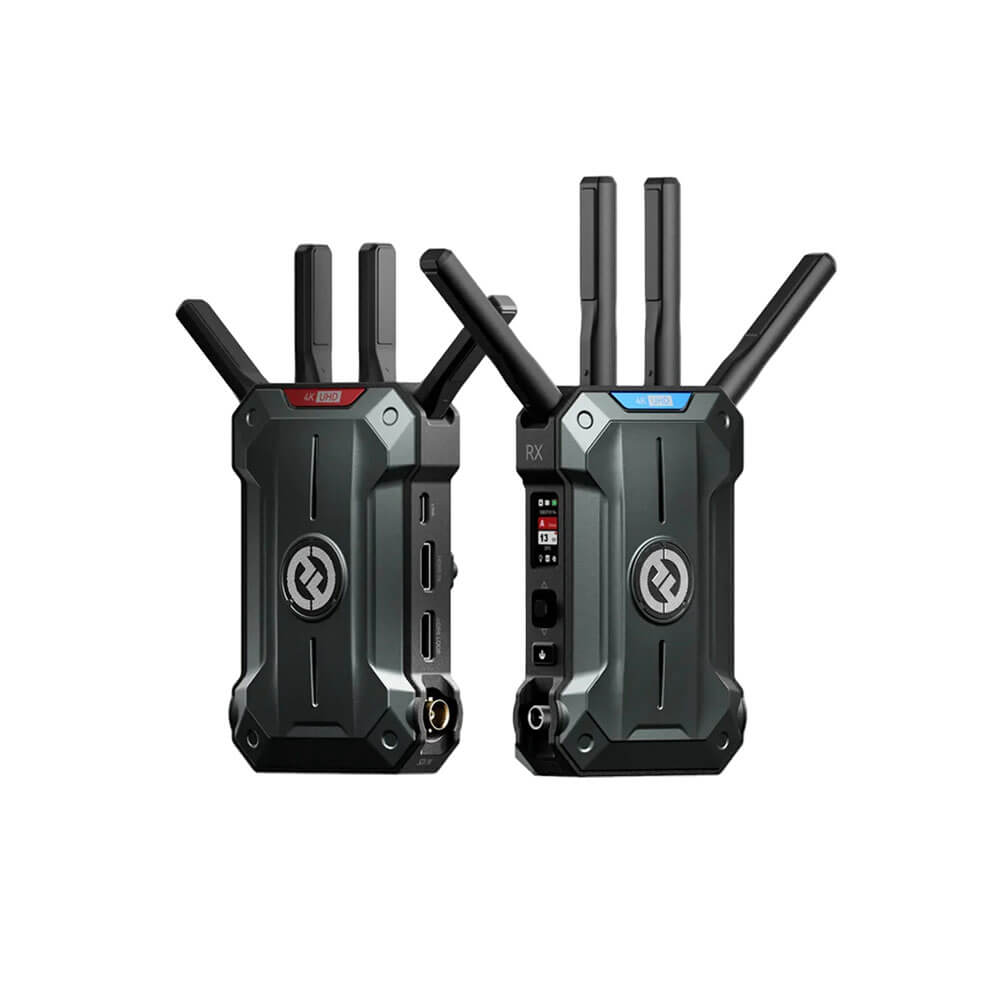

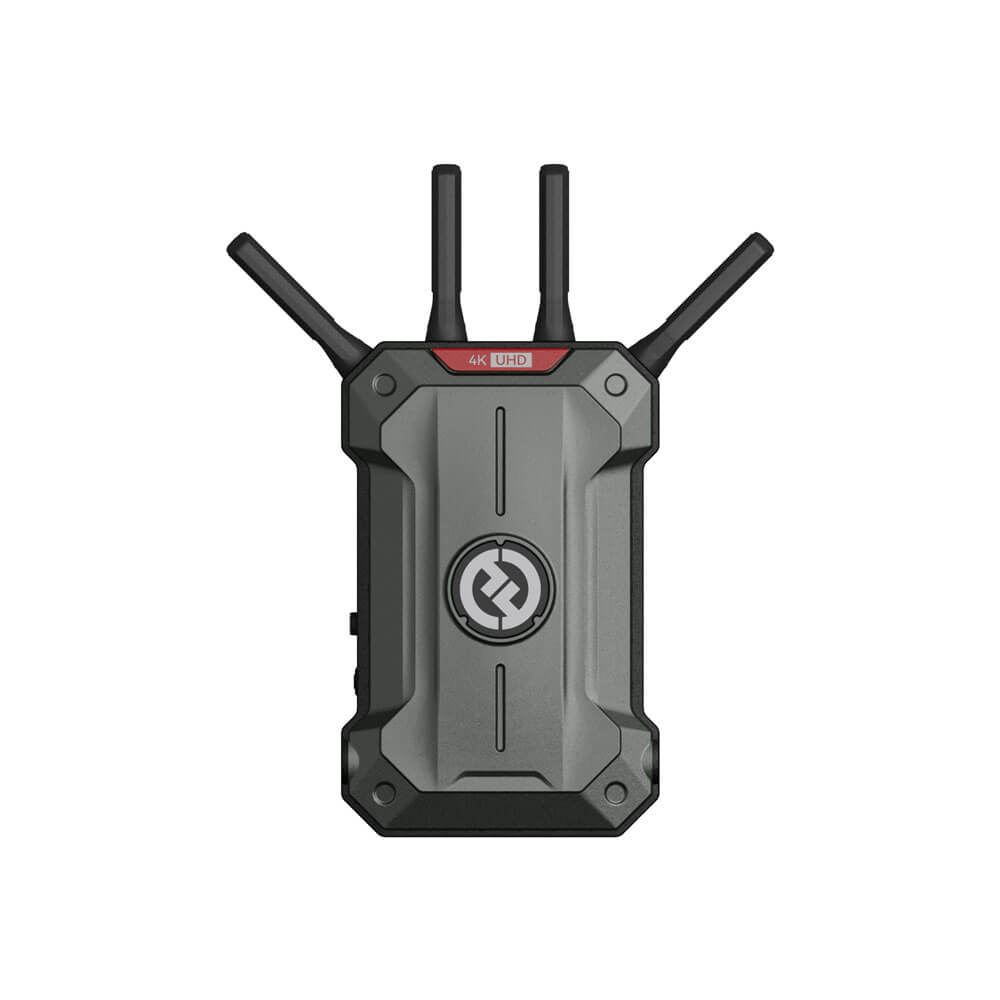

Hollyland Pyro Ultra 1TX & 1RX Wireless Video Transmission System

Hollyland Pyro Ultra 1TX & 1RX Wireless Video Transmission System is designed for production crews that need a complete wireless video link with one transmitter and one receiver. Based on the source images, the kit includes 1 transmitter, 1 receiver, easy-install antennas, a 12V/2A DC power adapter, USB-C OTG adapter, double ball head with cold shoe mount, D-Tap to locking DC power cable, quick guide, and warranty card.

From a broadcast engineering standpoint, this system gives crews a practical camera-to-monitor wireless workflow. The transmitter supports HDMI 2.0 input, HDMI 2.0 loopout, and 3G-SDI input, while the receiver provides HDMI 2.0 output and 3G-SDI output. That makes it useful for camera rigs, director monitoring, video village, production carts, and field review setups.

Highlights

• 1TX and 1RX wireless video system for Pyro Ultra production workflows
• HDMI 2.0 and 3G-SDI support for mixed camera and monitor setups
• HDMI loopout on the transmitter keeps a local monitor path available
• Dual-band operation across 5GHz and 2.4GHz frequency ranges
• Field-ready accessory package includes antennas, power adapter, D-Tap cable, and mounting hardware

Quick Specs & Uses

• Product type: Wireless video transmission system
• Included units: 1 transmitter and 1 receiver

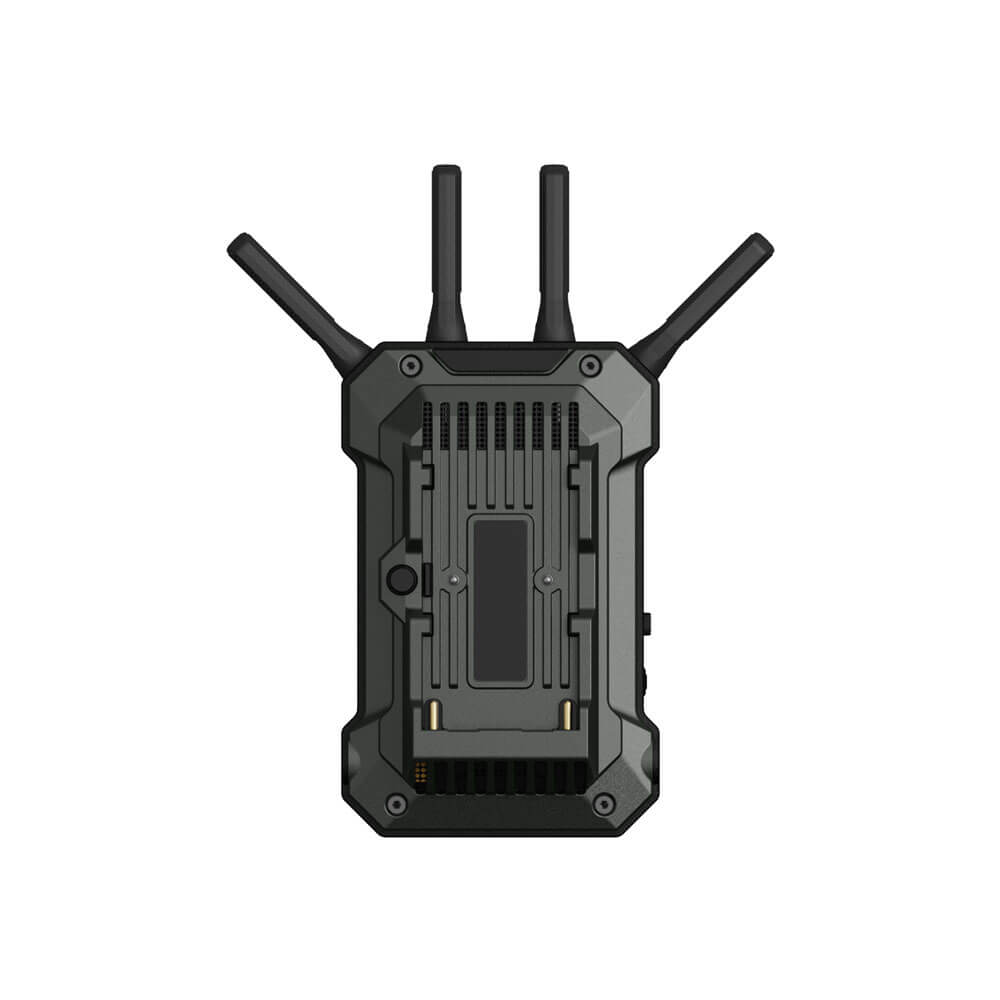

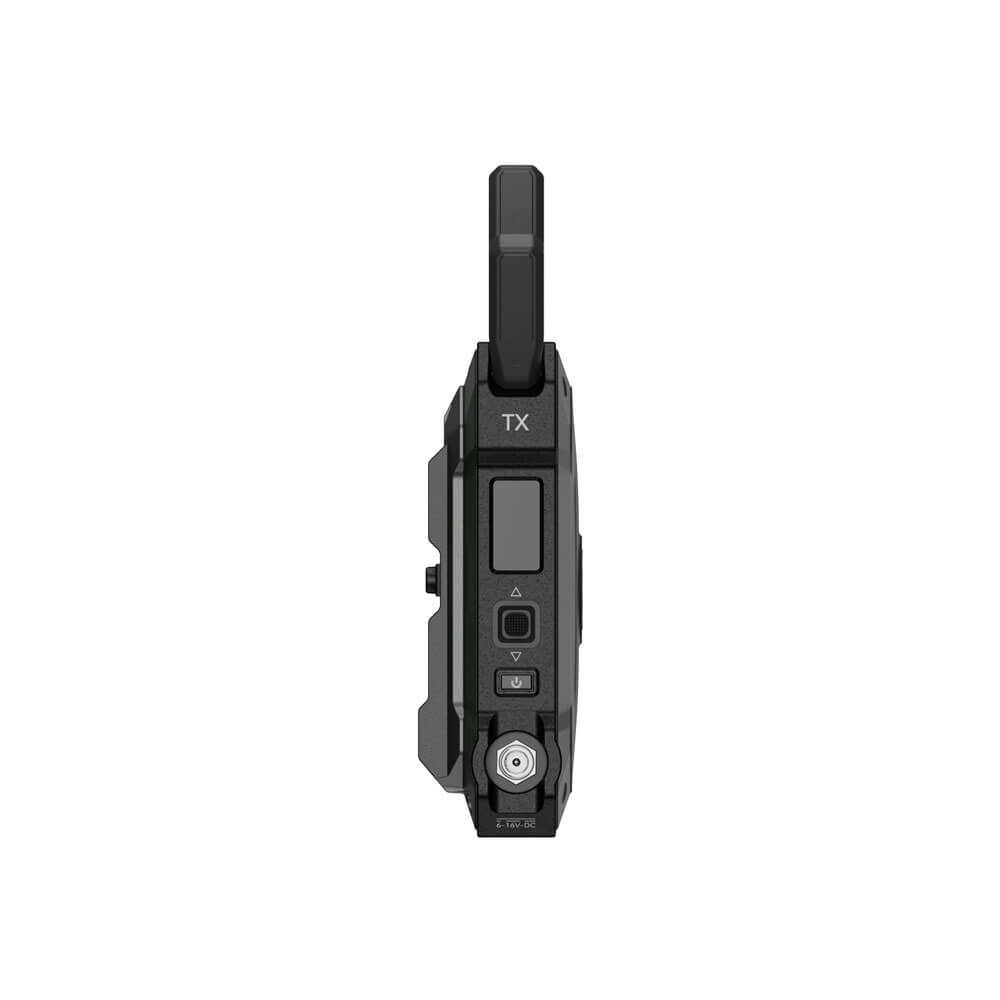

• Transmitter DC input: 2.0 barrel connector

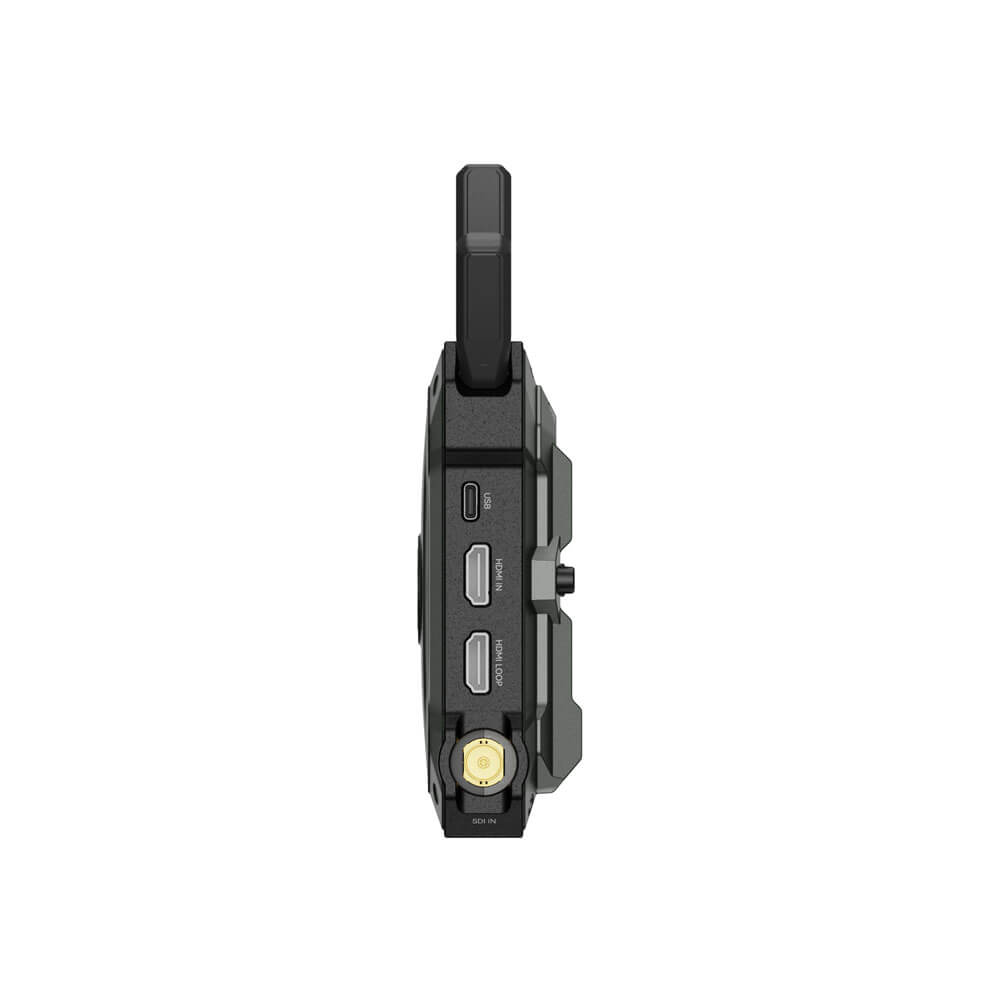

• Transmitter HDMI input: HDMI 2.0
• Transmitter HDMI loopout: HDMI 2.0
• Transmitter SDI input: 3G-SDI
• Transmitter Type-C: USB 2.0

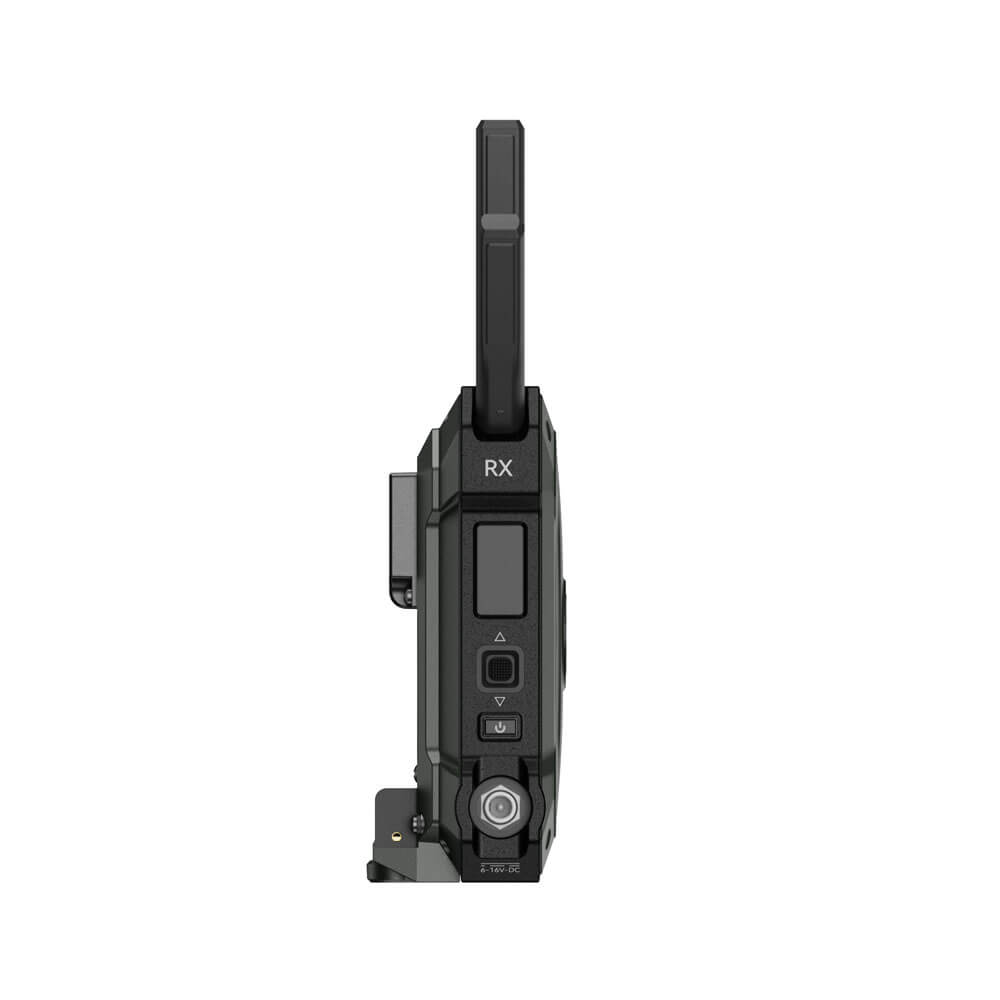

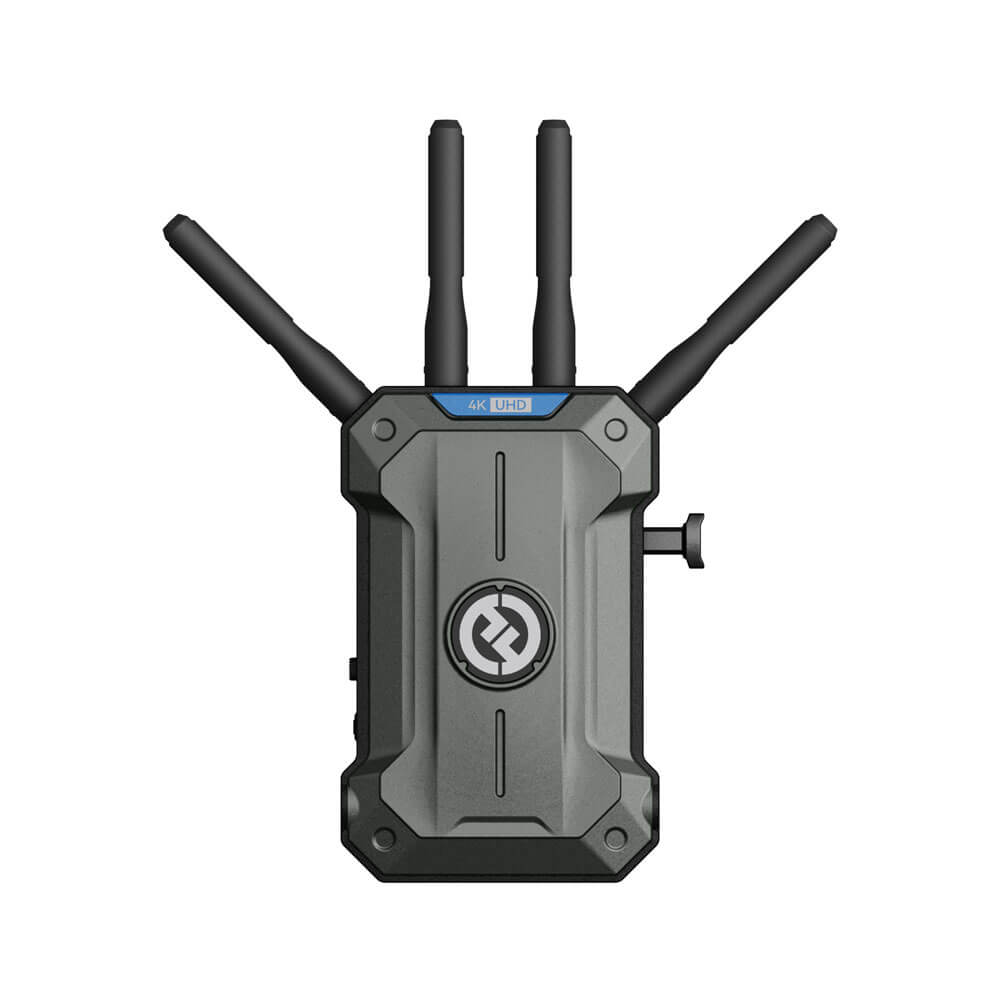

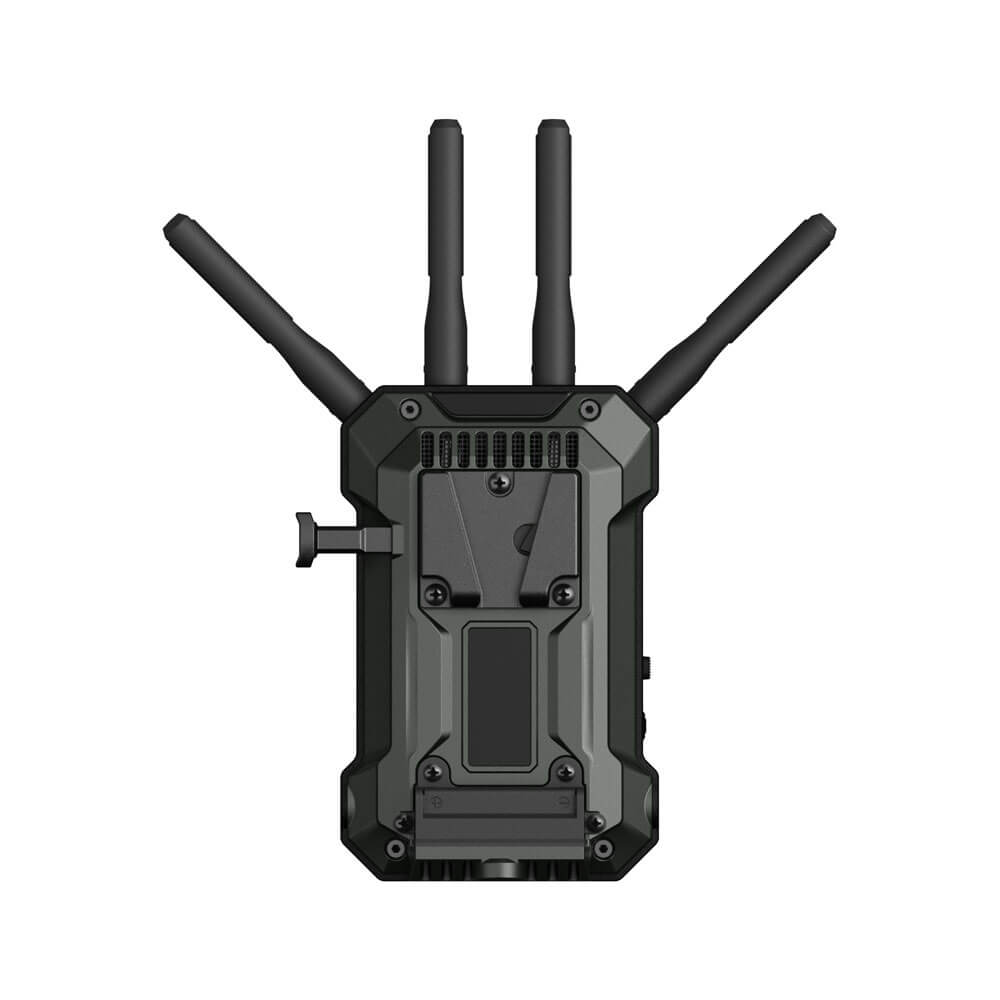

• Receiver DC input: 2.0 barrel connector
• Receiver HDMI output: HDMI 2.0
• Receiver SDI output: 3G-SDI
• Receiver Type-C: USB 3.0
• Antenna: SMA male connector
• Battery power input: 6.8V–8.4V
• DC power input: 6V–16V
• Transmitter power consumption: Non-broadcast 11W; broadcast 14W
• Receiver power consumption: 7W
• TX power: <23dBm
• Receiver sensitivity: Non-broadcast -85dBm; broadcast -80dBm
• HDMI input/output formats: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 4K 3840 x 2160p23.98/24/25/29.97/30/50/59.94/60
• SDI input/output formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/60
• 5GHz operating frequency: 5.150–5.250GHz, 5.250–5.350GHz, 5.470–5.725GHz, 5.725–5.850GHz
• 2.4GHz operating frequency: 2.412–2.484GHz
• Transmission latency: Focus Mode 1080p25 ≥20ms
• Bandwidth: 20MHz; broadcast 40MHz

Why It Helps

For production work, a wireless video system needs to be fast to deploy and easy to integrate. The Pyro Ultra 1TX & 1RX kit gives crews a transmitter for the camera side and a receiver for the monitor side, helping reduce long cable runs across a set, venue, or production space.

The HDMI loopout on the transmitter is a practical field detail. It allows a local monitor feed to stay available near the camera while the receiver sends the wireless feed to a director monitor, video village, switcher path, or production cart.

System Characteristics

• End-to-end wireless video workflow includes both transmitter and receiver
• HDMI and SDI flexibility supports mixed camera and production environments
• Local HDMI loopout helps keep camera-side monitoring available
• Dual-band operation gives crews more flexibility in changing RF conditions
• Included mounting and power accessories support field setup out of the box

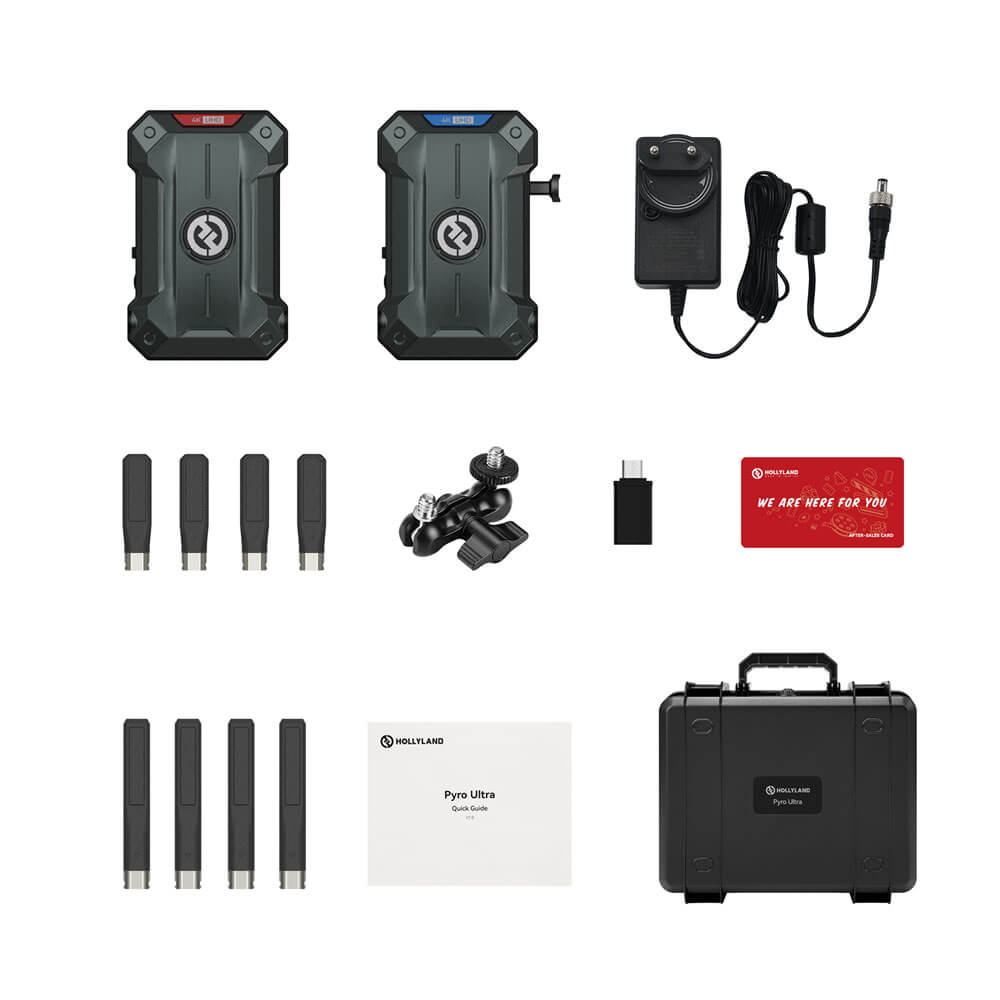

What’s In The Box

• 1 x Transmitter
• 1 x Receiver
• 4 x Easy-Install Short Antenna
• 4 x Easy-Install Antenna
• 1 x 12V/2A DC Power Adapter
• 1 x USB-C OTG Adapter
• 1 x Double Ball Head with Cold Shoe Mount
• 1 x D-Tap to Locking DC Power Cable
• 1 x Quick Guide
• 1 x Warranty Card
