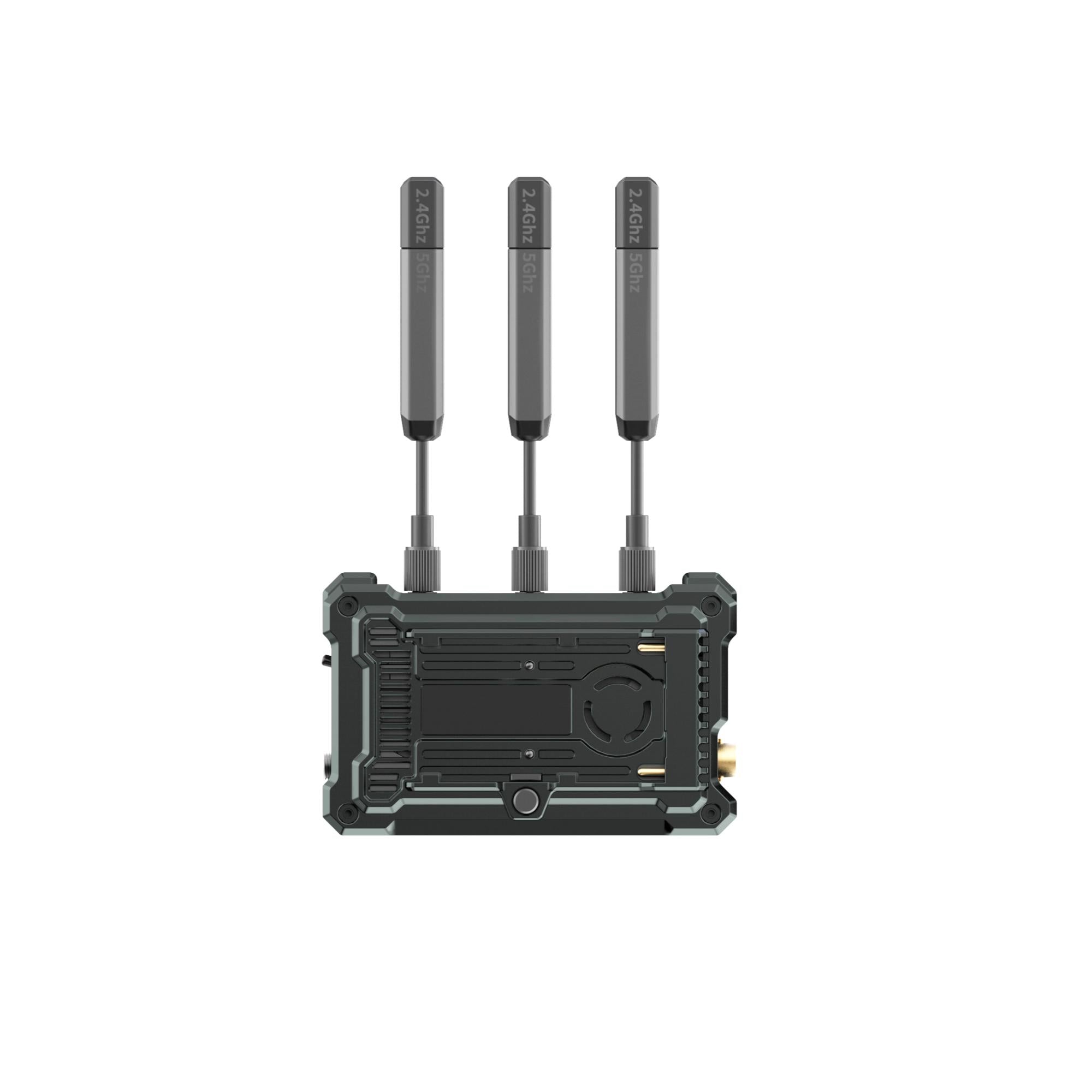

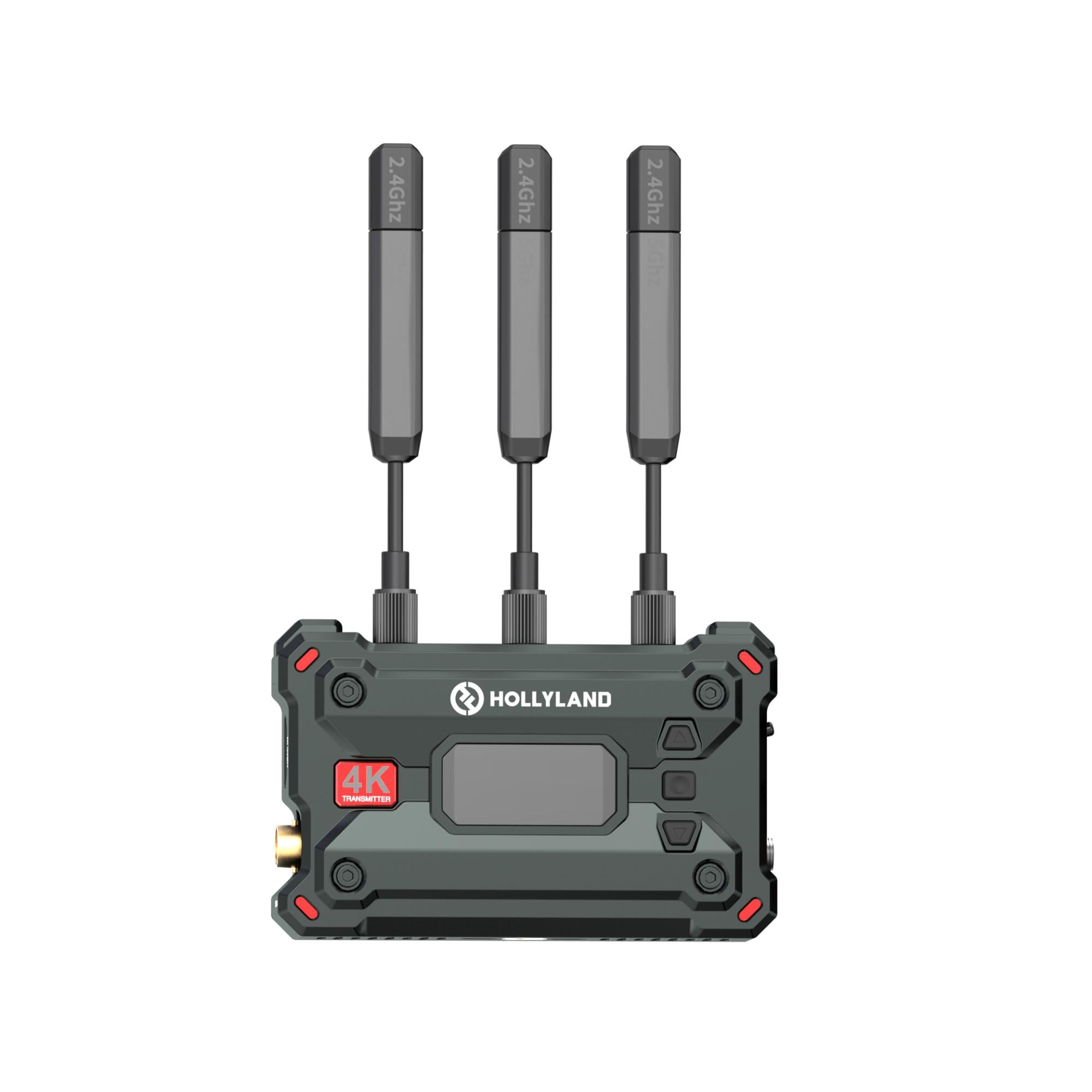

Hollyland Pyro S Wireless Video Transmitter

Hollyland Pyro S Wireless Video Transmitter is designed for production crews that need a compact wireless video transmit point with both HDMI and SDI input options. Based on the source images, it supports HDMI 1.4b input, 3G-SDI input, USB-C OTG, and SMA male antenna connections, making it practical for camera rigs, video assist, director monitoring, and live production workflows.

From a broadcast engineering standpoint, this is the transmit side of the Pyro S wireless video system. It supports both 2.4GHz and 5GHz frequency bands, with transmit power listed at <23dBm. The system also lists latency as low as 50ms, which helps keep wireless monitoring responsive enough for camera, director, and production review use.

Highlights

• Wireless video transmitter for Pyro S video transmission workflows
• HDMI 1.4b and 3G-SDI inputs for flexible camera and source connection
• 2.4GHz and 5GHz band support for wireless video operation
• Low-latency performance listed as low as 50ms
• Battery and DC power support for field and production setups

Quick Specs & Uses

• Product type: Wireless video transmitter
• DC input: 2.0mm core socket
• HDMI input: HDMI 1.4b
• SDI input: 3G-SDI
• USB-C: USB 2.0 OTG
• Antenna: SMA male
• Battery voltage range: 6.8V–8.4V
• DC voltage range: 6V–16V
• Power consumption: <11W
• HDMI input formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 3840x2160 30/25/24/29.97/23.98
• SDI input formats: 1080p60/59.94/50, 1080i60/59.94/50, 1080p30/29.97/25/24/23.98, 720p60/59.94/50, 1080psf23.98/24, 1080psf25/29.97/30
• 5GHz frequency band: 5.150–5.250GHz, 5.250–5.350GHz, 5.470–5.725GHz, 5.725–5.850GHz
• 2.4GHz frequency band: 2.412–2.484GHz
• Transmit power: <23dBm
• Latency: As low as 50ms
• Bandwidth: 20MHz; broadcast mode 40MHz
• Working temperature: -10°C to 45°C
• Storage temperature: -40°C to 60°C

Why It Helps

On set, the transmitter has to sit cleanly on the camera or source side and send a dependable feed without creating a cable mess. The Pyro S Wireless Video Transmitter gives crews both HDMI and SDI input, so it can work with mirrorless cameras, cinema cameras, switcher sources, and production video paths depending on the setup.

The dual-band wireless support is useful when the RF environment changes from job to job. With 2.4GHz and 5GHz operation, paddle antennas, and compact power options, the unit is built for practical wireless video monitoring rather than a fixed rack-only workflow.

System Characteristics

• HDMI and SDI input workflow supports common camera and production source setups
• Dual-band wireless operation gives more flexibility in changing RF environments
• Low-latency transmission supports responsive monitoring for production review
• Compact field-ready design fits camera rigs, carts, and production stations
• Included antennas and mounting accessory support setup out of the box

What’s In The Box

• 1 x Pyro S Wireless Video Transmitter
• 3 x Paddle Antenna (2.4 GHz & 5 GHz)
• 1 x Rotatable Cold Shoe Mount
• 1 x USB-C OTG Adapter
• 1 x User Manual
• 1 x Warranty Card
• 1 x Packing List Card
• 1 x Hollyland Ecosystem Leaflet
