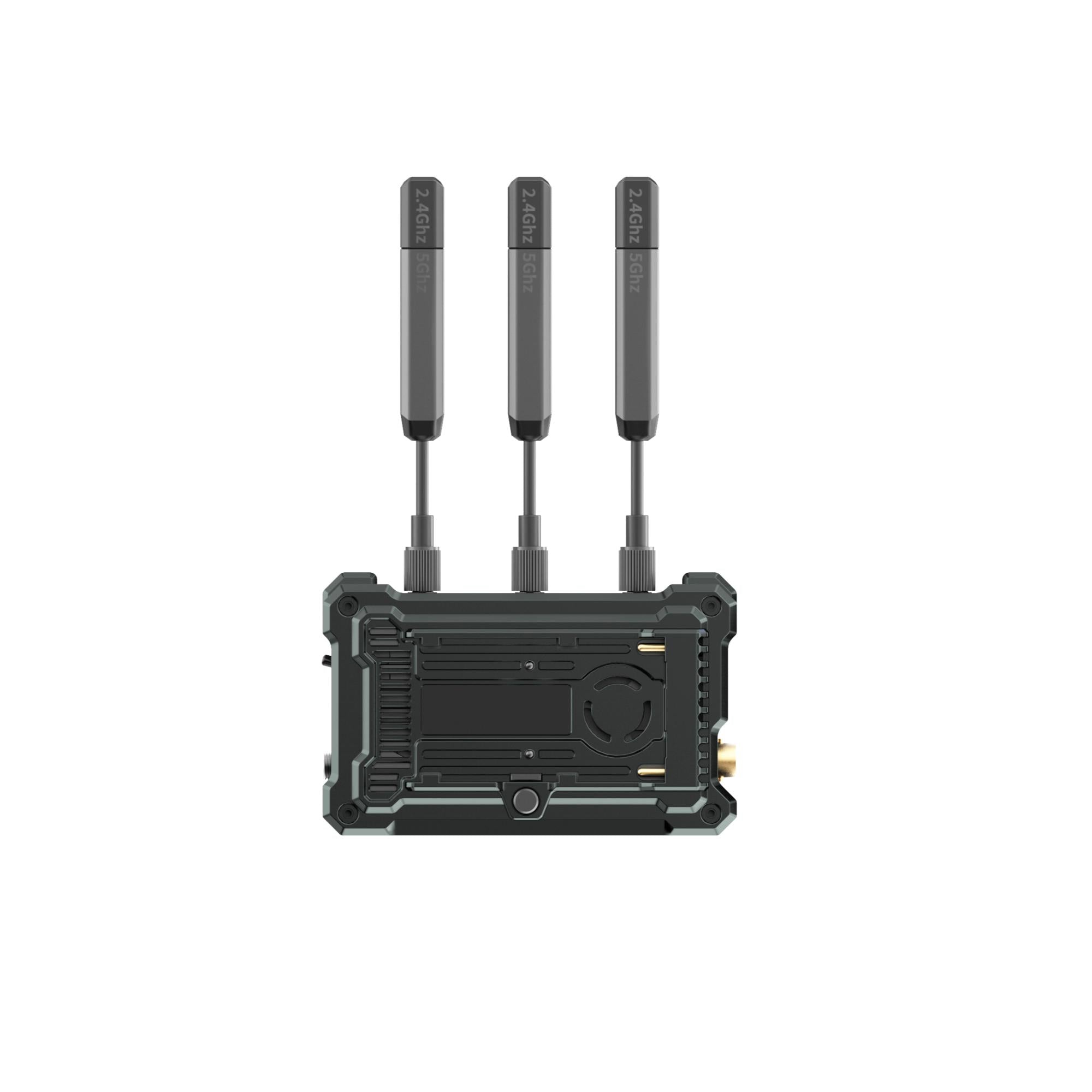

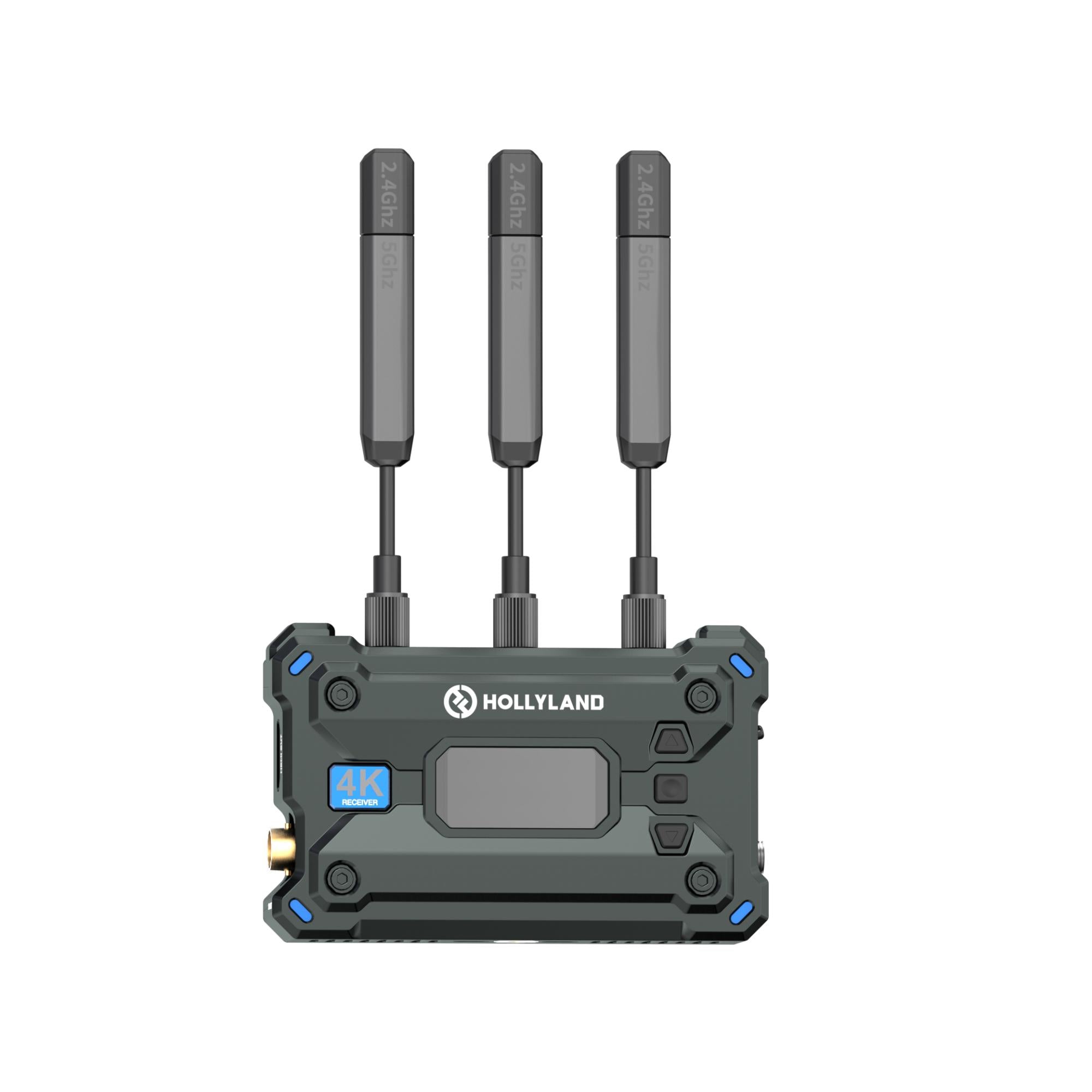

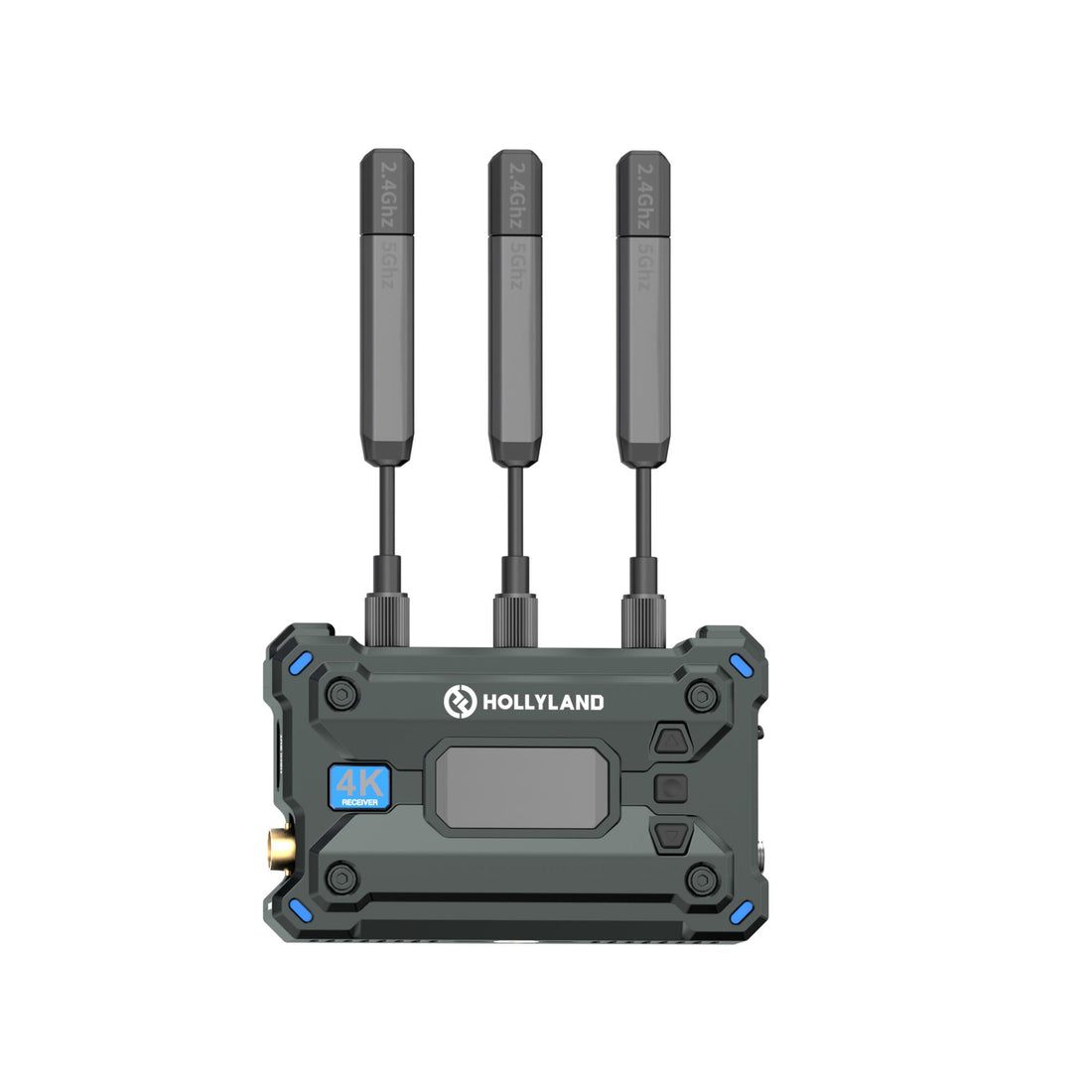

Hollyland Pyro S Wireless Video Receiver

Hollyland Pyro S Wireless Video Receiver is designed for production crews that need a compact wireless video receiving point with both HDMI and SDI output options. Based on the source images, it supports HDMI 1.4b output, 3G-SDI output, USB-C OTG, and SMA male antenna connections, making it practical for director monitors, video village, client viewing, and field monitoring setups.

From a broadcast engineering standpoint, this is the receiving side of the Pyro S wireless video workflow. It supports both 2.4GHz and 5GHz frequency bands, with receiver sensitivity listed at -85dBm and -80dBm in broadcast mode. The system also lists latency as low as 50ms, which helps keep monitoring responsive enough for camera, director, and production review use.

Highlights

• Wireless video receiver for Pyro S video transmission workflows
• HDMI 1.4b and 3G-SDI outputs for flexible monitor and video routing
• 2.4GHz and 5GHz band support for wireless video operation
• Low-latency performance listed as low as 50ms
• Battery and DC power support for field and production setups

Quick Specs & Uses

• Product type: Wireless video receiver
• DC input: 2.0mm core socket
• HDMI output: HDMI 1.4b
• SDI output: 3G-SDI
• USB-C: USB 2.0 OTG
• Antenna: SMA male
• Battery voltage range: 6.8V–8.4V
• DC voltage range: 6V–16V
• Power consumption: <8W
• HDMI output formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 3840x2160 30/25/24/29.97/23.98
• SDI output formats: 1080p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 720p50/59.94/60, 1080p23.98/24, 1080i50/59.94/60
• 5GHz frequency band: 5.150–5.250GHz, 5.250–5.350GHz, 5.470–5.725GHz, 5.725–5.850GHz
• 2.4GHz frequency band: 2.412–2.484GHz
• Receiver sensitivity: -85dBm; broadcast mode -80dBm
• Latency: As low as 50ms
• Bandwidth: 20MHz; broadcast mode 40MHz
• Working temperature: -10°C to 45°C
• Storage temperature: -40°C to 60°C

Why It Helps

On set, a wireless receiver needs to be easy to power, easy to connect, and flexible enough to feed different monitoring setups. The Pyro S Wireless Video Receiver gives crews both HDMI and SDI output, so it can work with production monitors, switcher paths, or client viewing stations depending on the build.

The dual-band wireless support is useful when the RF environment changes from job to job. With 2.4GHz and 5GHz operation, paddle antennas, and compact receiver power options, the unit is built for practical video monitoring rather than a fixed rack-only workflow.

System Characteristics

• HDMI and SDI output workflow supports common production monitoring setups
• Dual-band wireless operation gives more flexibility in changing RF environments
• Low power draw keeps the receiver practical for mobile and battery-powered use
• Compact field-ready design fits camera carts, monitors, and production stations
• Included antennas and power accessories support setup out of the box

What’s In The Box

• 1 x Pyro S Wireless Video Receiver
• 3 x Paddle Antenna (2.4 GHz & 5 GHz)
• 1 x USB-C OTG Adapter
• 1 x User Manual
• 1 x Warranty Card
• 1 x Packing List Card
• 1 x Hollyland Ecosystem Leaflet
• 1 x 12V/2A DC Power Adapter
