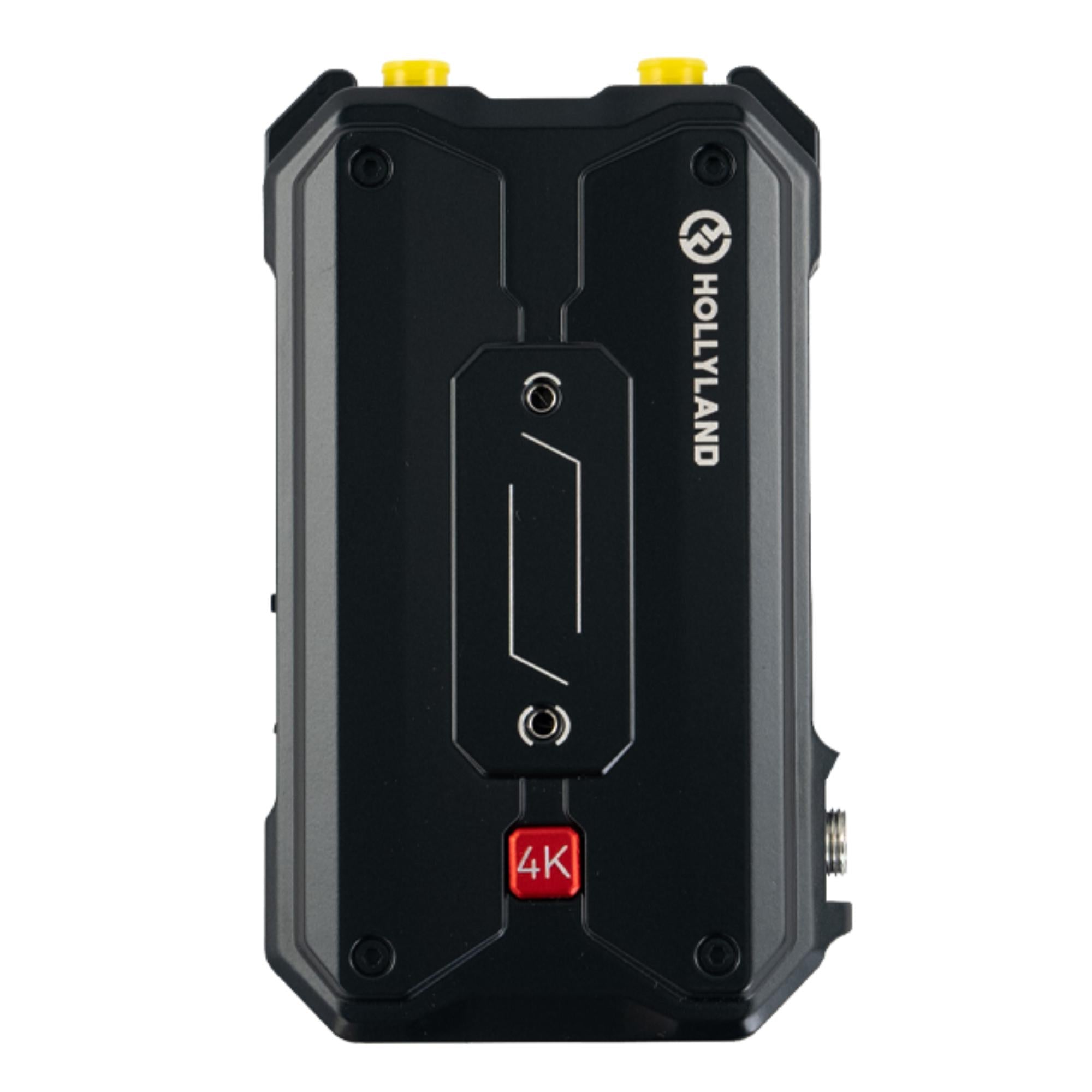

Hollyland Pyro H Wireless Video Transmitter

Hollyland Pyro H Wireless Video Transmitter is designed for production crews that need a compact HDMI wireless video transmit point for camera rigs, monitor feeds, and field production workflows. Based on the source images, it supports HDMI 1.4b input, HDMI 1.4b loopout, USB-C OTG, and SMA male antenna connections.

From a broadcast engineering standpoint, this is the transmit side of the Pyro H wireless video workflow. It supports both 2.4GHz and 5GHz frequency bands, with transmit power listed at <23dBm. The system also lists 0.06s latency and a 1,300ft / 400m range in an open, interference-free environment, which makes it practical for wireless monitoring across sets, venues, and production spaces.

Highlights

• HDMI wireless video transmitter for Pyro H video workflows
• HDMI 1.4b input and loopout for source connection and local monitoring
• 2.4GHz and 5GHz band support for wireless video operation
• 0.06s latency for responsive production monitoring
• Battery, DC, and USB-C power options for field and production setups

Quick Specs & Uses

• Product type: Wireless video transmitter
• DC input: 2.0mm core socket
• HDMI input: HDMI 1.4b
• HDMI loopout: HDMI 1.4b
• USB-C: USB 2.0 OTG
• Antenna: SMA male
• USB-C power: 5V/2A; not supported in Broadcast mode
• Battery voltage range: 6.8V–8.4V
• DC voltage range: 6V–16V
• Power consumption: <7W
• HDMI input formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 4K30/25/24
• HDMI loopout formats: 720p50/60, 1080i50/60, 1080p24/25/30, 1080p50/60, 4K30/25/24
• 5GHz frequency band: 5.150–5.250GHz, 5.250–5.350GHz, 5.470–5.725GHz, 5.725–5.850GHz
• 2.4GHz frequency band: 2.412–2.484GHz
• Transmit power: <23dBm
• Latency: 0.06s
• Range: 1,300ft / 400m in an open, interference-free environment
• Bandwidth: 20MHz; broadcast mode 40MHz

Why It Helps

On set, the transmitter needs to mount cleanly on the camera or video source and send a dependable feed without adding cable clutter. The Pyro H Wireless Video Transmitter gives crews HDMI input and HDMI loopout, so the camera feed can be transmitted wirelessly while still supporting a local monitor path.

The dual-band wireless support is useful when the RF environment changes from job to job. With 2.4GHz and 5GHz operation, compact antennas, and multiple power options, the unit is built for practical wireless monitoring in field production, livestreaming, event coverage, and mobile video setups.

System Characteristics

• HDMI input workflow supports common camera and production source setups
• HDMI loopout support allows a local monitor feed while transmitting wirelessly
• Dual-band wireless operation gives more flexibility in changing RF environments
• Low power draw keeps the transmitter practical for battery-powered rigs
• Included antennas and cold shoe mount support field setup out of the box

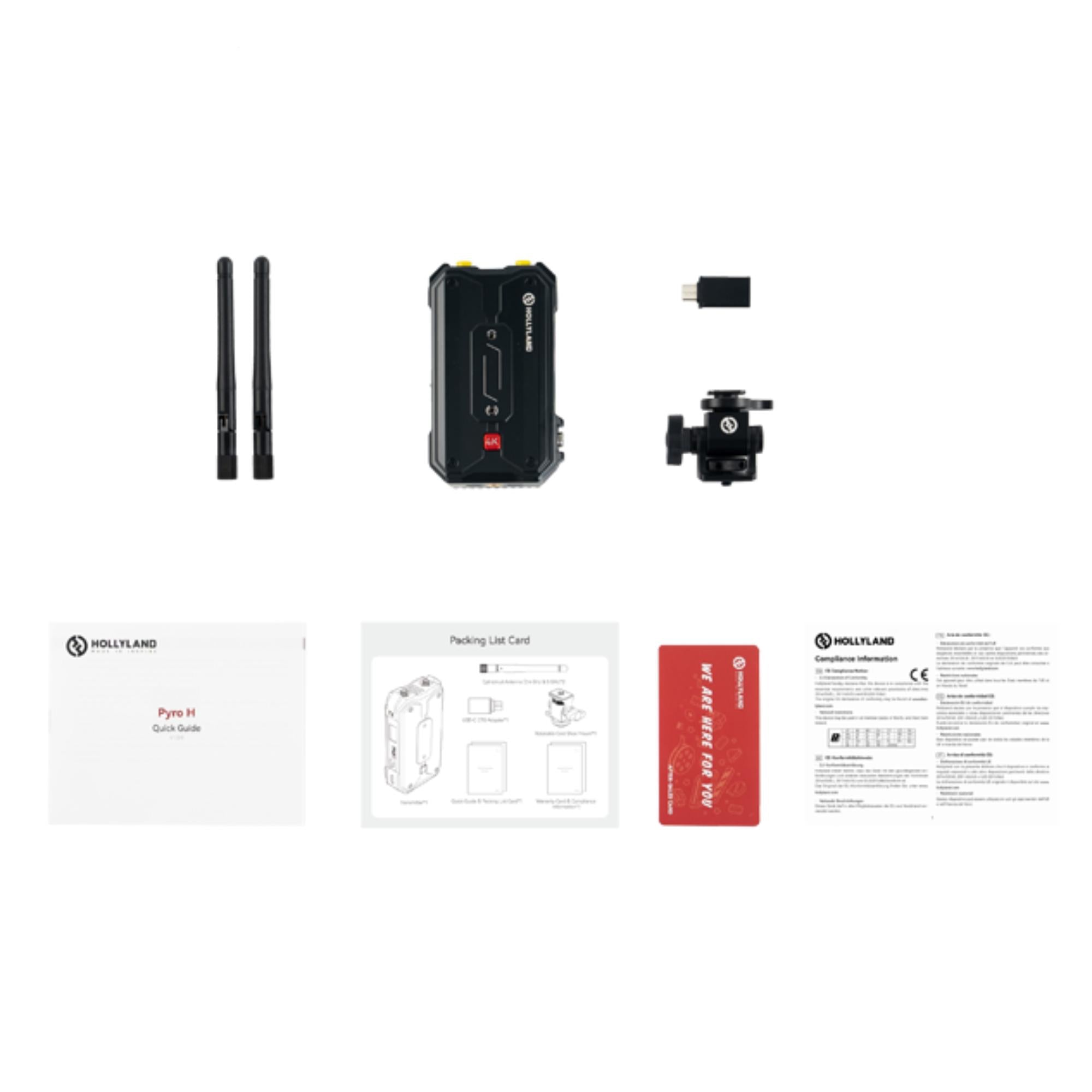

What’s In The Box

• 1 x Pyro H Wireless Video Transmitter
• 2 x Cylindrical Antenna (2.4GHz & 5GHz)
• 1 x Rotatable Cold Shoe Mount
• 1 x USB-C OTG Adapter
• 1 x Quick Guide
• 1 x Warranty Card
• 1 x Packing List Card
• 1 x Compliance Information
