Product Highlights
- 7-inch TX/RX monitor
- 4K60 wireless transmission
- HDMI and SDI I/O
- Camera control built in

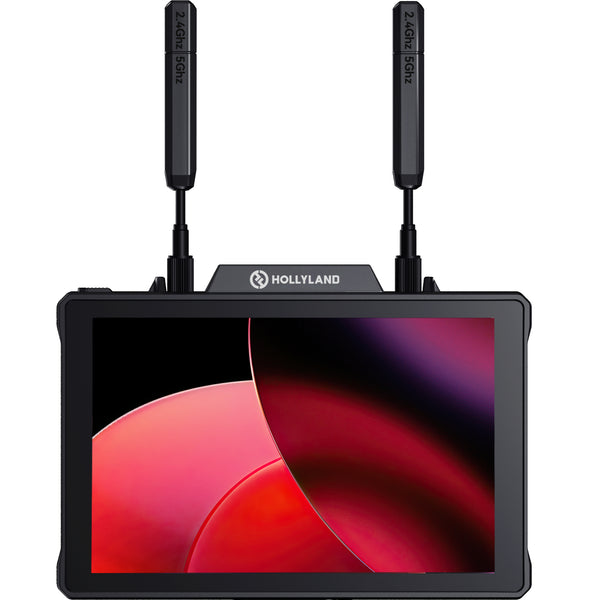

Hollyland Pyro 7 Ultra 7-Inch 4K60 Wireless TX/RX Monitor
- SKU:
- Pyro 7 Ultra
- MPN:
- Pyro 7 Ultra
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Hollyland Pyro 7 Ultra is a professional 7-inch wireless camera monitor that combines TX, RX, and monitoring functions in one production-ready unit. Its QD-LCD panel delivers accurate color, 1500-nit brightness, and wide-gamut coverage for camera operators, focus pullers, and directors. TWiFi dual-band transmission supports 4K60 video, low-latency monitoring, and unlimited receivers in Broadcast Mode. One integrated monitor simplifies the wireless video workflow without sacrificing control.
Integrated 7-Inch Monitor for Cinema Workflows
A 7-inch wireless camera monitor combines the transmitter, receiver, and display in one chassis. The 1920 × 1200 touchscreen gives camera operators a clear view while the same unit can receive a remote feed for focus pulling or director monitoring. The integrated design reduces accessories and keeps the camera rig easier to configure.
1500-Nit Display for Daylight Production
A 1500-nit field monitor remains readable in bright outdoor environments and high-light studio conditions. The QD-LCD optical architecture produces narrow-band red and green light for stronger color purity, while 95% DCI-P3 and 99% Rec.709 coverage support dependable image evaluation on set.
Image Analysis for Faster Exposure and Focus Decisions
On-set image analysis tools provide waveform, histogram, false color, zebra, LUT, focus peaking, anamorphic de-squeeze, framing guides, and image overlays. HollyOS offers direct display controls for brightness, contrast, saturation, sharpness, exposure, color temperature, and RGB gain without requiring a computer.
QD-LCD Color Architecture with Delta E ≤1.5
The QD-LCD optical system uses Quantum Dot Enhancement Film to produce a high-purity RGB spectrum with cinematic depth. Factory calibration through Calman software delivers Delta E ≤1.5, Gamma 2.4, and consistent image reproduction for broadcast, commercial, and narrative production.
PC-Free Calibration for Consistent Production Color
Professional color calibration helps maintain consistent monitoring across production environments. With the optional Hollyland Color Calibrator connected through USB-C, the display can be calibrated without a computer in approximately three minutes.
Remote Camera Control for Focus and Director Monitoring
Integrated camera SDK support enables native control from compatible camera systems. Operators can switch between local camera-top control and long-range wireless control, making the monitor suitable for camera teams, focus pullers, and mobile directors.
Dual-Band Transmission for Reliable Cinema Links
TWiFi establishes synchronized transmission paths across the 2.4 GHz and 5 GHz bands. Automatic frequency hopping helps avoid congested channels in busy production environments while supporting 4K60 video transmission, up to 1 km range, and 20 ms minimum latency in Focus Mode under specified test conditions.
Broadcast Mode supports one transmitter with unlimited receivers, making the system practical for camera operators, focus pullers, directors, and client monitoring stations.
Video I/O

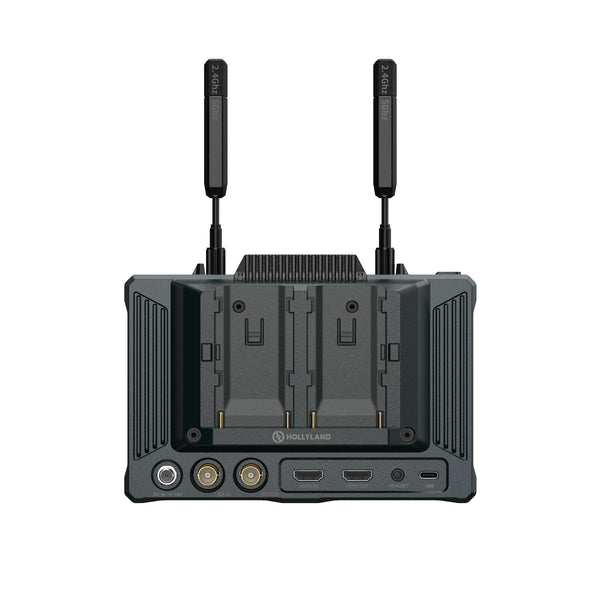

HDMI 2.0, 3G-SDI, HDMI/SDI cross-conversion
Wireless System
TWiFi, 2.4 GHz and 5 GHz, 1 km range
Power

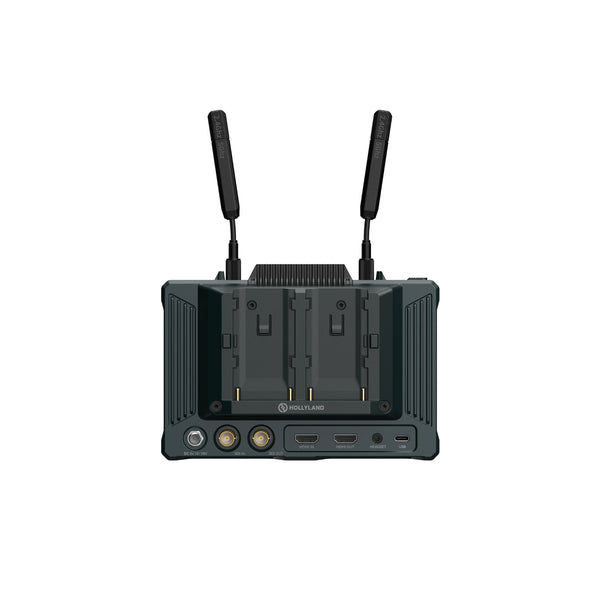

10–28 V DC input and integrated V-Mount plate
Monitoring
3.5 mm headphone output and on-screen analysis tools
Wireless Focus Pulling
Use the integrated receiver and camera control tools to monitor a remote camera while maintaining access to focus and exposure analysis.
Mobile Video Village
Send a clean wireless feed to a mobile director station or client monitor while the camera team continues working on location.
Fast Camera-to-Control-Room Links
HDMI and SDI connectivity, V-Mount power, and long-range wireless transmission support fast deployment for live events and studio production.
Camera Operators
A bright touchscreen, waveform, false color, and focus peaking provide fast on-camera image decisions.
Focus Pullers
Low-latency wireless monitoring and camera control support precision focus work away from the camera.
Directors
Receive a dependable wireless feed for remote review, shot marking, and production supervision.
Broadcast Engineers
HDMI, SDI, cross-conversion, and flexible power make the unit adaptable to professional signal chains.
Live Event Crews
Dual-band transmission and long-range monitoring help teams coordinate cameras in demanding venues.
Hollyland Support
Contact Coremicro for product availability, system compatibility, accessory selection, and guidance on integrating the monitor into your HDMI, SDI, or wireless production workflow.
| Specification | Detail |
|---|---|
| Screen Size | 7.02-inch touchscreen |
| Resolution | 1920 × 1200 |
| Aspect Ratio | 16:9 |
| Brightness | 1500 nits |
| Contrast Ratio | 1000:1 |
| Color Accuracy | ΔE ≤1.5 |
| Color Gamut | Rec.709 ≥99%; DCI-P3 ≥95% |
| Gamma | 2.4 |
| Video Input/Output | HDMI 2.0 and 3G-SDI |
| HDMI Input | Up to 4K60 |
| Wireless Transmission | TWiFi dual-band, 2.4 GHz and 5 GHz |
| Transmission Range | Up to 1 km |
| Transmission Latency | Minimum 20 ms in Focus Mode under specified conditions |
| Receiver Capacity | 1 TX and unlimited RX in Broadcast Mode |
| Antenna Interface | 4 × SMA male |
| Power Input | DC input 2.0 mm and V-Mount battery |
| Supply Voltage | 10–28 V |
| Power Consumption | TX ≤25 W; RX ≤20 W |
| Monitoring Output | 3.5 mm headphone jack |
| Data Port | USB-C 2.0 |
| Operating Frequency | 5.1–5.8 GHz and 2.412–2.484 GHz |
| Net Weight | ≤630 g |
| Dimensions | 180 × 116 × 46.2 mm including battery plate |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -40°C to 60°C |
Ready to Add Pyro 7 Ultra to Your Production?
Coremicro is an authorized Hollyland dealer with experience supporting wireless video, camera monitoring, HDMI, and SDI workflows for broadcast, cinema, and live production. Contact us to confirm compatibility with your signal chain.
Talk to a SpecialistSpecifications
Hollyland Pyro 7 Ultra 7-Inch 4K60 Wireless TX/RX Monitor Specifications
