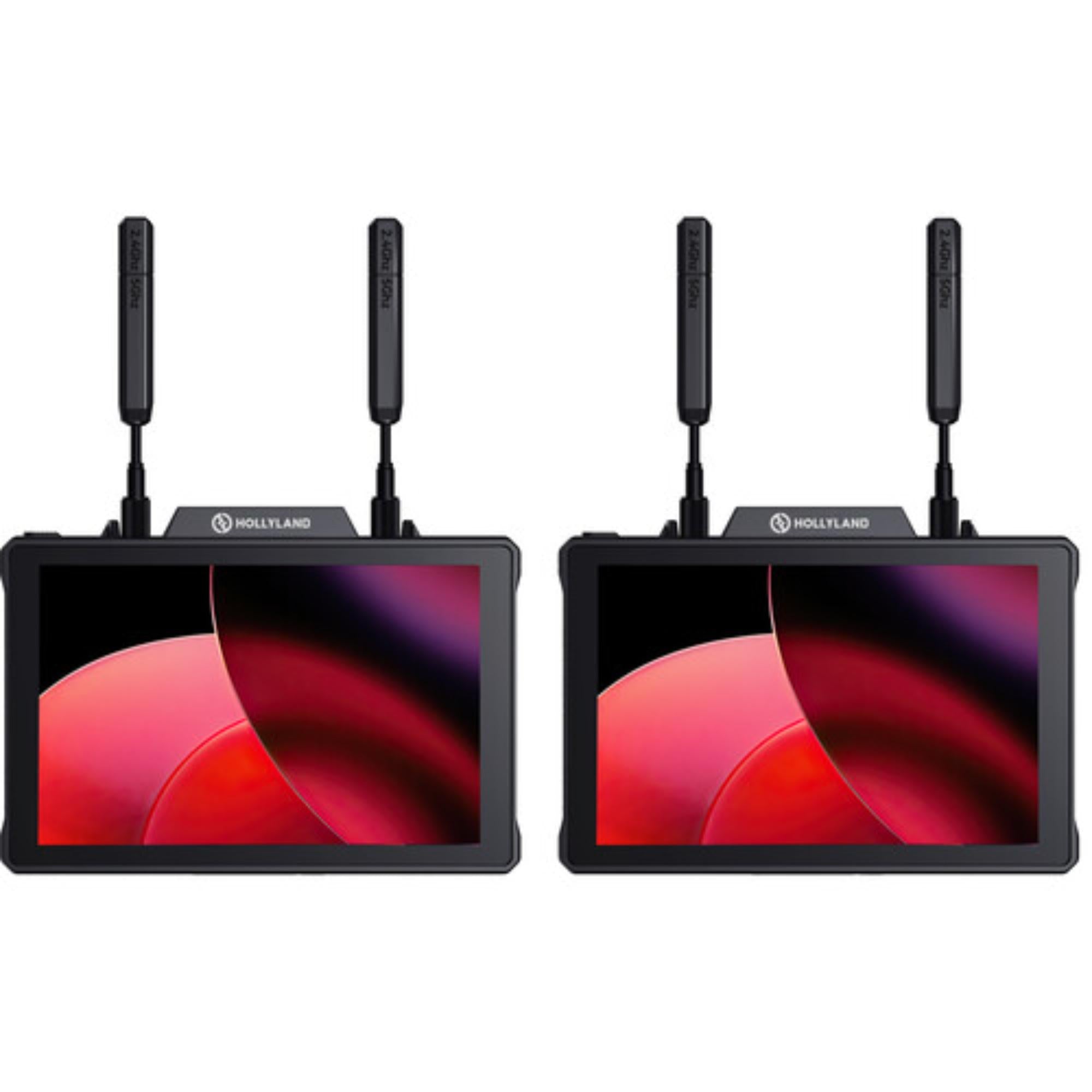

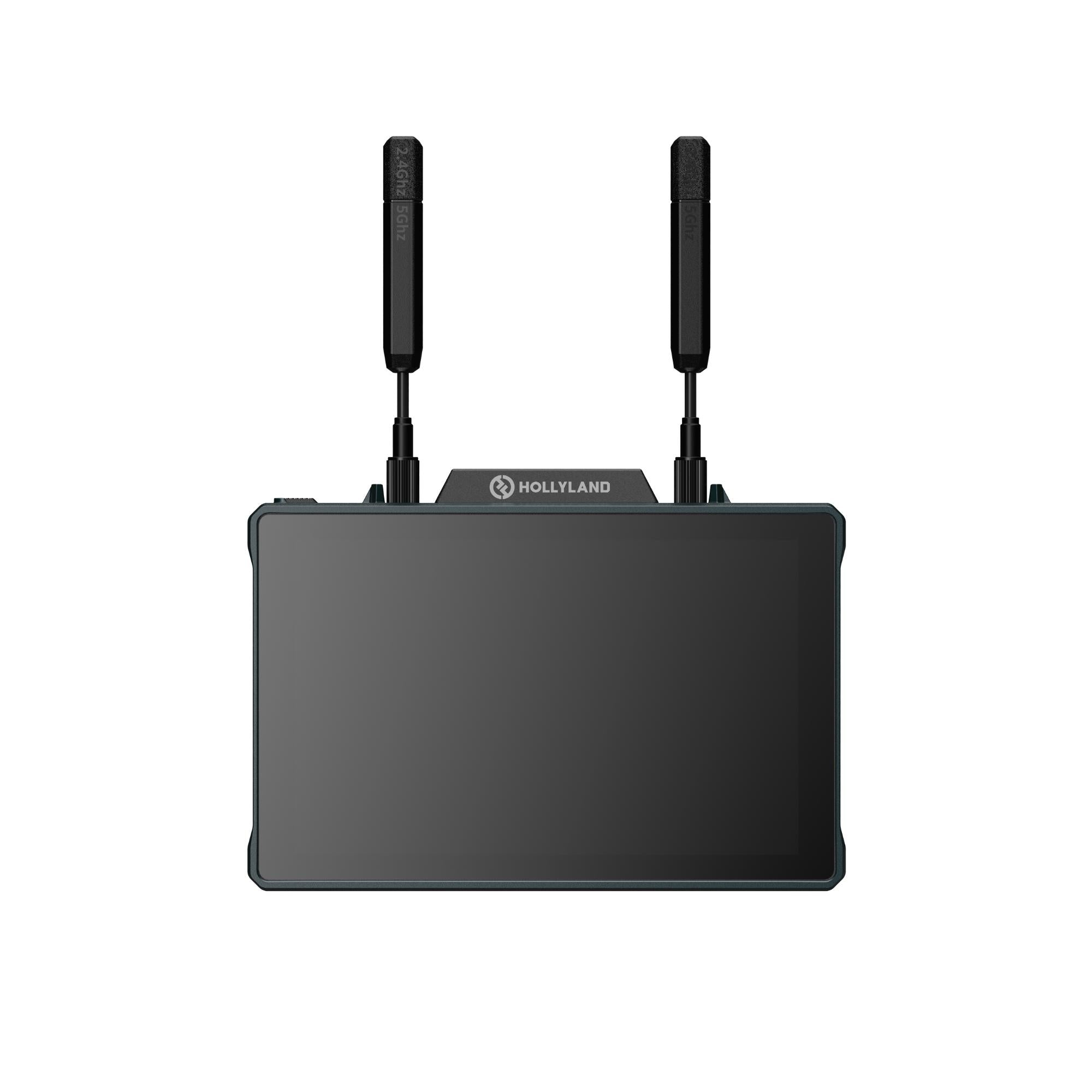

Hollyland Pyro 7 Kit Dual 7" Wireless Transceiving Monitor

Hollyland Pyro 7 Kit Dual 7" Wireless Transceiving Monitor is designed for production crews that need a two-monitor wireless video workflow with built-in transmit, receive, and field monitoring capability. Based on the source images, the kit includes 2 Pyro 7 wireless transceiving monitors, paddle antennas, D-Tap power cables, USB-C OTG adapter, secure digital memory cards, user manual, warranty card, and Hollyland ecosystem leaflet.

From a broadcast engineering standpoint, this dual-monitor kit helps reduce the number of separate boxes needed on set. Each Pyro 7 combines a 7" touchscreen, 1920 x 1200 resolution, 1500-nit brightness, HDMI 1.4b and 3G-SDI input/output, and wireless operation across 5.1–5.8GHz and 2.412–2.484GHz. That makes the kit practical for camera teams, director stations, video village, livestream setups, and mobile production carts.

Highlights

• Dual wireless transceiving monitor kit for flexible production video workflows
• Two 7" touchscreen monitors with 1920 x 1200 resolution and 1500-nit brightness
• HDMI 1.4b and 3G-SDI input/output for mixed camera, monitor, and routing setups
• Dual-band wireless operation across 5.1–5.8GHz and 2.412–2.484GHz
• 1,300ft / 400m LOS range, with 650ft / 200m listed in Broadcast mode

Quick Specs & Uses

• Product type: Dual wireless transceiving monitor kit
• Screen size: 7" touchscreen
• Screen resolution: 1920 x 1200 pixels
• Pixel density: 323 PPI
• Aspect ratio: 16:9
• Screen brightness: 1500 nits
• Contrast ratio: 1000:1

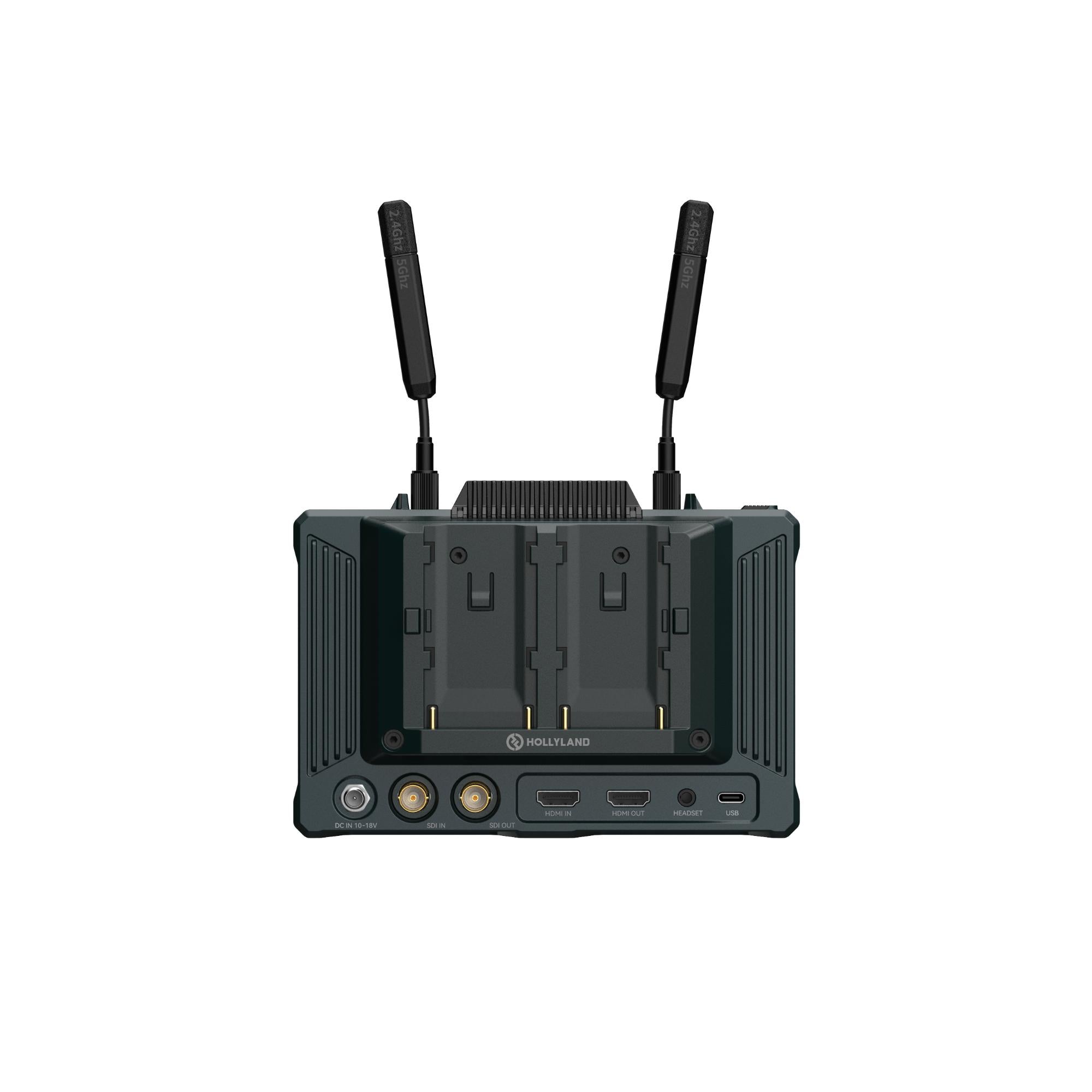

• Input port: HDMI 1.4b + 3G-SDI
• Output port: HDMI 1.4b + 3G-SDI
• Antenna: RP-SMA male x 2
• Power input: DC input, 2.0mm core socket
• Headphone jack: 3.5mm
• Upgrade port: USB-C USB 2.0 OTG, SD card slot
• Power input voltage: 10–18V / 2.5A DC input, nominal 12V
• Power consumption: <22W
• Operating frequency: 5.1–5.8GHz; 2.412–2.484GHz
• Transmit power: ≤23dBm
• Receiver sensitivity: -80dBm
• Display latency: <50ms
• Transmission latency: ≈60ms when 1080p60 signals are transmitted in a laboratory
• LOS range: 1,300ft / 400m; 650ft / 200m in Broadcast mode
• Bandwidth: 20MHz; 40MHz in Broadcast mode
• Audio format: HDMI 1.4b 8-channel
• Operating temperature: -10°C to 45°C
• Storage temperature: -40°C to 60°C

Why It Helps

On set, a dual-monitor wireless kit gives the crew more flexibility without adding a pile of separate transmitters, receivers, and display hardware. One Pyro 7 can sit with the camera team, while the second can serve a director, focus puller, producer, or video village position depending on the workflow.

The HDMI and SDI support matters in mixed production environments. The kit can work with cinema cameras, switchers, production monitors, and SDI-based video paths without forcing the whole setup through one connector type. The 1500-nit display also helps when the monitors need to stay visible in bright production spaces.

System Characteristics

• Two-monitor wireless workflow supports camera, director, and video village setups
• Transceiving monitor design reduces the need for separate wireless video boxes
• Bright touchscreen display supports field viewing in demanding environments
• HDMI and SDI routing fits mixed broadcast, cinema, and livestream setups
• Included D-Tap power cables and memory cards support field deployment out of the box

What’s In The Box

• 2 x Pyro 7 Wireless Transceiving Monitor
• 5 x Paddle Antenna (2.4 GHz & 5 GHz)
• 1 x USB-C OTG Adapter
• 2 x D-Tap to Locking DC Power Adapter Cable
• 1 x Hollyland Ecosystem Leaflet
• 2 x Secure Digital Memory Card (32G)
• 1 x User Manual
• 1 x Warranty Card
