Hollyland Pyro 5 Wireless Transceiving Monitor

Hollyland Pyro 5 Wireless Transceiving Monitor is designed for production crews that need a compact field monitor with built-in wireless transmit and receive capability. Based on the source images, it features a 5.5" touchscreen, 1920 x 1080 resolution, 1500-nit brightness, HDMI 1.4b and 3G-SDI input support, USB-C OTG, SD card support, and wireless operation across 2.4GHz and 5GHz bands.

From a broadcast engineering standpoint, the Pyro 5 is useful because it combines monitoring and wireless video workflow in one compact unit. In transmitter mode, it supports HDMI 1.4b + 3G-SDI input. In receiver mode, it supports HDMI 1.4b output. That makes it practical for camera rigs, director monitoring, video assist, livestream builds, and compact field setups where fewer separate boxes can make the day run smoother.

Highlights

• 5.5" wireless transceiving monitor for field monitoring and wireless video workflows
• 1920 x 1080 touchscreen display with 1500-nit brightness
• Transmitter mode supports HDMI 1.4b and 3G-SDI input
• Receiver mode supports HDMI 1.4b output
• Dual-band wireless operation across 2.4GHz and 5GHz frequency ranges

Quick Specs & Uses

• Product type: Wireless transceiving monitor
• Screen size: 5.5" touchscreen
• Screen resolution: 1920 x 1080 pixels
• Color gamut: Rec.709
• Aspect ratio: 16:9
• Screen brightness: 1500 nits
• Contrast ratio: 1000:1
• Input port: Transmitter mode HDMI 1.4b + 3G-SDI; receiver mode /
• Output port: Transmitter mode loop-out HDMI 1.4b; receiver mode HDMI 1.4b
• Antenna: SMA male
• Power input: DC input, 2.0mm core socket
• Headphone jack: 3.5mm
• Upgrade port: USB-C USB 2.0 OTG / SD card slot
• Power input voltage: NPF 6V–16V; DC-in 10–18V DC
• Power consumption: Transmitter mode <16.5W; receiver mode <14W
• Operating frequency: 5.150–5.250GHz, 2.412–2.484GHz, 5.250–5.350GHz, 5.470–5.600GHz, 5.600–5.725GHz, 5.725–5.850GHz
• Transmit power: Transmitter mode <23dBm
• Receiver sensitivity: Receiver mode unicast -85dBm; broadcast -80dBm
• Transmission latency: ≈60ms, tested in a laboratory environment with 1080p60 signal transmission
• Bandwidth: Unicast 20MHz; broadcast 40MHz
• Operating temperature: -10°C to 45°C
• Storage temperature: -40°C to 45°C

Why It Helps

On set, a compact monitor that can also transmit or receive wireless video helps simplify the build. The Pyro 5 can sit on a camera rig, in a handheld monitoring setup, or at a small production station without requiring a separate wireless box for every job.

The 1500-nit display is also important for field work. Bright screens are easier to judge in outdoor or high-ambient-light locations, and the HDMI/SDI support gives crews more flexibility when working with mixed camera and production gear.

System Characteristics

• Monitor, transmitter, and receiver workflow reduces the need for separate wireless video hardware
• Bright 5.5" touchscreen supports compact field viewing
• HDMI and SDI input support fits common camera and production source setups
• Dual-band wireless operation gives flexibility in changing RF environments
• Included screen protector and antennas support setup and protection out of the box

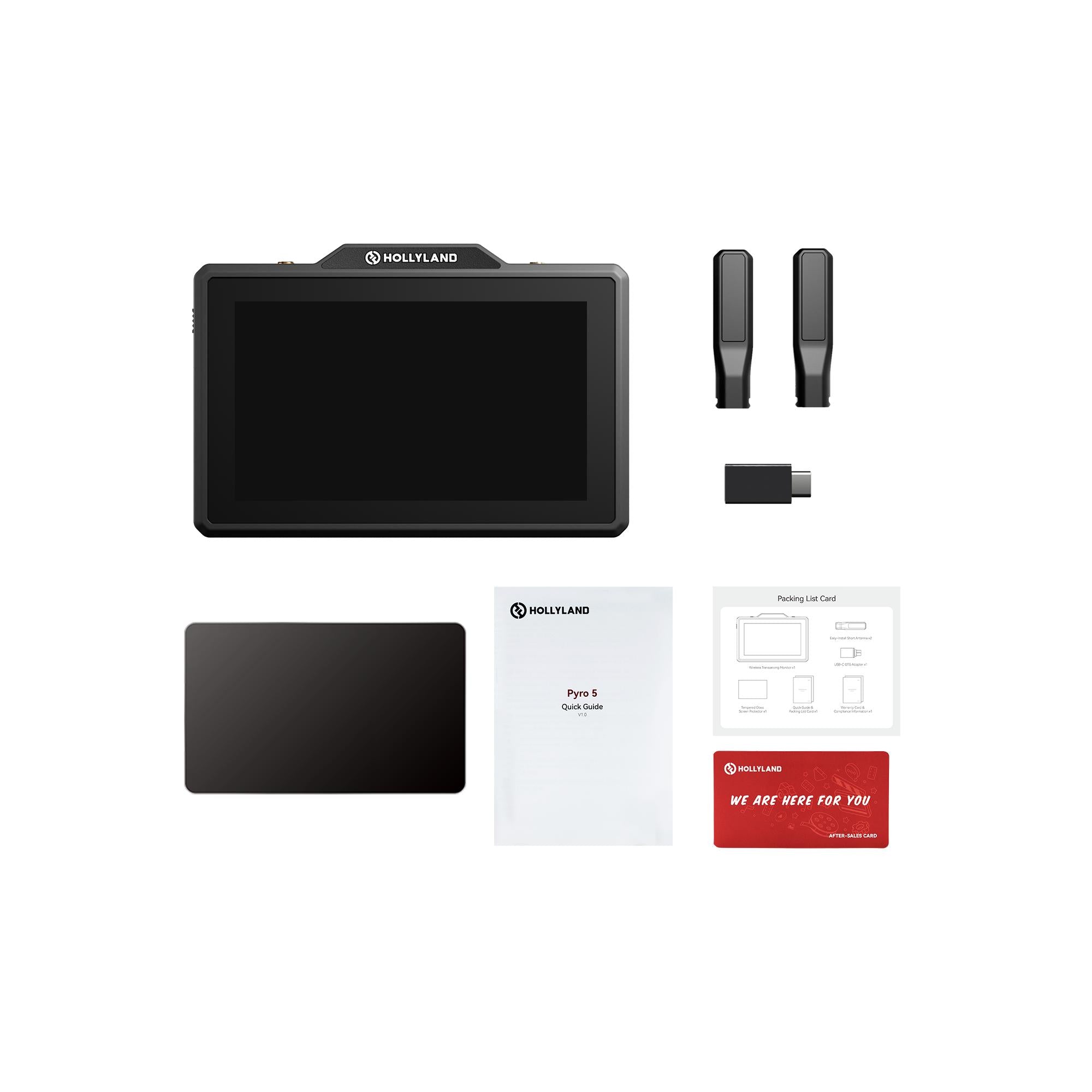

What’s In The Box

• 1 x Pyro 5 Wireless Transceiving Monitor
• 2 x Easy-Install Short Antenna
• 1 x Quick Guide
• 1 x Warranty Card
• 1 x Tempered Glass Screen Protector
• 1 x Packing List Card
• 1 x USB-C OTG Adapter
