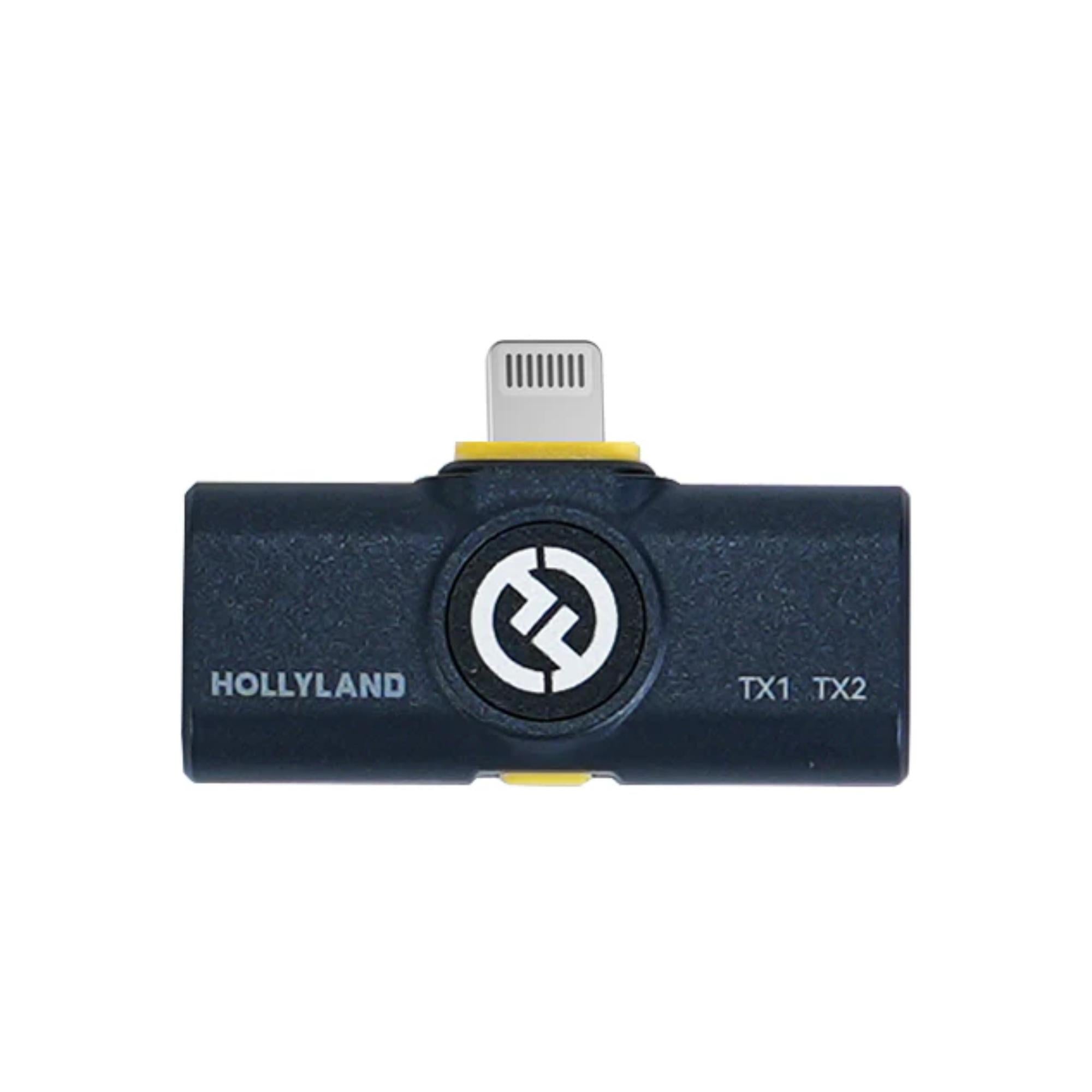

Hollyland LARK M2 Lightning Receiver (Shine Charcoal)

Hollyland LARK M2 Lightning Receiver (Shine Charcoal) is built for creators and mobile production teams working directly with Lightning-equipped Apple devices. Based on the provided specifications, the receiver operates on 2.4 GHz Adaptive Frequency Hopping (AFH) technology and supports 24-bit / 48 kHz wireless audio transmission for compact field recording workflows.

For broadcast engineers, mobile journalists, livestream operators, and content creators, the LARK M2 Lightning Receiver keeps the signal chain lightweight while maintaining dependable wireless performance during fast-paced productions.

Key Features

• Lightning receiver design for direct connection to compatible Apple devices
• 2.4 GHz AFH wireless transmission for stable audio performance
• 24-bit / 48 kHz audio processing suitable for professional content workflows
• Compact and lightweight housing for mobile production setups
• Long-distance wireless capability with listed LOS transmission up to 1000 ft (300m)

Technical Overview

• Wireless modulation mode: GFSK 2 Mbps
• Wireless transmission: 2.4 GHz Adaptive Frequency Hopping (AFH)
• Transmission range: Mobile Version: Up to 1000 ft (300m) LOS / 200 ft (60m) NLOS; Camera Version: Up to 1000 ft (300m) LOS / 130 ft (40m) NLOS
• Mic sensitivity: -37 dBV ± 2dB @ 1 KHz, 94dB SPL
• Mic polar pattern: Omnidirectional
• Frequency response: 20 Hz–20 kHz
• Signal-to-noise ratio: >70dB
• Sound pressure level: 115dB SPL
• Bit depth: 24-bit
• Sample rate: 48 kHz

Battery & Power Specifications

• Battery voltage: TX: 3.87V; Camera Version RX: 3.87V; Mobile Version Charging Case: 3.8V; Camera Version Charging Case: 3.8V
• Battery capacity: TX: 97 mAh; Camera Version RX: 145 mAh; Mobile Version Charging Case: 750 mAh; Camera Version Charging Case: 1950 mAh
• Operating time: TX: About 10 hours; Camera Version RX: About 9 hours
• Charging time: TX: About 1.5 hours; Camera Version RX: About 1.5 hours; Mobile Version Charging Case: <1.5 hours; Camera Version Charging Case: <2 hours
• Charging temperature: 0°C to 45°C
• Operating temperature: -10°C to 45°C

Physical Specifications

• Dimensions: 95 x 95 x 40 mm (3.74 x 3.74 x 1.57 in)
• Weight: 0.0565 kg (0.125 lbs)
• Finish: Shine Charcoal

Field Notes from a Broadcast Workflow Perspective

In real-world production environments, smaller receivers often make a bigger difference than people expect. The LARK M2 Lightning Receiver keeps the rig clean, especially when working handheld, on a gimbal, or during quick ENG-style interviews. With direct Lightning connectivity and compact dimensions, it fits naturally into mobile-first shooting setups where cable management and fast turnaround matter.

The listed AFH wireless transmission system is designed to help maintain signal reliability in busy RF environments, while the 24-bit / 48 kHz audio structure supports cleaner post-production handling for dialogue, interviews, and creator content.

What’s in the Box

1 x Lightning Plug RX
1 x Warranty Card
1 x Quick Guide & Packing List Card

Ideal Applications

• Mobile journalism and ENG production
• Creator livestream setups
• Interview recording
• Wireless audio for iPhone-based video workflows
• Run-and-gun production environments
