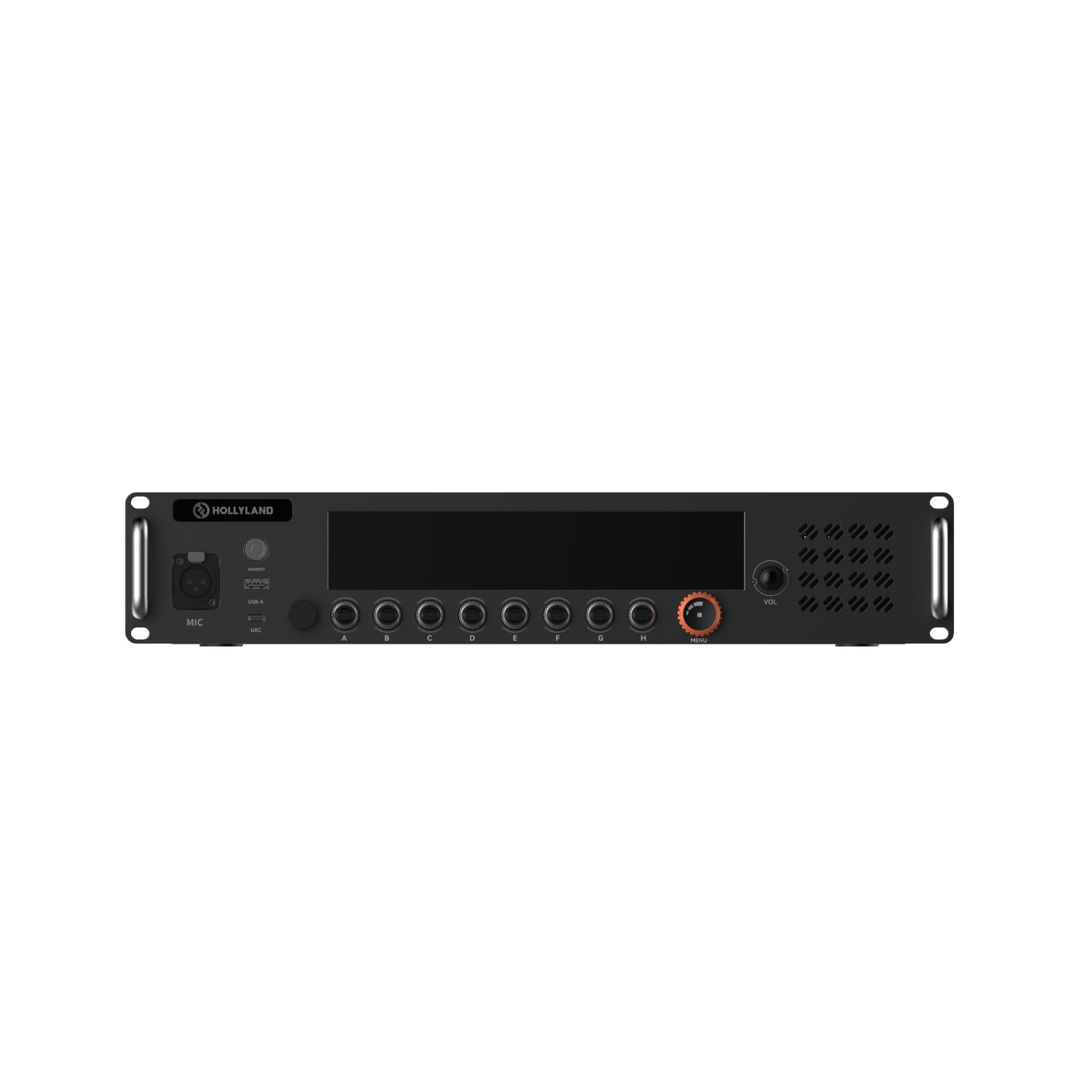

Hollyland Geo Central Station

Hollyland Geo Central Station is the rack hub for a production communication system, giving the crew one place to manage power, connection, and talkback. Based on the source images, it supports AC input, DC input, PoE output, and LEMO audio connectivity, which makes it a practical fit for control rooms, live event racks, and mobile production builds.

The power side is where this unit starts to make sense in the field. It accepts 85V–264V AC input or 46V–54V DC input, and it can deliver 120W total PoE output with up to 60W per port. For a system tech, that means fewer separate power runs and a cleaner rack when connected devices need power from the central station.

Highlights

• Central station design for crew communication and production coordination
• 120W total PoE output with up to 60W available per port
• AC and DC input support for flexible power setups
• LEMO audio connectivity for voice-focused communication workflows
• Rack-style form factor for control rooms, live events, and mobile production systems

Quick Specs & Uses

• Product type: Central station
• Total power consumption: 44W
• PoE output power: 120W total; 60W per port
• DC input voltage: 46V–54V
• AC input voltage: 85V–264V
• Dimensions: 482.6mm x 88.1mm x 385mm
• Weight: 7.25kg
• Operating temperature: -10°C to 45°C
• Storage temperature: -20°C to 60°C
• LEMO audio frequency response: 150Hz–7kHz
• Maximum input SPL: 115dB SPL
• Noise cancellation depth: 20dB
• Distortion: <1%
• Signal-to-noise ratio: 67dB
• Output SPL level: 113dB SPL max

Why It Helps

Comms are one of those things nobody wants to think about once the show is live. They just need to work. The Geo Central Station gives the crew a dedicated base station with power handling, PoE support, and voice communication built into the same rack-style unit. That helps keep the setup cleaner, especially when the system is used for long events or shared between production spaces.

The LEMO audio specs are clearly aimed at speech, not music playback. The 150Hz–7kHz frequency response, 20dB noise cancellation depth, and 67dB signal-to-noise ratio all point toward clear crew communication during live operation.

System Characteristics

• Centralized rack workflow keeps communication hardware organized in one place
• Flexible power options support AC, DC, and PoE-based setups
• Voice-focused audio path helps maintain clear talkback during production
• Wide temperature range supports use across different production environments
• Included accessories cover basic setup, connection, and operation

What’s In The Box

• Geo Central Station

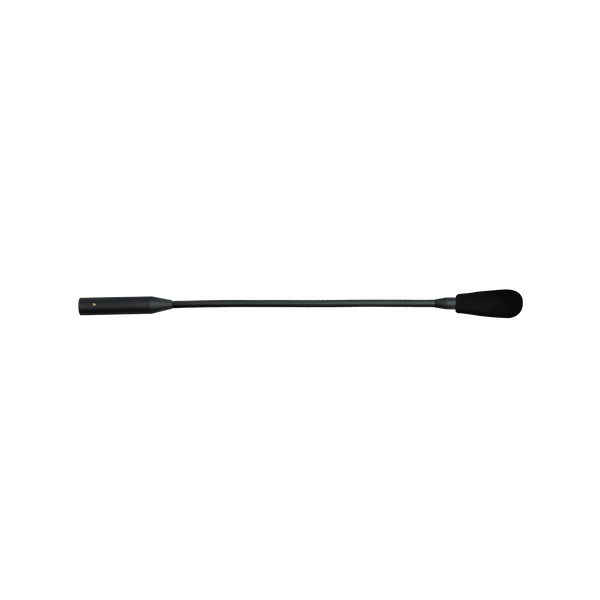

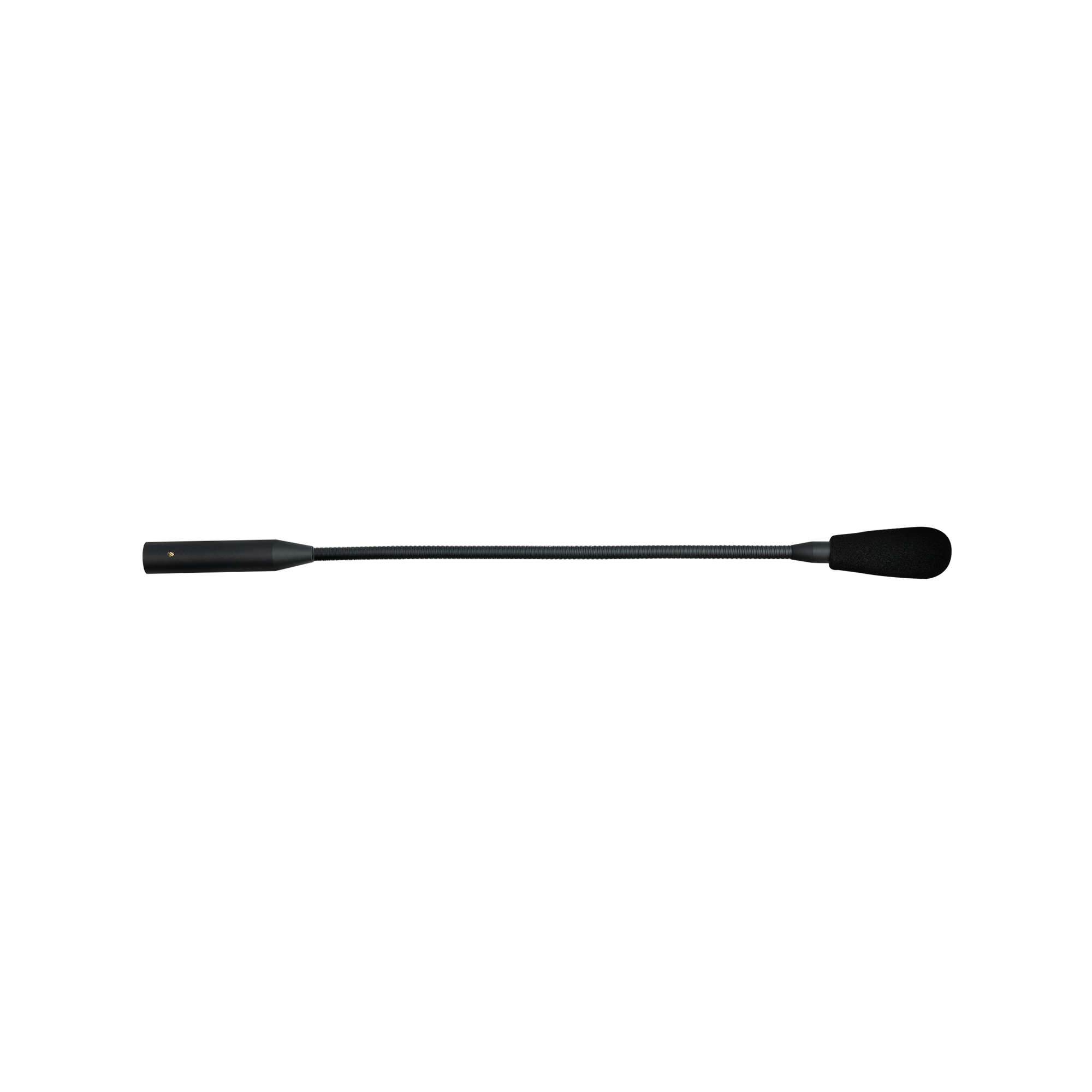

• Gooseneck Microphone

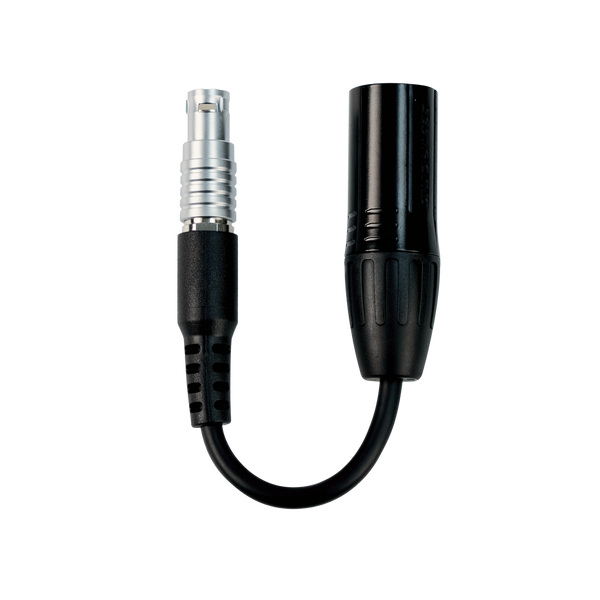

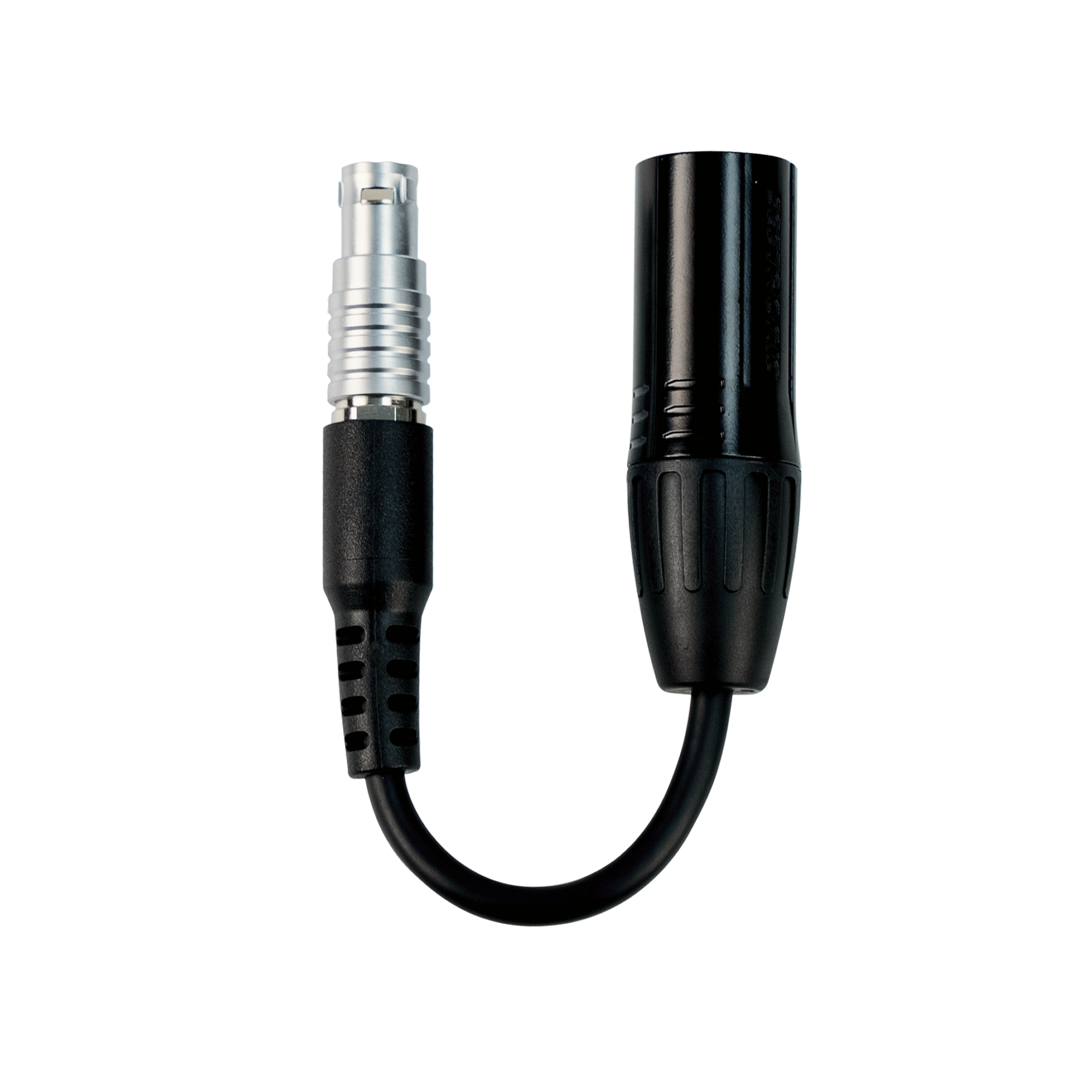

• 10-Pin to 4-Pin XLR Adapter Cable

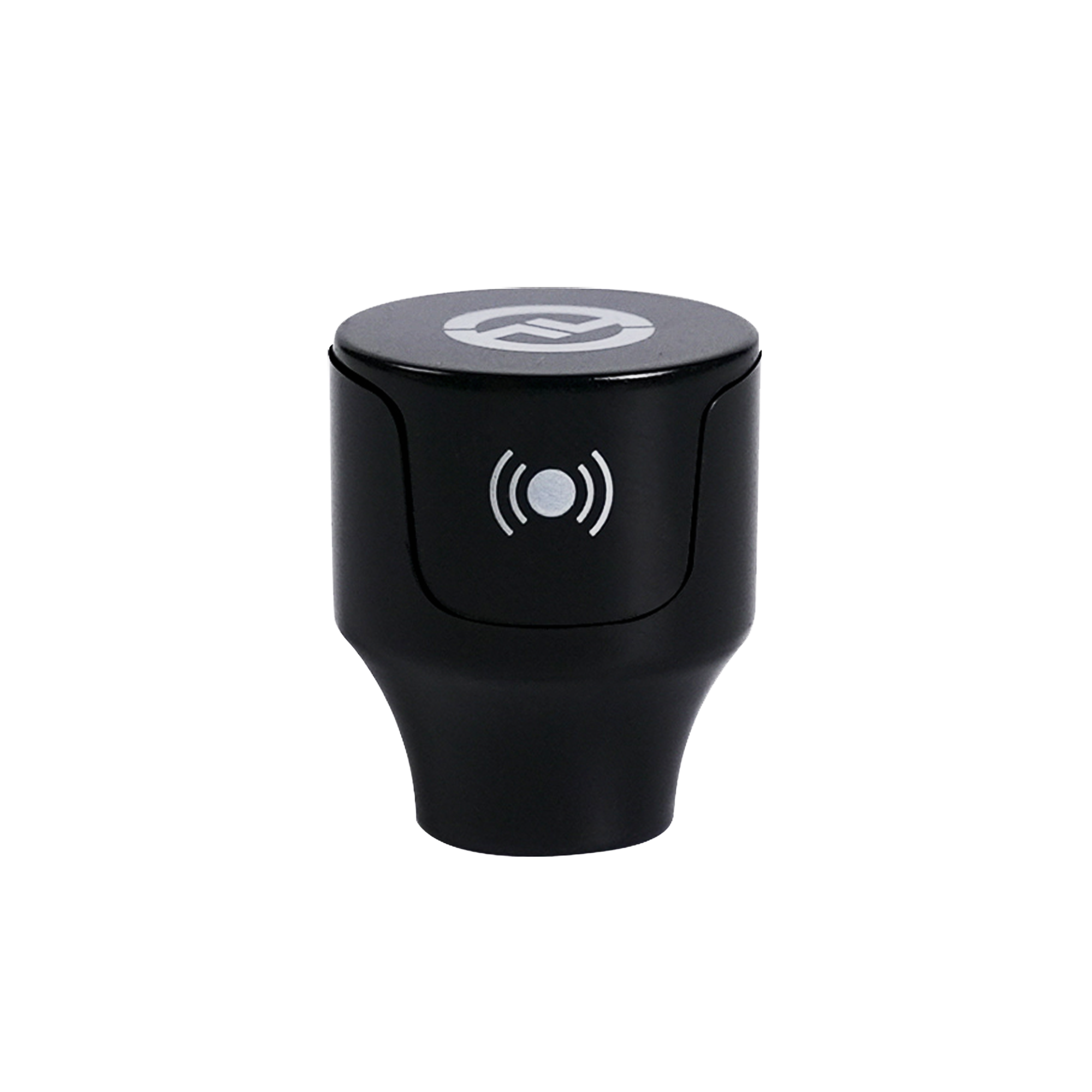

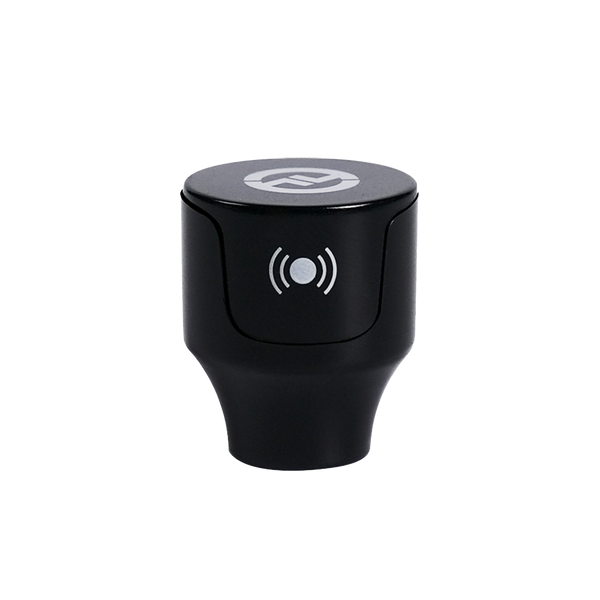

• Geo Central Station WiFi & Bluetooth Antenna

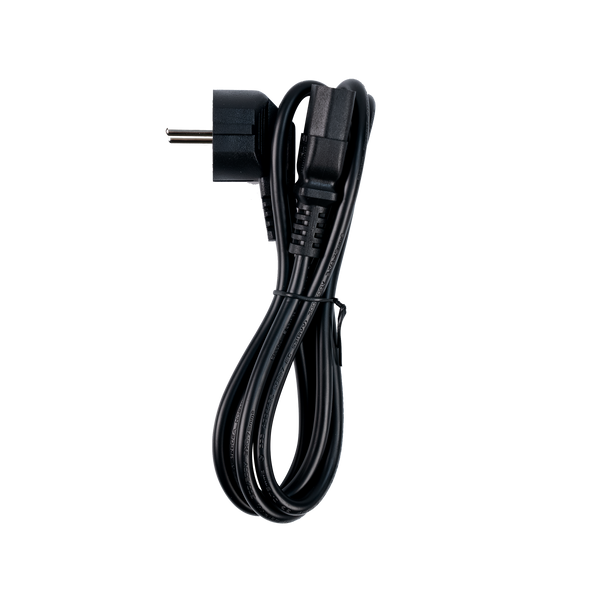

• Geo Central Station AC Power Cable
• Quick Guide
• Warranty Card
