Grass Valley T2 KTR4-PRO-CV40 4K Pro Intelligent Digital Disk Recorder/Player

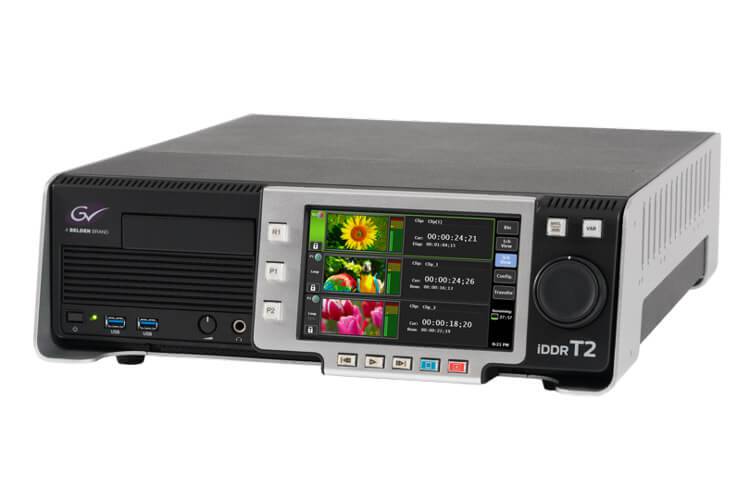

The Grass Valley T2 KTR4-PRO-CV404K Pro Intelligent Digital Disk Recorder/Player supports 4K (UHD or DCI) content with single-channel input or output, or with one record and two output channels simultaneously in HD/SD mode. Featuring a crisp, clear 7-inch LCD touch screen display with jog/shuttle control for fast and intuitive operation, the user-friendly GUI enables operators to easily realize 3D video output, key fill output and quick playback of playlists. The front-panel transport controls have the look and feel of a traditional VTR.

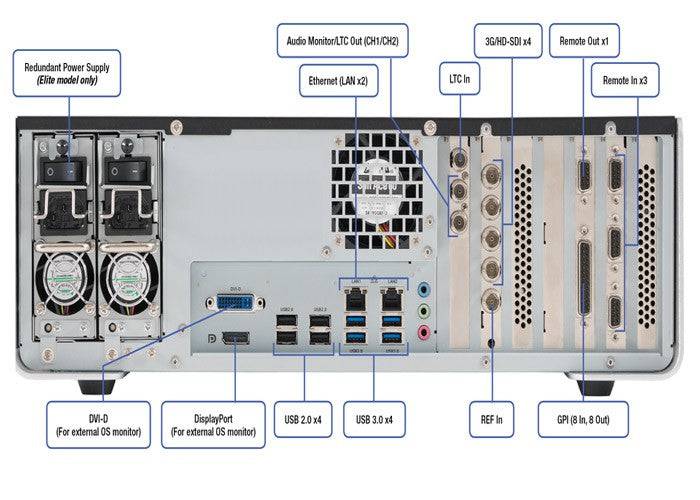

The T2 4K Pro features a rear-panel video/audio/remote/LTC connectivity, T2 4K can also accept files via USB 3.0, or by data transfer over a standard Gigabit Ethernet network, including Grass Valley HQX, XAVC, XAVC S, XDCAM, P2, AVC-ULTRA, Apple ProRes 422, Avid DNxHD and MPEG-2 files. Moreover, the T2 Pro 4K digital recorder/player can be controlled by video production switchers, presentation mixers and audio mixers to create a powerful presentation system. The T2 4K Pro has two playout HD/ SD channels for independent editing and previewing, or for delivering content to two different display systems simultaneously, useful for edge-blending and displaying 3D content.

Combining the look and feel of a traditional VTR with touchscreen and workstation operation, the T2 4K Series delivers a flexible, codec-agile 4K DCI/4K UHD/HD/SD platform for ingest, replay, transmission, editing and content management. A software application suite makes media clip selection, playlist creation and playout seamless, while integration with Grass Valley's EDIUS solution enables users to edit and trim clips during recording for faster content turnaround.

The T2 4K Series supports 4K (UHD or DCI) content with single-channel input or output, or with one record and two output channels simultaneously in HD/SD mode. Featuring a crisp, clear 7-inch LCD touch screen display with jog/shuttle control for fast and intuitive operation, the user-friendly GUI enables operators to easily realize 3D video output, key fill output and quick playback of playlists.

T2 4K Pro Features:

Recorder/Player

• 4K (2160p) ingest support (4K: 1 in 0 out mode)

• 4K (2160p) playback support (4K: 0 in 1 out mode)

• HD (1080p) ingest and playback support (HD: 1 in 2 out mode)

• Three decks for the price of one — HD 1 record and HD 2 playback channels work independently and simultaneously

• HD 2 channel synchronizes playback for key/fill rolls, edge blend displays, multiscreen and 3D applications

• Chasing playback while ingesting (HD/SD)

• Supports 720p to 1080p/i real-time cross-conversion

• Direct ingest to external media/storage device

• Scheduled recording

Import/Export

• Native import/playback for most standard formats

• Multicodec support (transcoding to Grass Valley HQX AVI) for most standard and broadcast formats

• FTP transfer rate limited to maintain playback performance

• Watch folder transfers

• Export to Sony XDCAM drive (U1/U2)

Editing

• Export a growing AVI (Grass Valley HQX) file via CIFS

• Export a growing MXF (XDCAM) file via FTP

• Import from Final Cut Pro in QuickTime format using the free Grass Valley HQ codec for Mac onto an exFAT HDD

Front Panel

• Easy-to-use front panel interface and jog/shuttle

Workstation

• Workstation mode included as standard

• Simple on-the-fly editing, including trimming, mark in/out, markers with comments, basic transition effects and insertion of placeholders for playlists

• Keyboard shortcuts and mouse customization on workstation

Remote

• Synchronized playback using LTC input (Timecode chasing)

• Synchronized playback for multiple T2s using GPI input/RS-422

• Integration support for third-party control (BVW, GPIO and AMP)

Device

• SDI embedded audio (8 channels)

• Robust design — engineered to withstand punishing live event and mobile production environments
