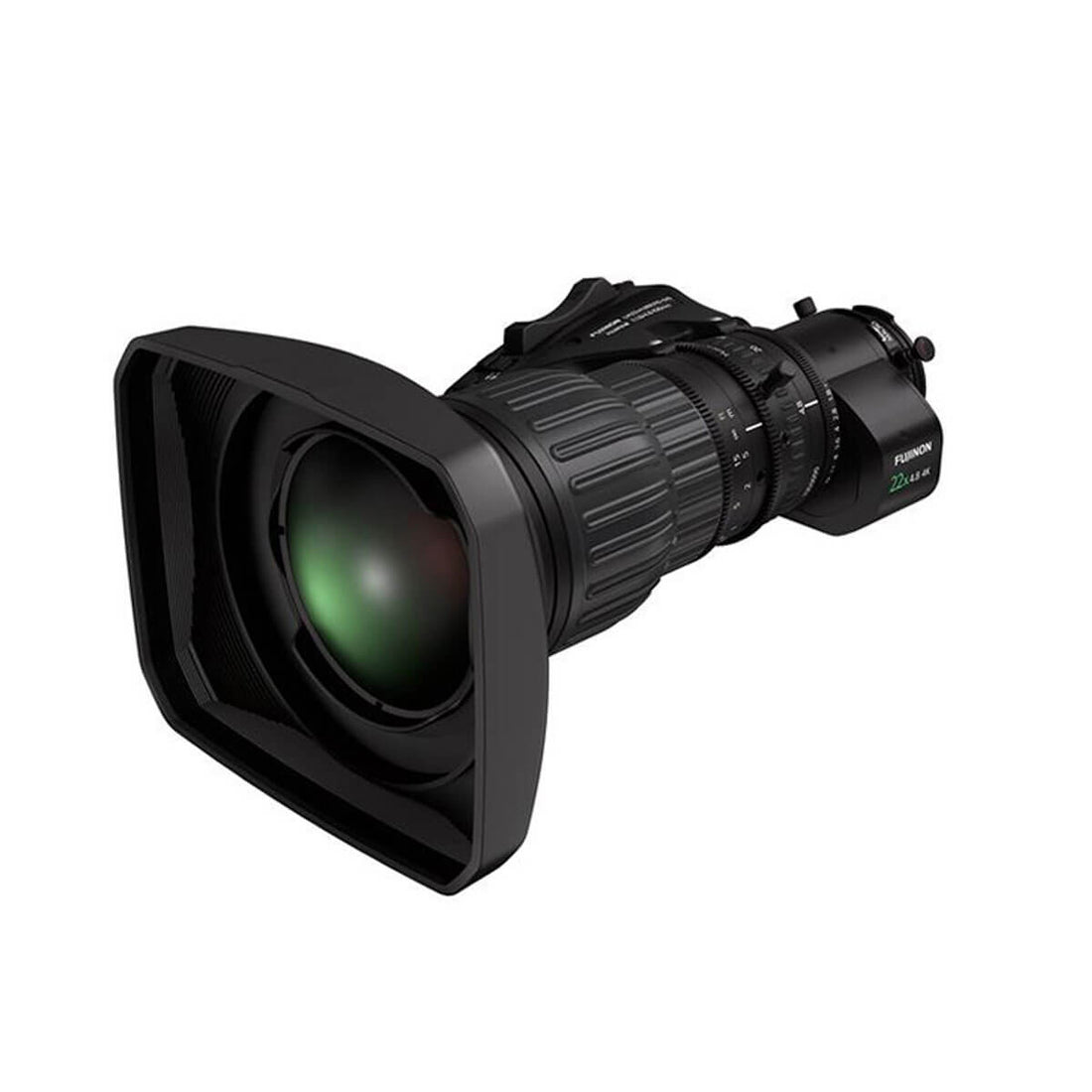

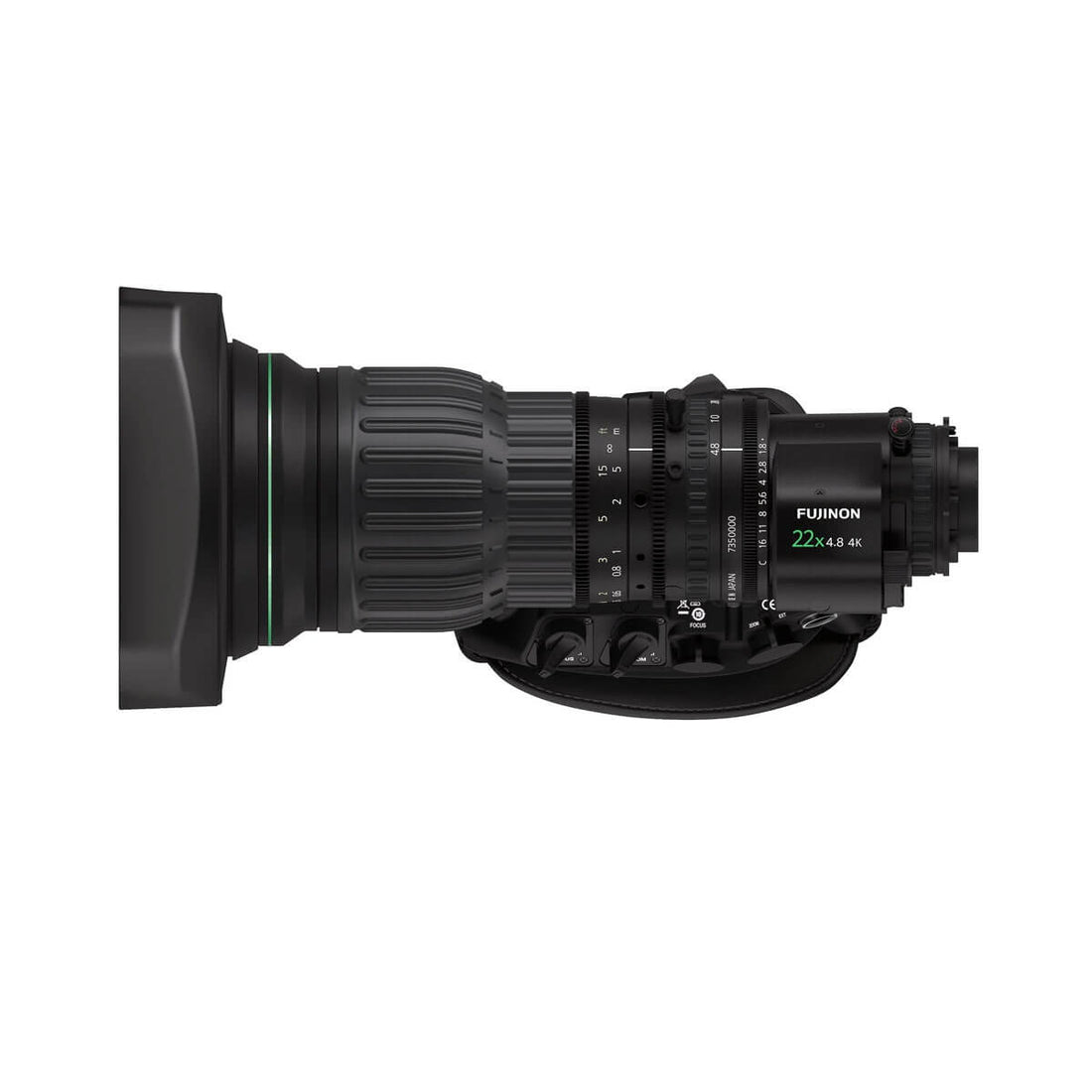

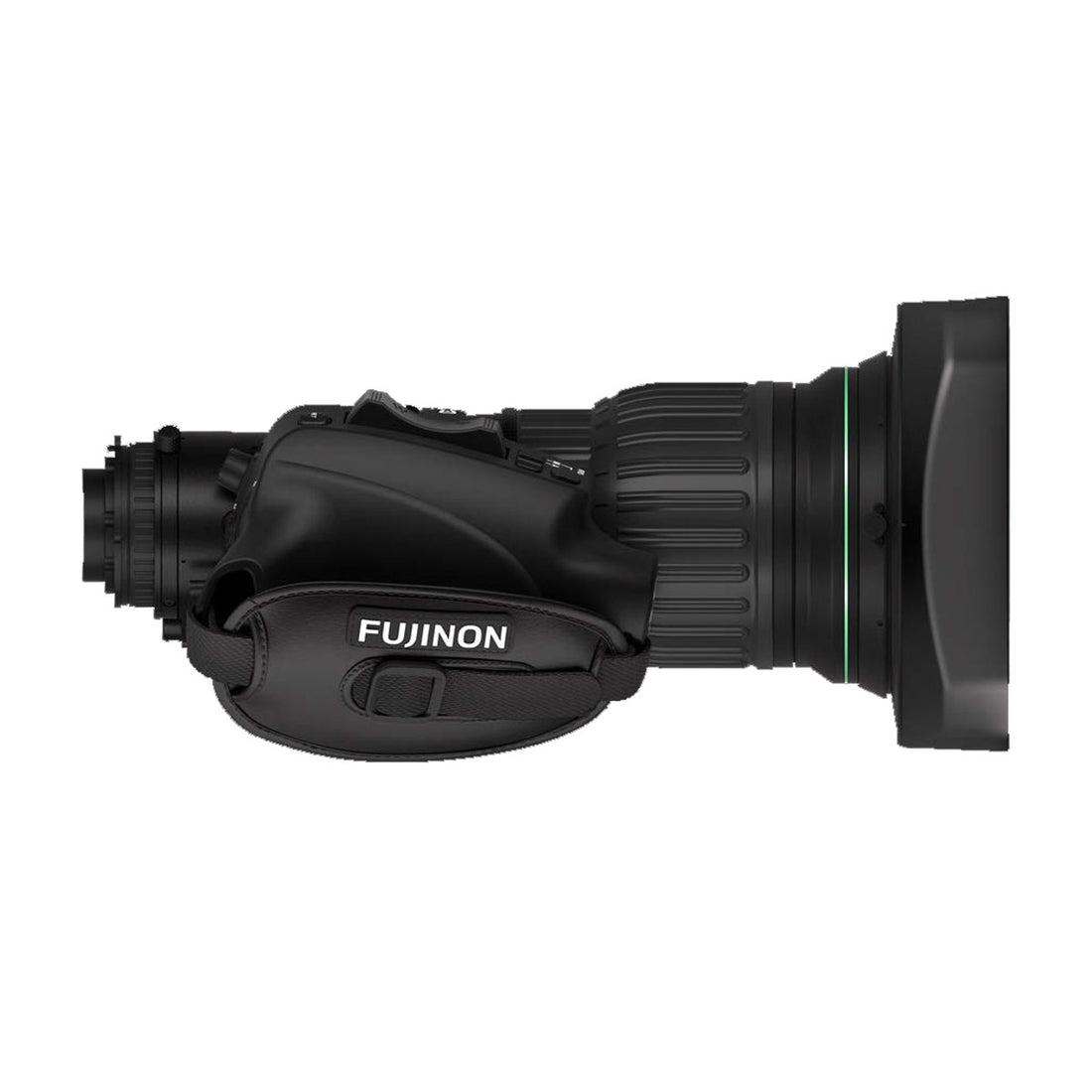

Fujinon UA22x4.8BERD 4K B4 Broadcast Lens 22x Zoom 2x Extender

The Fujinon UA22x4.8BERD is a compact 4K broadcast zoom lens built for crews that need wide coverage, useful reach, and dependable operation in fast-paced production environments. With a 22x zoom range from 4.8 to 106mm, this lens gives operators more framing flexibility for news, sports, concerts, houses of worship, and other live applications.

Optically, the UA22x4.8BERD is designed to maintain 4K performance across the full zoom range. Fujifilm’s HT EBC coating helps improve light transmission while reducing unwanted reflections, supporting cleaner contrast, accurate color reproduction, and sharper image detail in demanding shooting conditions.

From a workflow standpoint, this lens stays practical in the field. It measures 251mm in length and weighs 2.17kg without the lens hood, making it easier to handle in shoulder-mounted, handheld, studio, and sideline setups. A 0.4m minimum object distance from the front lens across the entire zoom range also gives operators more flexibility when working close to subjects.

For modern production systems, the built-in 16 bit encoders provide accurate position detection for virtual production, remote production, and robotic camera environments where reliable lens data matters.

Highlights

• 22x zoom range from 4.8 to 106mm
• 4K optical performance across the full zoom range
• HT EBC coating for improved transmission and controlled reflections
• Compact 251mm design with 2.17kg weight
• 16 bit encoders for virtual and remote production workflows

Quick Specs

• Focal Length: 4.8 to 106mm at 1x, 9.6 to 212mm at 2x
• Zoom Ratio: 22x
• Extender: 2x
• Maximum Relative Aperture: F1.8 from 4.8 to 61mm, F3.15 at 106mm
• Minimum Object Distance: 0.4m from front lens
• Filter Thread: M127 x 0.75
• Dimensions: 95 x 251mm
• Weight: 2.17kg without lens hood

Why It Helps

The wider 4.8mm starting point helps in tighter spaces where backing up is not an option, while the 106mm long end gives you more reach when the subject moves farther away. That balance makes this lens a strong choice for live production teams that need to move quickly and still maintain framing control.

The integrated 16 bit encoder system also makes the UA22x4.8BERD more useful in advanced workflows where lens metadata and repeatable movement matter. That is especially relevant for virtual sets, robotic cameras, and remote operation.

System Characteristics

This model replaces the FUJINON UA18x5.5BERD and expands focal range at both ends, giving operators a wider angle of view and additional telephoto reach while maintaining the familiar UA series workflow approach.
