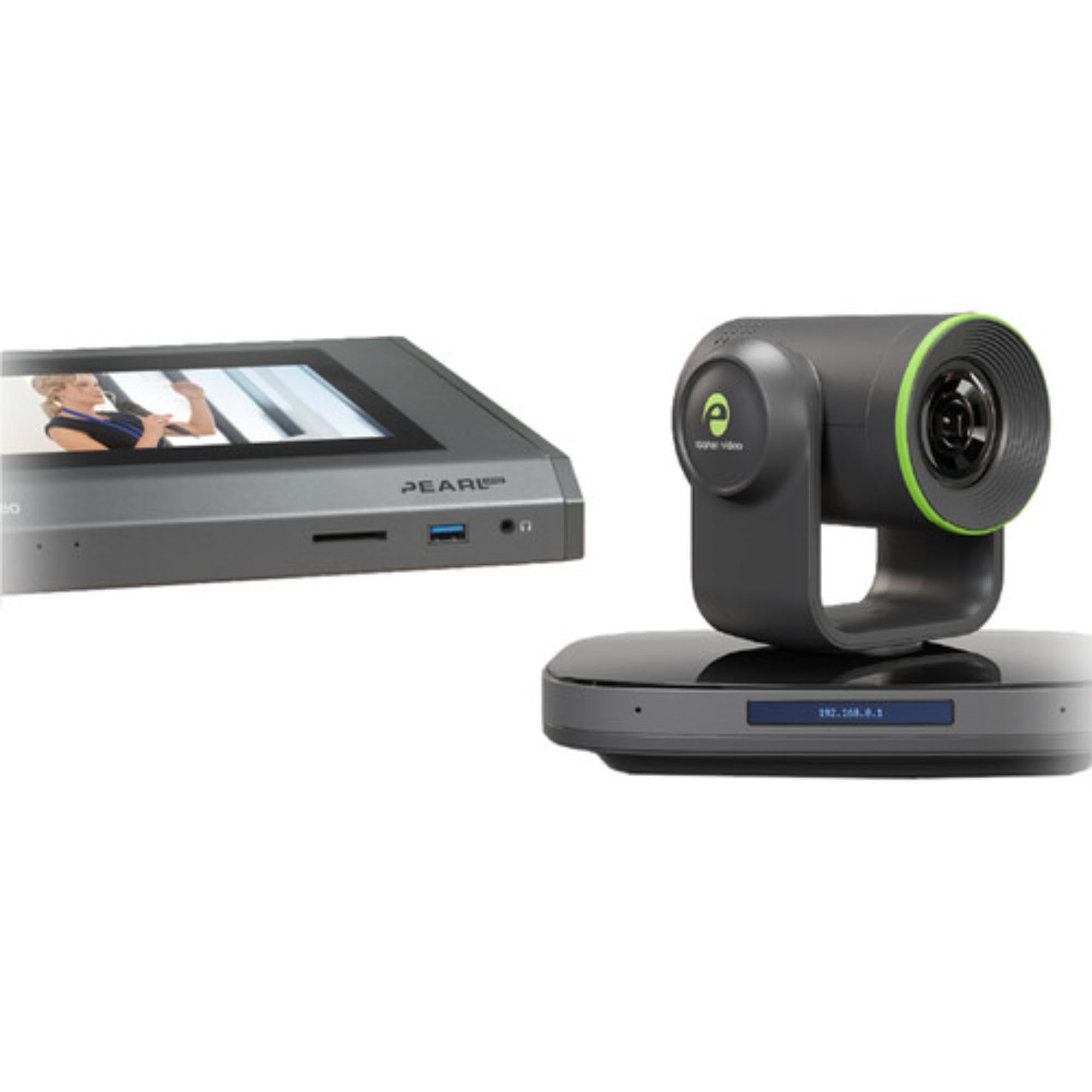

Epiphan Studio Plus Bundle

Epiphan Studio Plus Bundle combines the Epiphan Pearl Mini live production system with two EC20 4K PTZ cameras for multi-camera studio, event, and streaming workflows. The Pearl Mini serves as the central 3-input streamer/recorder, while the two EC20 cameras provide remotely positioned camera coverage with 20x optical zoom.

For broadcast engineers and production teams, the bundle brings video acquisition, switching, monitoring, recording, and streaming into one coordinated package. Pearl Mini supports 1080p60 3G-SDI and HDMI inputs, simultaneous 1080p30 LAN and HDMI outputs, touchscreen monitoring, SD card recording, and professional analog audio connectivity, while the two PTZ cameras make it easier to cover multiple participants and changing positions during a live production.

Highlights

• Two-camera studio package – combines an Epiphan Pearl Mini production system with two EC20 PTZ cameras
• 3-input streamer/recorder – Pearl Mini provides centralized video acquisition, streaming, and recording
• 1080p60 video inputs – supports 3G-SDI and HDMI sources at up to Full HD 60 fps
• 20x optical PTZ cameras – two EC20 cameras provide flexible framing for live events and multi-participant productions
• Integrated production tools – includes touchscreen monitoring, SD card recording, custom layouts, PiP, and image overlays

Quick Specs & Uses

• Product type: Multi-camera studio production bundle
• Production system: Epiphan Pearl Mini Live Video Production System
• PTZ cameras: 2 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom
• Pearl Mini inputs: HDMI; 3G-SDI
• Maximum input frame rate: 1080p60
• Simultaneous outputs: 1080p30 LAN and HDMI
• Output connectivity: HDMI; 3G-SDI; NDI|HX2; IP
• Camera optical zoom: 20x
• Camera horizontal field of view: 60°
• Recording: SD card recording
• Application: Studio production, live events, multi-participant streaming, and recorded content

Why It Helps

A two-camera PTZ setup gives an operator more flexibility than a single fixed shot. One EC20 can hold a wide or primary view while the second camera covers a presenter, guest, or alternate angle, giving live productions more visual variety without requiring an operator at each camera position.

Pearl Mini keeps the production side compact by combining streaming, recording, monitoring, and layout tools in one system. Custom layouts, picture-in-picture, and image overlays give the operator practical options for building finished program views rather than sending a single untouched camera feed.

The bundle also addresses audio and monitoring at the production station. XLR and 3.5 mm microphone inputs, TRS and RCA line inputs, touchscreen monitoring, and SD card recording give engineers the core tools needed to manage picture, sound, and local recording from one central system.

System Characteristics

• Pearl Mini production architecture provides a 3-input streamer and recorder for coordinated live production
• 1080p60 3G-SDI and HDMI inputs support Full HD camera and source acquisition
• Simultaneous 1080p30 outputs are available through LAN and HDMI
• Output options include HDMI, 3G-SDI, NDI|HX2, and IP
• Custom layouts support picture-in-picture and image overlays
• Touchscreen monitoring provides direct production confidence monitoring
• SD card recording provides local recording capability
• Professional audio inputs include XLR and 3.5 mm microphone connections plus TRS and RCA line inputs
• Two EC20 PTZ cameras provide 20x optical zoom for remotely controlled framing
• 60° horizontal angle of view supports wider camera coverage
• Wall and ceiling camera mounts support flexible EC20 installation positions

What's In The Box

• 1 x Epiphan Studio Plus Mini Bundle with 2 x EC20 PTZ Cameras
• 1 x Epiphan Pearl Mini Live Video Production System
• 2 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom for Lecture Capture
