Epiphan Studio Essentials Bundle

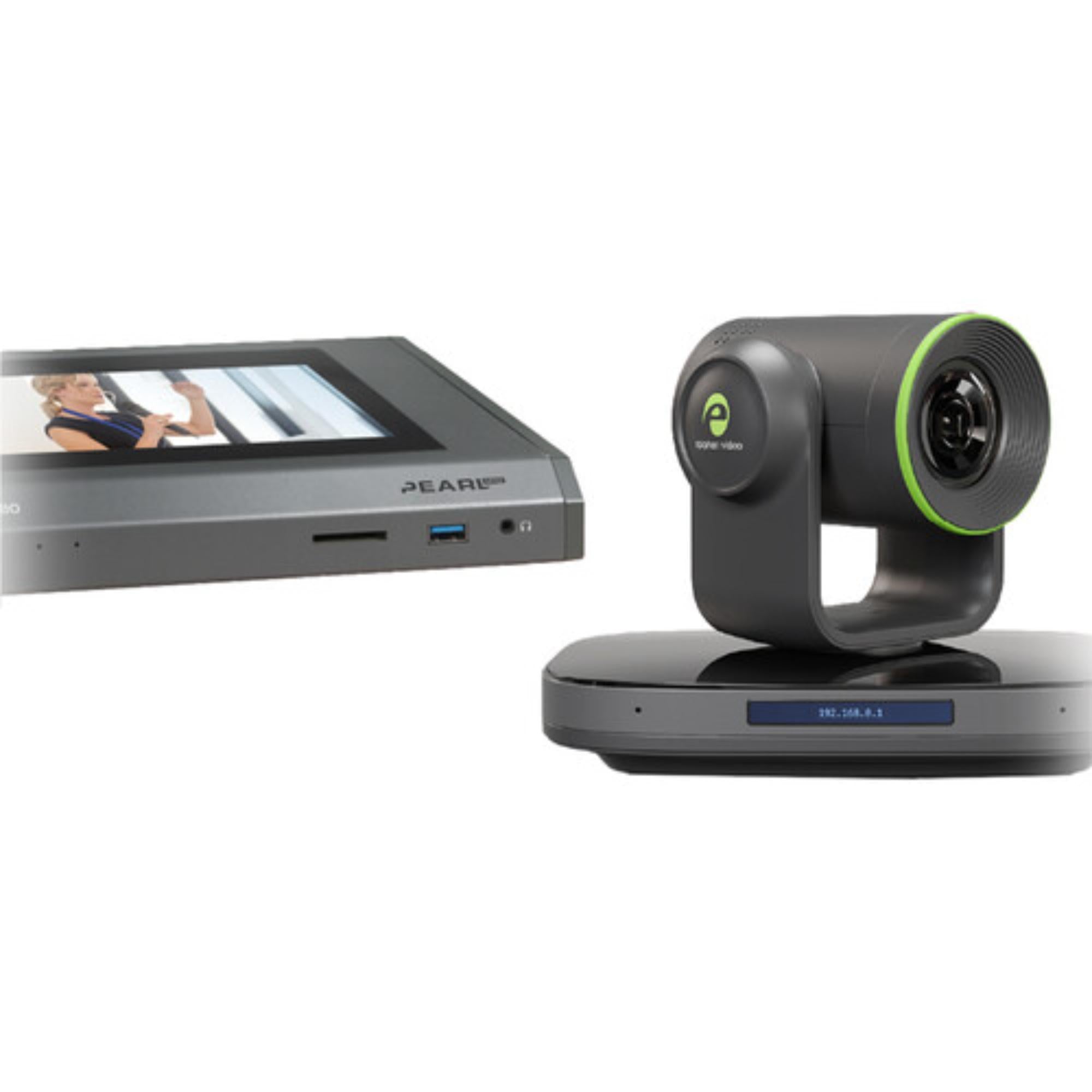

Epiphan Studio Essentials Bundle combines an Epiphan Pearl Mini Live Video Production System with one EC20 4K SDI/HDMI/NDI/Dante PTZ camera for compact studio recording and live production. Pearl Mini handles video ingest, software-based production, encoding, recording, and output, while the EC20 provides remotely controlled camera acquisition with 20x optical zoom and UHD 4K HDMI capability.

For broadcast engineers and AV teams building a self-contained studio, the bundle keeps camera acquisition and production control in a manageable signal path. Pearl Mini accepts 3G-SDI, HDMI, and USB sources, provides a built-in 7" display and local recording, while the EC20 adds HDMI, 3G-SDI, USB-C, and network video output with NDI|HX2, Dante AV-H, RTMP/RTMPS, RTSP, and SRT support.

Highlights

• Integrated studio production package – combines a Pearl Mini streamer/recorder with one Epiphan EC20 PTZ camera
• 1080p60 source acquisition – Pearl Mini accepts supported 3G-SDI and HDMI signals up to WUXGA 1920 × 1200 at 60 fps
• 20x optical PTZ camera – EC20 uses a 6.25 to 125 mm lens with 20x optical and 16x digital zoom
• Professional IP video support – EC20 supports Dante AV-H, HTTP, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• Built-in monitoring and recording – Pearl Mini includes a 7" display with SD and SATA M.2 SSD recording support

Quick Specs & Uses

• Product type: Single-camera studio production bundle
• Production system: Epiphan Pearl Mini Live Video Production System
• PTZ camera: Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom
• Pearl Mini processing resolution: 1080p
• Pearl Mini video inputs: 1 x BNC 3G-SDI; 2 x HDMI 1.4a; 2 x USB-A 3.0
• Pearl Mini video outputs: 1 x HDMI 1.4a; 1 x RJ45
• Pearl Mini IP encoding: H.264 from 640 × 480 to 1920 × 1200
• Pearl Mini simultaneous streams: 2
• EC20 image sensor: 1/1.8"-type CMOS, 8.42 MP effective resolution
• EC20 optical zoom: 20x
• EC20 maximum HDMI output: UHD 4K up to 60 fps
• EC20 presets: 255
• Application: Studio recording, live events, streaming, presentation capture, and self-serve production spaces

Why It Helps

The bundle keeps the camera and production side of the workflow closely integrated. Pearl Mini can accept SDI, HDMI, and USB sources while handling H.264 encoding, two simultaneous streams, local recording, and monitoring, giving an operator one central point for managing the production.

The EC20 adds the framing flexibility expected from a remotely operated studio camera. Its 20x optical zoom, 325° pan range, 120° tilt range, and 255 presets allow engineers to establish repeatable presenter or stage positions and recall them without physically repositioning the camera.

Network integration is also well covered. Pearl Mini supports HLS, HTTP, NDI/HX, RTMP, RTMPS, RTSP, SAP, SRT, TCP, TS-MPEG, and UDP, while the EC20 adds H.264, H.265, and MJPEG streaming through Dante AV-H, NDI|HX2, ONVIF, and other IP protocols. That gives the bundle practical options for both baseband and network-centered studio workflows.

System Characteristics

• Pearl Mini color processing operates at 8-bit 4:2:0
• Pearl Mini input video formats support HDMI and SDI resolutions from 480p through WUXGA 1920 × 1200 at up to 60 fps
• Pearl Mini audio inputs include 2 x XLR 3-pin mic/line female, 1 x 2RCA stereo analog female, and 1 x 1/8" / 3.5 mm TRS microphone input
• Pearl Mini embedded audio is supported through HDMI, SDI, USB-A, and RJ45
• Pearl Mini HDMI output supports 1080p at 30 fps
• Pearl Mini RJ45 output supports 1080p at up to 30 fps
• Pearl Mini audio output includes 1 x 1/8" / 3.5 mm TRS connection
• Pearl Mini transport protocols include HLS, HTTP, NDI/HX, RTMP, RTMPS, RTSP, SAP, SRT, TCP, TS-MPEG, and UDP
• Pearl Mini recording media supports SD media and SATA M.2 SSD storage
• Pearl Mini display: 7"
• Pearl Mini HDCP support: Yes
• Pearl Mini power input: 1 x barrel connector, 12 VDC up to 7 A
• Pearl Mini operating conditions: 0 to 40°C (32 to 104°F)
• Pearl Mini certifications: FCC Part 15; RoHS
• Pearl Mini dimensions: 361 × 172 × 60 mm (14.2 × 6.8 × 2.4 in)
• Pearl Mini weight: 1.7 kg (3.7 lb)
• EC20 image sensor: 1/1.8"-type CMOS with 8.42 MP effective resolution
• EC20 focus control: Autofocus and manual focus
• EC20 shutter speed: 1/10,000 to 1/30 second
• EC20 signal-to-noise ratio: 55 dB
• EC20 minimum illumination: 0.5 lux
• EC20 lens: 6.25 to 125 mm with f/1.58 to 3.95 maximum aperture
• EC20 zoom: 20x optical; 16x digital
• EC20 HDMI output supports 3840 × 2160 at 25/29.97/50/59.94/60 fps
• EC20 SDI output supports up to 1920 × 1080 at 60 fps
• EC20 USB output supports up to 3840 × 2160 at 30 fps
• EC20 internal recording supports 3840 × 2160, 1920 × 1080, and 1280 × 720 at up to 60 fps
• EC20 IP streaming supports H.264, H.265, and MJPEG via Dante AV-H, HTTP, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• EC20 pan range: 325° (-162.5° to 162.5°) at 1.8 to 80°/s
• EC20 tilt range: 120° (-30° to 90°) at 1.5 to 49°/s
• EC20 presets: 255
• EC20 tally light: Yes
• EC20 video I/O includes 1 x HDMI output, 1 x BNC 3G-SDI output, 1 x RJ45 LAN output, and 1 x USB-C output
• EC20 audio input: 1 x 1/8" / 3.5 mm TRS stereo line input
• EC20 serial control includes RS-232 input/output and RS-485 control
• EC20 built-in microphone: Stereo
• EC20 PoE support: PoE+ 802.3at
• EC20 power: 12 VDC, 2 A (18 W)
• EC20 operating conditions: 0 to 40°C (32 to 104°F)
• EC20 storage conditions: -40 to 60°C (-40 to 140°F)
• EC20 dimensions: 223 × 165 × 154.8 mm (8.8 × 6.5 × 6.09 in)
• EC20 weight: 1.8 kg (4 lb), body only

What's In The Box

• 1 x Epiphan Pearl Mini Live Video Production System
• 1 x Power Supply
• 1 x Power Cable
• 1 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom for Lecture Capture
• 1 x Remote Controller
• 1 x 12 VDC Power Adapter
