Epiphan Production Starter Bundle

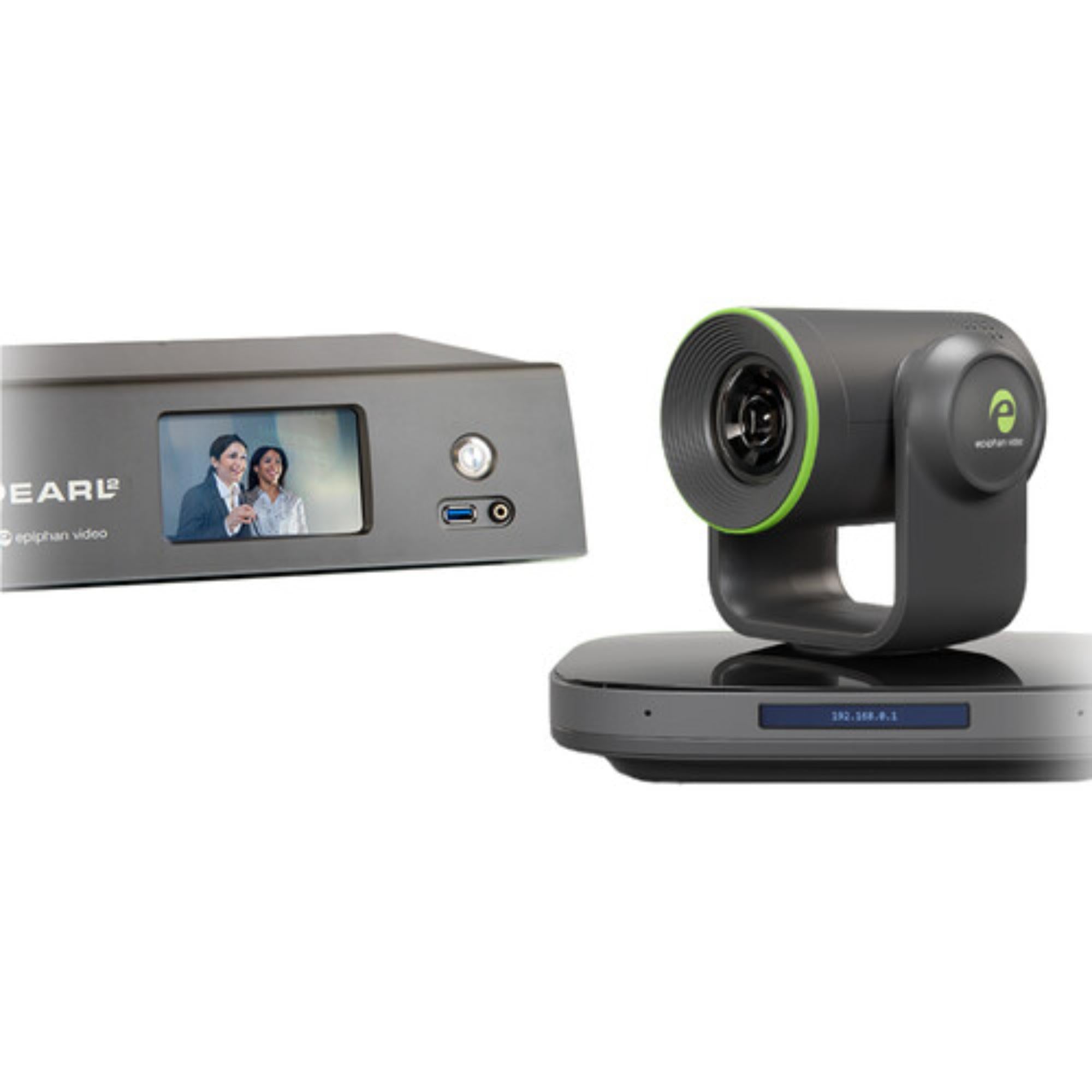

Epiphan Production Starter Bundle combines an Epiphan Pearl-2 Base Video Mixer with one EC20 4K SDI/HDMI/NDI/Dante PTZ camera to create a compact production package for professional streaming and recording. The Pearl-2 serves as the central video mixer and recording platform, while the EC20 provides remotely controlled acquisition with UHD capability and 20x optical zoom.

For broadcast engineers and production teams building a straightforward single-camera system, the bundle brings camera acquisition, switching, encoding, recording, and monitoring into one coordinated workflow. Pearl-2 provides 12G-SDI, HDMI/DVI, HX/NDI, professional analog audio, and 512GB of internal storage, while the EC20 supports HDMI, 3G-SDI, LAN, and USB outputs plus a broad range of IP streaming protocols.

Highlights

• Single-camera production package – combines a Pearl-2 Base Video Mixer with one Epiphan EC20 PTZ camera
• 20x optical PTZ camera – EC20 uses a 6.25 to 125 mm lens with 20x optical and 16x digital zoom
• UHD-capable camera workflow – supports HDMI output and internal recording up to 3840 × 2160 at 60 fps
• Professional IP connectivity – supports Dante AV-H, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT streaming
• Complete camera mounting setup – includes both ceiling and wall mounting options for the EC20

Quick Specs & Uses

• Product type: Single-camera live production bundle
• Production system: Epiphan Pearl-2 Base Video Mixer
• PTZ camera: 1 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera
• Pearl-2 processing resolution: DCI 4K
• Pearl-2 video inputs: 2 x BNC 12G-SDI; 4 x HDMI/DVI 1.4a; 1 x RJ45 HX/NDI
• Pearl-2 video outputs: 1 x HDMI 1.4a; 1 x HDMI 2.0
• Pearl-2 internal storage: 512GB
• EC20 image sensor: 1/1.8"-type CMOS, 8.42 MP effective resolution
• EC20 optical zoom: 20x
• EC20 maximum HDMI output: 3840 × 2160 at up to 60 fps
• EC20 presets: 255
• Application: Live event production, streaming, recording, lecture capture, and single-camera production

Why It Helps

The Starter Bundle keeps the production chain compact by pairing one remotely operated PTZ camera with a dedicated Pearl-2 production system. For presentations, lecture capture, streaming, and other single-camera workflows, the operator can manage acquisition, switching, encoding, recording, and monitoring without building the system from unrelated components.

The EC20 gives the camera position considerably more flexibility than a fixed-view source. Its 20x optical zoom, 325° pan range, 120° tilt range, and 255 presets allow engineers to establish repeatable framing for presenters, stages, or room positions and recall those shots during production.

Signal routing can be adapted to the installation. The EC20 provides HDMI, 3G-SDI, LAN, and USB-C outputs, while Pearl-2 accepts 12G-SDI, HDMI/DVI, and HX/NDI sources. The source also notes that a Pearl-2 4K license is available separately when expanded 4K capability is required.

System Characteristics

• Pearl-2 audio inputs include 4 x XLR 3-pin stereo analog female and 1 x 2RCA stereo analog female connections
• Pearl-2 audio output includes 1 x 1/8" / 3.5 mm TRS stereo analog female connection with embedded HDMI audio
• Pearl-2 IP encoding supports H.264 up to 4096 × 2160
• Pearl-2 display uses a 4.3" screen with 800 × 480 resolution
• Pearl-2 HDCP support is provided
• Pearl-2 operating conditions: 0 to 40°C (32 to 104°F)
• Pearl-2 dimensions: 300 × 240 × 89.9 mm (11.81 × 9.45 × 3.54 in)
• Pearl-2 weight: 3.8 kg (8.4 lb)
• EC20 image sensor: 1/1.8"-type CMOS with 8.42 MP effective resolution
• EC20 focus control: Autofocus and manual focus
• EC20 shutter speed: 1/10,000 to 1/30 second
• EC20 signal-to-noise ratio: 55 dB
• EC20 minimum illumination: 0.5 lux
• EC20 lens: 6.25 to 125 mm with f/1.58 to 3.95 maximum aperture
• EC20 zoom: 20x optical; 16x digital
• EC20 HDMI output supports up to 3840 × 2160 at 25/29.97/50/59.94/60 fps
• EC20 SDI output supports up to 1920 × 1080 at 59.94/60 fps
• EC20 USB output supports up to 3840 × 2160 at 30 fps
• EC20 internal recording supports 3840 × 2160, 1920 × 1080, and 1280 × 720 at up to 60 fps
• EC20 audio recording supports Dante and AAC audio
• EC20 IP streaming supports H.264, H.265, and MJPEG via Dante AV-H, HTTP, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• EC20 presets: 255
• EC20 pan range: 325° (-162.5° to 162.5°) at 1.8 to 80°/s
• EC20 tilt range: 120° (-30° to 90°) at 1.5 to 49°/s
• EC20 tally light is included
• EC20 video I/O includes 1 x HDMI output, 1 x BNC 3G-SDI output, 1 x RJ45 LAN output, and 1 x USB-C output
• EC20 audio input: 1 x 1/8" / 3.5 mm TRS stereo line input
• EC20 serial control includes RS-232 and RS-485 connectivity
• EC20 built-in microphone: Stereo
• EC20 PoE support: PoE+ 802.3at
• EC20 power: 12 VDC, 2 A (18 W)
• EC20 operating conditions: 0 to 40°C (32 to 104°F)
• EC20 storage conditions: -40 to 60°C (-40 to 140°F)
• EC20 dimensions: 223 × 165 × 154.8 mm (8.8 × 6.5 × 6.09 in)
• EC20 weight: 1.8 kg (4 lb), body only

What's In The Box

• 1 x Epiphan Pearl-2 Base Video Mixer
• 1 x Ethernet Cable
• 1 x Power Cable (6')
• 1 x SDI Cable (3')
• 1 x HDMI Cable (3')
• 1 x DVI (F) to HDMI (M) Adapter
• 1 x Hard-Shell Carrying Case
• 1 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom
• 1 x Remote Controller
• 1 x 12 VDC Power Adapter
• 1 x Ceiling Mount
• 1 x Wall Mount
