Epiphan Production Plus Bundle

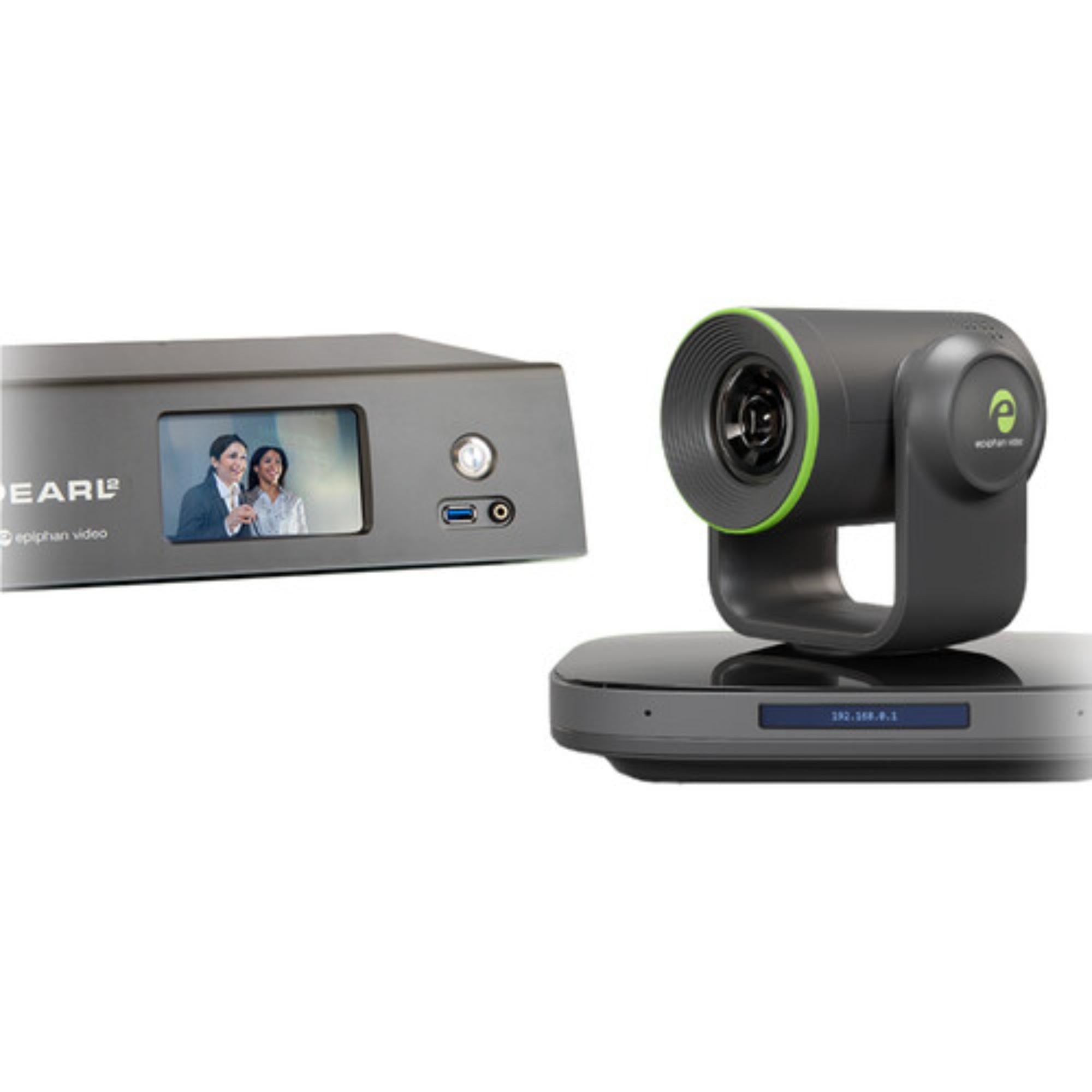

Epiphan Production Plus Bundle combines an Epiphan Pearl-2 Base Video Mixer with three EC20 4K SDI/HDMI/NDI/Dante PTZ cameras, giving production teams a coordinated three-camera platform for live event production and recorded content. The Pearl-2 handles switching, encoding, recording, and signal management, while the EC20 cameras provide remote PTZ acquisition with 20x optical zoom and UHD-capable outputs.

For broadcast engineers and in-house production teams, the bundle covers both the production core and camera side of the signal chain. Pearl-2 provides 12G-SDI, HDMI/DVI, network video, professional analog audio, and 512GB of internal storage, while each EC20 supports HDMI, 3G-SDI, LAN, and USB video output along with Dante AV-H, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT IP workflows.

Highlights

• Three-camera production package – combines a Pearl-2 Base Video Mixer with three Epiphan EC20 PTZ cameras
• 20x optical PTZ cameras – each EC20 uses a 6.25 to 125 mm lens with 20x optical and 16x digital zoom
• UHD-capable camera workflow – EC20 supports HDMI output up to 3840 × 2160 at 60 fps and internal recording up to UHD 4K60
• Professional IP integration – camera streaming supports Dante AV-H, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• Complete mounting package – includes three ceiling mounts and three wall mounts for the EC20 cameras

Quick Specs & Uses

• Product type: Three-camera live production bundle
• Production system: Epiphan Pearl-2 Base Video Mixer
• PTZ cameras: 3 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera
• Pearl-2 processing resolution: DCI 4K
• Pearl-2 video inputs: 2 x BNC 12G-SDI; 4 x HDMI/DVI 1.4a; 1 x RJ45 HX/NDI
• Pearl-2 video outputs: 1 x HDMI 1.4a; 1 x HDMI 2.0
• Pearl-2 internal storage: 512GB
• EC20 image sensor: 1/1.8"-type CMOS, 8.42 MP effective resolution
• EC20 optical zoom: 20x
• EC20 maximum HDMI output: 3840 × 2160 at up to 60 fps
• EC20 presets: 255
• Application: Multi-camera live event production and recorded content

Why It Helps

The bundle puts a dedicated production mixer and three matched PTZ cameras into one coordinated system. That gives an operator multiple remotely controlled camera positions while keeping switching, encoding, recording, and monitoring centered around the Pearl-2 rather than spreading those jobs across unrelated devices.

Each EC20 is designed for flexible camera placement and remote operation. The cameras provide 255 presets, 325° of pan travel, 120° of tilt, a 20x optical zoom lens, and PoE+ support, so engineering teams can build repeatable shots while reducing the amount of local camera handling required during a production.

The signal options also leave room for different infrastructure choices. EC20 cameras can output over HDMI, 3G-SDI, LAN, or USB, while the Pearl-2 accepts 12G-SDI, HDMI/DVI, and HX/NDI sources. A Pearl-2 4K license is listed as available separately, allowing the base production system to be expanded when that workflow is required.

System Characteristics

• Pearl-2 audio inputs include 4 x XLR 3-pin stereo analog female and 1 x 2RCA stereo analog female connections
• Pearl-2 audio output includes 1 x 1/8" / 3.5 mm TRS stereo analog female connection with embedded HDMI audio
• Pearl-2 IP encoding supports H.264 up to 4096 × 2160
• Pearl-2 display uses a 4.3" screen with 800 × 480 resolution
• Pearl-2 HDCP support is provided
• Pearl-2 operating conditions: 0 to 40°C (32 to 104°F)
• Pearl-2 dimensions: 300 × 240 × 89.9 mm (11.81 × 9.45 × 3.54 in)
• Pearl-2 weight: 3.8 kg (8.4 lb)
• EC20 shutter speed ranges from 1/10,000 to 1/30 second
• EC20 minimum illumination is 0.5 lux with a 55 dB signal-to-noise ratio
• EC20 lens uses a 6.25 to 125 mm focal range with f/1.58 to 3.95 maximum aperture
• EC20 video outputs include 1 x HDMI, 1 x BNC 3G-SDI, 1 x RJ45 LAN, and 1 x USB-C
• EC20 embedded audio is supported over HDMI, IP/LAN, SDI, and USB
• EC20 internal recording supports 3840 × 2160, 1920 × 1080, and 1280 × 720 at up to 60 fps
• EC20 IP streaming supports H.264, H.265, and MJPEG via Dante AV-H, HTTP, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• EC20 control provides 255 presets with pan from -162.5° to 162.5° and tilt from -30° to 90°
• EC20 serial control includes RS-232 and RS-485 connectivity
• EC20 tally light is included
• EC20 PoE support: PoE+ 802.3at
• EC20 power: 12 VDC, 2 A (18 W)
• EC20 operating conditions: 0 to 40°C (32 to 104°F)
• EC20 dimensions: 223 × 165 × 154.8 mm (8.8 × 6.5 × 6.09 in)
• EC20 weight: 1.8 kg (4 lb), body only

What's In The Box

• 1 x Epiphan Pearl-2 Base Video Mixer
• 1 x Ethernet Cable
• 1 x Power Cable (6')
• 1 x SDI Cable (3')
• 1 x HDMI Cable (3')
• 1 x DVI (F) to HDMI (M) Adapter
• 1 x Hard-Shell Carrying Case
• 3 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom
• 3 x Remote Controller
• 3 x 12 VDC Power Adapter
• 3 x Ceiling Mount
• 3 x Wall Mount
