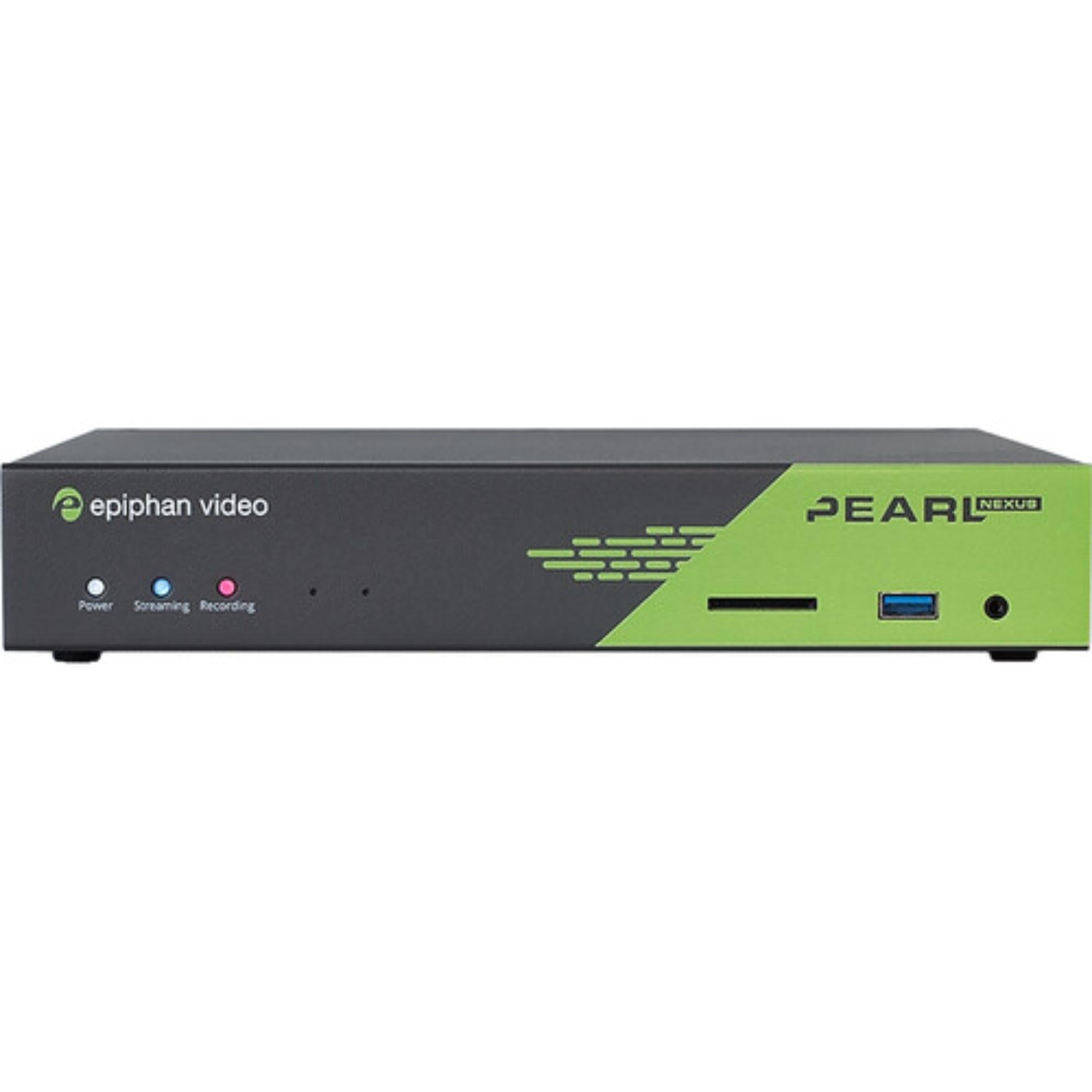

Epiphan Pearl Nexus

Epiphan Pearl Nexus is a compact live video production system built for switching, recording, and streaming up to three video inputs in professional AV environments. It supports HDMI, 3G-SDI, USB-A, and NDI|HX sources, giving engineers a practical mix of baseband and network video connectivity in a single 1 RU platform.

The system uses software switching with 8-bit 4:2:0 color processing and 48 kHz audio processing. Video input and output formats extend up to WUXGA 1920 × 1200 at 60 fps, while analog and embedded audio connections provide flexible integration with microphones, mixers, presentation systems, and network-based production sources.

Highlights

• 3-input production workflow – combines video switching, recording, and streaming in one chassis
• Mixed video connectivity – supports 3G-SDI, HDMI, USB-A, and RJ45 IP sources
• Up to WUXGA 60 fps – handles supported video formats up to 1920 × 1200 at 60 fps
• Professional audio integration – provides combo XLR/1/4", RCA, 3.5 mm, and embedded audio connectivity
• 1 RU rackmount design – detachable rackmount brackets support fixed professional AV installations

Quick Specs & Uses

• Product type: Live video production recorder, streamer, and switcher
• Switching type: Software
• Video inputs: 1 x BNC 3G-SDI; 2 x HDMI 1.4; 2 x USB-A UVC; 1 x RJ45 RTSP/SRT/HX/NDI
• Maximum input resolution: WUXGA 1920 × 1200 at up to 60 fps
• Video outputs: 1 x HDMI 1.4a; 1 x RJ45
• Maximum output resolution: WUXGA 1920 × 1200 at up to 60 fps
• Color processing: 8-bit 4:2:0
• Audio processing: 48 kHz
• Rack form factor: 1 RU
• Application: Live production, streaming, recording, conferencing, and installed AV workflows

Why It Helps

Pearl Nexus is useful in systems where engineers need to combine traditional video connections with network sources. A 3G-SDI camera can sit alongside HDMI and USB devices, while the RJ45 interface brings RTSP, SRT, HX, and NDI sources into the same production environment.

The audio side is equally flexible. Two combo XLR/1/4" TRS line inputs, an RCA line input, and a 3.5 mm microphone input handle common analog sources, while HDMI, SDI, USB-A, and RJ45 can carry embedded audio. That makes it easier to tie the system into existing mixers, cameras, presentation feeds, and conferencing setups.

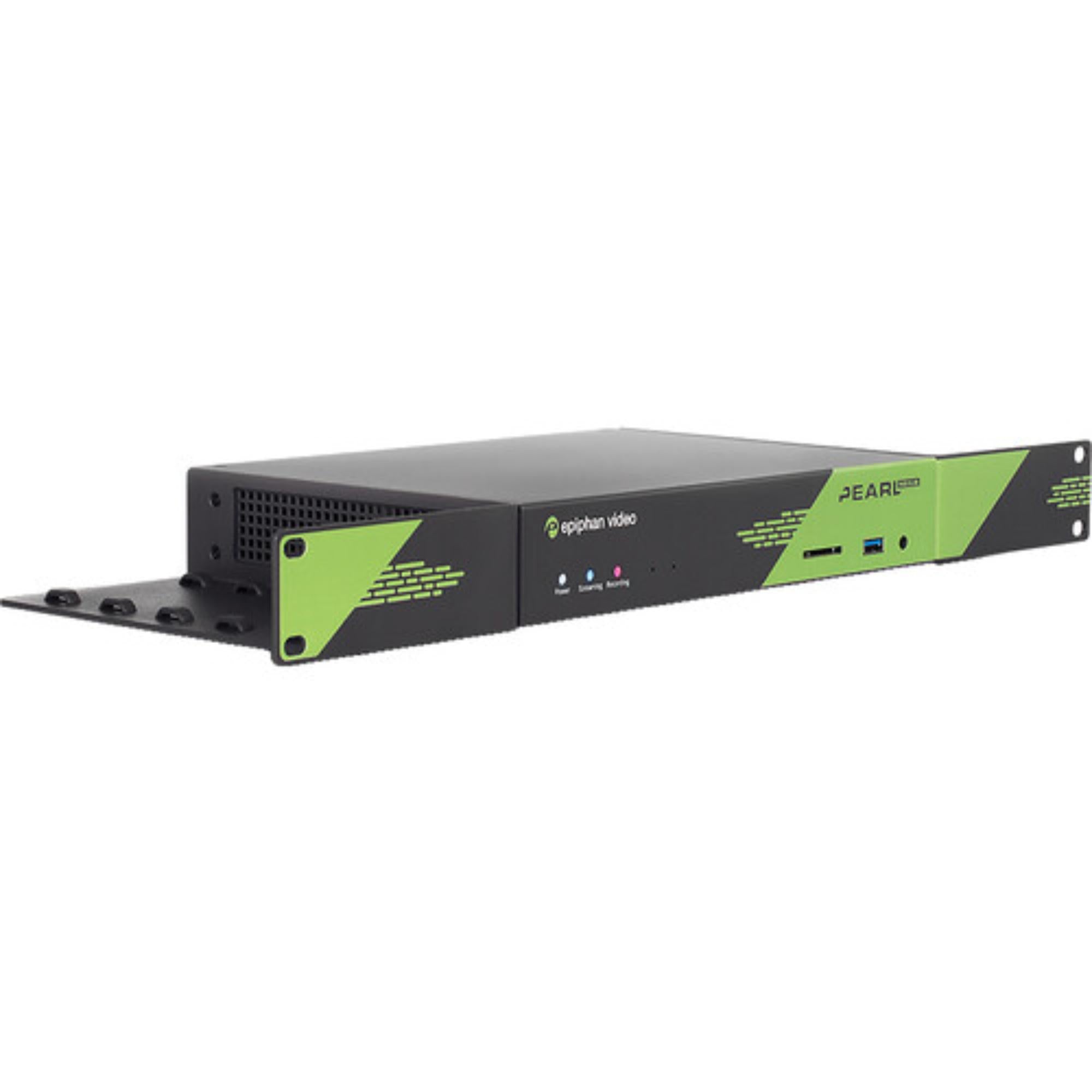

For installed systems, the 1 RU chassis keeps the hardware footprint compact while providing HDMI and RJ45 confidence-monitor outputs. The detachable rackmount brackets make the unit straightforward to integrate into a professional equipment rack where space, service access, and cable organization matter.

System Characteristics

• Software switching provides integrated live source control
• Color processing operates at 8-bit 4:2:0
• Audio processing operates at 48 kHz

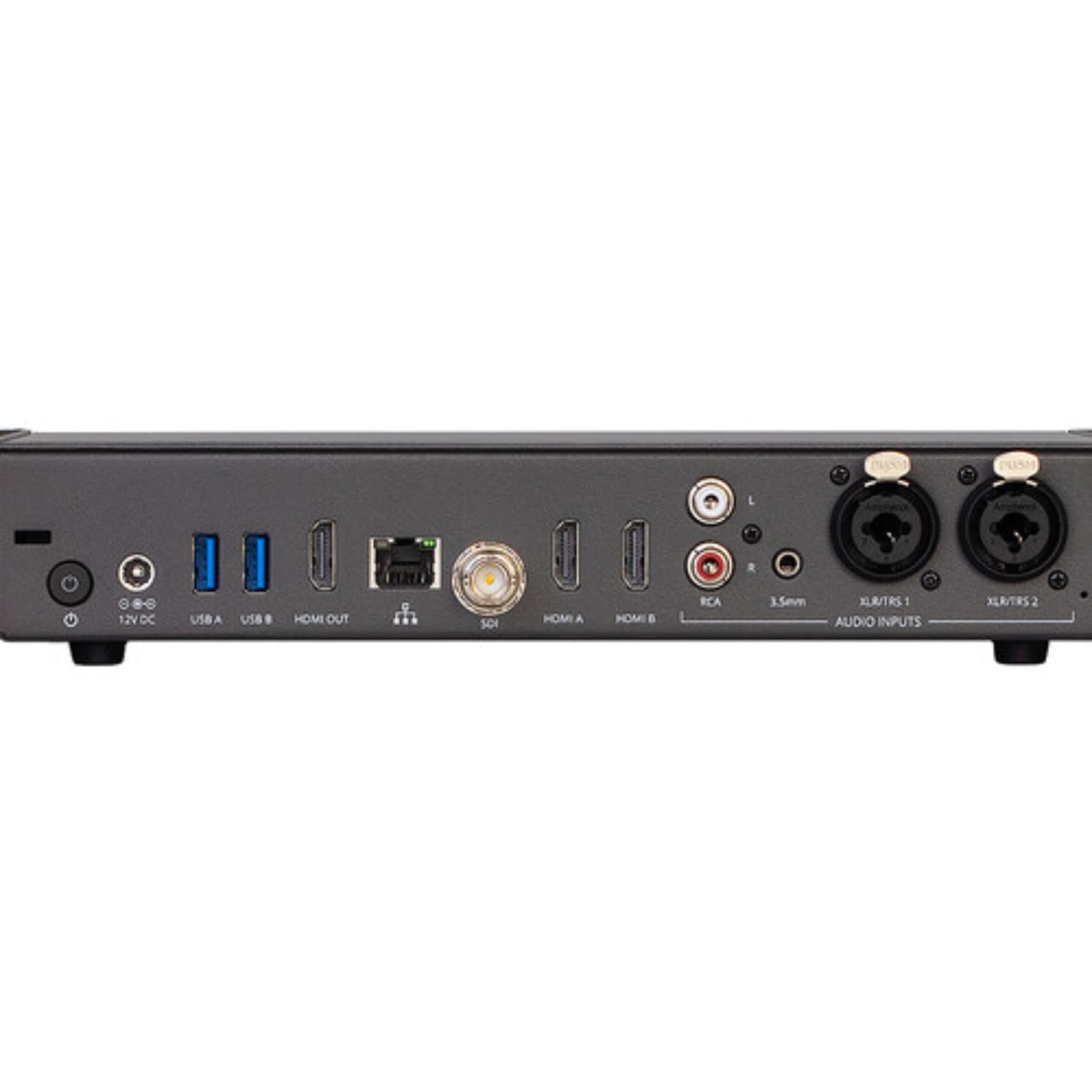

• Video input connectivity includes 1 x BNC 3G-SDI, 2 x HDMI 1.4, 2 x USB-A UVC, and 1 x RJ45 for RTSP, SRT, HX, and NDI
• BNC input formats support 4:4:4, 4:2:2, RGB, and YCC from 640 × 480 up to WUXGA 1920 × 1200 at 60 fps
• HDMI input formats support 4:4:4, 4:2:2, RGB, and YCC from 640 × 480 up to WUXGA 1920 × 1200 at 60 fps
• Analog audio inputs include 2 x combo XLR-1/4" TRS line, 1 x RCA line, and 1 x 1/8" / 3.5 mm TRS microphone input
• Embedded audio inputs are supported through HDMI, SDI, USB-A, and RJ45
• Video outputs include 1 x HDMI 1.4a and 1 x RJ45
• Output video formats support 480p through WUXGA 1920 × 1200 at up to 60 fps
• Analog audio output includes 1 x 1/8" / 3.5 mm TRS connection
• Embedded audio outputs are supported through HDMI and RJ45
• HDCP support is not provided
• Wireless connectivity is not provided
• Power input: 1 x barrel connector, 12 VDC at 5 A
• Power supply input: 90 to 240 VAC
• Device power: 12 VDC at 5 A (60 W)
• Operating conditions: 0 to 40°C (32 to 104°F)
• Certifications: CE, FCC, RoHS
• Rack form factor: 1 RU
• Dimensions: 465 × 184 × 43 mm (18.3 × 7.2 × 1.7 in)
• Weight: 2.4 kg (5.3 lb)

What's In The Box

• 1 x Epiphan Pearl Nexus Live Video Production System
• 1 x AC/DC Power Adapter
