Epiphan Pearl Mini NA/JP With 512GB SSD

Epiphan Pearl Mini NA/JP With 512GB SSD is a compact live video production system built for switching, recording, and streaming workflows that need professional video I/O without a full-size production rack. It supports SDI, HDMI, USB, and NDI|HX sources, provides hardware-accelerated encoding, and includes 512GB of internal SSD storage for local recording.

For broadcast engineers, AV teams, lecture capture, houses of worship, and live production environments, Pearl Mini combines source switching, confidence monitoring, recording, and IP delivery in one chassis. A built-in 7" touchscreen gives the operator direct access to the production system, while HDMI and RJ45 outputs support local monitoring and network-based workflows.

Highlights

• Integrated production workflow – combines video switching, streaming, recording, and monitoring in a single system
• Flexible video inputs – supports 3G-SDI, HDMI, USB-A, RJ45 HDBaseT, and NDI|HX sources
• 512GB internal SSD – provides onboard storage for local production recording

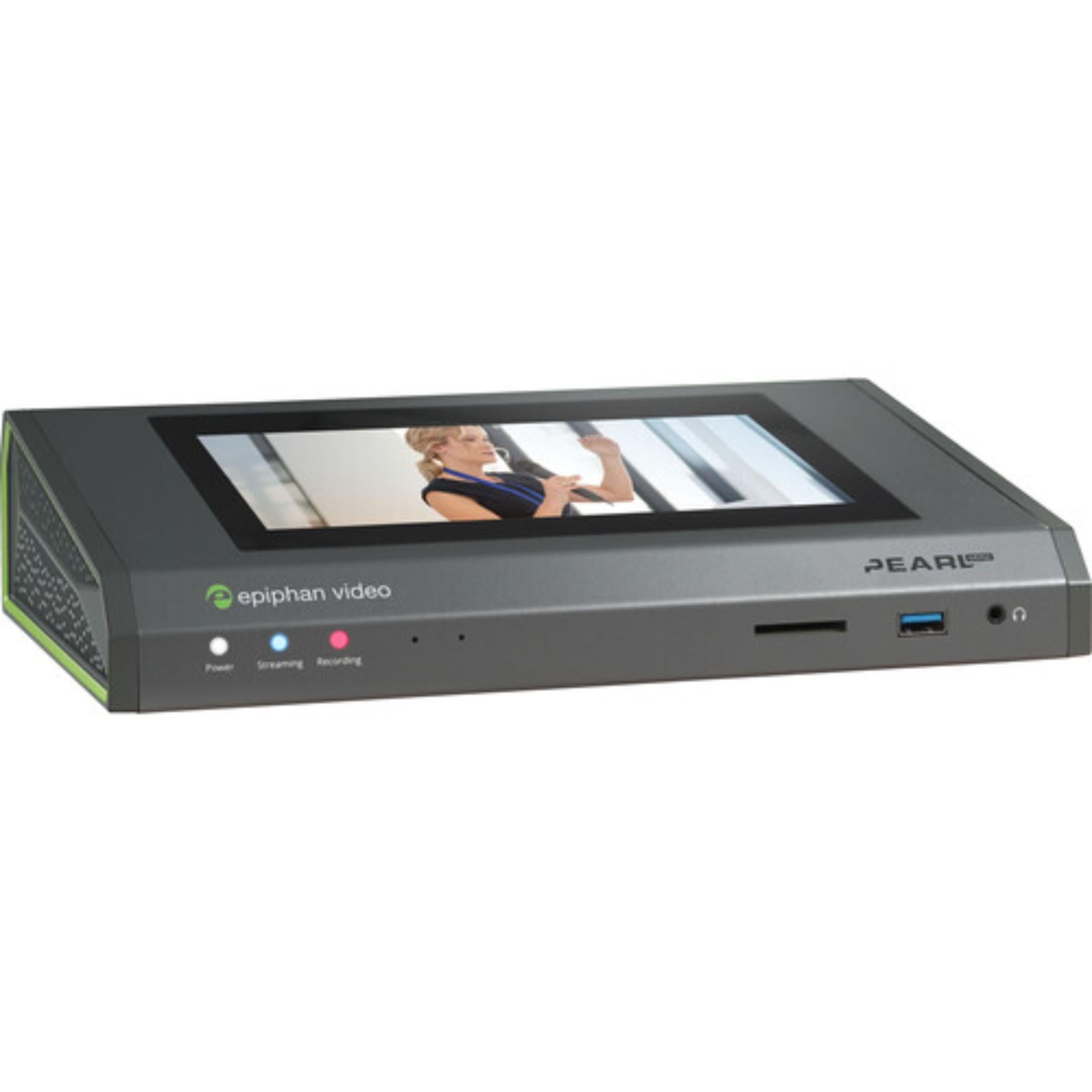

• 7" touchscreen display – provides built-in monitoring and direct system operation
• Hardware-accelerated encoding – supports H.264/MJPEG IP video encoding up to 1920 × 1200 at 60 fps

Quick Specs & Uses

• Product type: Live video production recorder, streamer, and switcher
• Video inputs: 1 x BNC 3G-SDI; 2 x HDMI 1.4a; 2 x USB-A 3.0; 1 x RJ45 HDBaseT
• Input video formats: Up to WUXGA 1920 × 1200 at 60 fps; VGA 640 × 480 up to 60 fps
• Video outputs: 1 x HDMI 1.4a; 1 x RJ45 HDBaseT
• Output video formats: 1080p up to 60 fps; 480p up to 60 fps
• Internal storage: 512GB
• Display: 7" touchscreen, 700 × 480 resolution
• Typical uses: Live streaming, recording, source switching, lecture capture, houses of worship, and installed production systems

Why It Helps

Pearl Mini brings several production functions into one compact platform, which can simplify systems that would otherwise need separate switching, recording, monitoring, and streaming hardware. SDI, HDMI, USB, and network-based source support also makes it easier to work with mixed camera and presentation environments.

The 512GB internal SSD gives operators a local recording destination without depending entirely on external storage. Recording supports up to 1920 × 1200 at 60 fps at 50 Mb/s in AVI, MP4, or MOV formats, while an SD card slot provides an additional recording-media option.

For streaming, the hardware encoder supports H.264/MJPEG video and AAC, MP3, or PCM audio, with up to three simultaneous streams. HLS, HTTP, RTMP, RTMPS, RTSP, SRT, TCP, TS-MPEG, and UDP transport support gives engineers multiple ways to integrate Pearl Mini into existing IP delivery workflows.

System Characteristics

• Processing latency ranges from 80 to 8000 ms
• Color processing uses 8-bit 4:2:0 processing

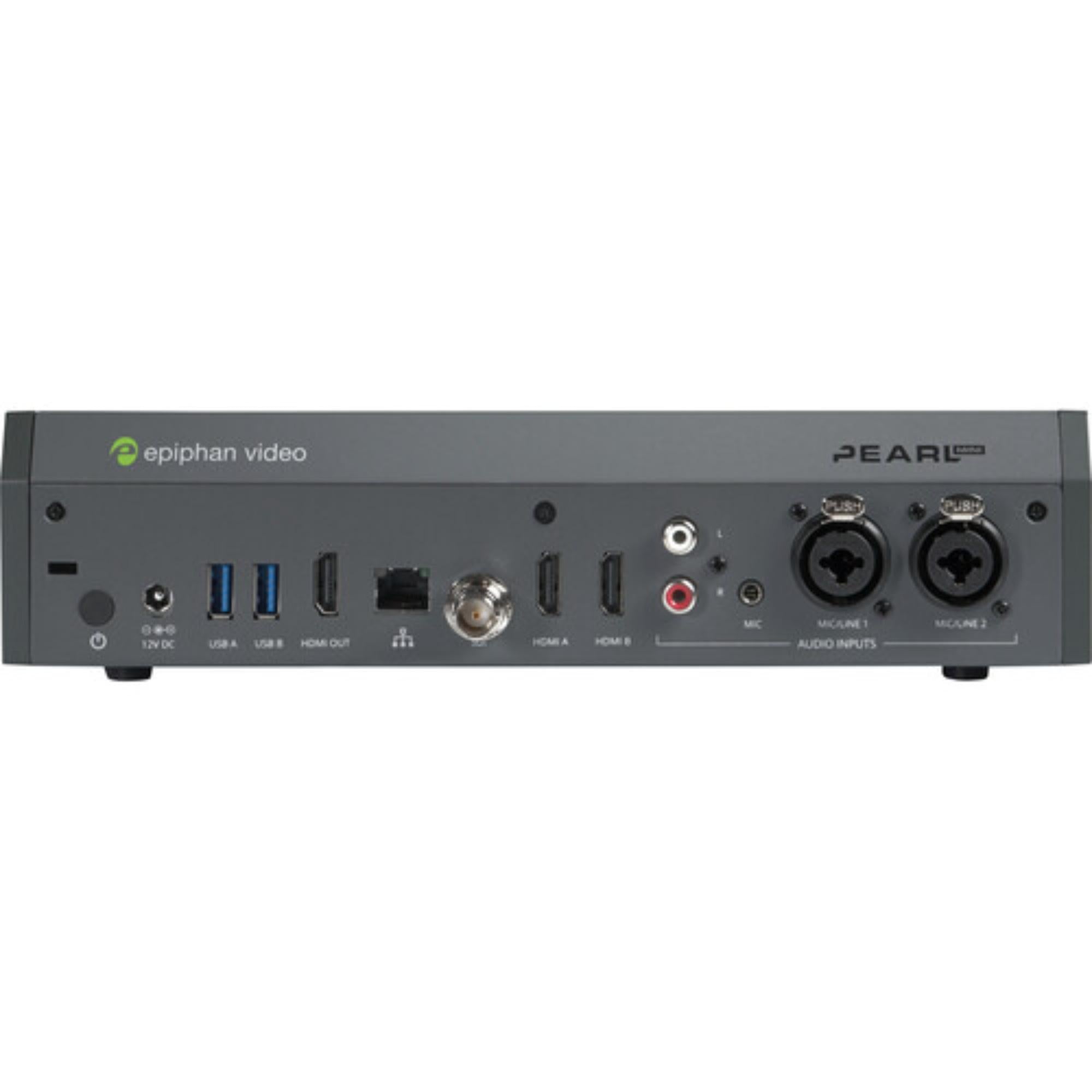

• Video inputs include 1 x BNC 3G-SDI, 2 x HDMI 1.4a, 2 x USB-A 3.0, and 1 x RJ45 HDBaseT
• Audio inputs include 2 x XLR 3-pin mono analog female, 2 x 1/4" TRS mono analog female, 1 x 2RCA stereo analog female, and 1 x 1/8" / 3.5 mm TRS stereo analog female
• Embedded audio inputs support SDI, HDMI, USB-A, and RJ45 sources
• Video outputs include 1 x HDMI 1.4a and 1 x RJ45 HDBaseT
• Audio output includes 1 x 1/8" / 3.5 mm TRS stereo analog connection
• Embedded audio output is supported through RJ45 and HDMI
• IP video encoding supports H.264/MJPEG from 640 × 480 to 1920 × 1200 at 60p
• IP audio encoding supports AAC, MP3, and PCM
• Transport protocols include HLS, HTTP, RTMP, RTMPS, RTSP, SRT, TCP, TS-MPEG, and UDP
• Simultaneous streams support up to 3 streams
• Recording media includes 1 x SD card slot and 512GB internal storage
• Recording modes support 1920 × 1200 at 60 fps, 50 Mb/s, in AVI, MP4, or MOV formats
• Other I/O includes 1 x USB-A 3.0 / USB 3.1/3.2 Gen 1
• Digital audio decoding supports PCM
• HDCP support is not provided
• Wireless is not provided
• Power input is 1 x barrel connector, 12 VDC up to 7 A
• Power consumption is listed as 12 VDC at 5 A (60 W) or 12 VDC at 7 A (84 W)
• Operating conditions are 0 to 40°C (32 to 104°F)
• Dimensions: 261 × 172 × 60 mm (10.3 × 6.8 × 2.4 in)
• Weight: 1.7 kg (3.7 lb)

What's In The Box

• 1 x Epiphan Pearl Mini Live Video Production System with 512GB SSD (NA/JP)
• 1 x Power Supply
• 1 x Power Cable

Trusted Seller

This system is intended for professional live production, streaming, recording, and AV environments where engineers need integrated video switching, local storage, monitoring, professional audio connectivity, and IP delivery in a compact production platform.
