Epiphan Pearl 2 Rackmount

Epiphan Pearl 2 Rackmount is a 2 RU live video production system built for rack-based switching, encoding, streaming, and recording workflows. It accepts 12G-SDI, HDMI/DVI, 4K HDMI/DVI, USB video, and RTSP network sources, with supported input resolutions reaching 4096 × 2160 DCI 4K.

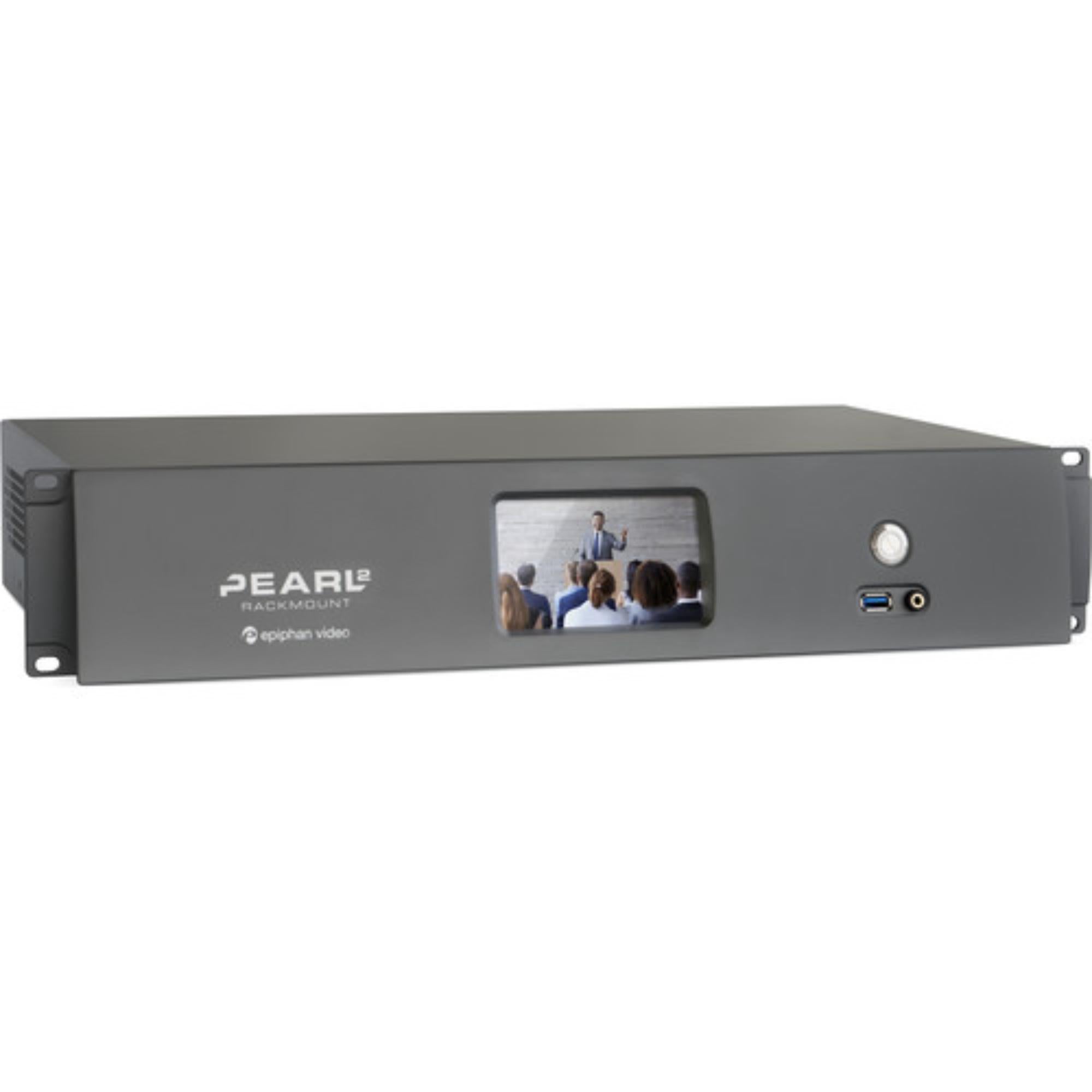

For broadcast engineers and production teams, the rackmount chassis brings source acquisition, program creation, monitoring, local recording, and IP delivery into one system. The front touchscreen gives operators direct access to live switching, confidence monitoring, configuration, recording, and streaming controls, while the internal 512 GB SSD provides onboard storage for recorded media.

Highlights

• 2 RU rackmount production system – designed for installation in professional equipment racks
• Multi-format video acquisition – supports 12G-SDI, HDMI/DVI, 4K HDMI/DVI, USB video, and RTSP network sources
• Up to DCI 4K input support – accepts resolutions up to 4096 × 2160
• Integrated touchscreen operation – provides live switching, confidence monitoring, configuration, recording, and streaming control
• 512 GB internal SSD – provides onboard storage with automatic recording management

Quick Specs & Uses

• Product type: Rackmount live video production system
• Rack format: 2 RU
• Video inputs: 2 x 12G-SDI; 2 x HDMI/DVI; 2 x 4K HDMI/DVI; 2 x USB Video
• Network inputs: RTSP sources over IP, including IP cameras or channels from Pearl or Pearl-2 systems
• Maximum supported input resolution: 4096 × 2160 DCI 4K
• Video outputs: 2 x 4K HDMI with embedded audio
• Video codecs: H.264; Motion JPEG
• Video bit rate: 1 to 20 Mb/s
• Internal storage: 512 GB SSD
• Network interface: 1 x 10/100/1000 Ethernet RJ45
• Application: Live switching, recording, streaming, confidence monitoring, and rack-based production

Why It Helps

Pearl 2 Rackmount is designed for production environments where several source types need to live in the same workflow. SDI, HDMI, USB, and RTSP inputs allow engineers to combine cameras, presentation feeds, and network video without relying on a single connection standard.

The encoding architecture supports two simultaneous 1080p60 programs with up to six HD sources, six simultaneous 1080p30 programs with up to six HD sources, or one UHD 4K program at 30 fps using up to two 4K and two HD sources. That gives operators different ways to allocate the available processing depending on the required program resolution and number of outputs.

Recording and media management are also built into the chassis. The 512 GB SSD can automatically remove the oldest recordings as storage is required, while three USB 3.0 ports support automatic or manual copying to local USB drives. FTP server and client capabilities provide another route for moving recorded files through a network workflow.

System Characteristics

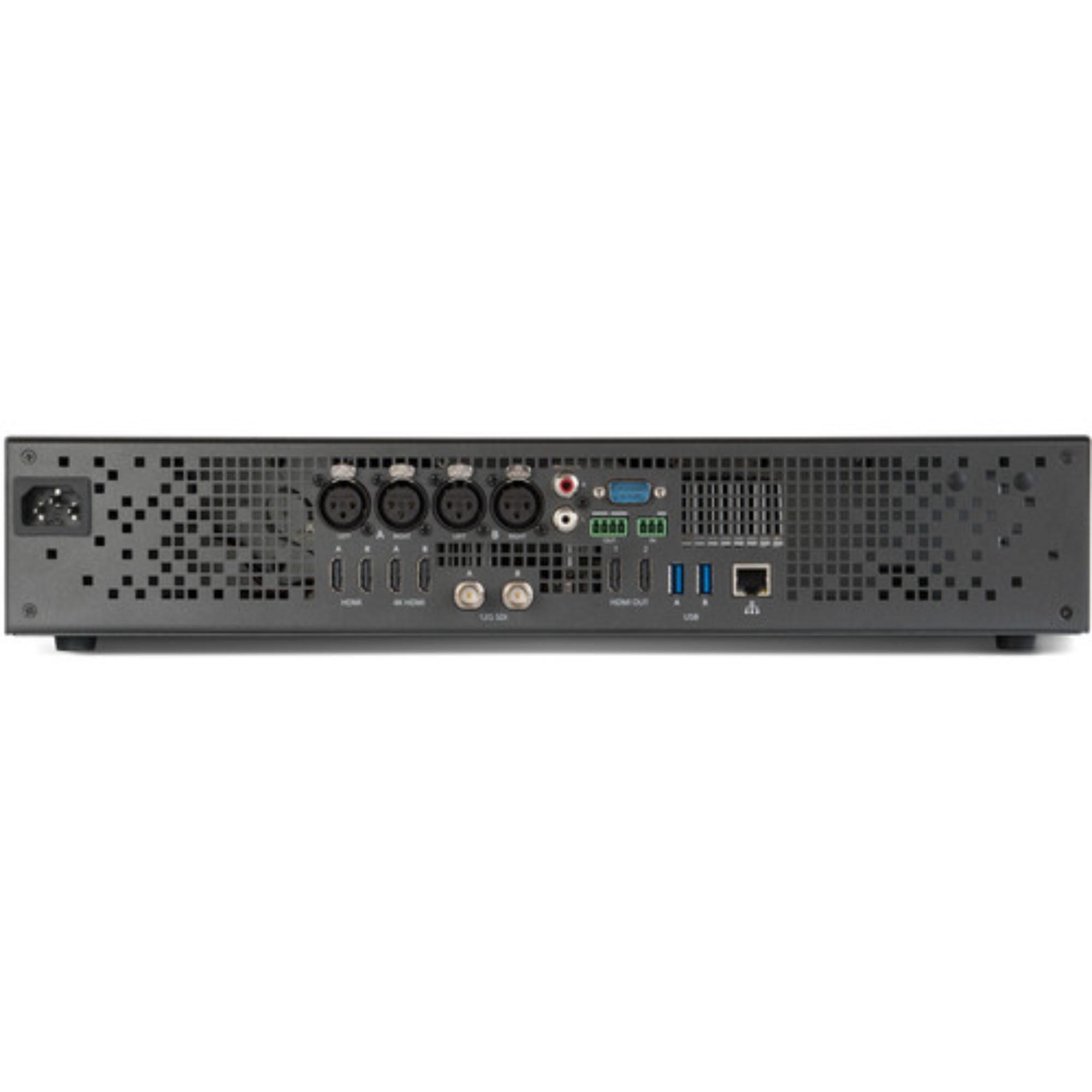

• Video input connectivity includes 2 x 12G-SDI, 2 x HDMI/DVI, 2 x 4K HDMI/DVI, and 2 x USB Video connections
• Network video acquisition supports RTSP sources over IP
• Supported HD video formats include 4K HDMI, HDMI, 12G/6G/3G/HD/SD-SDI, and DVI Single-Link through an adapter
• Audio inputs include 2 x XLR stereo, 1 x RCA stereo, embedded SDI and HDMI audio, and USB webcam audio
• Analog audio level supports XLR maximum signal of 12.3 V RMS / +24 dBu and RCA signal of -10 dBV
• Video outputs include 2 x 4K HDMI with audio for local display or confidence monitoring
• Video encoding supports H.264 and Motion JPEG with programmable keyframe intervals
• Color resolution is 4:2:0
• Output frame size is configurable up to 4096 × 2160
• Audio encoding supports MP3 at 64 to 320 kb/s, PCM, and AAC at 64 to 320 kb/s
• Streaming support includes MPEG-TS, FLV, RTSP over TCP/UDP, RTMP, RTMPS, and HLS
• Multicast streaming supports RTP, MPEG-TS & RTP, and MPEG-TS over UDP
• Network discovery supports UPnP and SAP
• Network security supports 802.1x EAP methods including PEAP, EAP-TLS, and EAP-TTLS
• Internal storage is 512 GB SSD with automatic removal of older recordings as space is required
• Local storage connectivity includes 3 x USB 3.0 ports for automatic or manual copying to USB drives
• Network storage supports FTP server and FTP client capabilities
• Recorded formats include AVI, MOV, MP4, and MPEG-TS
• Administration supports an Admin Panel, on-screen display, mobile UI, multiple user accounts/passwords, and an integration API via HTTP/HTTPS or RS-232
• Time synchronization supports NTP, TIME (RFC 868), and PTP v1 (IEEE-1588-2002 v1)
• Power consumption: 0.8 A, 100 to 240 VAC
• Dimensions: 497 × 89 × 277 mm (19.6 × 3.5 × 10.9 in)
• Weight: 5.5 kg (12.1 lb)

What's In The Box

• 1 x Epiphan Pearl-2 Rackmount Video Production Device (2 RU)
• 1 x Ethernet Cable
• 1 x Power Cable
• 1 x SDI Cable (3')
• 1 x HDMI Cable (3')
• 1 x HDMI to DVI Adapter
