Epiphan Lecture Capture Essentials Bundle

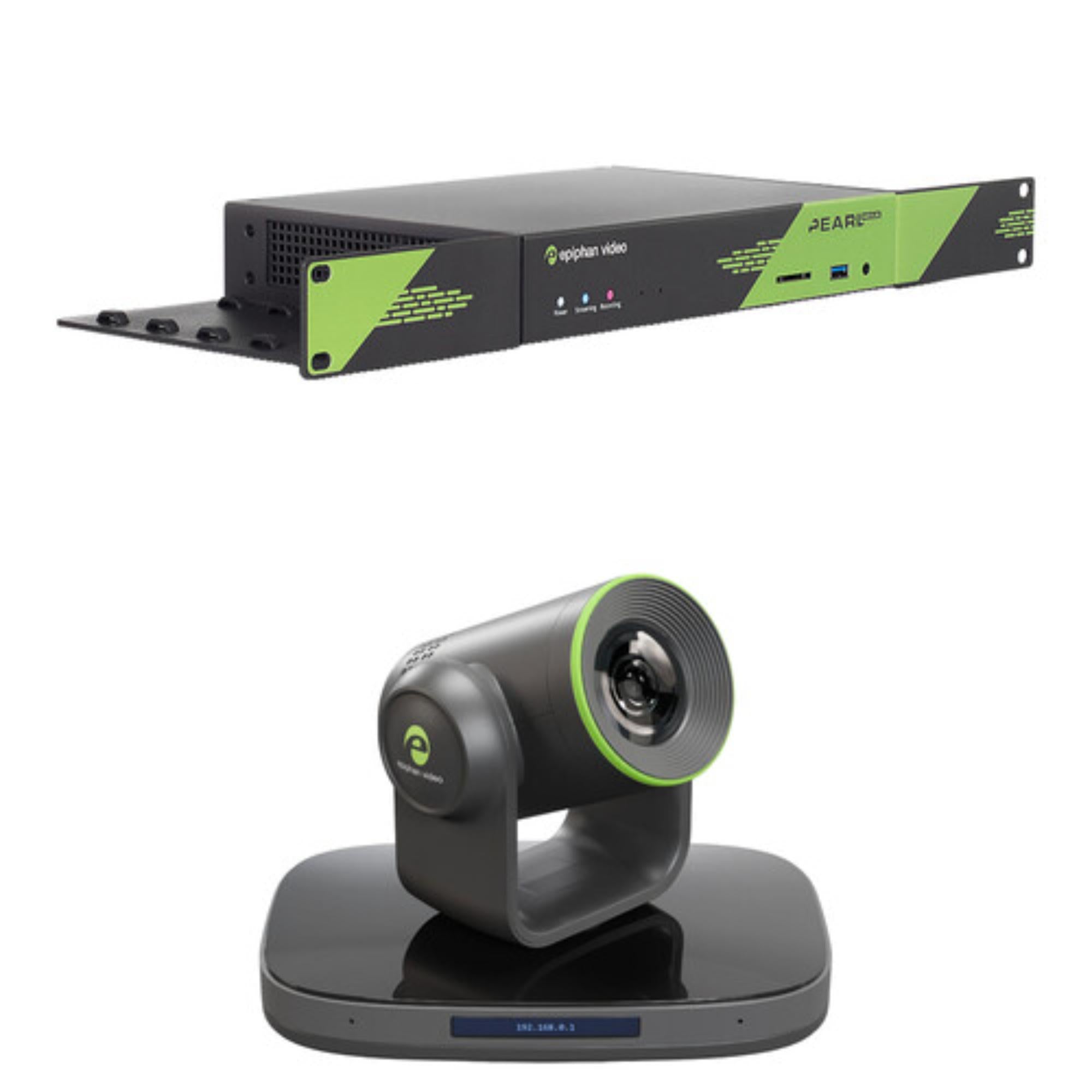

Epiphan Lecture Capture Essentials Bundle combines an Epiphan Pearl Nexus Live Video Production System with one EC20 4K SDI/HDMI/NDI/Dante PTZ camera for lecture capture, streaming, and recorded educational content. Pearl Nexus handles video ingest, software switching, recording, streaming, and confidence monitoring, while the EC20 provides remotely controlled image acquisition with 20x optical zoom and UHD 4K HDMI output.

For broadcast engineers, AV teams, and education technology departments, the bundle provides a practical signal path for capturing a lecturer, presenter, or classroom environment from a remotely operated camera position. Pearl Nexus accepts SDI, HDMI, USB, and network video sources, while the EC20 adds HDMI, 3G-SDI, USB-C, and LAN output with NDI|HX2, Dante AV-H, RTMP/RTMPS, RTSP, and SRT support.

Highlights

• Single-camera lecture capture package – combines a Pearl Nexus production system with one Epiphan EC20 PTZ camera
• Multi-format Nexus inputs – accepts 3G-SDI, HDMI, USB UVC, and RTSP/SRT/HX/NDI network sources
• 20x optical PTZ camera – EC20 uses a 6.25 to 125 mm lens with 20x optical and 16x digital zoom
• Professional IP video support – EC20 supports Dante AV-H, HTTP, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• Integrated monitoring output – Pearl Nexus provides simultaneous HDMI and RJ45 outputs for production monitoring and delivery

Quick Specs & Uses

• Product type: Single-camera lecture capture and streaming bundle
• Production system: Epiphan Pearl Nexus Live Video Production System
• PTZ camera: Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom
• Nexus video inputs: 1 x BNC 3G-SDI; 2 x HDMI 1.4; 2 x USB-A UVC; 1 x RJ45 RTSP/SRT/HX/NDI
• Nexus video outputs: 1 x HDMI 1.4a; 1 x RJ45
• Nexus maximum video format: WUXGA 1920 × 1200 at up to 60 fps
• Nexus audio inputs: 2 x combo XLR-1/4" TRS line; 1 x RCA line; 1 x 1/8" / 3.5 mm TRS microphone
• EC20 image sensor: 1/1.8"-type CMOS, 8.42 MP effective resolution
• EC20 optical zoom: 20x
• EC20 maximum HDMI output: UHD 4K at up to 60 fps
• EC20 presets: 255
• Application: Lecture capture, education, live streaming, presentation recording, and installed AV production

Why It Helps

The bundle gives lecture capture operators a dedicated PTZ camera and a separate production system for switching, recording, and streaming. The EC20 can hold a lecturer, podium, board, or presentation area without requiring an operator at the camera, while Pearl Nexus manages the incoming signal and production output from a central position.

Remote framing is one of the practical advantages of the EC20. Its 20x optical zoom, 325° pan range, 120° tilt range, and 255 presets allow engineering teams to establish repeatable shot positions and recall them as the presenter moves through the room.

Pearl Nexus also keeps mixed signal types manageable. SDI, HDMI, USB, and IP sources can be brought into the same system, while analog and embedded audio options make it easier to integrate microphones, mixers, presentation systems, and network feeds into a lecture capture workflow.

System Characteristics

• Nexus switching type: Software
• Nexus color processing: 8-bit 4:2:0
• Nexus audio processing: 48 kHz
• Nexus video input connectivity includes 1 x BNC 3G-SDI, 2 x HDMI 1.4, 2 x USB-A UVC, and 1 x RJ45 for RTSP, SRT, HX, and NDI
• Nexus input video formats support resolutions from 640 × 480 through WUXGA 1920 × 1200 at up to 60 fps
• Nexus analog audio inputs include 2 x combo XLR-1/4" TRS line, 1 x RCA line, and 1 x 1/8" / 3.5 mm TRS microphone input
• Nexus embedded audio inputs are supported through HDMI, SDI, USB-A, and RJ45
• Nexus video outputs include 1 x HDMI 1.4a and 1 x RJ45
• Nexus output video formats support 480p through WUXGA 1920 × 1200 at up to 60 fps
• Nexus analog audio output includes 1 x 1/8" / 3.5 mm TRS connection
• Nexus embedded audio outputs are supported through HDMI and RJ45
• Nexus HDCP support: No
• Nexus wireless connectivity: No
• Nexus power input: 1 x barrel connector, 12 VDC at 5 A
• Nexus power supply input: 90 to 240 VAC
• Nexus device power: 12 VDC at 5 A (60 W)
• Nexus operating conditions: 0 to 40°C (32 to 104°F)
• Nexus certifications: CE, FCC, RoHS
• Nexus rack form factor: 1 RU
• Nexus dimensions: 465 × 184 × 43 mm (18.3 × 7.2 × 1.7 in)
• Nexus weight: 2.4 kg (5.3 lb)
• EC20 image sensor: 1/1.8"-type CMOS with 8.42 MP effective resolution
• EC20 focus control: Autofocus and manual focus
• EC20 shutter speed: 1/10,000 to 1/30 second
• EC20 signal-to-noise ratio: 55 dB
• EC20 minimum illumination: 0.5 lux
• EC20 white balance: Auto, Indoors, Manual, One Push, Outdoors, VAR
• EC20 lens: 6.25 to 125 mm with f/1.58 to 3.95 maximum aperture
• EC20 zoom: 20x optical; 16x digital
• EC20 HDMI output supports 3840 × 2160 at 25/29.97/50/59.94/60 fps
• EC20 SDI output supports up to 1920 × 1080 at 60 fps
• EC20 USB output supports up to 3840 × 2160 at 30 fps
• EC20 internal recording supports 3840 × 2160, 1920 × 1080, and 1280 × 720 at up to 60 fps
• EC20 audio recording: Dante; AAC Audio
• EC20 broadcast output: NTSC/PAL
• EC20 IP streaming supports H.264, H.265, and MJPEG via Dante AV-H, HTTP, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• EC20 main IP stream supports 640 × 360 to 3840 × 2160 up to 50p/60p at 0.3 to 51 Mb/s
• EC20 sub IP stream supports 320 × 240 to 720 × 480 up to 50p/60p at 0.3 to 20.4 Mb/s
• EC20 presets: 255
• EC20 pan range: 325° (-162.5° to 162.5°) at 1.8 to 80°/s
• EC20 tilt range: 120° (-30° to 90°) at 1.5 to 49°/s
• EC20 tally light: Yes
• EC20 video I/O includes 1 x HDMI output, 1 x BNC 3G-SDI output, 1 x RJ45 LAN output, and 1 x USB-C output
• EC20 audio input: 1 x 1/8" / 3.5 mm TRS stereo line input
• EC20 serial control includes RS-232 input/output and RS-485 control
• EC20 maximum serial cable length: 30 m (98.4 ft) via RS-232; 1200 m (3937 ft) via RS-485
• EC20 built-in microphone: Stereo
• EC20 built-in speaker: No
• EC20 PoE support: PoE+ 802.3at
• EC20 power: 12 VDC, 2 A (18 W)
• EC20 operating conditions: 0 to 40°C (32 to 104°F)
• EC20 storage conditions: -40 to 60°C (-40 to 140°F)
• EC20 mounting: 1 x 1/4"-20 female
• EC20 materials: Plastic; Metal
• EC20 certification: FCC Part 15 Class A
• EC20 weight: 1.8 kg (4 lb), body only

What's In The Box

• 1 x Epiphan Pearl Nexus Live Video Production System
• 1 x AC/DC Power Adapter
• 1 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom for Lecture Capture
• 1 x Remote Controller
• 1 x 12 VDC Power Adapter
