Epiphan Event Streaming Bundle

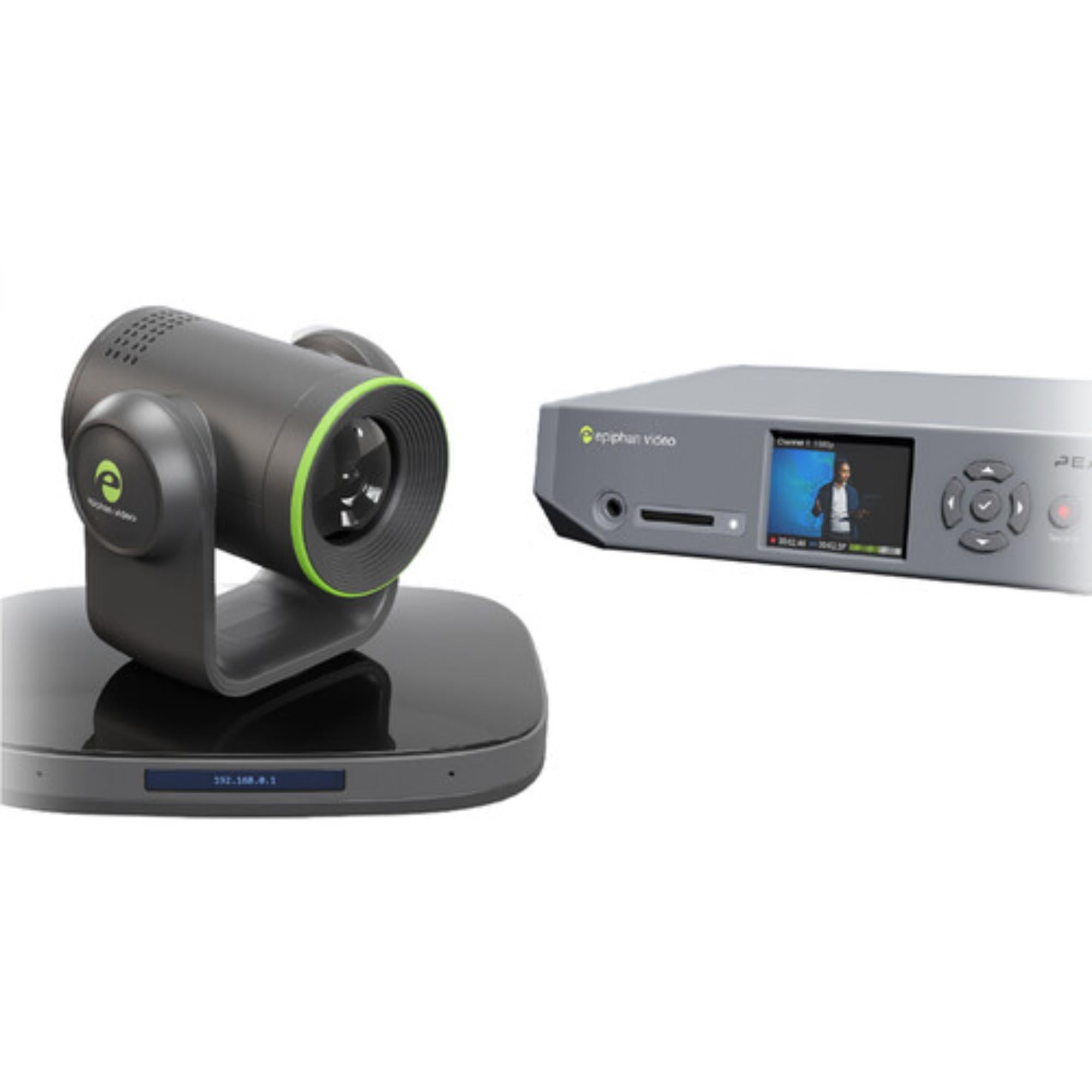

Epiphan Event Streaming Bundle combines an Epiphan Pearl Nano Streamer & Recorder with one EC20 4K SDI/HDMI/NDI/Dante PTZ camera for compact live event streaming and recording workflows. Pearl Nano handles video ingest, H.264 encoding, recording, and IP delivery, while the EC20 adds remotely controlled image acquisition with 20x optical zoom and UHD 4K HDMI output.

For broadcast engineers and production teams working in corporate town halls, live events, and similar applications, the bundle keeps the core signal path manageable without requiring a full production room. Pearl Nano supports 12G-SDI and HDMI video, SD card or NVMe SSD recording, and common streaming transports, while the EC20 adds HDMI, 3G-SDI, LAN, and USB outputs together with professional IP streaming and PTZ control.

Highlights

• Compact event production package – combines a Pearl Nano streamer/recorder with one Epiphan EC20 PTZ camera
• 1080p60 Pearl Nano workflow – supports 12G-SDI and HDMI video inputs with H.264 encoding
• 20x optical PTZ camera – EC20 uses a 6.25 to 125 mm lens with 20x optical and 16x digital zoom
• Professional IP streaming – EC20 supports Dante AV-H, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• Complete camera mounting setup – includes both ceiling and wall mounts for the EC20

Quick Specs & Uses

• Product type: Single-camera event streaming and recording bundle
• Streamer/recorder: Epiphan Pearl Nano Streamer & Recorder
• PTZ camera: Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom
• Pearl Nano video I/O: 1 x BNC 12G-SDI input; 1 x HDMI 2.0 input; 1 x HDMI 2.0 output; 1 x HDMI 2.0 loop output
• Pearl Nano encoding: H.264 from 640 × 480 to 1920 × 1080 at 60 fps, up to 8 Mb/s
• Pearl Nano recording media: SD/SDHC/SDXC card or NVMe SSD
• Pearl Nano transport protocols: HLS, RTMP, RTMPS, RTSP, SRT
• EC20 image sensor: 1/1.8"-type CMOS, 8.42 MP effective resolution
• EC20 optical zoom: 20x
• EC20 maximum HDMI output: 3840 × 2160 at up to 60 fps
• EC20 presets: 255
• Application: Corporate town halls, live event production, streaming, and recording

Why It Helps

The bundle separates acquisition and program delivery in a practical way. The EC20 handles remotely controlled camera framing, while Pearl Nano takes care of video ingest, recording, and streaming. For smaller event systems, that keeps the workflow focused without requiring a large collection of separate production devices.

The EC20 gives the operator useful control from a fixed camera position. Its 20x optical zoom, 325° pan range, 120° tilt range, and 255 presets make it possible to establish repeatable shots for presenters, stages, or audience positions and recall those framings during an event.

On the recorder side, Pearl Nano can work with SD/SDHC/SDXC media or an NVMe SSD and supports HLS, RTMP, RTMPS, RTSP, and SRT transport protocols. The source also notes that a Nano 4K license is available separately when an expanded 4K Pearl Nano workflow is required.

System Characteristics

• Pearl Nano embedded audio is supported through HDMI and SDI
• Pearl Nano network I/O includes 1 x RJ45 10/100 Mbps Ethernet input/output
• Pearl Nano USB connectivity includes 1 x USB-A input
• Pearl Nano storage support includes a single SD/SDHC/SDXC slot and a single NVMe SSD slot for recording
• Pearl Nano video encoding supports H.264 from 640 × 480 through 1920 × 1080 at 60 fps
• Pearl Nano power input includes RJ45 44 to 57 VDC and barrel 12 VDC at 1.5 A inputs
• Pearl Nano power supply: 12 VDC at 2.5 A (34 W)
• Pearl Nano operating conditions: 0 to 40°C (32 to 104°F)
• Pearl Nano dimensions: 206 × 150 × 43 mm (8.1 × 5.9 × 1.7 in)
• Pearl Nano weight: 0.9 kg (2 lb)
• EC20 image sensor: 1/1.8"-type CMOS with 8.42 MP effective resolution
• EC20 focus control: Autofocus and manual focus
• EC20 shutter speed: 1/10,000 to 1/30 second
• EC20 signal-to-noise ratio: 55 dB
• EC20 minimum illumination: 0.5 lux
• EC20 lens: 6.25 to 125 mm with f/1.58 to 3.95 maximum aperture
• EC20 zoom: 20x optical; 16x digital
• EC20 HDMI output supports up to 3840 × 2160 at 25/29.97/50/59.94/60 fps
• EC20 SDI output supports up to 1920 × 1080 at 59.94/60 fps
• EC20 USB output supports up to 3840 × 2160 at 30 fps
• EC20 internal recording supports 3840 × 2160, 1920 × 1080, and 1280 × 720 at up to 60 fps
• EC20 audio recording supports Dante and AAC audio
• EC20 IP streaming supports H.264, H.265, and MJPEG via Dante AV-H, HTTP, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• EC20 presets: 255
• EC20 pan range: 325° (-162.5° to 162.5°) at 1.8 to 80°/s
• EC20 tilt range: 120° (-30° to 90°) at 1.5 to 49°/s
• EC20 tally light is included
• EC20 video I/O includes 1 x HDMI output, 1 x BNC 3G-SDI output, 1 x RJ45 LAN output, and 1 x USB-C output
• EC20 audio input: 1 x 1/8" / 3.5 mm TRS stereo line input
• EC20 serial control includes RS-232 and RS-485 connectivity
• EC20 built-in microphone: Stereo
• EC20 PoE support: PoE+ 802.3at
• EC20 power: 12 VDC, 2 A (18 W)
• EC20 operating conditions: 0 to 40°C (32 to 104°F)
• EC20 storage conditions: -40 to 60°C (-40 to 140°F)
• EC20 dimensions: 223 × 165 × 154.8 mm (8.8 × 6.5 × 6.09 in)
• EC20 weight: 1.8 kg (4 lb), body only

What's In The Box

• 1 x Epiphan Pearl Nano Streamer & Recorder
• 1 x Power Supply
• 1 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom for Lecture Capture
• 1 x Remote Controller
• 1 x 12 VDC Power Adapter
• 1 x Ceiling Mount
• 1 x Wall Mount
