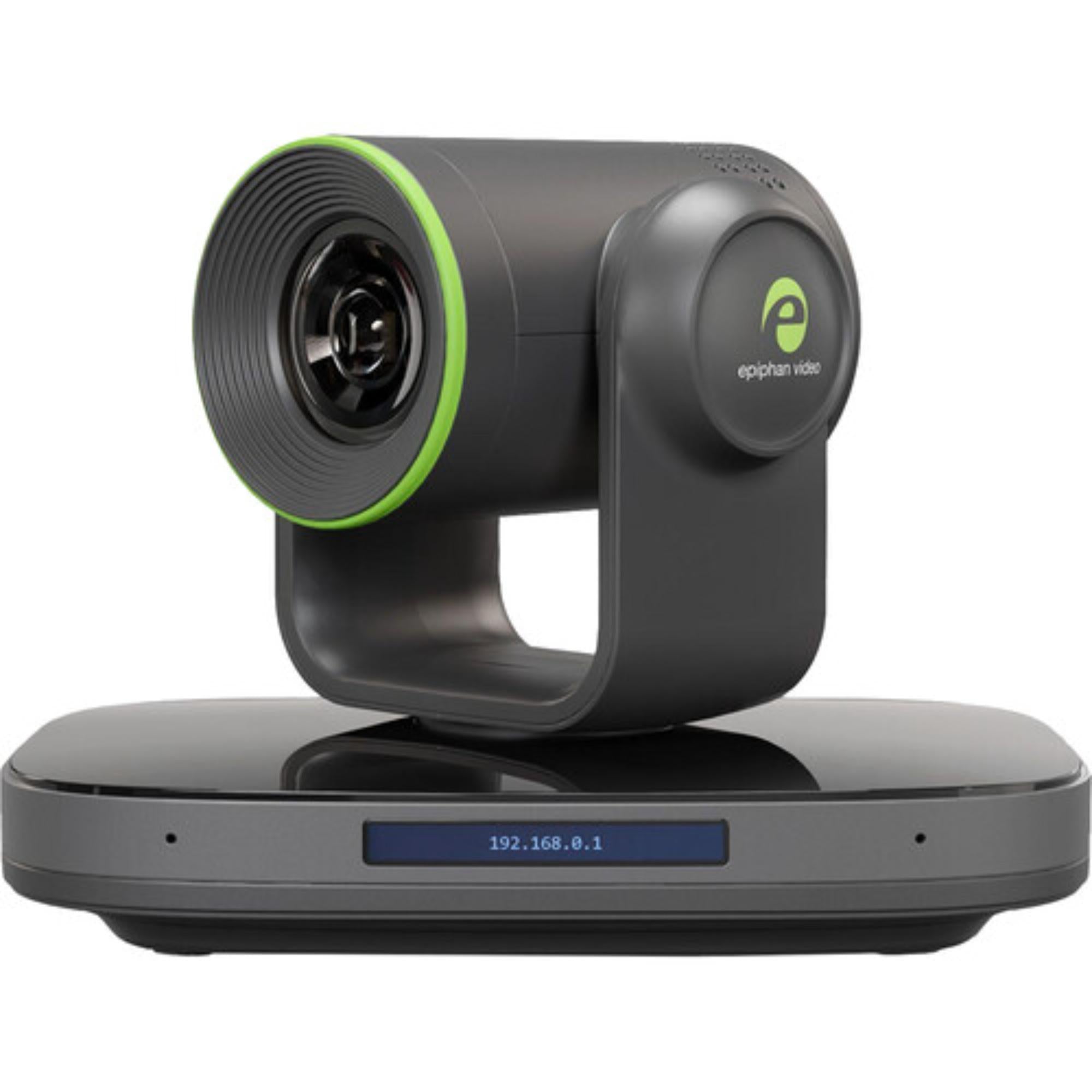

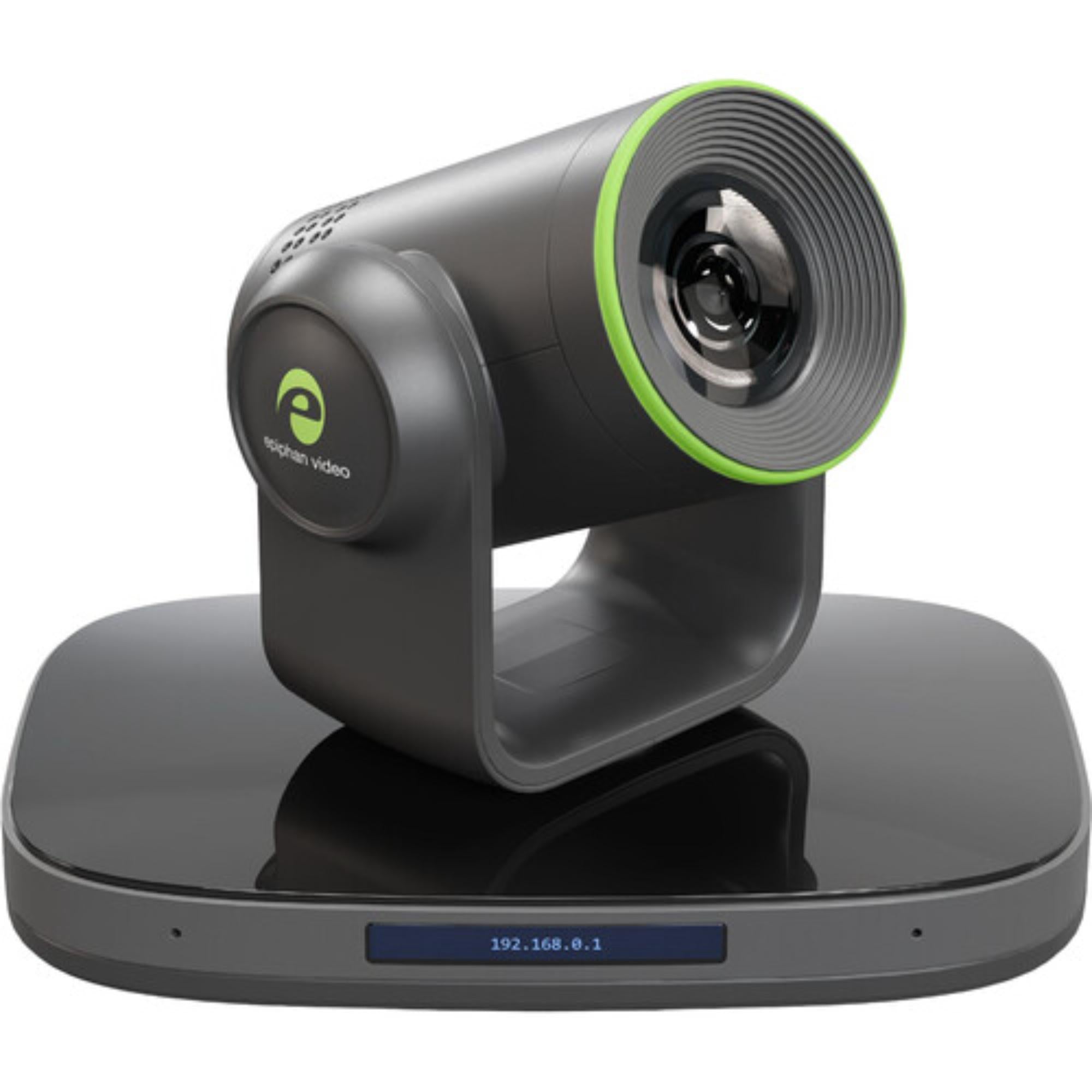

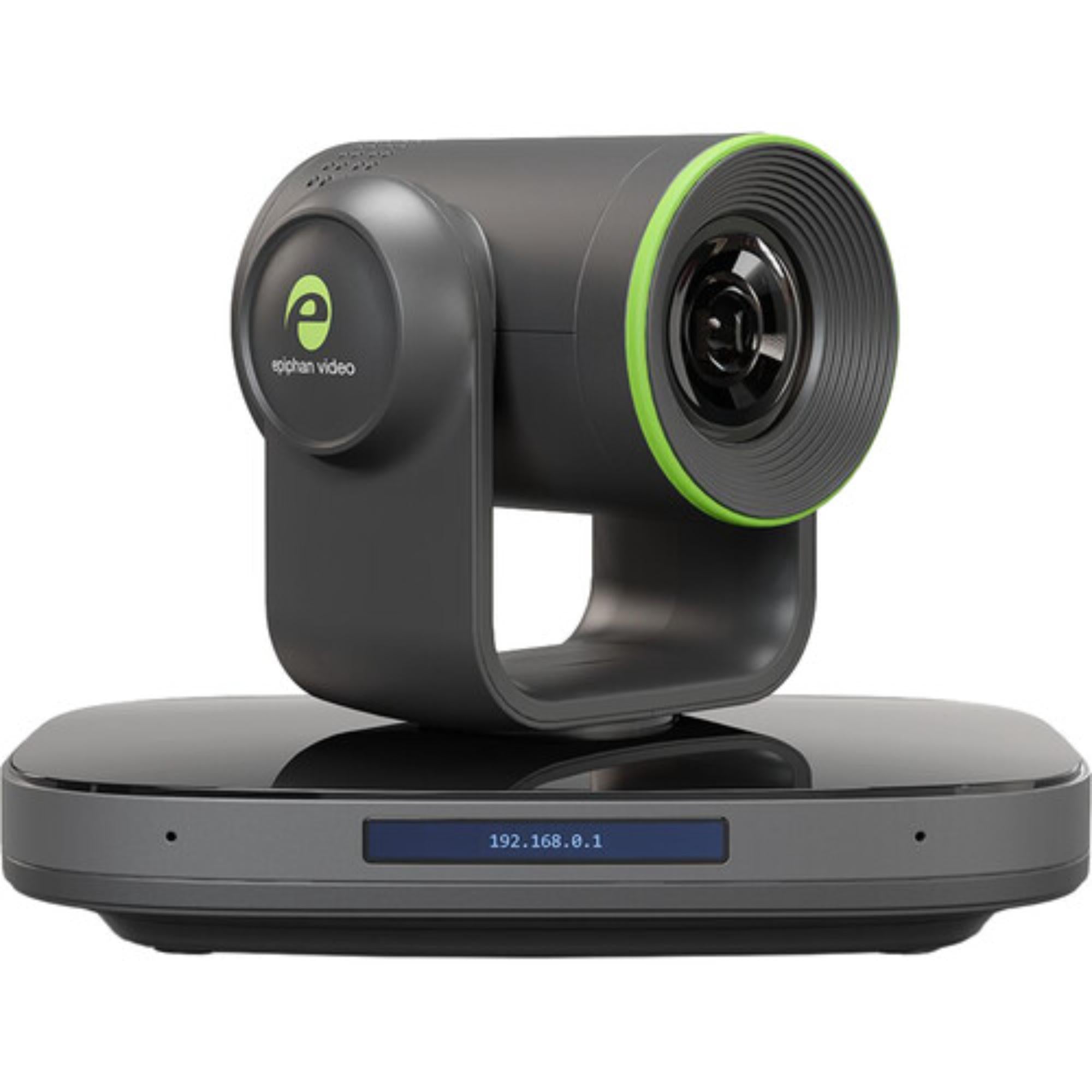

Epiphan EC20 PTZ Camera

Epiphan EC20 PTZ Camera is a professional UHD PTZ camera built for lecture capture, streaming, and installed production workflows. Its 1/1.8"-type 8.42-megapixel CMOS sensor feeds a 20x optical zoom lens, with HDMI output reaching 3840 × 2160 at up to 60 fps and 3G-SDI providing Full HD output at up to 60 fps.

For broadcast engineers and AV teams, the EC20 offers a useful mix of baseband, USB, and IP connectivity in one remotely operated camera. HDMI, 3G-SDI, USB-C, and LAN outputs are joined by NDI|HX2, Dante AV-H, RTMP/RTMPS, RTSP, SRT, HTTP, and ONVIF support, while RS-232, RS-485, IP control, 255 presets, and PoE+ make the camera practical for permanent lecture rooms and production spaces.

Highlights

• UHD 4K60 imaging – 1/1.8"-type 8.42 MP CMOS sensor supports HDMI output up to 3840 × 2160 at 60 fps
• 20x optical zoom – 6.25 to 125 mm lens provides long-range framing with an additional 16x digital zoom
• Multi-format video output – provides HDMI, 3G-SDI, USB-C, and RJ45 LAN connectivity
• Professional IP streaming – supports H.264, H.265, and MJPEG over Dante AV-H, HTTP, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• Integrated PTZ control – 255 presets, RS-232, RS-485, IP control, tally, and PoE+ support suit installed production environments

Quick Specs & Uses

• Product type: UHD 4K PTZ camera for lecture capture and streaming
• Image sensor: 1/1.8"-type CMOS
• Effective resolution: 8.42 Megapixels
• Optical zoom: 20x
• Digital zoom: 16x
• Focal length: 6.25 to 125 mm
• Maximum aperture: f/1.58 to 3.95
• Maximum HDMI output: UHD 4K at up to 60 fps
• Maximum SDI output: 1080p at up to 60 fps
• Maximum USB output: UHD 4K at up to 30 fps
• Presets: 255
• PoE support: PoE+ 802.3at
• Application: Lecture capture, live streaming, classrooms, presentations, and installed AV production

Why It Helps

The 20x optical zoom gives an operator useful reach when the camera needs to stay at the back of a classroom, auditorium, or presentation space. With 325° of pan travel, 120° of tilt, and 255 stored presets, common lecturer, podium, board, and room-wide shots can be established once and recalled during production.

The EC20 also gives engineers several options for moving video through a system. HDMI handles UHD 4K output, 3G-SDI provides a traditional Full HD baseband path, USB-C supports direct USB video, and the LAN interface carries IP workflows including NDI|HX2, Dante AV-H, SRT, RTSP, RTMP/RTMPS, HTTP, and ONVIF.

Power and control are designed for installed operation as well. The camera can run from 12 VDC or PoE+ 802.3at, while RS-232 and RS-485 support serial control over longer cable runs. Integrated tally, stereo microphones, a 3.5 mm line input, and internal recording up to UHD 4K60 add useful production functions without requiring those features to be supplied by separate devices.

System Characteristics

• Image sensor: 1/1.8"-type CMOS with 8.42 MP effective resolution
• Focus control: Autofocus; Manual Focus
• Shutter speed: 1/10,000 to 1/30 second
• Signal-to-noise ratio: 55 dB
• Minimum illumination: 0.5 lux
• Flip / mirror support: Image Flip; Mirror (Vertical)
• White balance: Auto; Indoors; Manual; One Push; Outdoors; VAR
• Lens: 6.25 to 125 mm with f/1.58 to 3.95 maximum aperture
• Zoom: 20x optical; 16x digital
• HDMI output: 3840 × 2160 at 25/29.97/50/59.94/60 fps; 1920 × 1080p at 25/29.97/50/59.94/60 fps; 1920 × 1080i at 50/59.94/60 fps; 1280 × 720 at 50/59.94/60 fps
• 3G-SDI output: 1920 × 1080p at 25/29.97/50/59.94/60 fps; 1920 × 1080i at 50/59.94/60 fps; 1280 × 720 at 50/59.94/60 fps
• USB output: 3840 × 2160 up to 30 fps; 1920 × 1080i up to 30 fps
• Embedded audio is supported through HDMI, IP/LAN, SDI, and USB
• Internal recording supports 3840 × 2160, 1920 × 1080p, and 1280 × 720 at up to 60 fps
• Audio recording: Dante; AAC Audio
• Broadcast output: NTSC/PAL
• IP streaming supports H.264, H.265, and MJPEG via Dante AV-H, HTTP, NDI|HX2, ONVIF, RTMP/RTMPS, RTSP, and SRT
• Main IP stream: 640 × 360 to 3840 × 2160 up to 50p/60p at 0.3 to 51 Mb/s
• Sub IP stream: 320 × 240 to 720 × 480 up to 50p/60p at 0.3 to 20.4 Mb/s
• Presets: 255
• Pan range: 325° (-162.5° to 162.5°) at 1.8 to 80°/s
• Tilt range: 120° (-30° to 90°) at 1.5 to 49°/s
• Tally light: Yes
• Wireless control: Built-in IR
• Maximum serial cable length: 30 m (98.4 ft) via RS-232; 1200 m (3937 ft) via RS-485

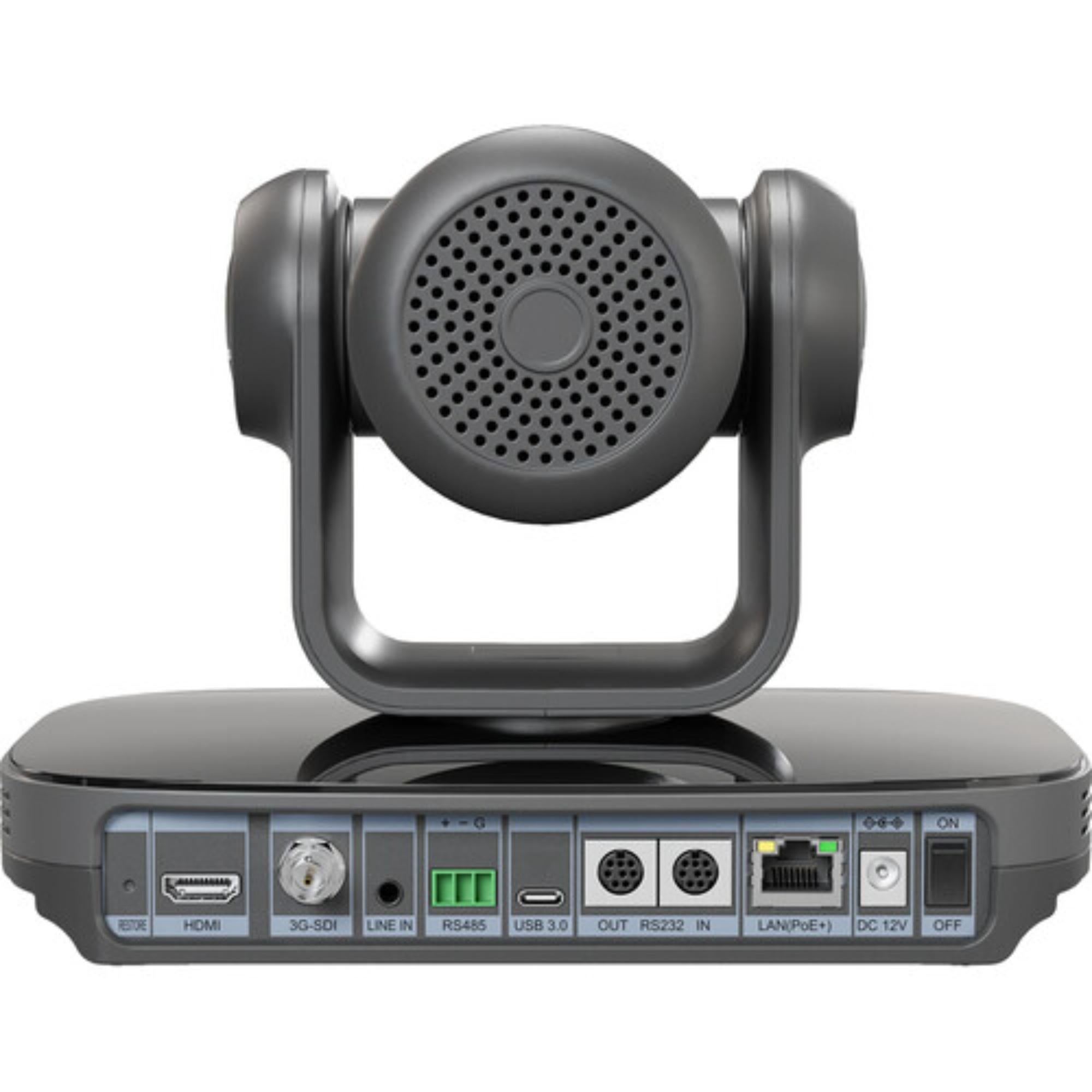

• Video I/O: 1 x HDMI Output; 1 x BNC 3G-SDI Output; 1 x RJ45 LAN Output; 1 x USB-C Output
• Audio I/O: 1 x 1/8" / 3.5 mm TRS Stereo Line Input
• Control I/O: 1 x D-Sub 8-Pin RS-232 Control Input; 1 x D-Sub 8-Pin RS-232 Control Output; 1 x Block 3-Pin RS-485 Control Input/Output
• Built-in microphone: Stereo
• Built-in speaker: No
• PoE support: PoE+ 802.3at
• Power input: 1 x DC 12 VDC Input
• Power consumption: 2 A (18 W)
• Operating conditions: 0 to 40°C (32 to 104°F)
• Storage conditions: -40 to 60°C (-40 to 140°F)
• Impact resistance: No
• Environmental resistance: No
• Mounting: 1 x 1/4"-20 Female
• Materials: Plastic; Metal
• Certification: FCC Part 15 Class A
• Dimensions: The dimensions listed in the supplied source appear internally inconsistent and should be verified before installation
• Weight: 1.8 kg (4 lb), body only

What's In The Box

• 1 x Epiphan EC20 4K SDI/HDMI/NDI/Dante PTZ Camera with 20x Optical Zoom for Lecture Capture
• 1 x Remote Controller
• 1 x 12 VDC Power Adapter
