Elgato Wave XLR Pro

Elgato Wave XLR Pro is intended for streaming, podcasting, and content creation setups where two XLR microphones need to connect to a computer over USB-C. According to the source material, it provides 4 inputs / 6 outputs at 48 kHz, uses 2 x XLR 3-pin mic inputs, and supports 48 kHz / 24-bit audio.

The interface measures 7.2 x 3.8 x 1.5" / 18.3 x 9.7 x 3.8 cm and weighs 13.6 oz / 385 g. Anyone who has run a two-mic podcast or stream knows that extra routing can get messy fast. Keeping both XLR inputs, line I/O, headphone outputs, and USB-C connection in one unit makes the desk easier to manage.

Highlights

• USB-C audio interface for streaming, podcasting, and content creation
• 2 x XLR preamps with 80 dB gain
• 48 kHz / 24-bit audio
• 48 V selectable phantom power
• 1/4" and 3.5 mm headphone outputs
• Dual USB-C ports for secondary device routing

Quick Specs & Uses

• Display: No
• Channels of I/O: 4 inputs / 6 outputs at 48 kHz
• Maximum sampling rate: 48 kHz / 24-bit
• Number of microphone inputs: 2
• Built-in microphone: No
• Input level adjustment: 4 x via software
• Pad: No
• Gain / trim range: Mic, 80 dB

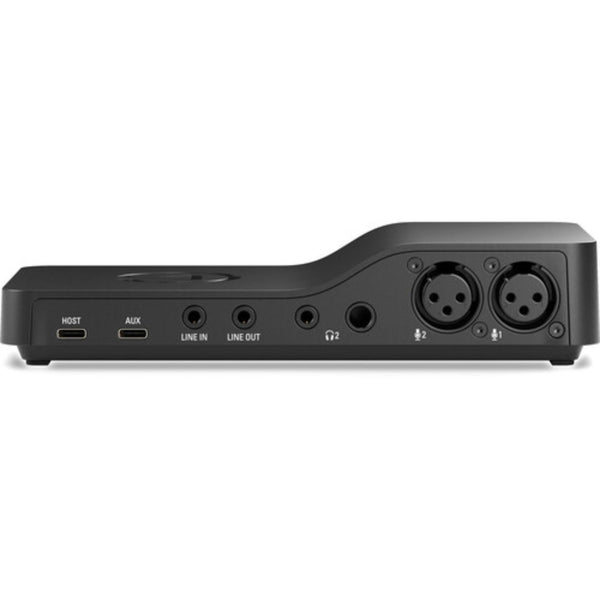

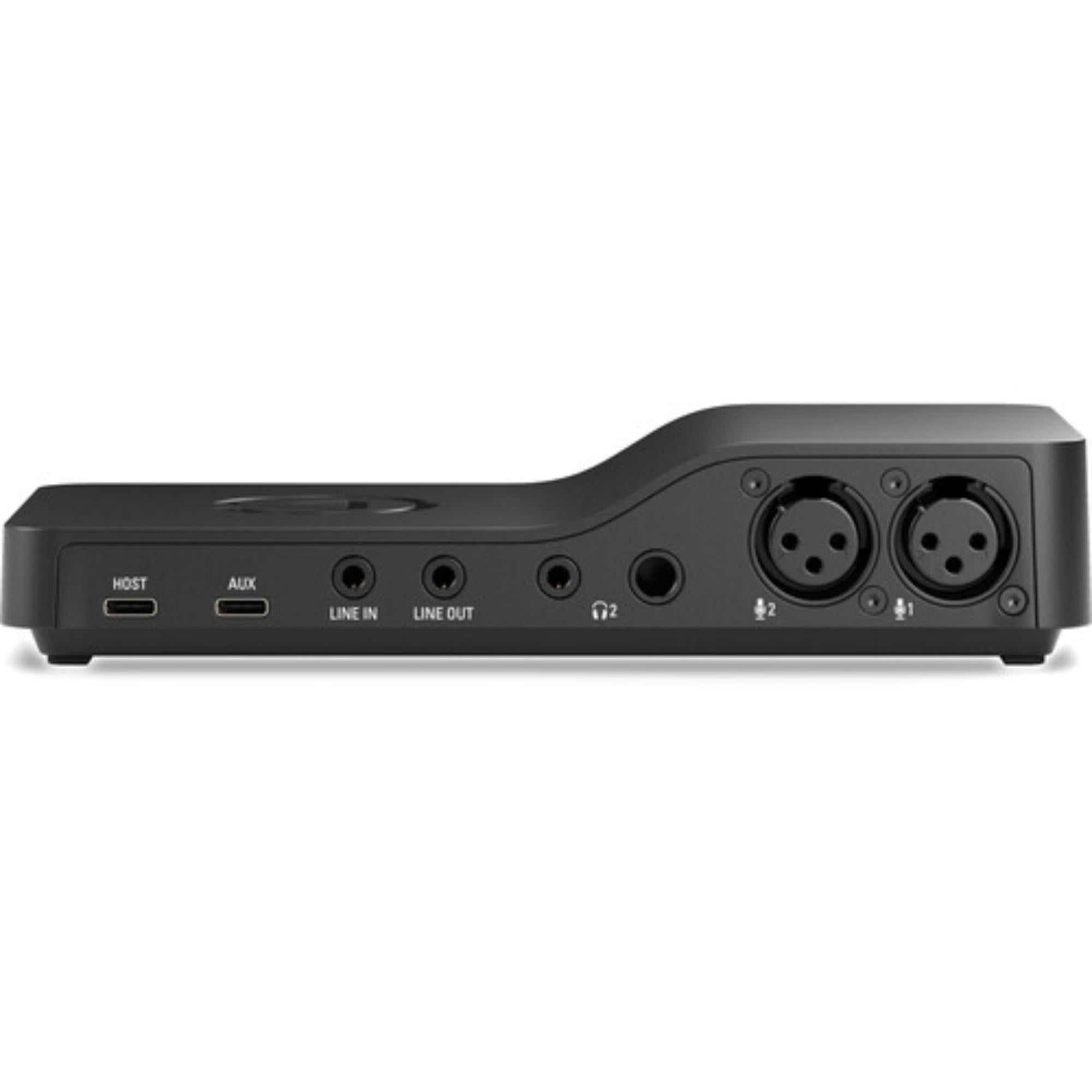

• Analog audio I/O: 2 x XLR 3-pin mic input
• Analog audio I/O: 1 x 1/8" / 3.5 mm TRS line input
• Analog audio I/O: 1 x 1/8" / 3.5 mm TRS line output
• Phantom power: 48 V, selectable on / off
• Digital audio I/O: No
• Host connection / USB: 2 x USB-C
• Host connection protocol: USB 2.0
• USB non-host: No
• Sync I/O: No
• Network I/O: No
• MIDI I/O: No
• Expansion slots: No
• Wireless: No
• Frequency response: 20 Hz to 20 kHz
• Maximum input level: Mic inputs, 6 dBV
• Maximum input level: Line, 10 dBV
• Headphone output power: 1/4", 50 mW
• Headphone output power: 1/8" / 3.5 mm, 50 mW
• Dynamic range: Mic, 135 dB
• EIN: Mic, -130 dBV A-weighted
• Sample rates: 48 kHz
• Sample rate conversion: No
• Bit depths: 24-bit
• Sync sources: No
• Media / memory card slot: No
• OS compatibility: Windows 11 or later / macOS 14.2 or later
• Power requirements: USB bus power
• Power consumption: 5 VA
• Dimensions: 7.2 x 3.8 x 1.5" / 18.3 x 9.7 x 3.8 cm
• Weight: 13.6 oz / 385 g

Why It Helps

A two-microphone setup usually needs more I/O than a basic single-channel interface. For podcasts, co-host streams, and small voice setups, having two XLR inputs in one box keeps the microphone path simpler and easier to monitor.

The 1/4" and 3.5 mm headphone outputs are useful when different headphones are being used at the desk. Instead of adding adapters before checking audio, both common headphone connection types are already available on the interface.

System Characteristics

• Dual-XLR USB-C audio interface for podcast and streaming workflows
• 48 kHz / 24-bit digital audio path
• Selectable 48 V phantom power for compatible microphones
• 3.5 mm line input and line output
• USB bus-powered design with no wireless, MIDI, network, or expansion slots

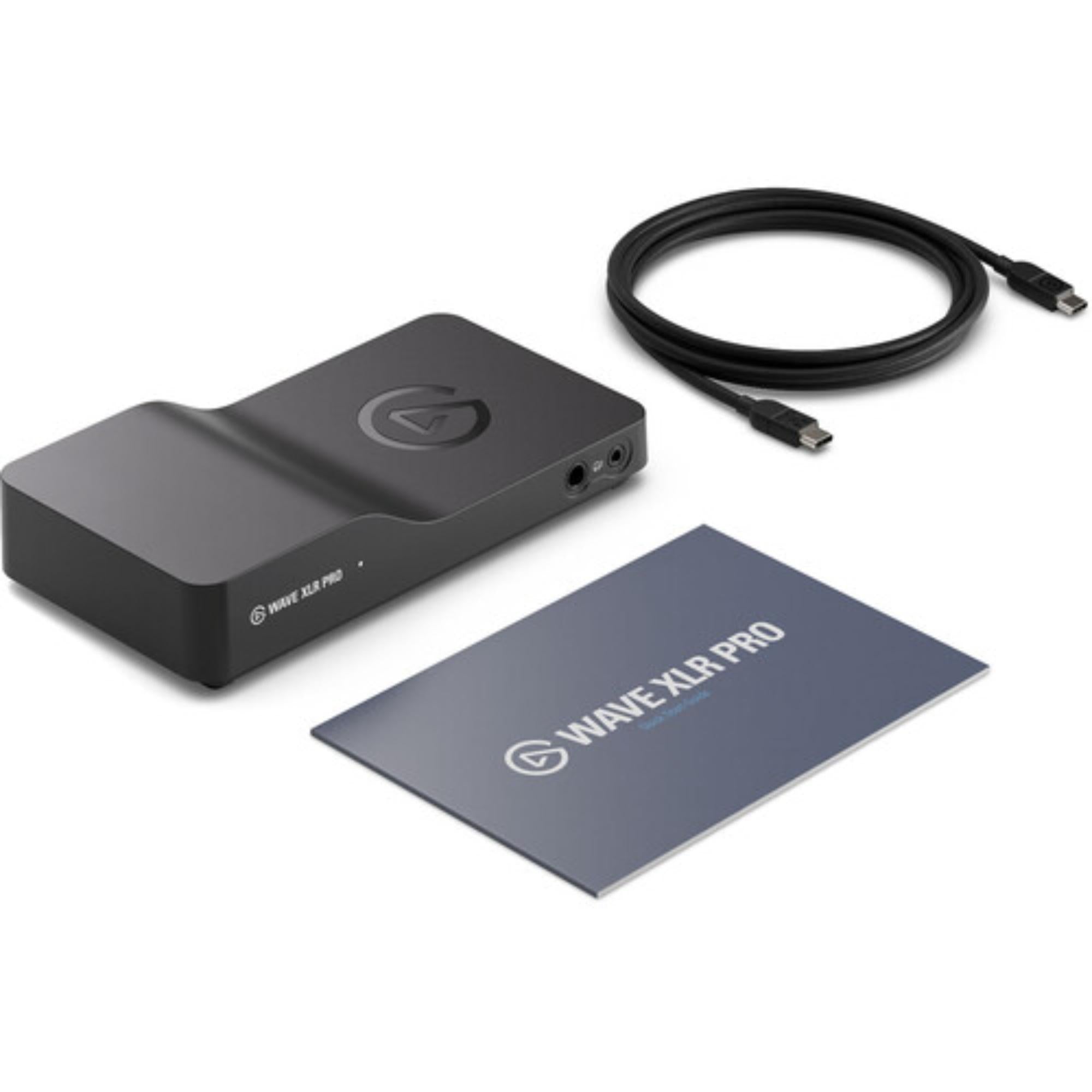

What’s In The Box

• 1 x Elgato Wave XLR Pro USB-C Audio Interface
• 1 x USB-C Cable (59")
