Elgato Stream Deck Studio

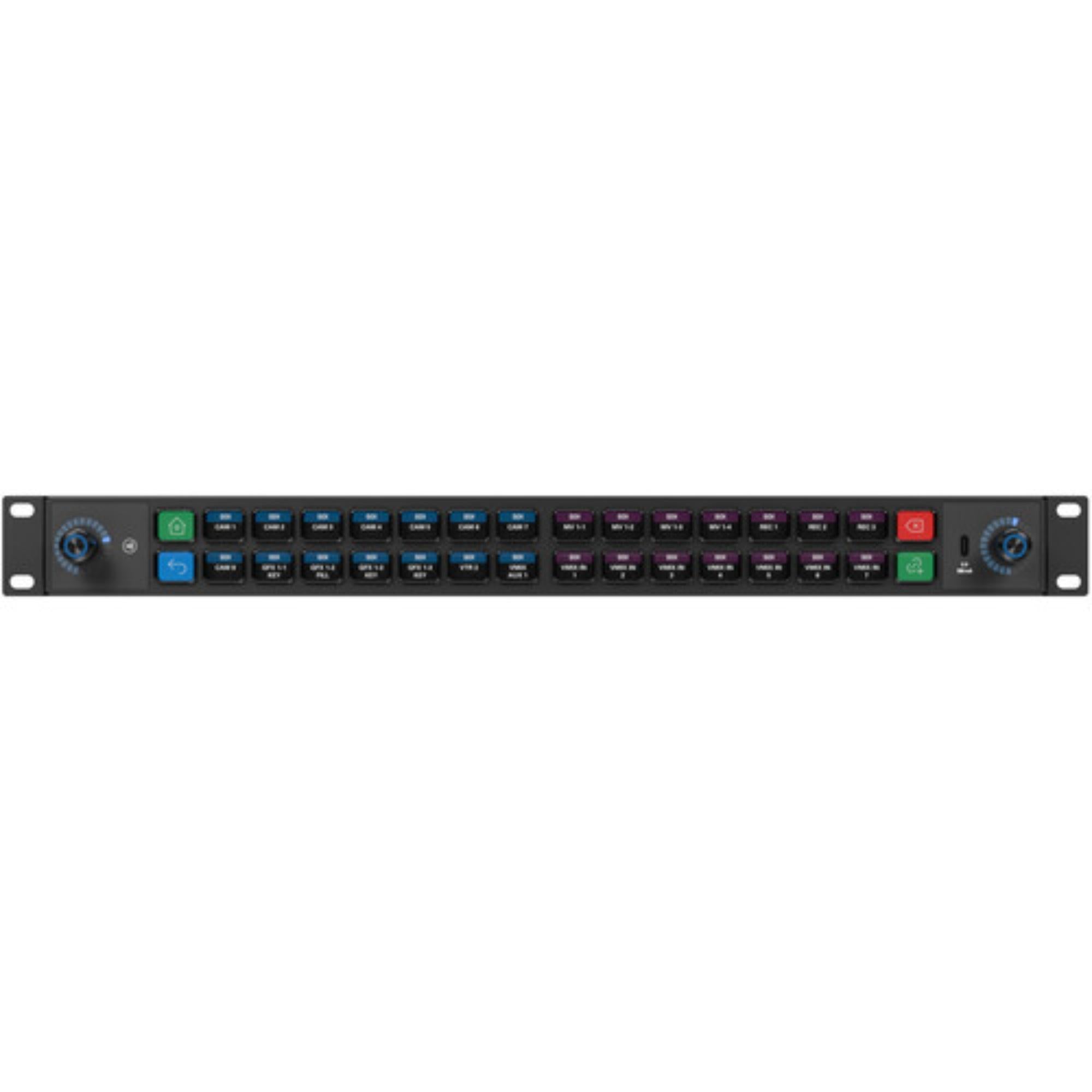

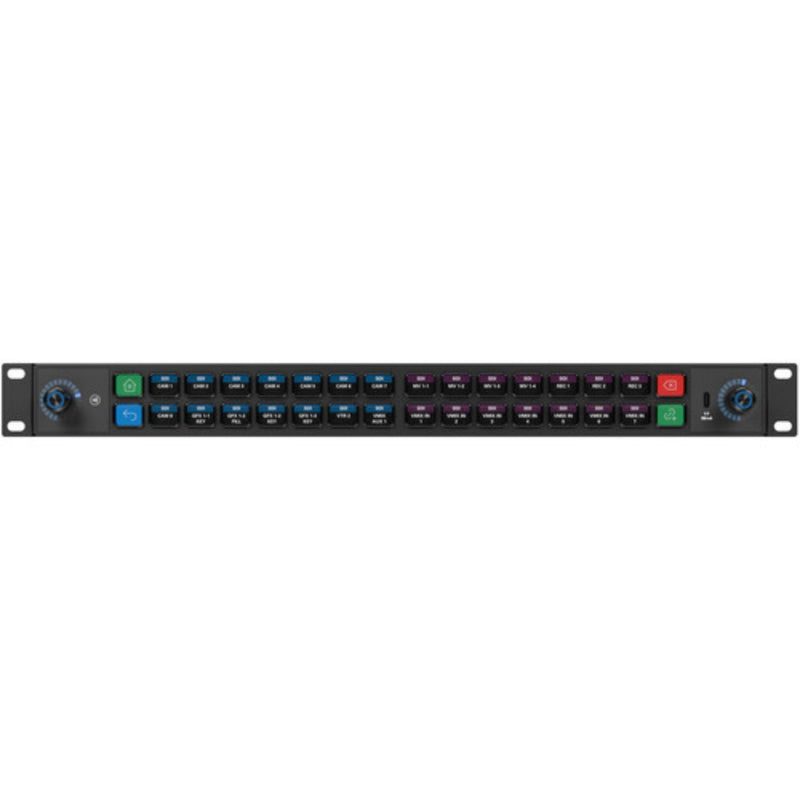

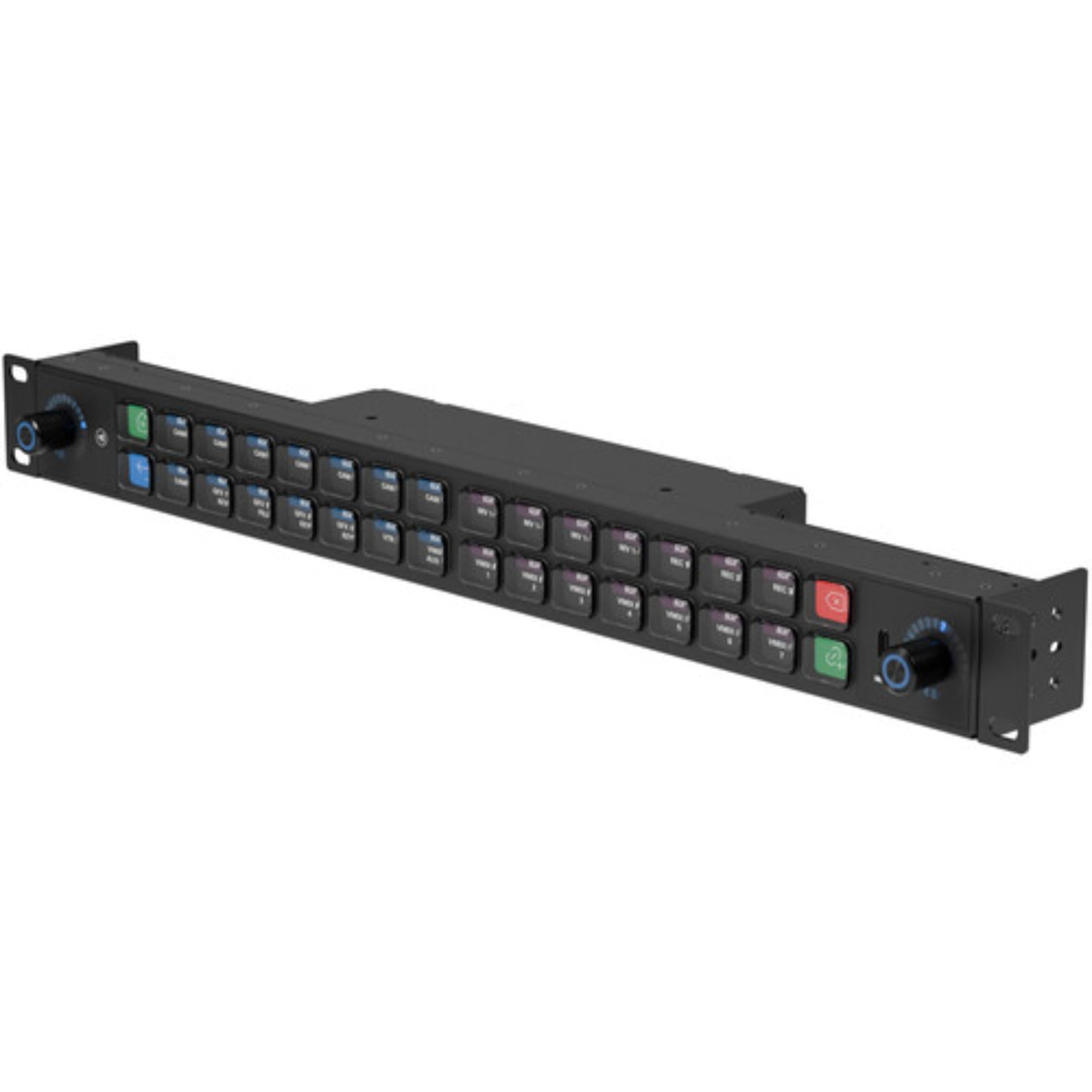

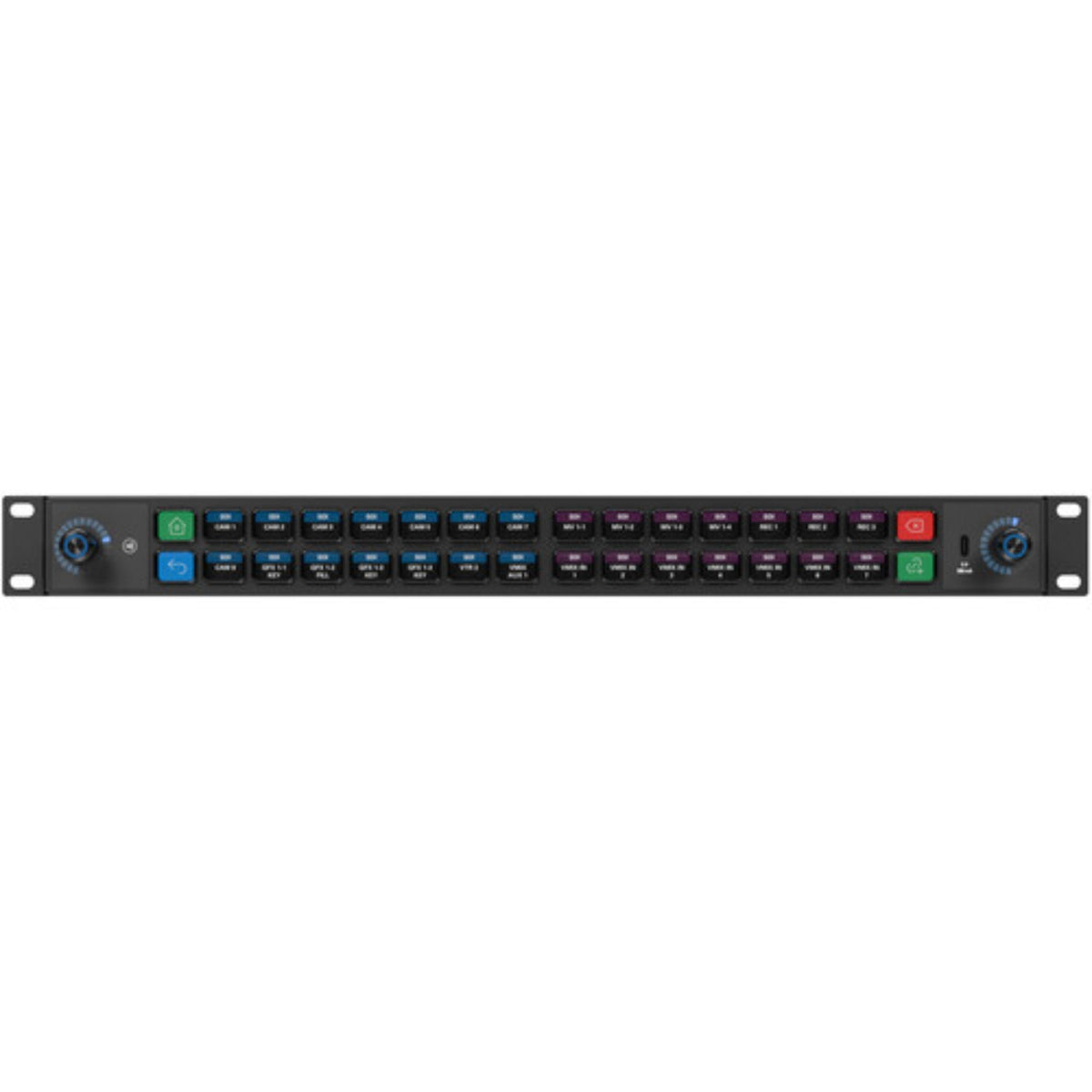

Elgato Stream Deck Studio is intended for broadcast and post-production rooms where control needs to live in a rack instead of loose on the desk. According to the source material, it is a 1 RU rackmount Stream Deck with 32 programmable LCD keys, 2 encoder dials, and support for broadcast equipment in IP and SDI environments.

The unit measures 17.6 x 3.1 x 1.7" / 447 x 80 x 44 mm and weighs 2 lb / 895 g. Anyone who has worked in a control room knows that rack space is often easier to manage than another loose controller on the table. Mounting the control surface in 1 RU keeps the buttons fixed, visible, and ready for repeated studio operation.

Highlights

• 1 RU rackmount Stream Deck for broadcast and post-production studios
• 32 programmable LCD keys
• 2 encoder dials
• X-Routing, SNMP monitoring, and KVM control
• USB-C inputs with PoE support
• Works within IP and SDI environments

Quick Specs & Uses

• Controls: 32 x programmable key, 2 x dial
• Display: 32 x color LCD
• OS compatibility: Windows 10 or later
• OS compatibility: macOS 13 or later
• USB I/O: 1 x USB-C female input/output for system connection and software updates

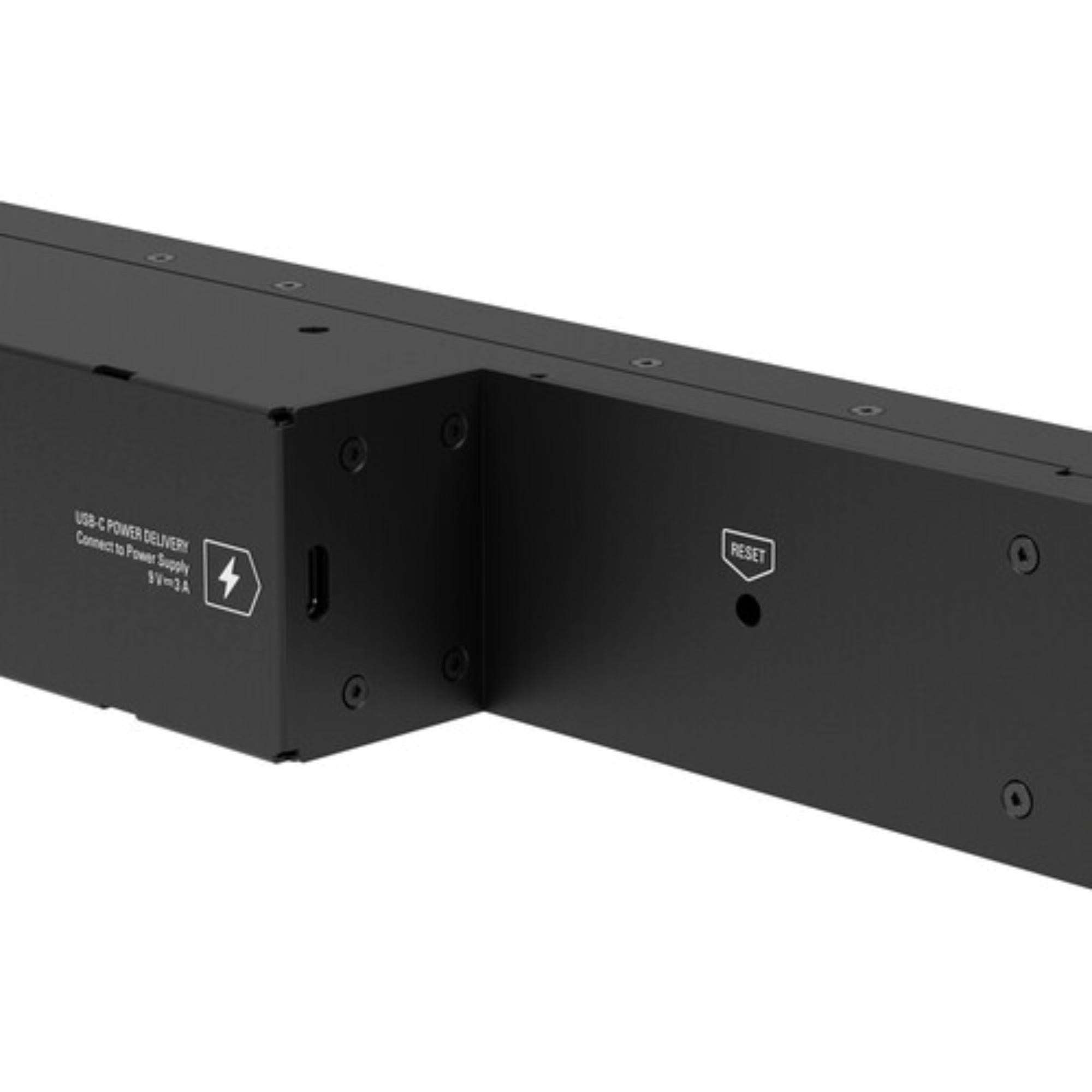

• USB I/O: 1 x USB-C female input for power

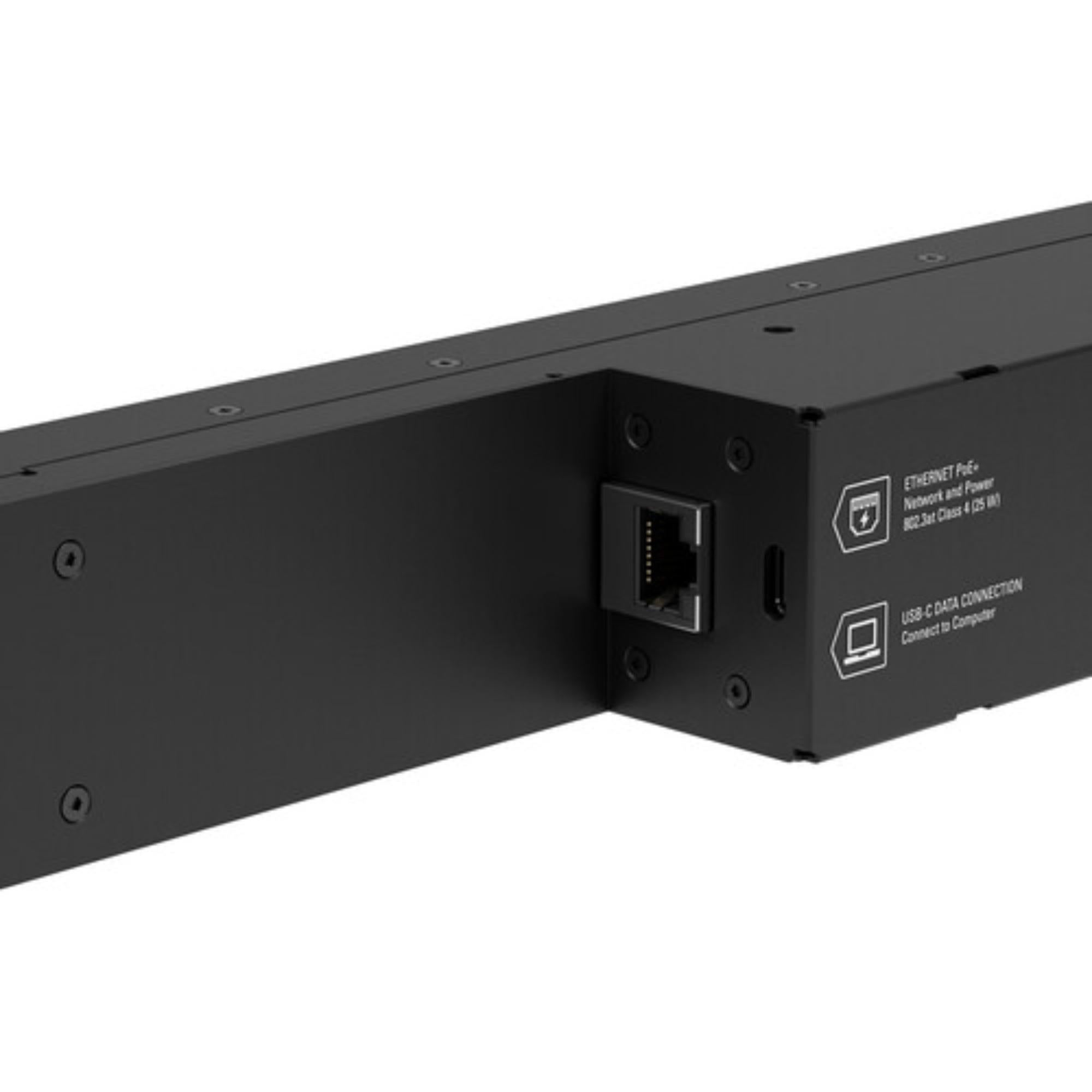

• Network I/O: 1 x 10/100 Mbps Ethernet with PoE support
• Power source: PoE not included, USB not included
• Input power: 9 VDC at 3 A
• Power consumption: 15 W
• Dimensions: 17.6 x 3.1 x 1.7" / 447 x 80 x 44 mm
• Weight: 2 lb / 895 g

Why It Helps

A rackmount control surface makes sense when the same studio functions need to be available every day. Routing, monitoring, KVM control, and other production actions are easier to manage when the controls stay in a fixed rack position.

The Ethernet and PoE support are useful in rooms where control devices are already part of the network. Instead of treating the Stream Deck as only a desktop USB device, the Studio version can sit closer to broadcast infrastructure and still keep USB-C available for connection and power.

System Characteristics

• Rackmount control surface for broadcast and post-production environments
• 32 color LCD keys with programmable control layouts
• Dual encoder dials for adjustable controls
• USB-C and Ethernet connectivity
• PoE-supported network connection for studio deployment

What’s In The Box

• 1 x Elgato Stream Deck Studio
• 1 x Rackmount Bracket Set
• 1 x Screw Set
