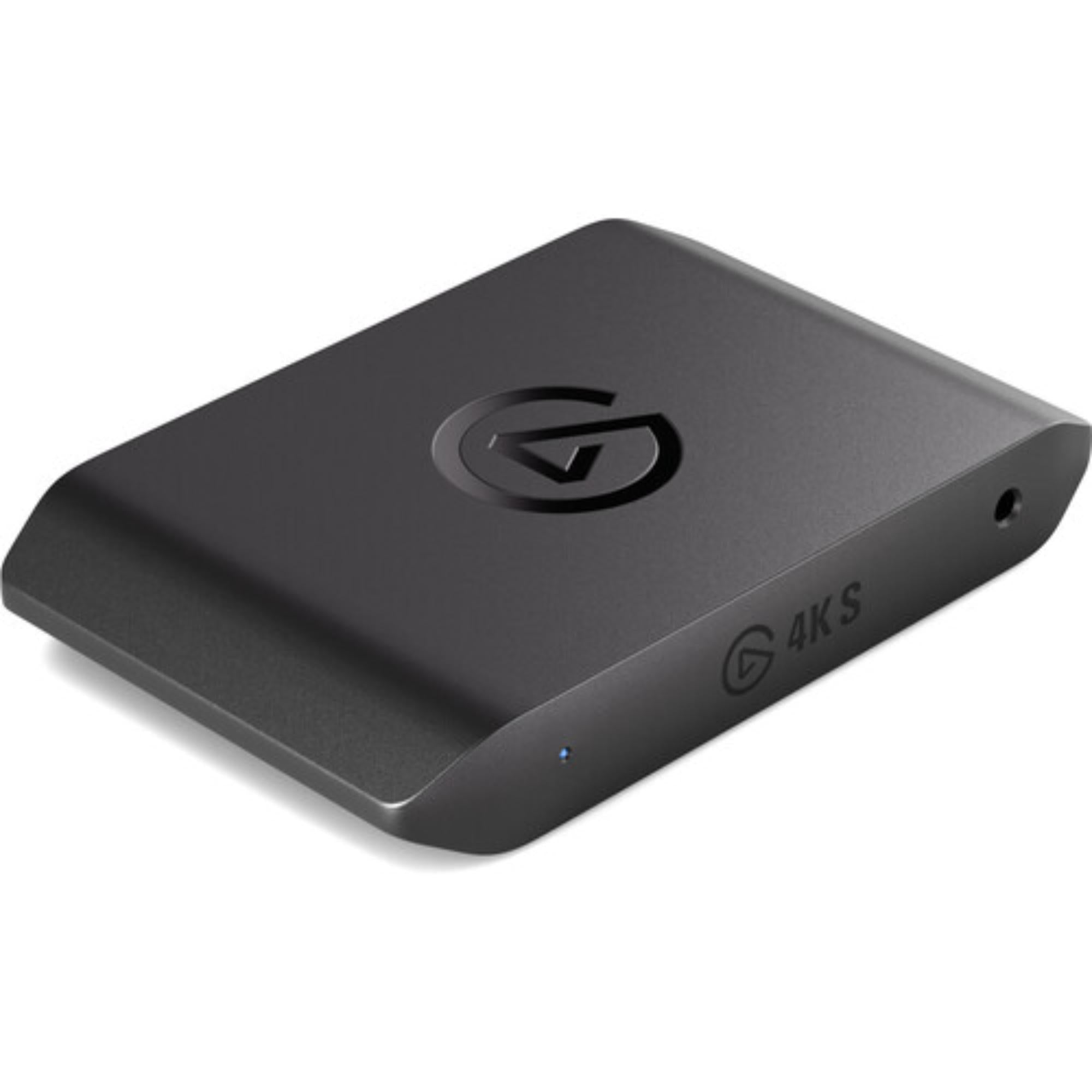

Elgato Game Capture 4K S

Elgato Game Capture 4K S is intended for gaming, streaming, and capture setups where an HDMI source needs to be recorded or sent into an app. According to the source material, it supports up to UHD 4K60 capture, variable refresh rate, HDR10, and works with Windows, macOS, and iPadOS.

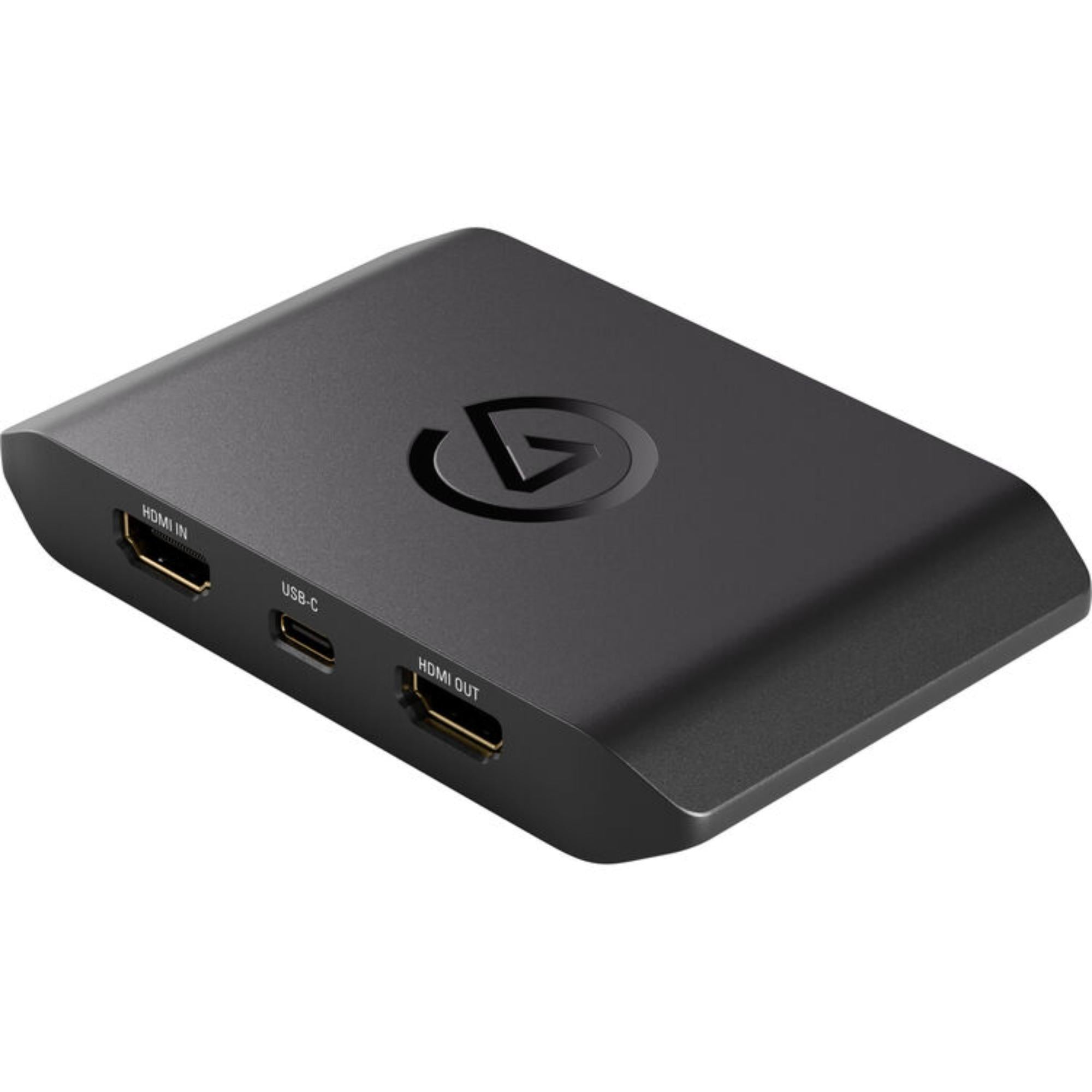

The unit uses 1 x HDMI 2.0 input, 1 x HDMI 2.0 pass-through output, and a USB-C system connection. Anyone who has routed a console or camera through a capture device knows that pass-through matters. It lets the source continue to a display while the computer receives the capture feed at the same time.

Highlights

• Up to UHD 4K60 capture
• HDMI 2.0 input with HDMI 2.0 pass-through output
• Variable refresh rate and HDR10 support
• Capture to multiple apps simultaneously
• Record to Elgato Studio or stream to apps
• Windows, macOS, and iPadOS compatible

Quick Specs & Uses

• System connection: USB-C
• Video input: 1 x HDMI 2.0
• Video output: 1 x HDMI 2.0 pass-through
• Audio input: 1 x 1/8" / 3.5 mm TRS
• Latency: 30 ms
• HDMI input resolution: 3840 x 2160 at 60 fps
• HDMI input resolution: 2560 x 1440 at 60 fps
• HDMI input resolution: 1920 x 1080 at 60/120 fps
• HDMI input resolution: 1280 x 720 at 60 fps
• HDMI input resolution: 720 x 480p
• HDMI output resolution: 3840 x 2160 at 60 fps
• HDMI output resolution: 2560 x 1440 at 120 fps
• HDMI output resolution: 1920 x 1080p at 240 fps
• HDR support: Yes, HDR10
• Media / memory card slot: No
• OS compatibility: Windows, macOS, iPadOS
• Dimensions: 4.4 x 2.8 x 0.7" / 112 x 72 x 18 mm
• Weight: 3.2 oz / 90 g

Why It Helps

A capture setup is easier to manage when the video source does not have to be split by extra hardware. The HDMI input brings the console or camera into the capture device, while the HDMI pass-through keeps the signal going to a monitor or display.

The USB-C connection keeps the computer side simple. With Windows, macOS, and iPadOS support listed in the source material, the same capture device can fit into different desk setups without changing the basic HDMI workflow.

System Characteristics

• HDMI 2.0 capture path for compatible video sources
• HDMI 2.0 pass-through output for simultaneous display routing
• USB-C system connection for computer or iPadOS capture workflows
• 3.5 mm TRS audio input for external audio connection
• Compact hardware design for desktop gaming and streaming setups

What’s In The Box

• 1 x Elgato Game Capture 4K S
• 1 x USB-C Cable (4.9')
• 1 x HDMI Cable (4.9')
