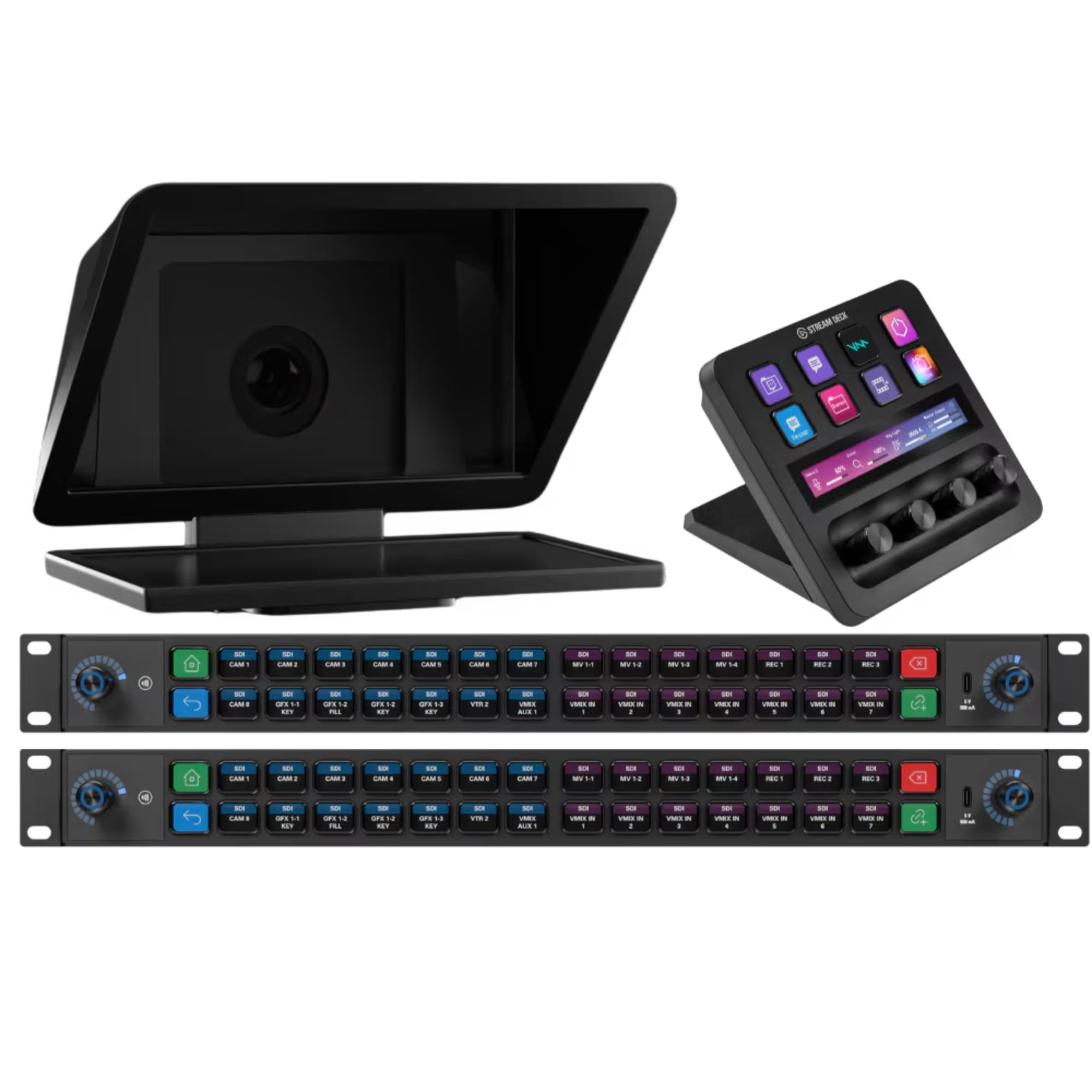

Elgato Full Production Studio Bundle

Elgato Full Production Studio Bundle is intended for live production, streaming, and broadcast control setups where prompting, rackmount control, and desktop control need to work together. According to the source material, the bundle includes 2 x Stream Deck Studio, 1 x Prompter XL, and 1 x Stream Deck +.

The bundle covers different parts of the production desk. Anyone who has built a studio setup knows that one controller rarely handles everything cleanly. The rackmount Stream Deck Studio units can sit with broadcast gear, the Prompter XL keeps script text near the camera, and Stream Deck + gives the operator keys, dials, and a touch strip at the desk.

Highlights

• Full production bundle for streaming, broadcast, and live production
• 2 x Stream Deck Studio rackmount control surfaces
• 1 x Prompter XL with detachable monitor and beamsplitter glass
• 1 x Stream Deck + with LCD keys, dials, and touch panel
• Supports prompting, studio control, and desktop operation
• Includes mounting hardware, step-up rings, cables, and quick start guides

Quick Specs & Uses

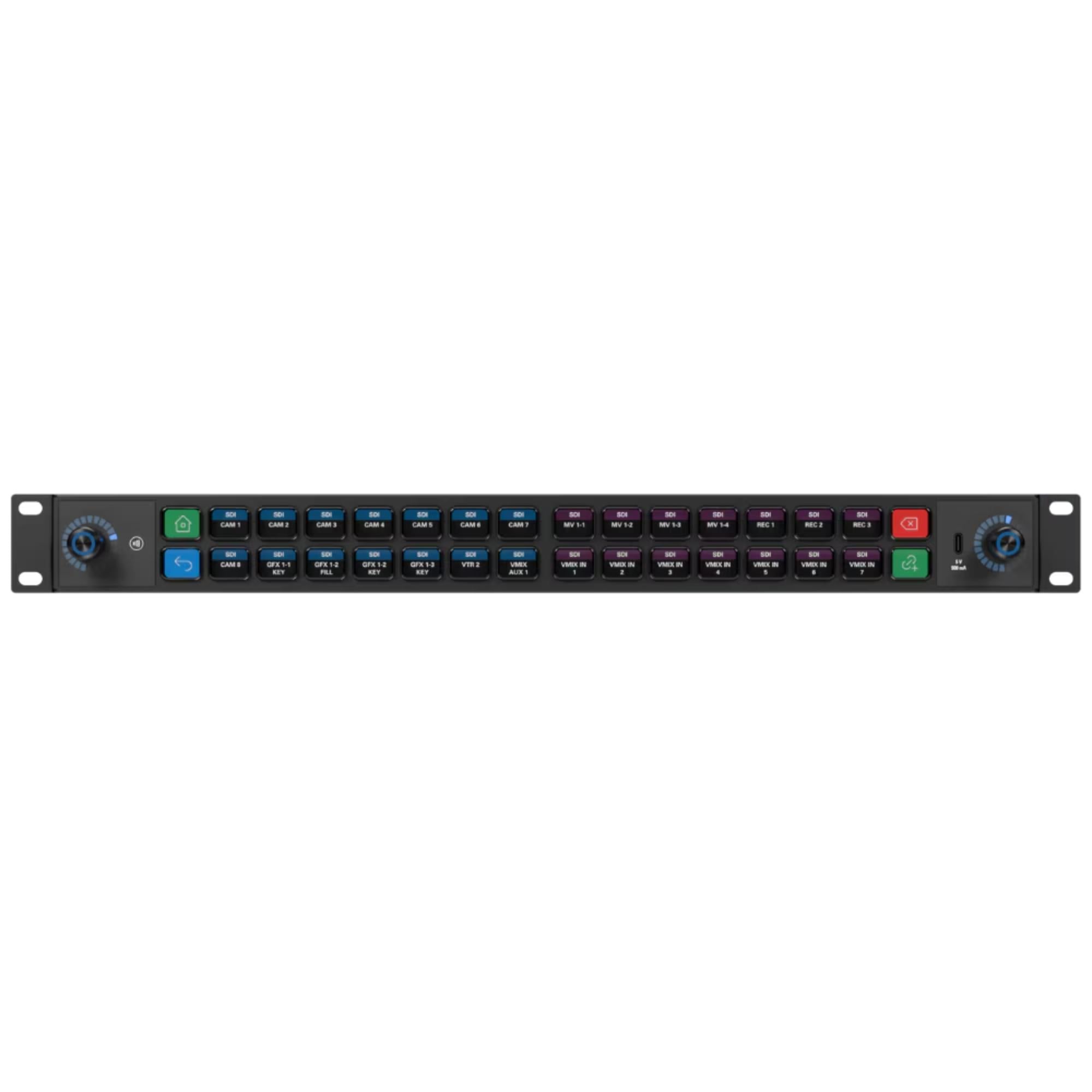

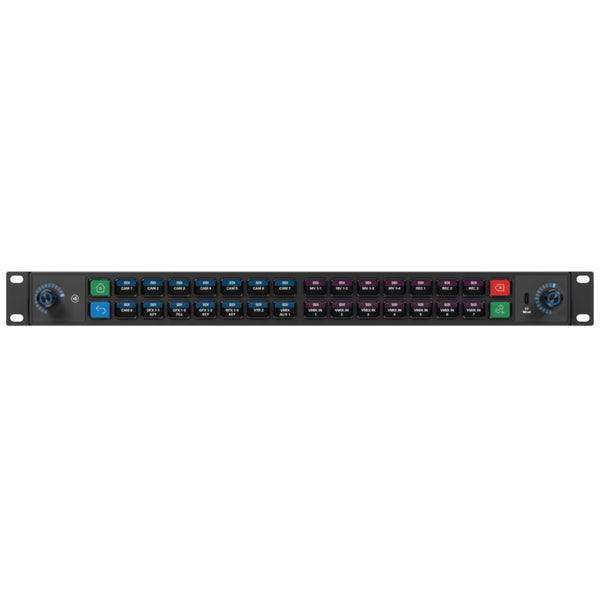

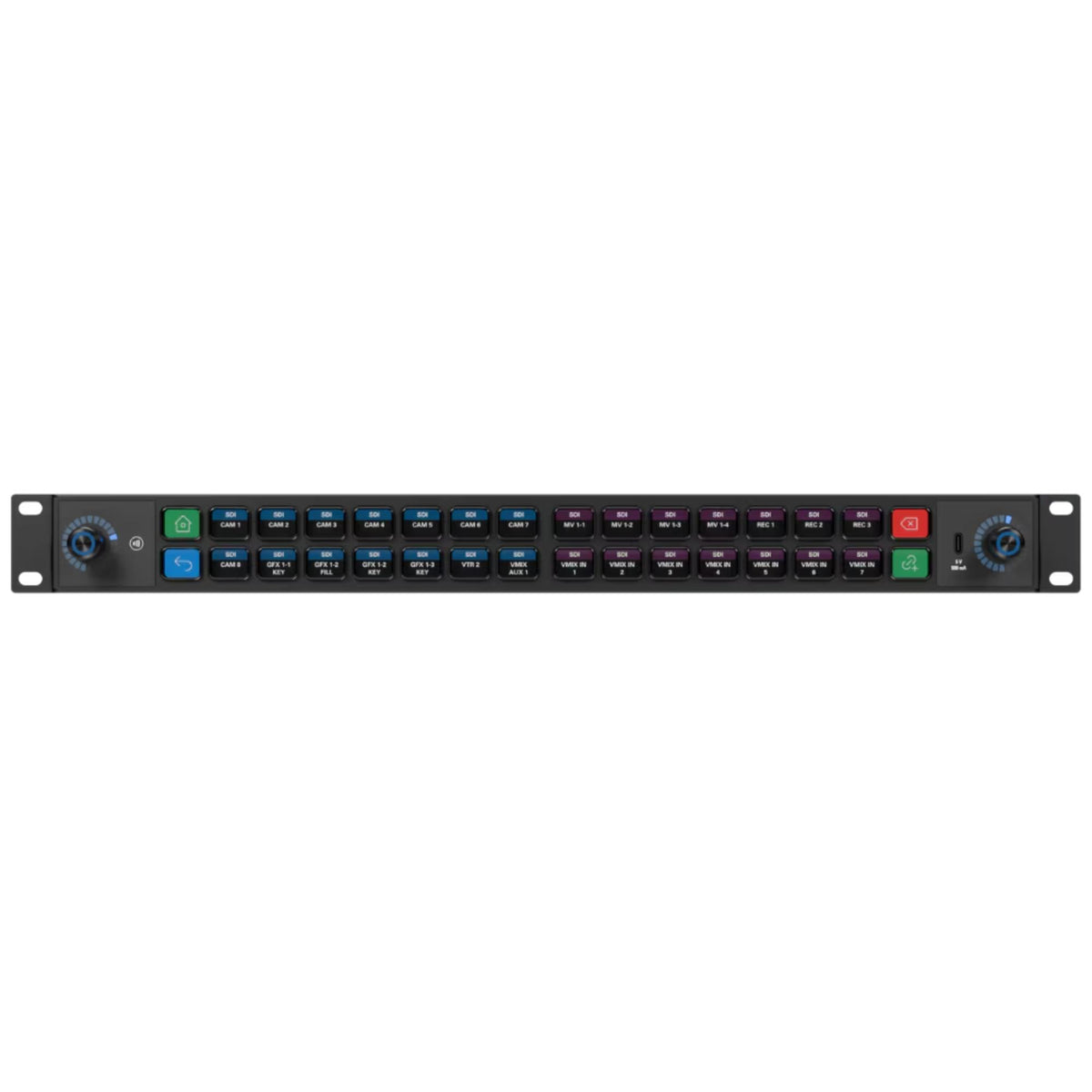

• Stream Deck Studio Keys: 32 customizable LCD keys
• Stream Deck Studio Dials: 2 x 360° encoders with push function, LED indicator, and LED ring
• Stream Deck Studio Interface: RJ45 Ethernet PoE+ (100 Mb/s), USB-C
• Stream Deck Studio Power: RJ45 Ethernet PoE+ (802.3at Class 4), USB-C PD 3.0 (9 V, 3 A, not included)
• Stream Deck Studio Power Consumption: Up to 15 W
• Stream Deck Studio OS Compatibility: Windows 11 or later, macOS 13 or later

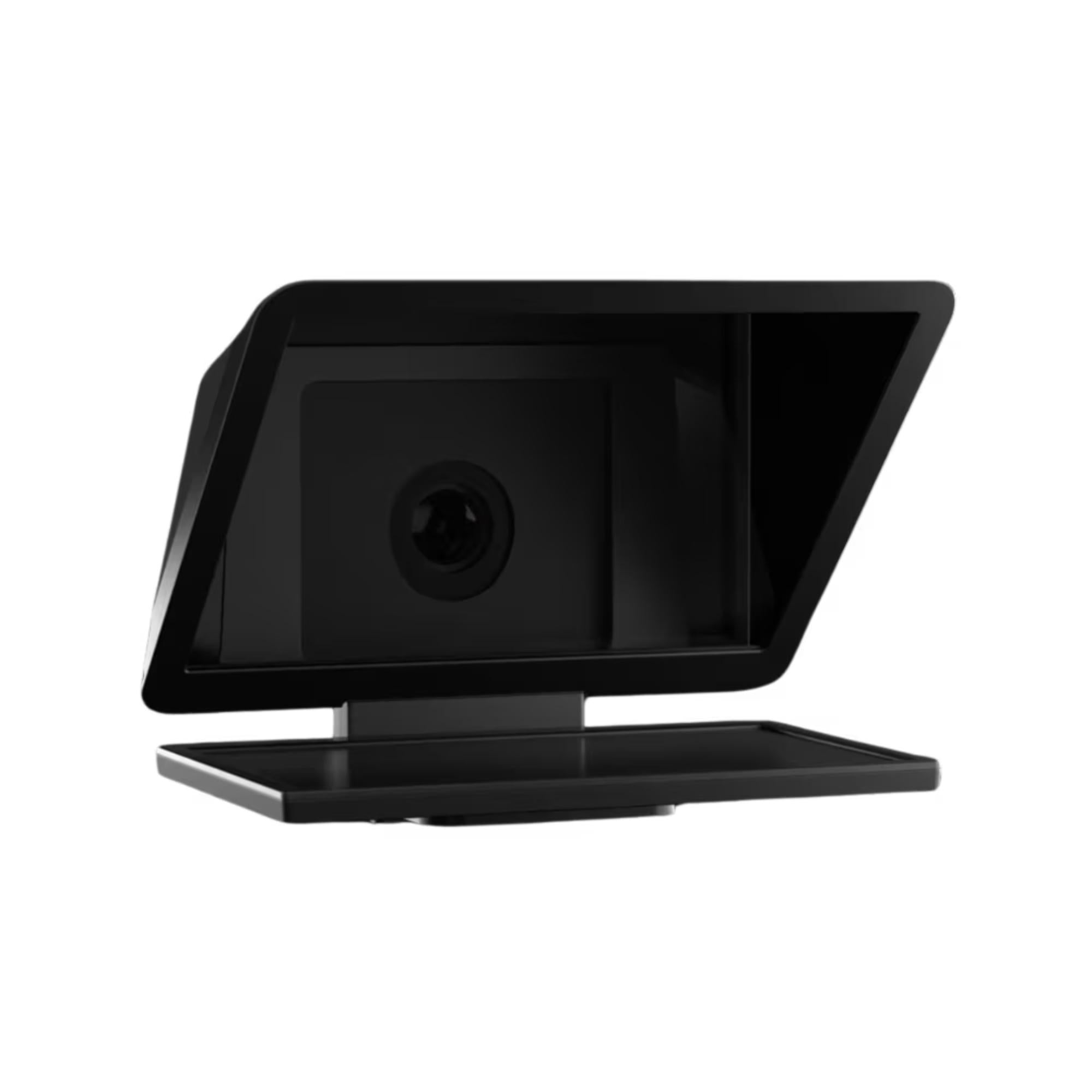

• Prompter XL Display: 15.6" 1920 x 1080, 600 nit
• Prompter XL Power Consumption: 15 W
• Prompter XL Step-Up Rings: 49, 52, 55, 58, 62, 67, 72, 77, and 82 mm
• Prompter XL Weight: 7.43 lb / 3.37 kg with camera bracket; 6.55 lb / 2.97 kg without camera bracket
• Prompter XL Dimensions: 19.4 x 15.6 x 11.6" / 493 x 396 x 295 mm with camera bracket
• Prompter XL Dimensions: 10.4 x 15.6 x 11.6" / 265 x 396 x 295 mm without camera bracket

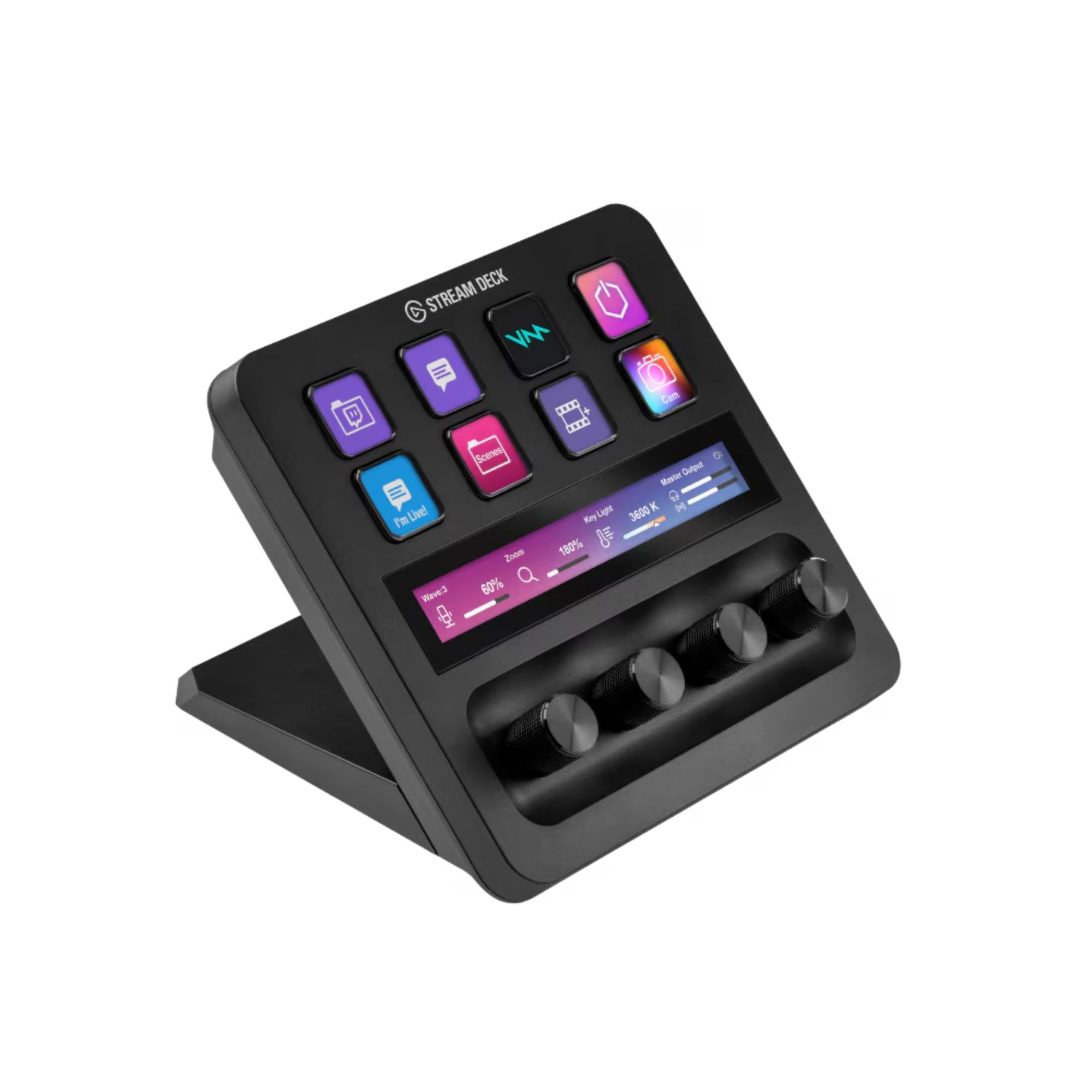

• Stream Deck + Size: 5.5 x 5.4 x 4.3" / 140 x 138 x 110 mm
• Stream Deck + Weight: 1 lb / 465 g
• Stream Deck + Keys: 8 customizable LCD keys
• Stream Deck + Dials: 4 x 360° encoders with push function
• Stream Deck + LCD Touch Panel: 4.2 x 0.5" / 108 x 14 mm
• Stream Deck + Interface: USB 2.0
• Stream Deck + System Requirements: Windows 10 (64-bit) or later, macOS 10.13 or later

Why It Helps

A full production setup usually needs more than one type of control surface. Rack-based controllers belong near broadcast hardware, desktop controls keep operators efficient during live productions, and a prompter helps presenters maintain direct eye contact while staying on script. This bundle brings those workflows together into a single ecosystem.

Prompter XL supports larger studio environments and longer reading distances, while the dual Stream Deck Studio units provide centralized rack-level operation. Stream Deck + complements the setup with tactile dials, LCD keys, and touch controls for fast adjustments during production.

System Characteristics

• Rackmount studio control via 2 x Stream Deck Studio units
• Integrated camera prompting solution with Prompter XL and detachable display
• Desktop production control through Stream Deck + tactile interfaces
• USB-C, USB 2.0, and RJ45 PoE+ connectivity across included devices
• Comprehensive lens compatibility through the included step-up ring kit

What’s In The Box

• 2 x Stream Deck Studio
• 1 x Rack Mounting Brackets and Screws
• 1 x Quick Start Guide
• 1 x Prompter XL
• 1 x Detachable Monitor
• 1 x Beamsplitter Glass
• 1 x Camera Bracket
• 1 x Universal Backplate
• 1 x Ring Backplate
• 9 x Step-Up Rings
• 1 x Mounting Screws
• 1 x Cleaning Cloth
• 1 x USB-C to USB-C Cable (200 cm / 87.7 in)
• 1 x Quick Start Guide
• 1 x Stream Deck +
• 1 x USB-C to USB-C Cable
• 1 x Quick Start Guide
