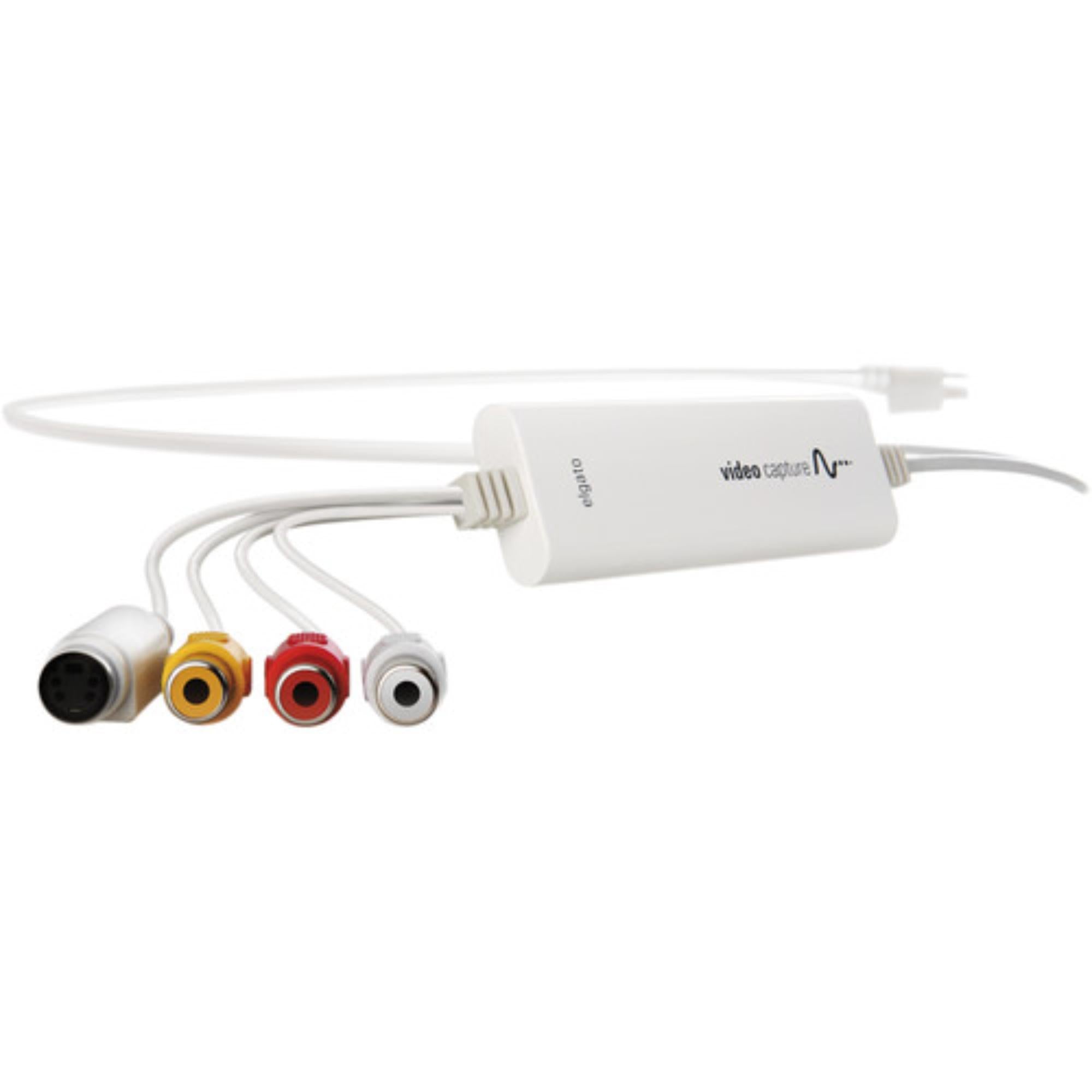

Elgato 1VC104001001 Video Capture USB

Elgato 1VC104001001 Video Capture USB is intended for converting older analog video sources into a digital format through a computer. According to the source material, it uses USB 2.0, supports Mac and Windows, and captures from RCA composite and S-Video sources.

The capture resolutions listed are 640 x 480 in 4:3 and 640 x 360 in 16:9. Anyone who has worked with VHS tapes, older camcorders, or analog playback devices knows that the main job is getting the signal into the computer cleanly. This keeps the path simple: analog video in, USB capture out.

Highlights

• USB 2.0 capture device for analog video sources
• Captures RCA composite and S-Video
• Mac and Windows compatible
• 640 x 480 capture in 4:3
• 640 x 360 capture in 16:9
• AAC audio recording at 48 kHz, 128 kb/s

Quick Specs & Uses

• Connection: USB 2.0
• Video capture input: RCA composite and S-Video
• Video resolution: 640 x 480 (4:3)
• Video resolution: 640 x 360 (16:9)
• Mac software format: H.264 at 1.4 Mb/s or MPEG-4 at 2.4 Mb/s
• Windows software format: H.264 at 1.4 Mb/s
• Audio format: AAC, 48 kHz, 128 kb/s
• System requirements: macOS 10.6.8 or later
• System requirements: Windows 7 or later

Why It Helps

Analog video usually comes from equipment that was never built for modern editing software. A USB capture device gives those older sources a direct way into the computer without needing a larger capture system.

The included composite video and RCA stereo cable also helps with basic transfer work. Instead of looking for analog leads before starting the job, the main cable needed for many playback devices is already in the box.

System Characteristics

• USB analog capture workflow for older playback sources
• Composite and S-Video input support
• H.264 and MPEG-4 software capture formats depending on platform
• AAC audio capture at 48 kHz
• Compatible with macOS and Windows systems

What’s In The Box

• 1 x Elgato USB Analog Video Capture Device
• 1 x Composite-to-SCART Adapter
• 1 x Composite Video / RCA Stereo Cable
