Elgato 10GBX9901 Stream Deck + XL

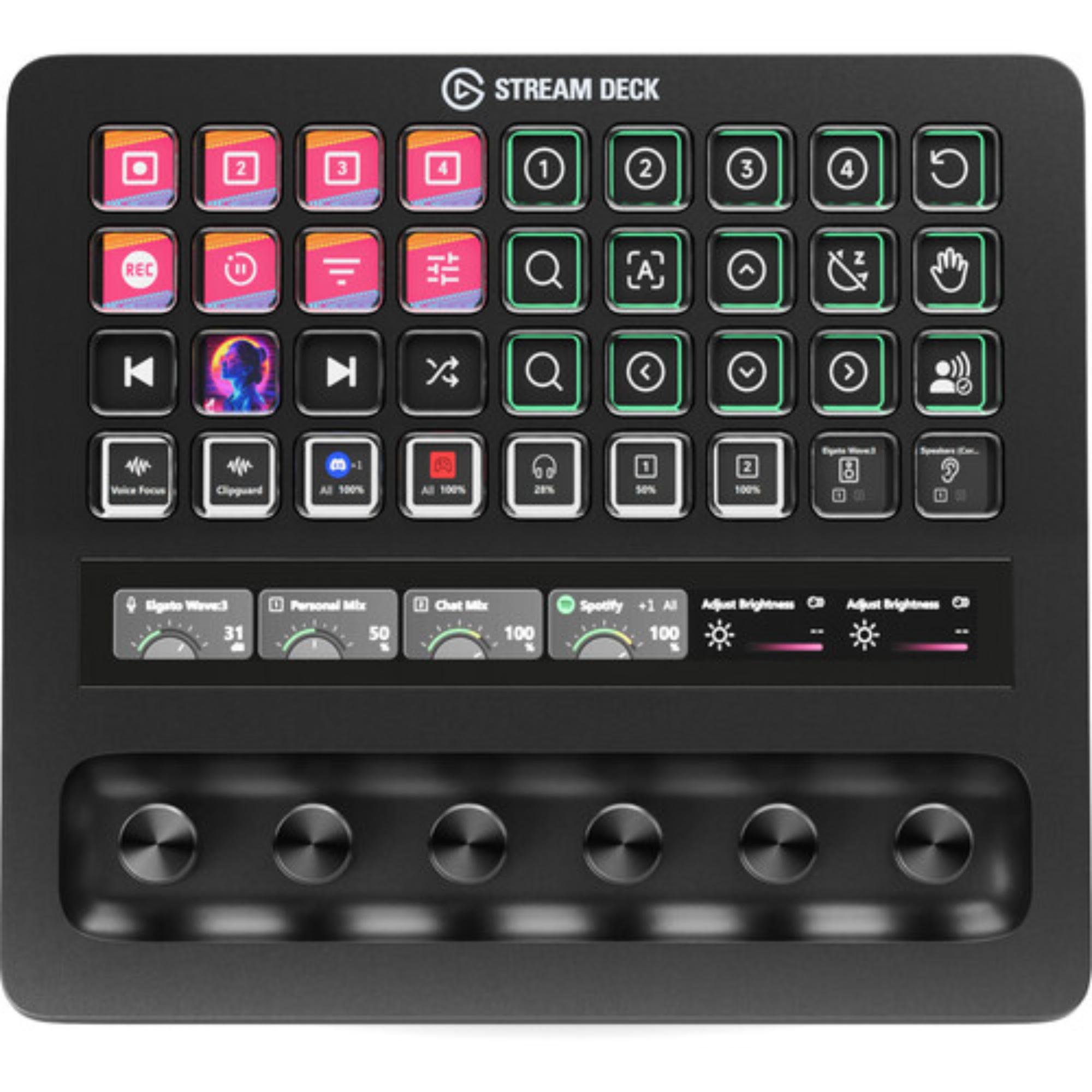

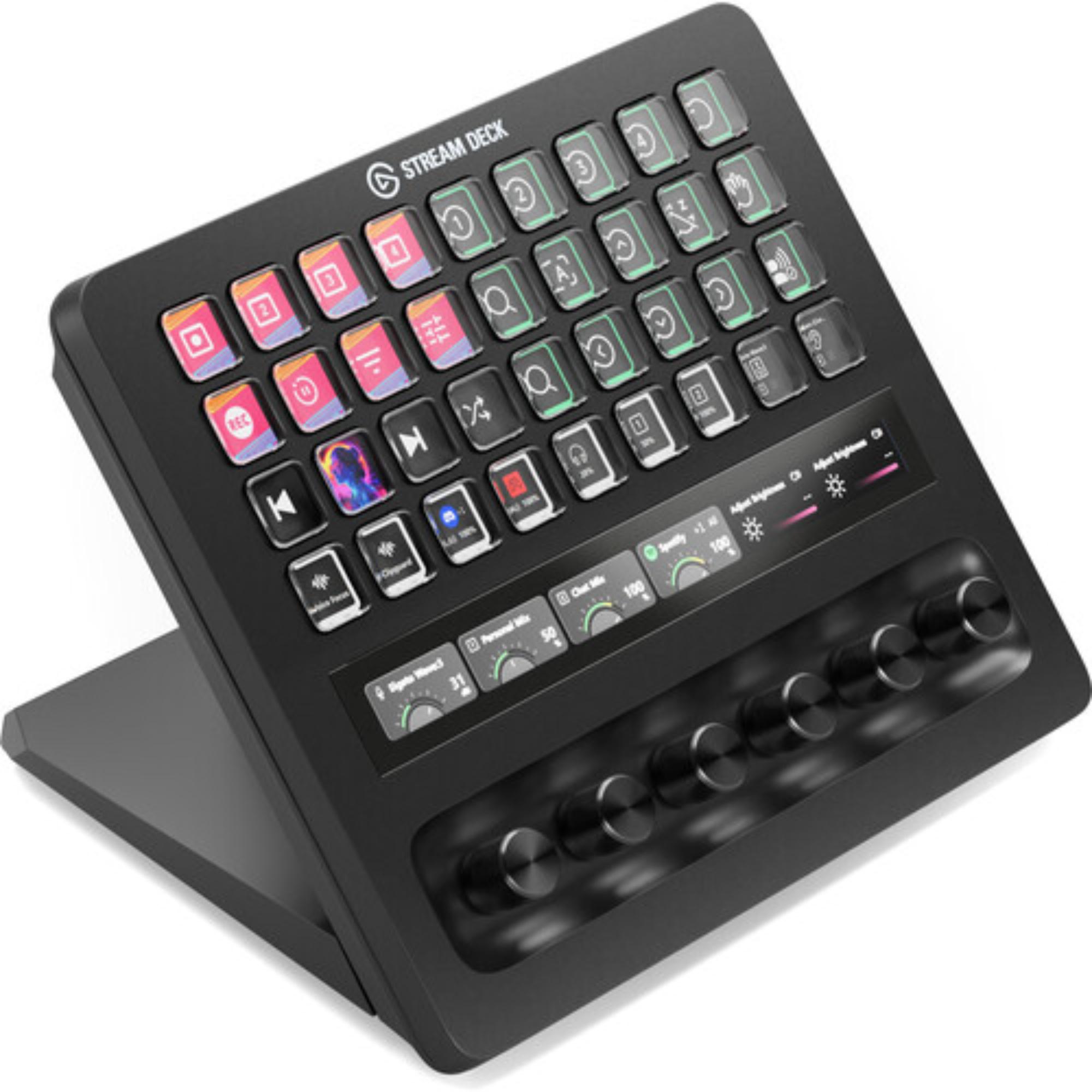

Elgato 10GBX9901 Stream Deck + XL is intended for larger production, streaming, and workflow control setups where more commands need to stay visible at the same time. According to the source material, it includes 36 customizable LCD keys, 6 x 360° encoders with push function, and an LCD touch panel.

The unit measures 205 x 147 x 175 mm / 8.07 x 5.79 x 6.89 in and weighs 1085 g / 2.39 lb. Anyone who has run a busy production desk knows that scenes, audio, graphics, camera controls, and app shortcuts can fill up a smaller controller quickly. This larger surface gives the operator more room to keep common actions separated and easier to find.

Highlights

• 36 customizable LCD keys
• 6 x 360° encoders with push function
• LCD touch strip for information and quick navigation
• USB-C 3.0 connectivity
• Supports integrations with apps and equipment
• Built for large production and workflow control layouts

Quick Specs & Uses

• Keys: 36 customizable LCD keys
• Dials: 6 x 360° encoders with push function
• Touch strip dimensions: 161 x 14 mm / 6.34 x 0.55 in
• Touch panel: LCD touch panel
• Connectivity: USB-C 3.0
• Dimensions: 205 x 147 x 175 mm / 8.07 x 5.79 x 6.89 in
• Weight: 1085 g / 2.39 lb
• Windows support: Windows 11 or newer
• Mac support: macOS 13 or newer
• Required port: USB-C 3.0 port

Why It Helps

A larger Stream Deck surface is useful when the operator needs more than a few shortcuts. With 36 keys available, commands can be grouped by scene control, audio, graphics, camera tools, app actions, or automation without hiding everything behind too many pages.

The dials are useful for controls that need gradual adjustment. Volume, brightness, camera settings, and other fine controls are easier to handle with a physical encoder than with a mouse and software slider.

System Characteristics

• Large-format Stream Deck control surface for production desks
• 36-key LCD layout for expanded command access
• Six multifunction dials for fine adjustment
• LCD touch strip for quick navigation and visual feedback
• USB-C 3.0 connection for supported Windows and macOS systems

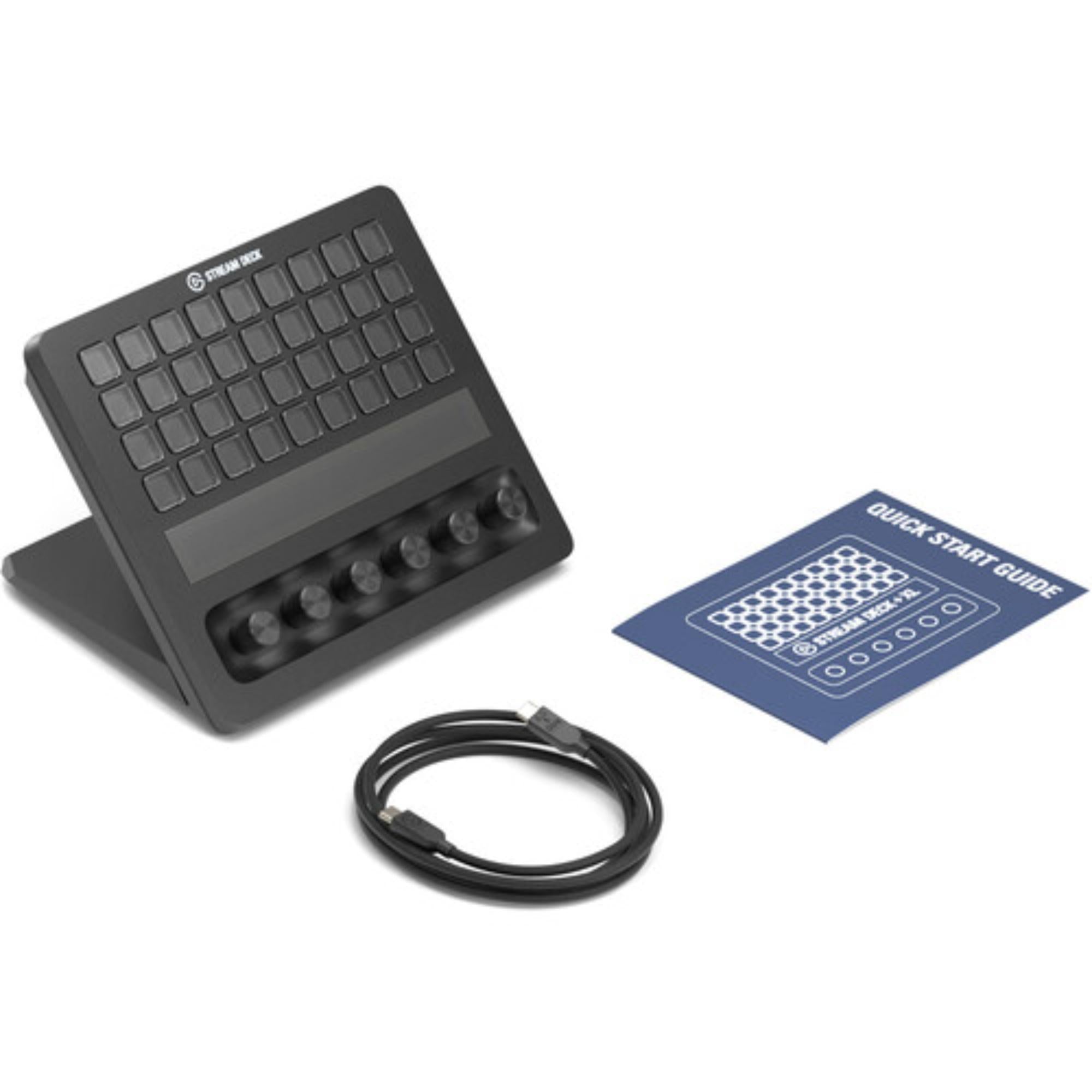

What’s In The Box

• 1 x Stream Deck + XL
• 1 x USB-C to USB-C Cable (150 cm / 59 in)
