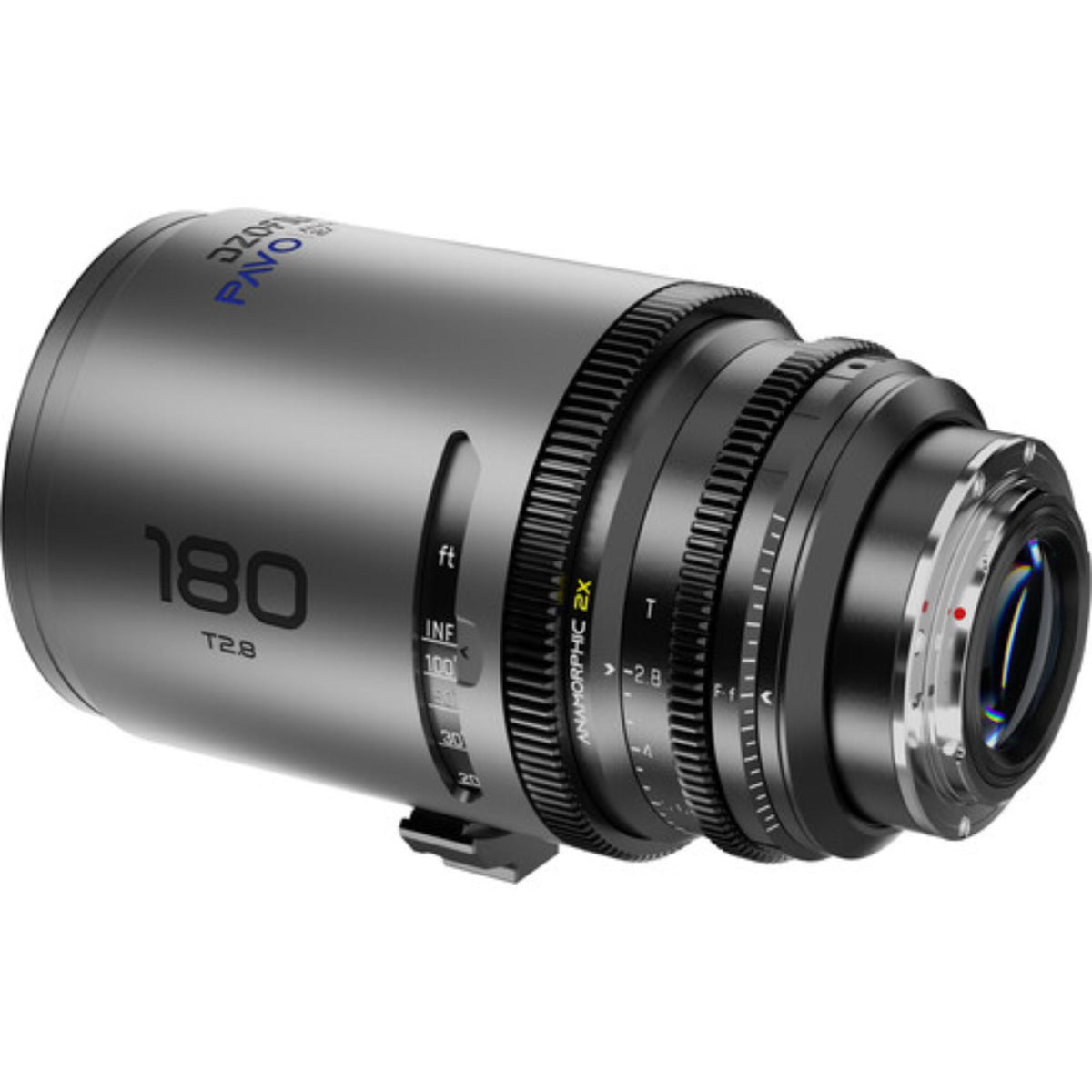

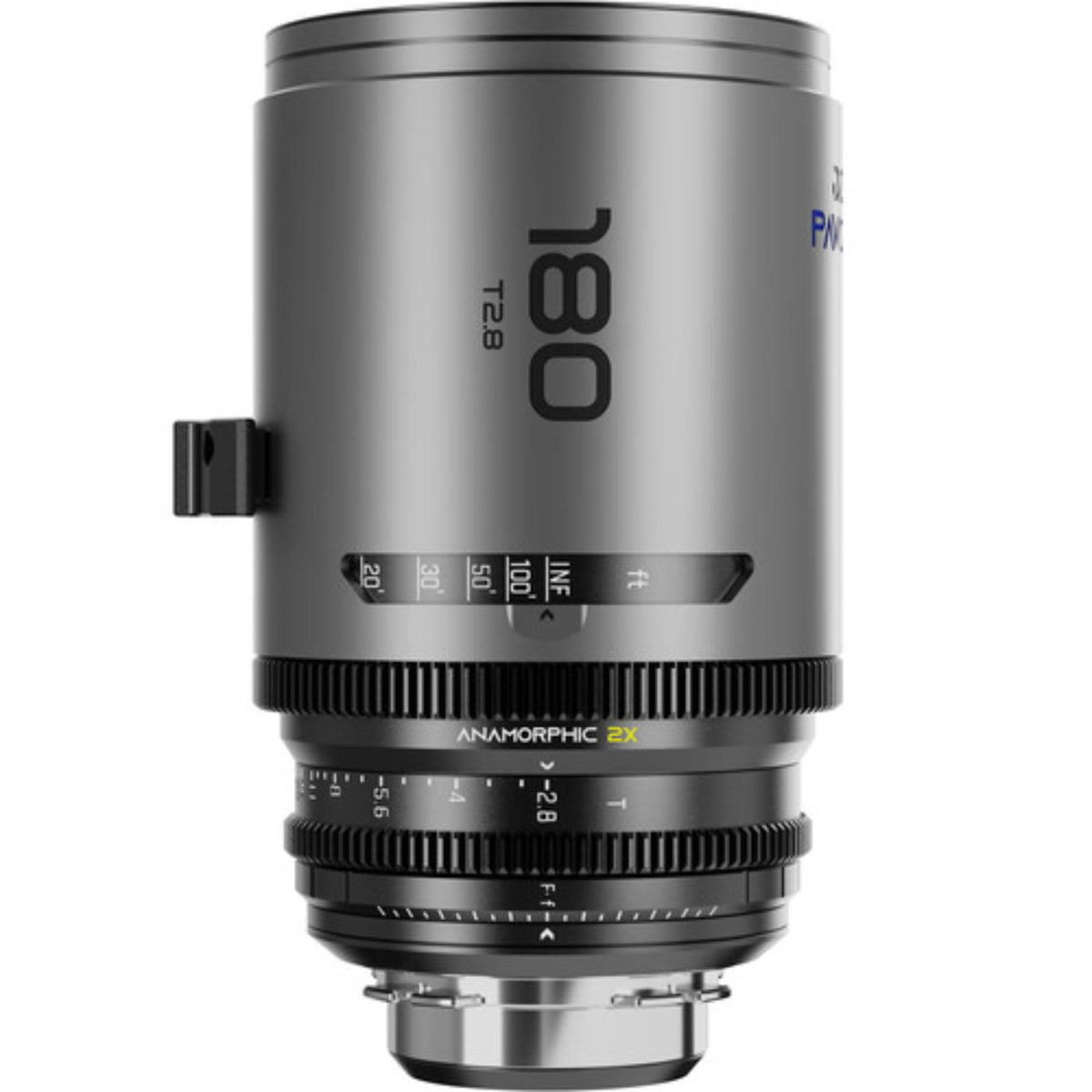

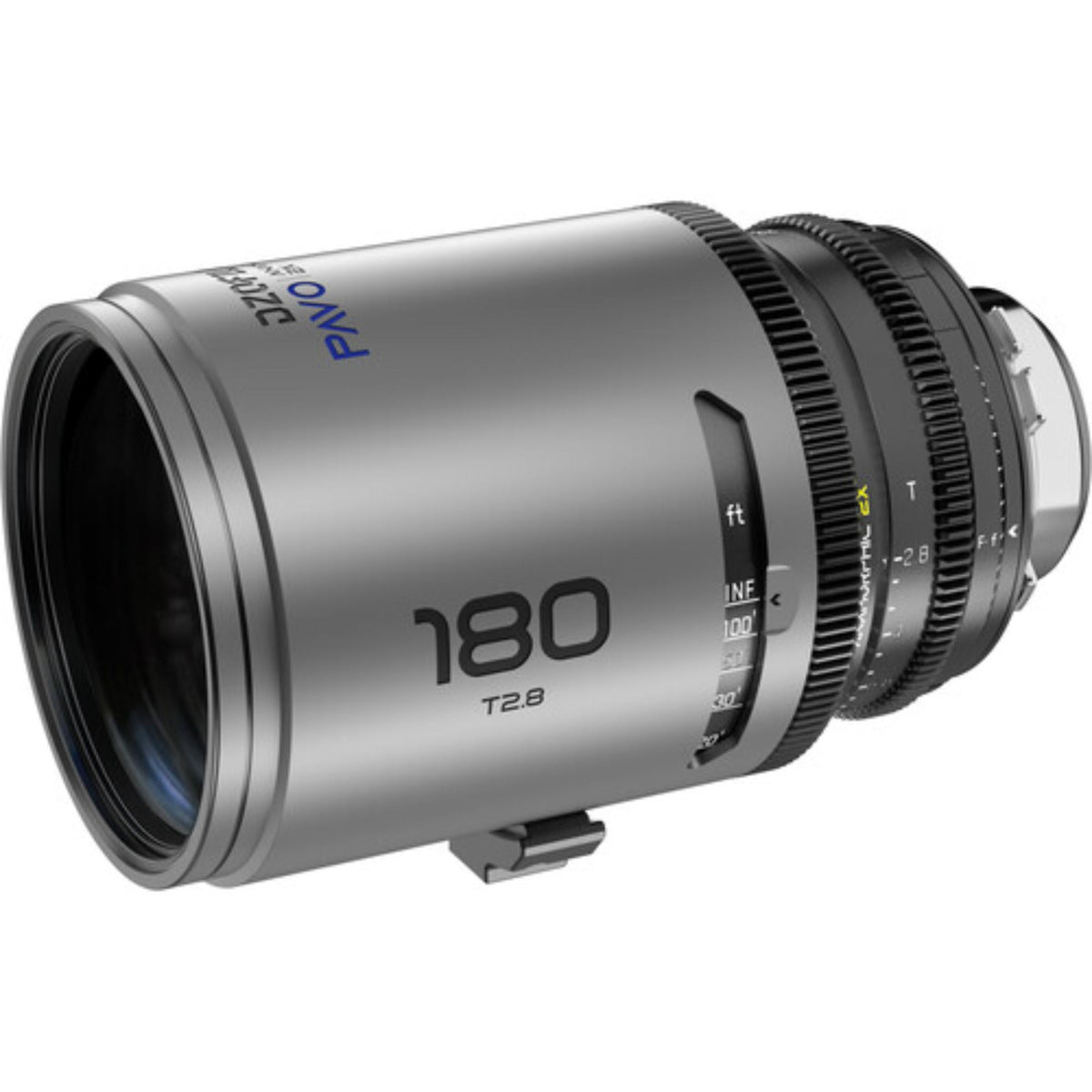

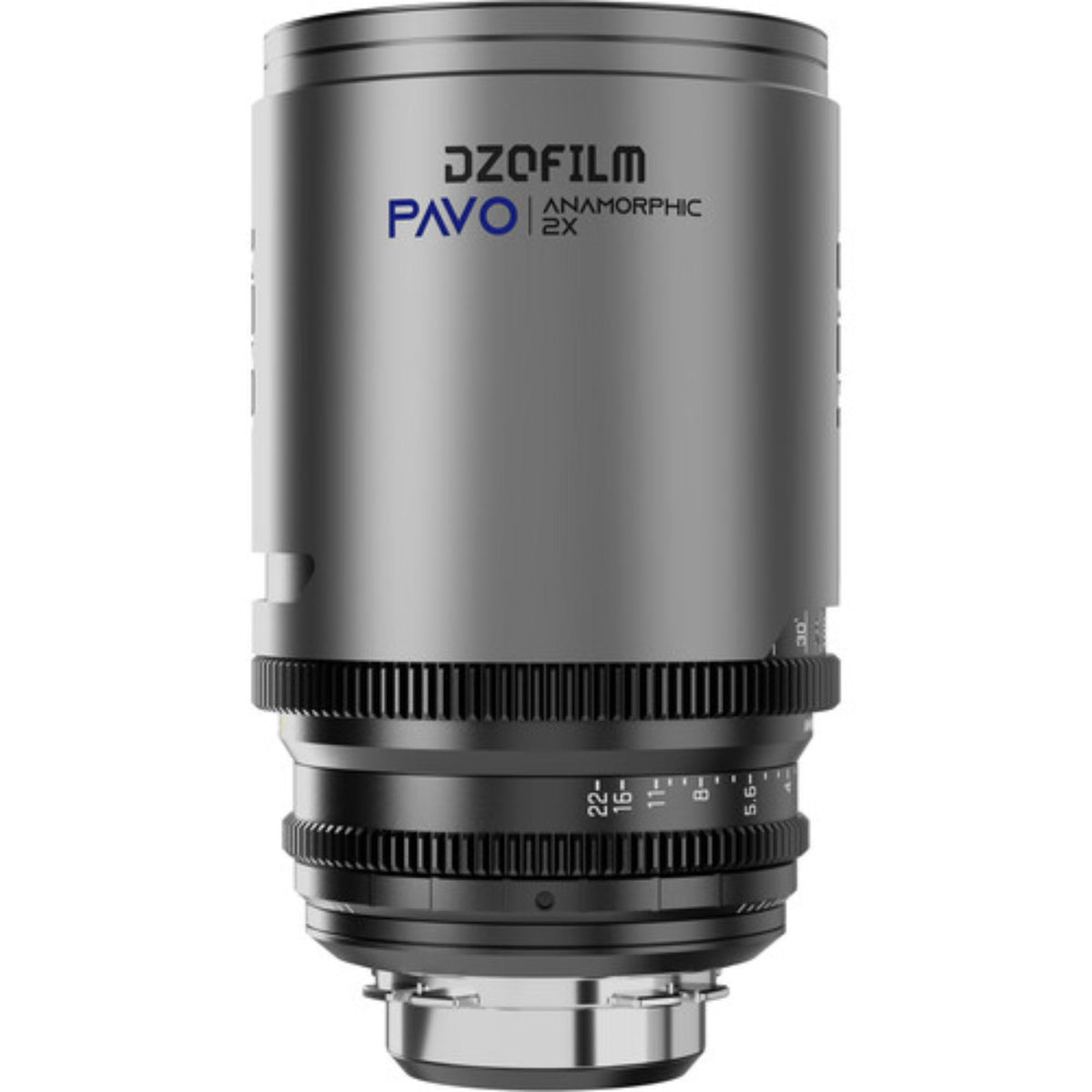

DZOFilm PAVO 180mm T2.8 2x Anamorphic Prime Lens Blue PL/EF

Strong Telephoto Compression for Character Isolation

The 180mm focal length provides the longest telephoto perspective in the PAVO series. Its compressed field of view reduces the apparent distance between foreground and background while supporting shallow depth of field for isolated subjects and tighter compositions.

The 2X anamorphic optical design retains the elliptical bokeh and widescreen rendering of the PAVO family, making the 180mm useful for dramatic close coverage and other shots that benefit from strong longer-lens separation.

Distinctive Blue Flares for Stylized Anamorphic Images

This exact DZO-PA18028PLIB model is the Blue flare version of the PAVO 180mm. Its anamorphic optical design produces horizontal blue streak flares when suitable light sources interact with the lens.

DZOFilm also offers a separate Neutral version of the 180mm. Blue and Neutral models are distinct product configurations, so flare type should be matched when building or expanding a PAVO lens package.

Extend the PAVO System to 180mm Telephoto Coverage

The PAVO 180mm extends the series to its longest focal length, giving cinematographers stronger spatial compression and subject isolation while maintaining the 2X anamorphic character of the PAVO family.

The lens uses a 95mm front diameter and weighs approximately 1950g, maintaining the shared production-oriented mechanical approach of the PAVO system.

Interchangeable Mounting for Professional Cinema Cameras

The PAVO 180mm supports interchangeable PL and EF mounting, allowing camera departments to configure the same lens for compatible professional cinema-camera systems.

DZOFilm also integrates back-focus adjustment into the PAVO platform, allowing precise corrections while the lens remains installed on the camera.

Manual Focus and Iris Control for Cinema Crews

Standard 0.8 MOD gearing supports compatible follow-focus systems and lens-control motors for professional camera operation.

This DZO-PA18028PLIB configuration uses Imperial focus markings in feet, making it suitable for camera departments working with feet-based focus-distance measurements.

What is the DZOFilm PAVO 180mm T2.8 used for?

The DZOFilm PAVO 180mm T2.8 is a Super35 2X anamorphic telephoto prime designed for professional cinema production. Its long focal length is useful for tight compositions, compressed perspective, shallow depth of field, and strong subject isolation.

What anamorphic squeeze does the PAVO 180mm use?

The PAVO 180mm uses a true 2X anamorphic squeeze. Recorded footage must be appropriately de-squeezed during monitoring or post-production to display the intended widescreen image.

What does the Blue flare version look like?

DZO-PA18028PLIB is the Blue flare version of the PAVO 180mm. It produces characteristic horizontal blue streak flares when suitable light sources interact with the anamorphic optics.

Is the DZOFilm PAVO 180mm a full-frame lens?

No. The PAVO 180mm is designed around a 31.5mm Super35 image circle. Its native optical coverage is Super35 rather than full frame.

Does the PAVO 180mm support PL and EF mounts?

Yes. The lens uses an interchangeable mount system with PL and EF configurations for compatible professional cinema cameras. An EF bayonet is included with the lens.

How close can the PAVO 180mm focus?

The PAVO 180mm has a minimum focus distance of 1.04m, or approximately 3 ft 5 in, measured from the camera sensor plane.

What front diameter and filter size does the PAVO 180mm use?

The PAVO 180mm uses a 95mm front diameter and an M86 filter thread. It also uses standard 0.8 MOD cine gearing for compatible follow-focus and lens-control systems.
