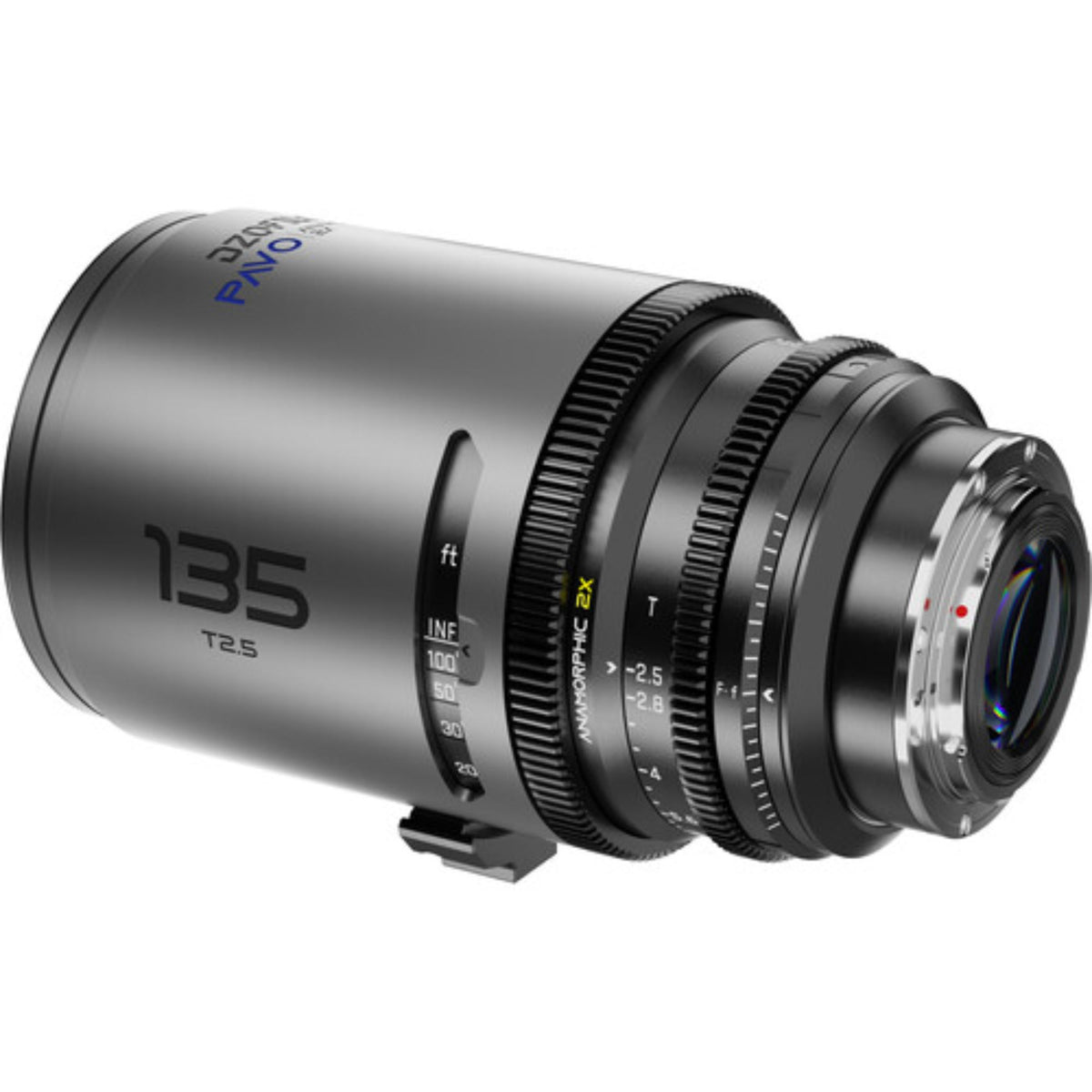

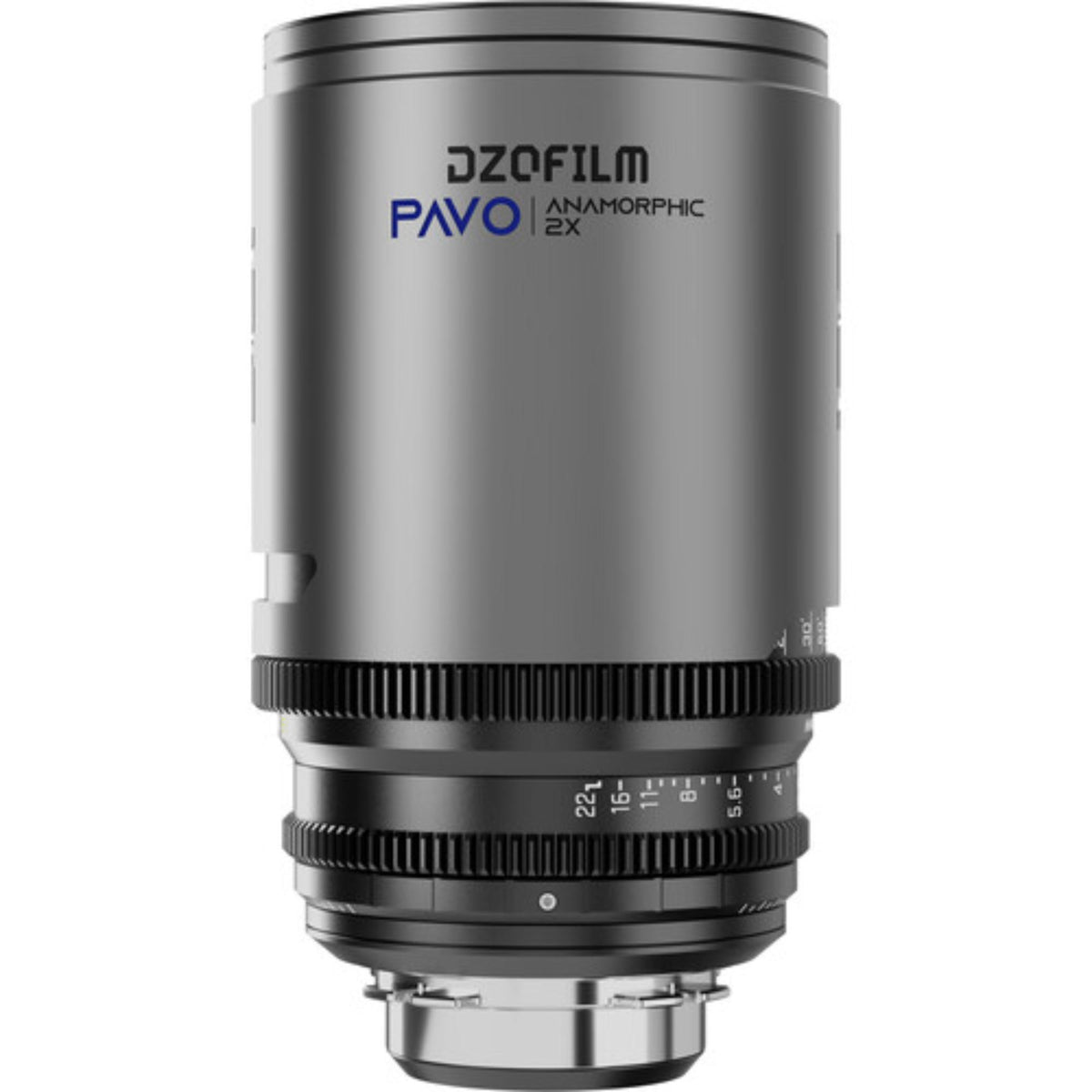

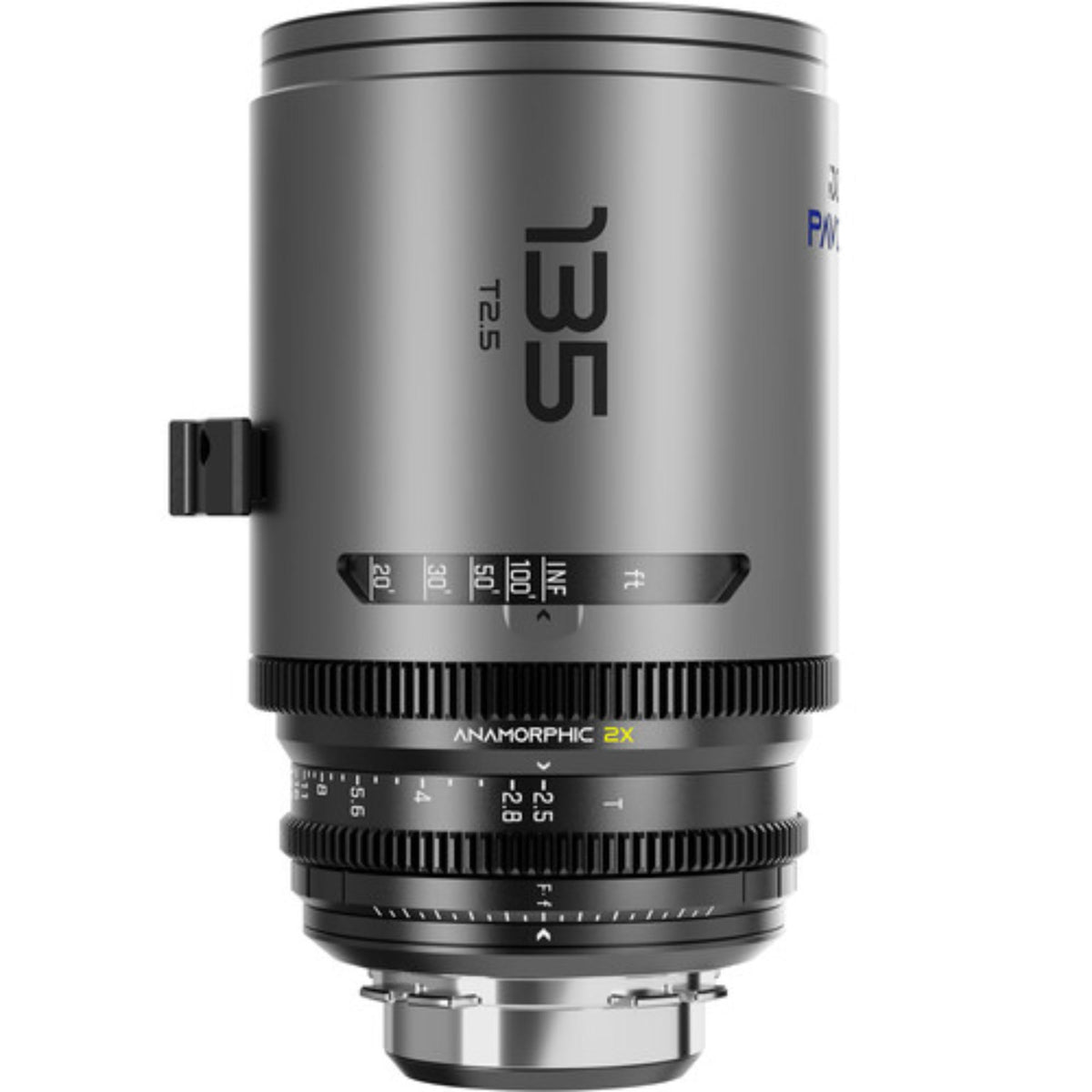

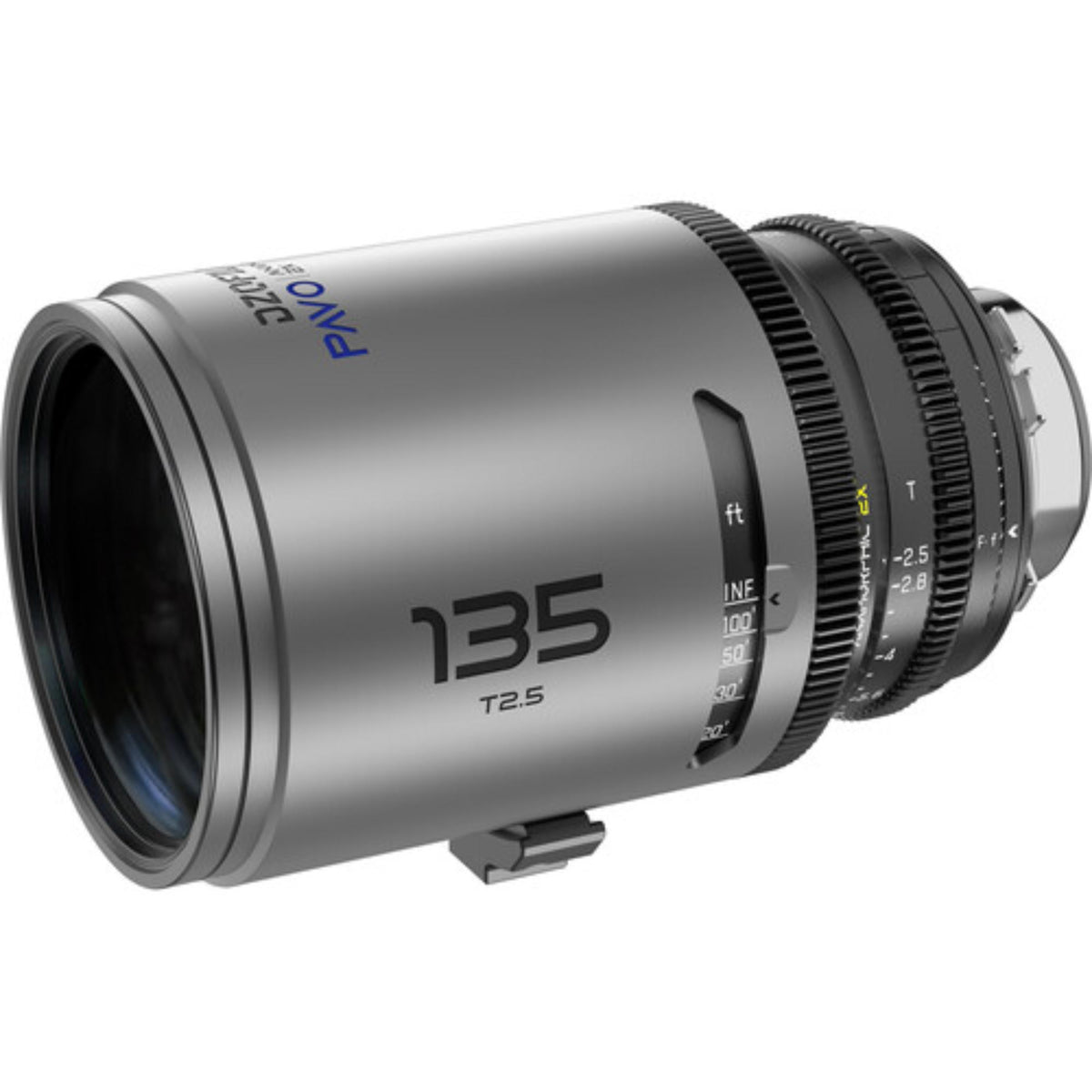

DZOFilm PAVO 135mm T2.5 2x Anamorphic Prime Lens Blue PL/EF

Stronger Compression and Subject Isolation at 135mm

DZOFilm added the 135mm focal length to expand the PAVO series into telephoto anamorphic coverage. The longer focal length compresses environmental space and produces a shallower depth of field, helping separate characters from the background.

The 2X anamorphic design retains the characteristic elliptical bokeh and smooth focus roll-off of the PAVO family, making the 135mm particularly useful for close coverage, portrait-style compositions, and dramatic character-focused scenes.

Distinctive Blue Streaks for Stylized Anamorphic Images

This exact DZO-PA13525PLIB model is the Blue flare version of the PAVO 135mm. Its anamorphic optical design produces horizontal blue streak flares when suitable light sources enter the frame.

DZOFilm also offers a separate Neutral version of the 135mm. Blue and Neutral models are distinct product configurations, so flare type should be matched when building or expanding a PAVO lens set.

Long-Focal-Length Anamorphic Imaging in the PAVO Form Factor

The PAVO 135mm extends the series into telephoto coverage while maintaining the compact mechanical design and 95mm front diameter used across the PAVO production workflow.

At approximately 1994g, the lens remains within DZOFilm's compact PAVO system and can be integrated into supported handheld, stabilized, and professional cinema camera rigs.

Interchangeable Mounting for Professional Cinema Cameras

The PAVO 135mm supports interchangeable PL and EF mounting, allowing camera departments to move the lens between compatible cinema-camera systems without changing optical platforms.

DZOFilm also integrates back-focus adjustment into the PAVO design, allowing precise corrections while the lens remains mounted to the camera.

Manual Focus and Iris Control for Cinema Production

Standard 0.8 MOD gearing allows compatible follow-focus units and lens-control motors to interface with the PAVO 135mm during professional camera operation.

This DZO-PA13525PLIB configuration uses Imperial focus markings in feet, supporting camera crews and focus pullers working with feet-based distance measurements.

What is the DZOFilm PAVO 135mm T2.5 used for?

The DZOFilm PAVO 135mm T2.5 is a Super35 2X anamorphic telephoto prime designed for professional cinema production. Its longer focal length is useful for compressed perspective, tighter compositions, shallow depth of field, and strong subject isolation.

What anamorphic squeeze does the PAVO 135mm use?

The PAVO 135mm uses a true 2X anamorphic squeeze. Recorded footage must be appropriately de-squeezed during monitoring or post-production to display the intended widescreen image.

What does the Blue flare version look like?

The DZO-PA13525PLIB is the Blue flare version of the PAVO 135mm. It produces characteristic horizontal blue streak flares when suitable light sources interact with the anamorphic optics.

Is the DZOFilm PAVO 135mm a full-frame lens?

No. The PAVO 135mm is designed around a 31.5mm Super35 image circle. DZOFilm specifies the native format as Super35.

Does the PAVO 135mm support PL and EF mounts?

Yes. The PAVO system uses interchangeable PL and EF mounts, allowing the lens to be configured for compatible professional cinema-camera systems using either mount.

How close can the PAVO 135mm focus?

DZOFilm specifies a minimum focus distance of 0.99m, or approximately 3 ft 3 in, measured from the sensor plane.

What front diameter and filter size does the PAVO 135mm use?

The lens uses a 95mm front diameter and an M86 filter thread. It also uses standard 0.8 MOD cine gearing for compatible follow-focus and lens-control systems.
