DZOFilm 24mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet)

The DZOFilm 24mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet) is a full-frame macro cinema prime built around a 46.5mm image circle. The 24mm focal length gives an 83.8° horizontal angle of view, while the T2.8 maximum aperture and 1:1.25 macro reproduction ratio make it suitable for wide close-up work where the subject still needs to sit within a broader frame.

The lens ships with an ARRI LPL mount and includes PL and Canon EF mounting options, giving camera crews several ways to integrate it into different cinema systems. Focus uses a long 300° rotation with 0.8 MOD gearing, the iris travels through 62°, and the 16-blade diaphragm supports a rounded out-of-focus rendering. Focus markings are supplied in feet.

Highlights

• 24mm full-frame macro cinema prime lens
• T2.8 maximum aperture and T22 minimum aperture
• 46.5mm image circle
• 1:1.25 macro reproduction ratio
• 0.8x magnification
• ARRI LPL mount with PL and Canon EF mounts included
• Interchangeable mount design
• 300° focus rotation
• 0.8 MOD cine-style gearing
• 16-blade iris
• Focus scale marked in feet
• 105mm filter thread

Quick Specs & Uses

• Focal Length: 24mm
• Maximum Aperture: T2.8
• Minimum Aperture: T22
• Lens Mount: ARRI LPL with Included PL and Canon EF Mounts
• Interchangeable Mount: Yes
• Format Coverage: Full Frame, 46.5mm Image Circle
• Angle of View: 83.8° Horizontal
• Focus Scale: Imperial
• Optical Design: 12 Elements in 10 Groups
• Filter Thread: 105mm
• Minimum Focus Distance: 15.5 cm (6.1") from Camera Sensor
• Macro Reproduction Ratio: 1:1.25
• Magnification: 0.8x
• Aperture/Iris Blades: 16
• Gear Standard: 0.8 MOD
• Electronic Communication: No
• Image Stabilization: No

Why It Helps

The 24mm focal length gives this macro lens a different working character from a longer close-up prime. It can move in tight while still holding more of the surrounding environment in frame, which is useful when the shot needs both subject detail and a sense of space.

The 1:1.25 reproduction ratio and 0.8x magnification are the key close-focus specifications here. Combined with a minimum focus distance of 15.5cm from the camera sensor, the lens is built for detailed macro work without giving up full-frame coverage.

For the camera department, the mechanical layout is equally important. The 300° focus throw gives the focus puller a long range for controlled adjustment, while the 0.8 MOD gearing integrates with standard cine follow-focus hardware. The native LPL setup, plus included PL and Canon EF mounts, also gives the lens useful flexibility across different camera packages.

System Characteristics

• Lens Type: Macro Cinema Prime
• Focal Length: 24mm
• Format Coverage: Full Frame, 46.5mm Image Circle
• Aperture Range: T2.8 to T22
• Angle of View: 83.8° Horizontal
• Focus Scale: Feet
• Optical Design: 12 Elements in 10 Groups
• Minimum Focus Distance: 15.5 cm (6.1") from Camera Sensor
• Macro Reproduction Ratio: 1:1.25
• Magnification: 0.8x
• Aperture/Iris Blades: 16
• Focus Gear: 0.8 MOD
• Focus Rotation: 300°
• Iris Rotation: 62°
• Lens Mounting: 1 x 3/8"-16
• Electronic Communication: No
• Image Stabilization: No
• Front Diameter: 114 mm (4.5")
• Length: 100 mm (3.9")
• Weight: 1.26 kg (2.78 lb)

What's In The Box

• 1 x DZOFilm 24mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet)
• 1 x PL Mount
• 1 x EF Mount
• 1 x Mounting Hardware

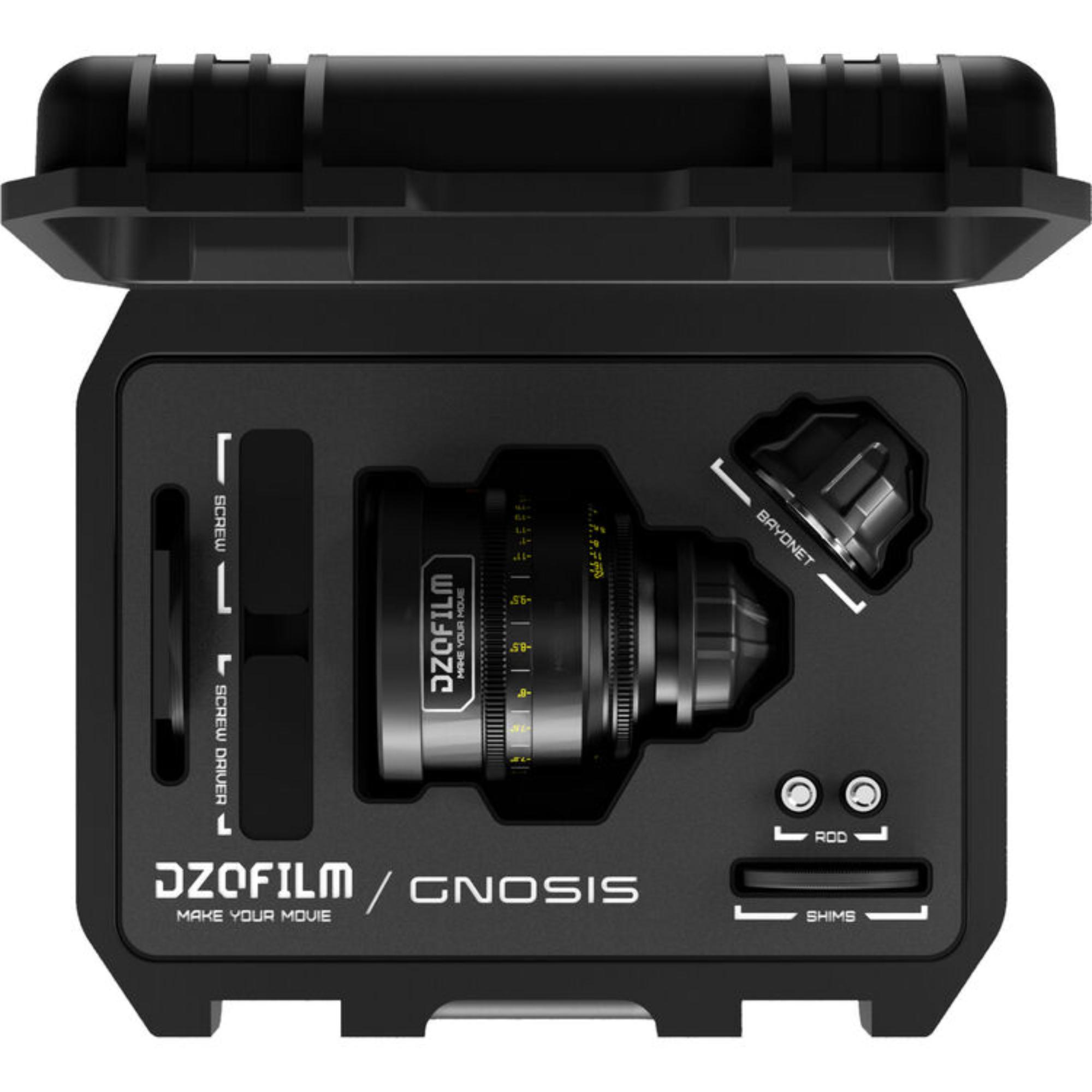

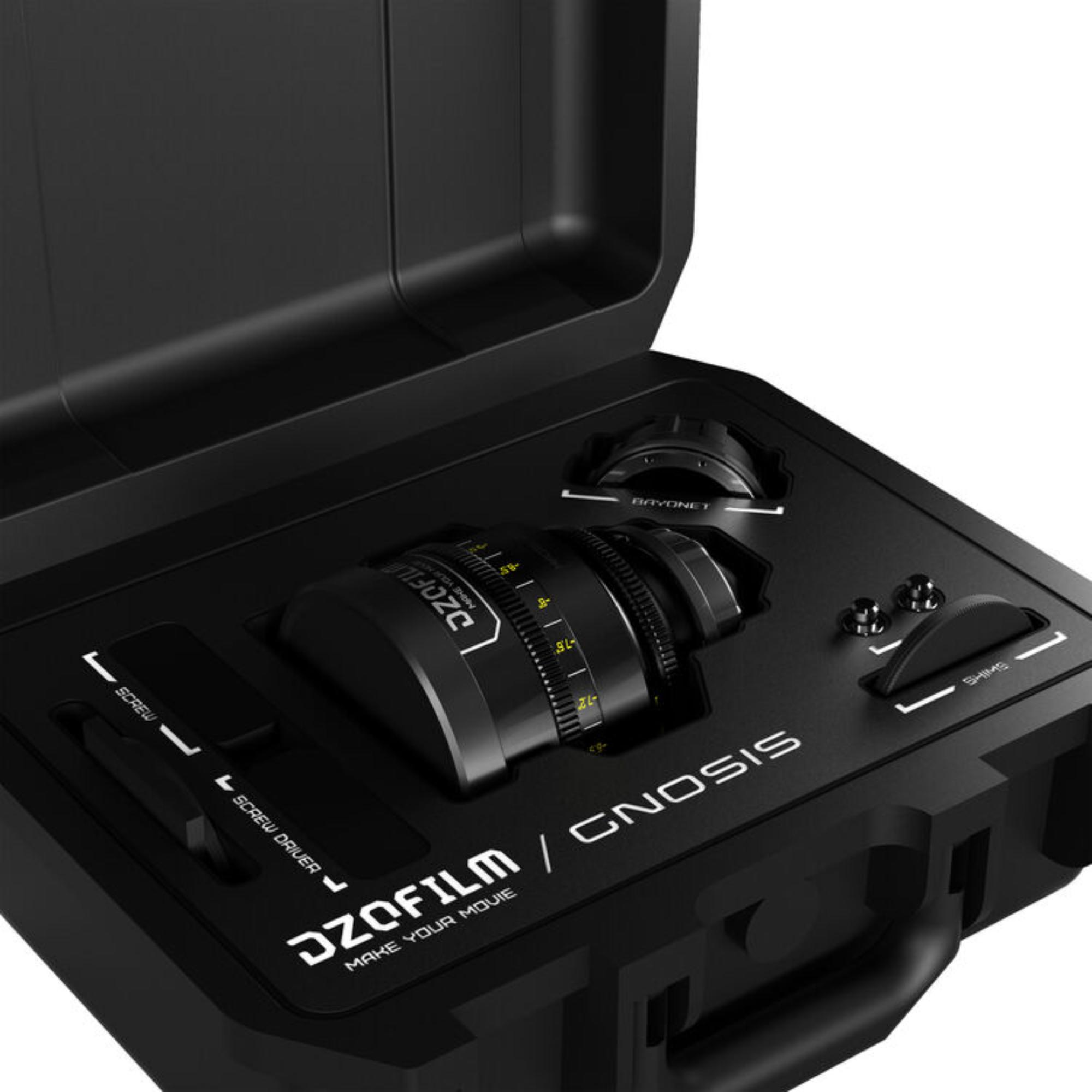

• 1 x Hard Case
