DZOFilm Catta FF 18-35/70-135mm T2.9 Cine 2-Lens Bundle (Sony E, Black)

The DZOFilm Catta FF 18-35/70-135mm T2.9 Cine 2-Lens Bundle (Sony E, Black) pairs a wide-to-standard 18-35mm zoom with a 70-135mm telephoto zoom for full-frame cinema work. Together, the two lenses give a production team useful coverage at both ends of the focal range while keeping the same Catta operating style across the package.

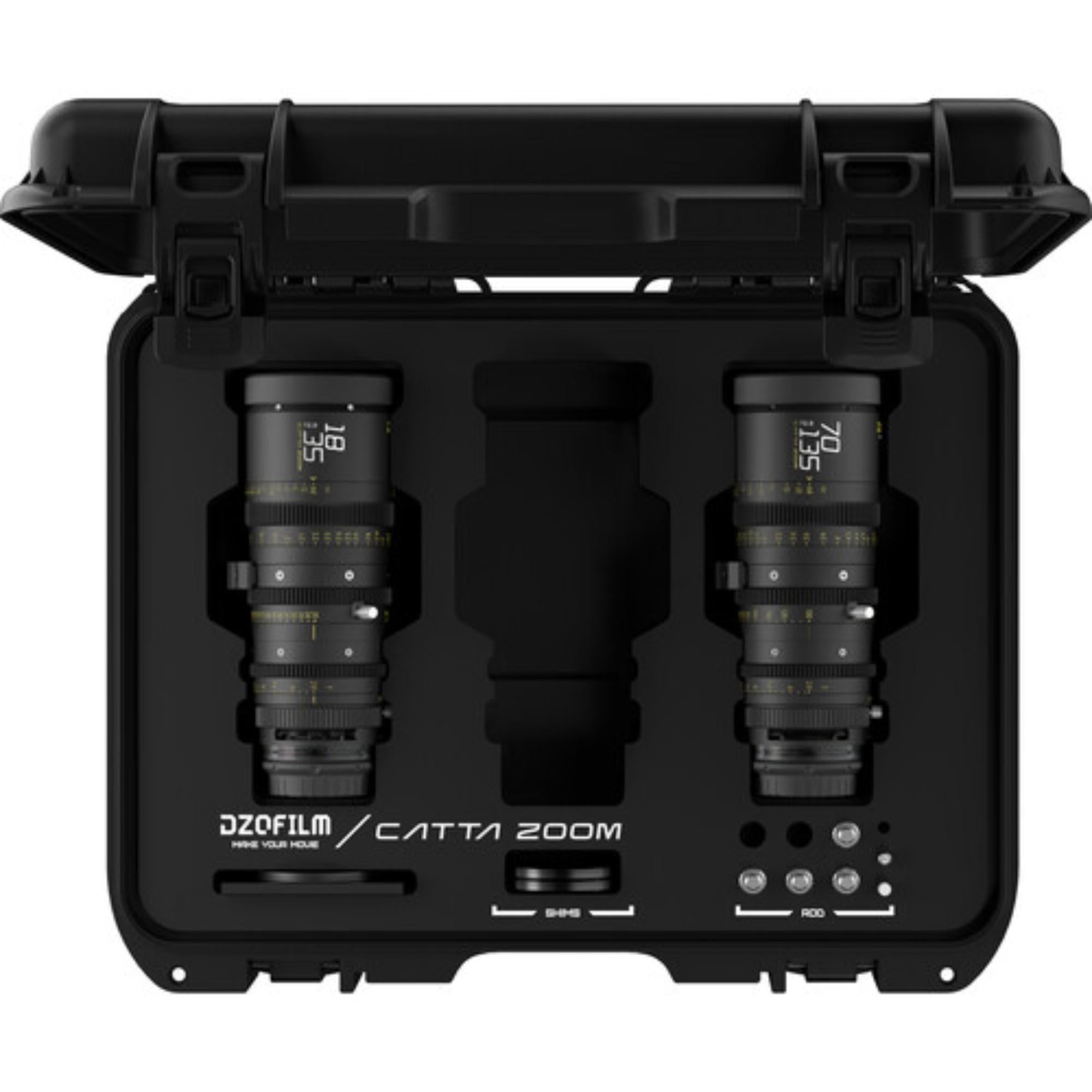

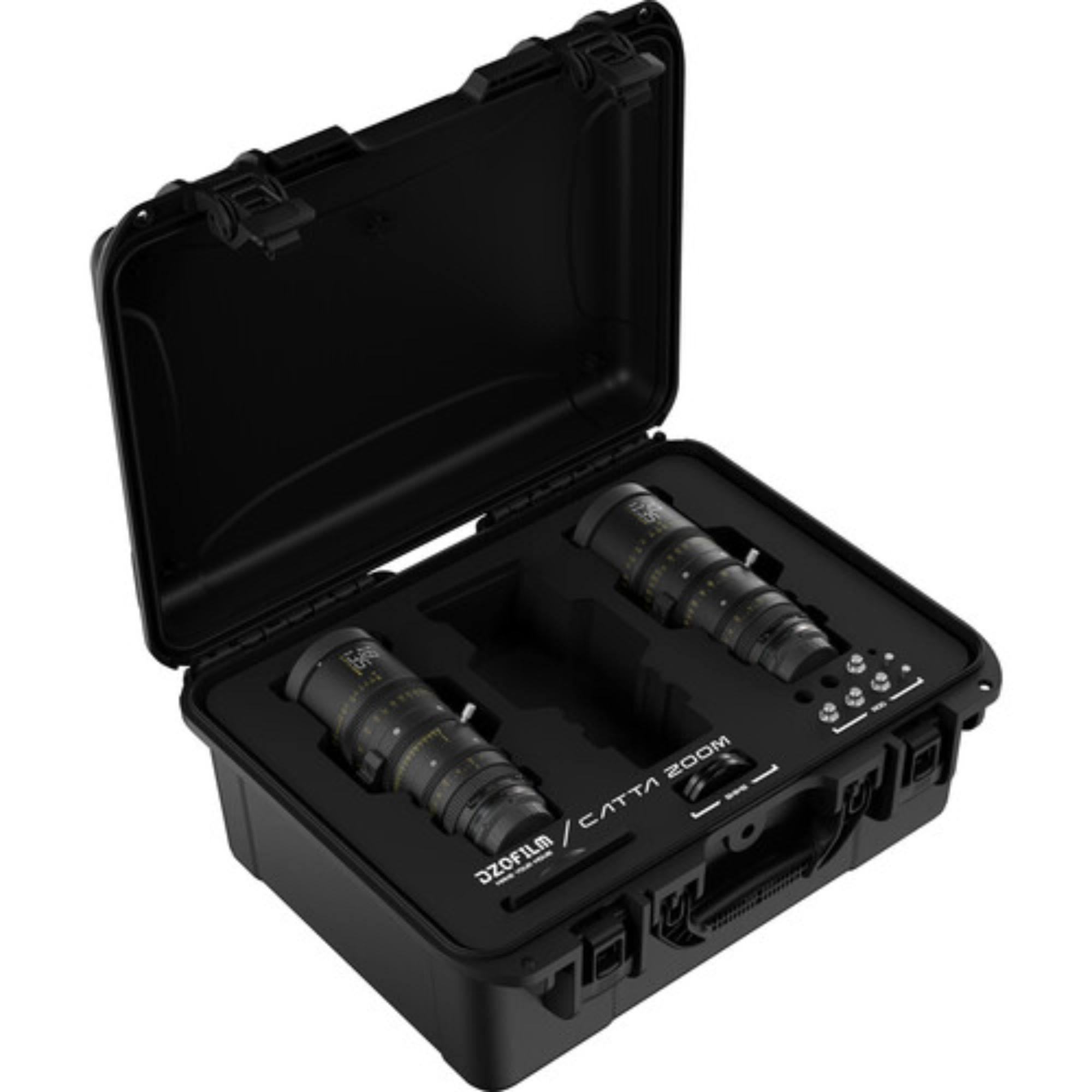

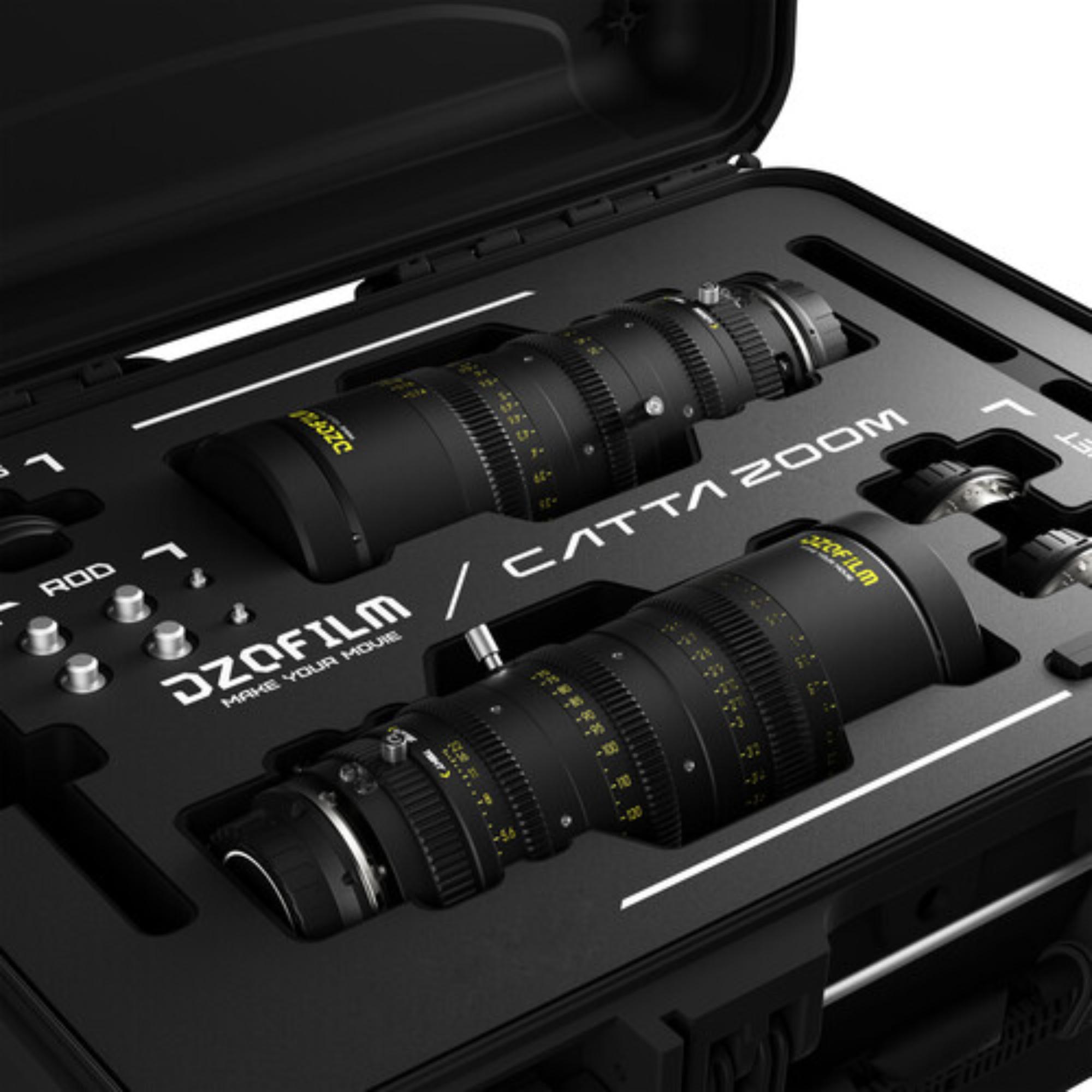

Both lenses use a constant T2.9 maximum aperture, 43.5mm image-circle coverage, interchangeable mounts with Sony E supplied, and cine-standard 0.8 MOD gearing. Focus rotation is 270° on both lenses, zoom rotation is 100°, and each lens comes with its own support hardware, caps, and shim set. The bundle also includes a molded-plastic hard case with precut foam for keeping the lenses and accessories organized in transport.

Highlights

• Two-lens cine zoom bundle with 18-35mm and 70-135mm focal ranges
• Full-frame coverage with 43.5mm image circle
• Constant T2.9 maximum aperture
• T22 minimum aperture
• Interchangeable mount design with Sony E mounts included
• 0.8 MOD cine-style gearing
• 270° focus rotation on both lenses
• 100° zoom rotation on both lenses
• 77mm filter threads
• 16-blade iris design
• No electronic communication
• Waterproof hard case with precut interior foam

Quick Specs & Uses

• Lens Set: 2 Cine Zoom Lenses
• Focal Lengths: 18-35mm and 70-135mm
• Maximum Aperture: T2.9
• Minimum Aperture: T22
• Lens Mount: Interchangeable Mount with Included Sony E
• Format Coverage: Full Frame, 43.5mm Image Circle
• Filter Thread: 77mm
• Gear Standard: 0.8 MOD
• Focus Rotation: 270°
• Zoom Rotation: 100°
• Aperture/Iris Blades: 16
• Electronic Communication: No
• Image Stabilization: No
• Primary Use: Full-frame cine zoom coverage using wide and telephoto focal ranges on Sony E-mount camera systems

Why It Helps

This bundle is built around two distinct working ranges rather than continuous focal coverage. The 18-35mm handles wider interiors, establishing shots, handheld work, and general coverage, while the 70-135mm gives the camera team a longer option for tighter framing and more compressed perspectives.

The shared mechanical layout keeps operation familiar when moving between lenses. Both use 0.8 MOD gearing, 270° focus rotation, 100° zoom rotation, 80mm outside diameters, and 77mm filter threads, so the camera department does not have to rethink the basic follow-focus and front-end setup every time the lens changes.

The hard case rounds out the package for real production use. Its precut foam gives the lenses and accessories defined storage positions, while the molded-plastic exterior, waterproof construction, pressure/purge valve, latch closure, and padlock compatibility make it easier to manage the kit between prep, transport, and location work.

System Characteristics

• Lens 1: DZOFilm Catta FF 18-35mm T2.9 Cine Zoom Lens (Sony E, Black)
• Focal Length: 18-35mm
• Maximum Aperture: T2.9
• Minimum Aperture: T22
• Format Coverage: Full Frame, 43.5mm Image Circle
• Optical Design: 20 Elements in 15 Groups
• Minimum Focus Distance: 0.74 m (29.13")
• Zoom Ratio: 2.3x
• Gear Rotation: Focus 270° / Iris 77° / Zoom 100°
• Dimensions: 80 × 214.4 mm (3.1 × 8.4 in)
• Weight: 1.532 kg (3.4 lb)
• Lens 2: DZOFilm Catta 70-135mm T2.9 E-Mount Cine Zoom Lens (Black)
• Focal Length: 70-135mm
• Maximum Aperture: T2.9
• Minimum Aperture: T22
• Format Coverage: Full Frame, 43.5mm Image Circle
• Minimum Focus Distance: 76 cm (29.9")
• Zoom Ratio: 1.9x
• Lens Mounting: 1 x 3/8"-16 via Included Support Foot
• Gear Rotation: Focus 270° / Zoom 100° / Iris 80°
• Dimensions: 80 × 213.4 mm (3.1 × 8.4 in)
• Weight: 1.597 kg (3.5 lb)
• Case Color: Black
• Case Carry/Transport: Handle
• Case Closure: Latch
• Case Interior: Precut Foam
• Water Resistance: Waterproof
• Pressure/Purge Valve: Yes
• Security: Accepts Padlock (Not Included)
• Case Exterior Material: Molded Plastic

What's In The Box

• 1 x DZOFilm Catta FF 18-35mm T2.9 Cine Zoom Lens (Sony E, Black)
• 1 x Front Cap
• 1 x Rear Cap
• 1 x Shim Set
• 1 x Support Base
• 1 x Support Rod
• 1 x Sticker Set
• 1 x DZOFilm Catta 70-135mm T2.9 E-Mount Cine Zoom Lens (Black)
• 1 x Front Cap
• 1 x Rear Cap
• 1 x Shim Set
• 1 x Support Base
• 1 x Support Rod
• 1 x Filter Bracket
• 1 x Sticker Set
• 1 x DZOFilm Hard Case for Catta Ace 3-Lens Set
• 1 x Custom-Cut Interior Foam
