Product Highlights
- 18-35 & 70-135mm Zoom Coverage
- Constant T2.9 Maximum Aperture
- Parfocal Zoom with Minimal Breathing
- Interchangeable Sony E Mount System
DZOFilm Catta FF 18-35/70-135mm T2.9 Cine 2-Lens Bundle Sony E Black
- SKU:
- DZO-FFCatta2E2-BLK
- MPN:
- FFCatta2E2-BLK
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The DZOFilm Catta FF 18-35/70-135mm T2.9 Cine 2-Lens Bundle combines two full-frame cinema zoom lenses for documentary, broadcast, online, commercial, and narrative production. The 18-35mm handles wide-angle framing, while the 70-135mm extends the package into longer focal lengths for tighter compositions and subject isolation. Both lenses share a T2.9 to T22 aperture range, 16-blade iris design, cine-style manual controls, and an interchangeable mount system supplied here for Sony E. A practical wide-and-telephoto pairing for crews that need two distinct focal ranges in one Catta setup.
Wide and Telephoto Full-Frame Cine Zoom Pair
The bundle combines an 18-35mm wide cine zoom with a 70-135mm telephoto cine zoom. The two focal ranges give crews distinct wide and longer-lens options within the same Catta production package.
Maintains Focus Through the Zoom Range
Both Catta lenses are designed to maintain focus while zooming. Minimal breathing helps keep reframing controlled during documentary, broadcast, online, and cinema production.
T2.9 to T22 Aperture with 16-Blade Iris
Each lens uses a T2.9 to T22 aperture range with a 16-blade iris. The iris design supports smooth bokeh and gradual transitions between focused and defocused areas of the image.
Long Cine-Style Control Rotations
Both lenses provide 270° focus rotation and 100° zoom rotation for deliberate manual control. The 18-35mm uses a 77° iris rotation, while the 70-135mm uses an 80° iris rotation.
0.8 MOD Gearing for Cine Lens Control
Standard 0.8 MOD gearing supports common follow-focus systems and motorized lens-control hardware. This gives camera crews a familiar mechanical interface across both zoom lenses.
Interchangeable Sony E Mount System
The lenses are supplied with Sony E mounts. DZOFilm also offers optional RF, L, X, and Z mounts separately, allowing the physical mount configuration to be changed for supported camera systems.
Catta FF 18-35mm T2.9 Cine Zoom
The 18-35mm covers the wide end of the package for establishing shots, interiors, location work, and compositions where the camera needs a broader field of view. It is designed to maintain focus throughout the zoom range while keeping breathing low during changes in framing.
Cine controls include 270° focus rotation, 100° zoom rotation, 77° iris rotation, an 80mm front diameter, a 75mm filter size, and standard 0.8 MOD gearing.
Catta 70-135mm T2.9 E-Mount Cine Zoom
The 70-135mm extends the kit into longer focal lengths for tighter compositions, interviews, detail shots, and subjects positioned farther from the camera. It is designed to maintain focus while zooming and uses minimal breathing for controlled reframing.
Manual controls include 270° focus rotation, 100° zoom rotation, 80° iris rotation, an 80mm front diameter, and 0.8 MOD gearing for standard cine lens-control systems.
Cover Wide Scenes and Distant Subjects with Two Cine Zooms
The 18-35mm handles wider locations, interiors, and establishing shots, while the 70-135mm provides longer focal lengths for tighter framing. Both lenses are designed to maintain focus while zooming, supporting controlled reframing during documentary coverage.
Integrate Cine Zoom Control into Broadcast Camera Rigs
Standard 0.8 MOD gearing supports compatible follow-focus and motorized lens-control hardware. The long focus and zoom rotations give camera operators deliberate manual control across both focal ranges.
Switch Between Wide and Long-Lens Framing
The two-lens combination supports wide establishing coverage with the 18-35mm and tighter subject framing with the 70-135mm. Matching T2.9 maximum apertures and 16-blade iris designs keep operation familiar when moving between the two lenses.
Documentary Crews
Production teams that need wide and longer focal lengths while retaining cine-style manual lens control.
Broadcast Camera Teams
Operators building camera rigs around geared focus, zoom, and iris controls for professional production.
Online Production Teams
Crews producing interviews and studio or location content that benefit from separate wide and telephoto zoom ranges.
Sony E-Mount Shooters
Camera operators using Sony E systems who want full-frame cine zooms with an interchangeable physical mount design.
Camera Assistants
Camera departments working with 0.8 MOD lens-control hardware and long manual focus, zoom, and iris rotations.
DZOFilm Support
The Catta lenses are supplied here with Sony E mounts and support DZOFilm's interchangeable mount system. Optional RF, L, X, and Z mounts are available separately. Coremicro can help confirm the required mount configuration and compatible lens-control accessories for a specific production setup.
| Specification | Detail |
|---|---|
| Product Name | DZOFilm Catta FF 18-35/70-135mm T2.9 Cine 2-Lens Bundle |
| Included Lenses | 18-35mm T2.9 Cine Zoom · 70-135mm T2.9 Cine Zoom |
| Included Lens Mount | Sony E |
| Optional Lens Mounts | Canon RF · Leica L · FUJIFILM X · Nikon Z |
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Iris Blades | 16 |
| Gear Standard | 0.8 MOD |
| 18-35mm Zoom Range | 18–35mm |
| 18-35mm Zoom Design | Maintains Focus Throughout Zoom Range · Minimal Breathing |
| 18-35mm Magnification Ratio | 1.9x |
| 18-35mm Focus Rotation | 270° |
| 18-35mm Zoom Rotation | 100° |
| 18-35mm Iris Rotation | 77° |
| 18-35mm Front Diameter | 80mm |
| 18-35mm Filter Size | 75mm |
| 18-35mm Included Accessories | Front Lens Cap · Rear Lens Cap · Shim Set · Support Base · Support Rod |
| 70-135mm Zoom Range | 70–135mm |
| 70-135mm Zoom Design | Maintains Focus Throughout Zoom Range · Minimal Breathing |
| 70-135mm Magnification Ratio | 1.9x |
| 70-135mm Minimum Focus Distance | 29.9 in |
| 70-135mm Focus Rotation | 270° |
| 70-135mm Zoom Rotation | 100° |
| 70-135mm Iris Rotation | 80° |
| 70-135mm Front Diameter | 80mm |
| 70-135mm Included Accessories | Front Lens Cap · Rear Lens Cap · Shim Set · Support Base · Support Rod · Filter Bracket |

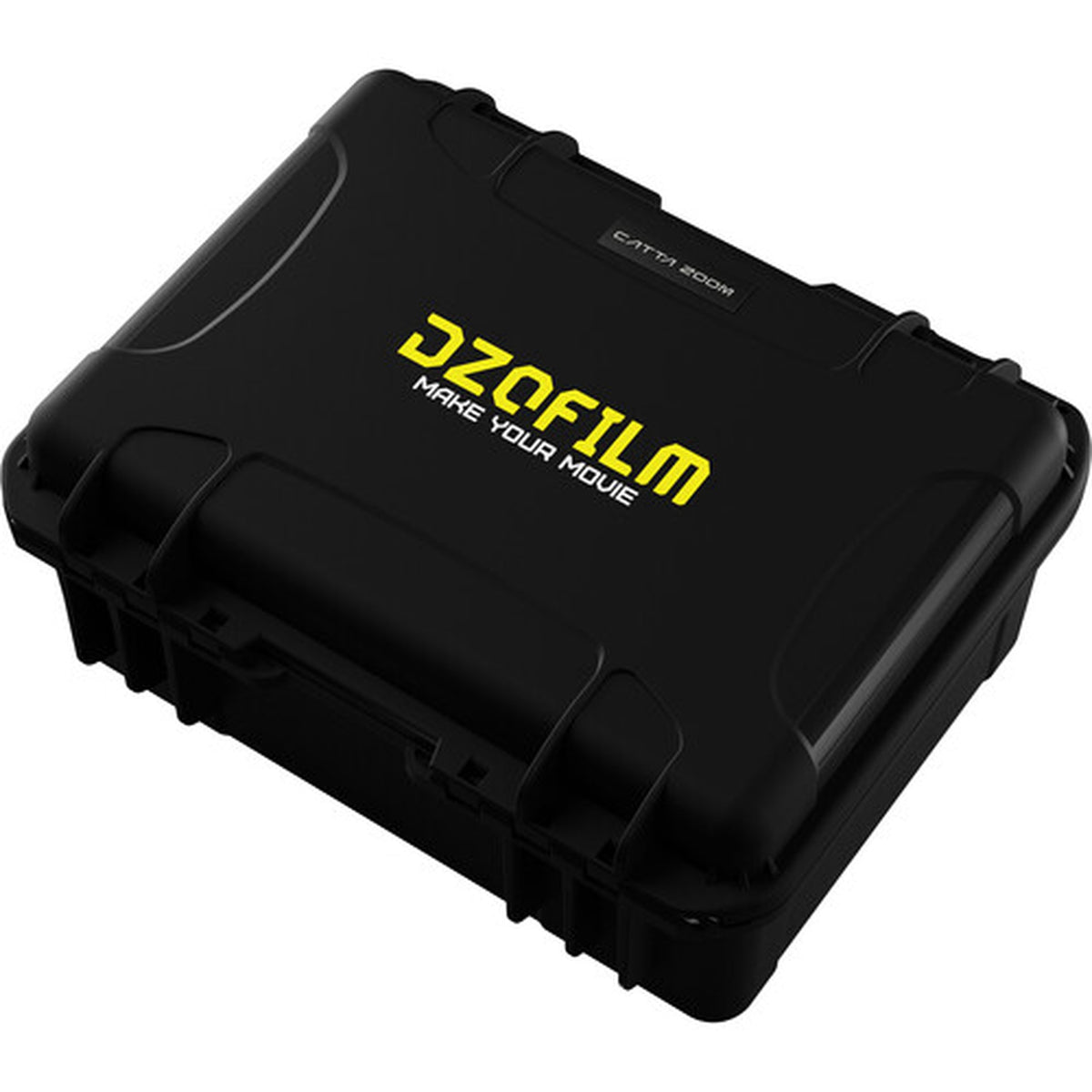

| Hard Case Construction | Hard-Shell Case |
| Hard Case Interior | Laser-Cut Foam Insert |
| Hard Case Capacity | Up to Three Catta Ace Lenses |
| Hard Case Compatibility | DZOFilm states that the listed hard case only fits Catta Ace series lenses. |
What lenses are included in the DZOFilm Catta FF 2-Lens Bundle?
The bundle includes the Catta FF 18-35mm T2.9 cine zoom and the Catta 70-135mm T2.9 cine zoom. The pair combines wide-angle and longer focal-length coverage in one Catta lens package.
Do the Catta lenses maintain focus while zooming?
Yes. Both lenses are designed to maintain focus throughout their respective zoom ranges. They are also specified with minimal breathing to keep reframing controlled during a shot.
What aperture range do the Catta zoom lenses have?
Both lenses have a T2.9 to T22 aperture range and use a 16-blade iris. The iris design is intended to produce smooth bokeh and gradual focus-to-defocus transitions.
What lens mount is included with this Catta bundle?
Both lenses are supplied with Sony E mounts. Optional Canon RF, Leica L, FUJIFILM X, and Nikon Z mounts are available separately for the interchangeable mount system.
What is the difference between the 18-35mm and 70-135mm lenses?
The 18-35mm covers wide focal lengths for establishing shots, interiors, and broader framing. The 70-135mm covers longer focal lengths for tighter compositions and subjects positioned farther from the camera.
Do the Catta lenses use standard cine lens gearing?
Yes. Both lenses use standard 0.8 MOD gearing for compatible follow-focus systems and motorized lens-control hardware.
What lenses does the included DZOFilm hard case support?
The supplied case description identifies it as a hard case for up to three Catta Ace series lenses. DZOFilm states that this particular case only fits Catta Ace series lenses.
Need the Right Catta Zoom Setup for Your Production?
Coremicro is an authorized DZOFilm dealer supporting professional cinematography, documentary, broadcast, commercial, and online production workflows. Contact our team to confirm lens mount configuration, camera compatibility, and lens-control accessories for your setup.
