Product Highlights
- Full-Frame 18-80mm Zoom Coverage
- Constant T2.9 Maximum Aperture
- Parfocal Design Minimizes Focus Shift
- Interchangeable Sony E-Mount System
DZOFilm Catta FF 18-35/35-80mm T2.9 Cine 2-Lens Bundle Sony E Black
- SKU:
- DZO-FFCatta2E1-BLK
- MPN:
- FFCatta2E1-BLK
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The DZOFilm Catta FF 18-35/35-80mm T2.9 Cine 2-Lens Bundle combines two full-frame cinema zoom lenses for documentary, broadcast, online, commercial, and narrative production. The 18-35mm covers wide-angle framing, while the 35-80mm extends the set into medium focal lengths. Both lenses share a T2.9 to T22 aperture range, 16-blade iris design, cine-style manual controls, and an interchangeable mount system supplied here for Sony E. A practical two-lens package for crews that need consistent zoom operation across a broad working range.
Two Full-Frame Cine Zoom Ranges
The bundle pairs an 18-35mm wide cine zoom with a 35-80mm medium-range cine zoom. Together, the two lenses give camera crews practical coverage from wide establishing frames through tighter medium compositions.
Maintains Focus Through the Zoom Range
Both Catta lenses are designed to maintain focus while zooming. Minimal breathing helps keep framing changes controlled during documentary, broadcast, and cinema operation.
T2.9 to T22 Aperture with 16-Blade Iris
Each lens uses a T2.9 to T22 aperture range with a 16-blade iris. The iris design supports smooth bokeh and gradual transitions between focused and defocused areas of the image.
Long Cine-Style Control Rotations
Both lenses provide 270° focus rotation and 100° zoom rotation for deliberate manual control. The 18-35mm uses a 77° iris rotation, while the 35-80mm uses a 75° iris rotation.
0.8 MOD Gearing for Cine Lens Control
Standard 0.8 MOD gearing allows the focus, zoom, and iris controls to integrate with common cine follow-focus systems and motorized lens-control hardware.
Interchangeable Sony E Mount System
The lenses are supplied with Sony E mounts. DZOFilm also offers optional RF, L, X, and Z mounts separately, allowing the physical lens mount configuration to be changed for supported camera systems.
Catta FF 18-35mm T2.9 Cine Zoom
The 18-35mm covers the wide end of the two-lens package for establishing shots, interiors, location work, and other situations where the camera needs a broader field of view. It maintains focus throughout the zoom range and uses minimal breathing for more controlled reframing.
The lens features 270° focus rotation, 100° zoom rotation, 77° iris rotation, an 80mm front diameter, 75mm filter size, and standard 0.8 MOD gearing.
Catta 35-80mm T2.9 E-Mount Cine Zoom
The 35-80mm continues the set into medium focal lengths for interviews, tighter compositions, and general production coverage. Like the 18-35mm, it maintains focus while zooming and keeps breathing low during changes in framing.
Manual controls include 270° focus rotation, 100° zoom rotation, 75° iris rotation, an 80mm front diameter, and 0.8 MOD gearing for standard cine lens-control systems.
Move from Wide Coverage to Tighter Documentary Framing
The 18-35mm handles wider environments, interiors, and establishing shots, while the 35-80mm provides tighter framing for interviews and observational coverage. Both lenses are designed to maintain focus through the zoom range, helping operators reframe during moments that may not be repeatable.
Build Cine-Style Zoom Control into Broadcast Camera Rigs
Standard 0.8 MOD gearing allows both lenses to work with common follow-focus and motorized lens-control hardware. Long focus and zoom rotations provide deliberate manual control for studio, field, and professional broadcast setups.
Keep Lens Operation Consistent Across a Two-Zoom Package
Both lenses share a T2.9 to T22 aperture range, 16-blade iris design, Sony E configuration, and similar manual control layout. That consistency simplifies switching focal ranges during commercial and branded productions.
Cover Wide and Medium Focal Lengths with Matching Cine Zooms
The 18-35mm and 35-80mm provide complementary focal ranges for narrative camera work. Smooth focus transitions, minimal breathing, and a 16-blade iris support controlled visual changes during composed cinema shots.
Documentary Crews
Operators who need wide-to-medium focal coverage with controlled zoom behavior for location and interview work.
Cinematographers
Camera crews looking for matching full-frame cine zooms with manual focus, zoom, and iris control.
Broadcast Teams
Production teams building Sony E camera rigs around 0.8 MOD geared cinema lenses and professional lens-control accessories.
Independent Filmmakers
Filmmakers who want two complementary zoom ranges without changing to a different lens family between wide and medium coverage.
Production Companies
Teams assembling a reusable two-lens package for commercial, branded, online, and cinema production.
Sony E-Mount Shooters
Camera operators using Sony E-mount systems who want an interchangeable mount path for supported alternative camera mounts.
DZOFilm Support
The Catta lenses use DZOFilm's interchangeable mount system and are supplied here with Sony E mounts. Optional RF, L, X, and Z mounts are available separately. Coremicro can help confirm mount configuration, compatible lens-control accessories, and the appropriate setup for a specific production camera package.
| Specification | Detail |
|---|---|
| Product Name | DZOFilm Catta FF 18-35/35-80mm T2.9 Cine 2-Lens Bundle |
| Included Lenses | 18-35mm T2.9 Cine Zoom · 35-80mm T2.9 Cine Zoom |
| Included Lens Mount | Sony E |
| Optional Lens Mounts | Canon RF · Leica L · FUJIFILM X · Nikon Z |
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Iris Blades | 16 |
| Gear Standard | 0.8 MOD |
| 18-35mm Zoom Range | 18–35mm |
| 18-35mm Zoom Design | Maintains Focus Throughout Zoom Range · Minimal Breathing |
| 18-35mm Magnification Ratio | 1.9x |
| 18-35mm Minimum Focus Distance | 20.1 in |
| 18-35mm Focus Rotation | 270° |
| 18-35mm Zoom Rotation | 100° |
| 18-35mm Iris Rotation | 77° |
| 18-35mm Front Diameter | 80mm |
| 18-35mm Filter Size | 75mm |
| 35-80mm Zoom Range | 35–80mm |
| 35-80mm Zoom Design | Maintains Focus Throughout Zoom Range · Minimal Breathing |
| 35-80mm Magnification Ratio | 2.3x |
| 35-80mm Minimum Focus Distance | 29.1 in |
| 35-80mm Focus Rotation | 270° |
| 35-80mm Zoom Rotation | 100° |
| 35-80mm Iris Rotation | 75° |
| 35-80mm Front Diameter | 80mm |

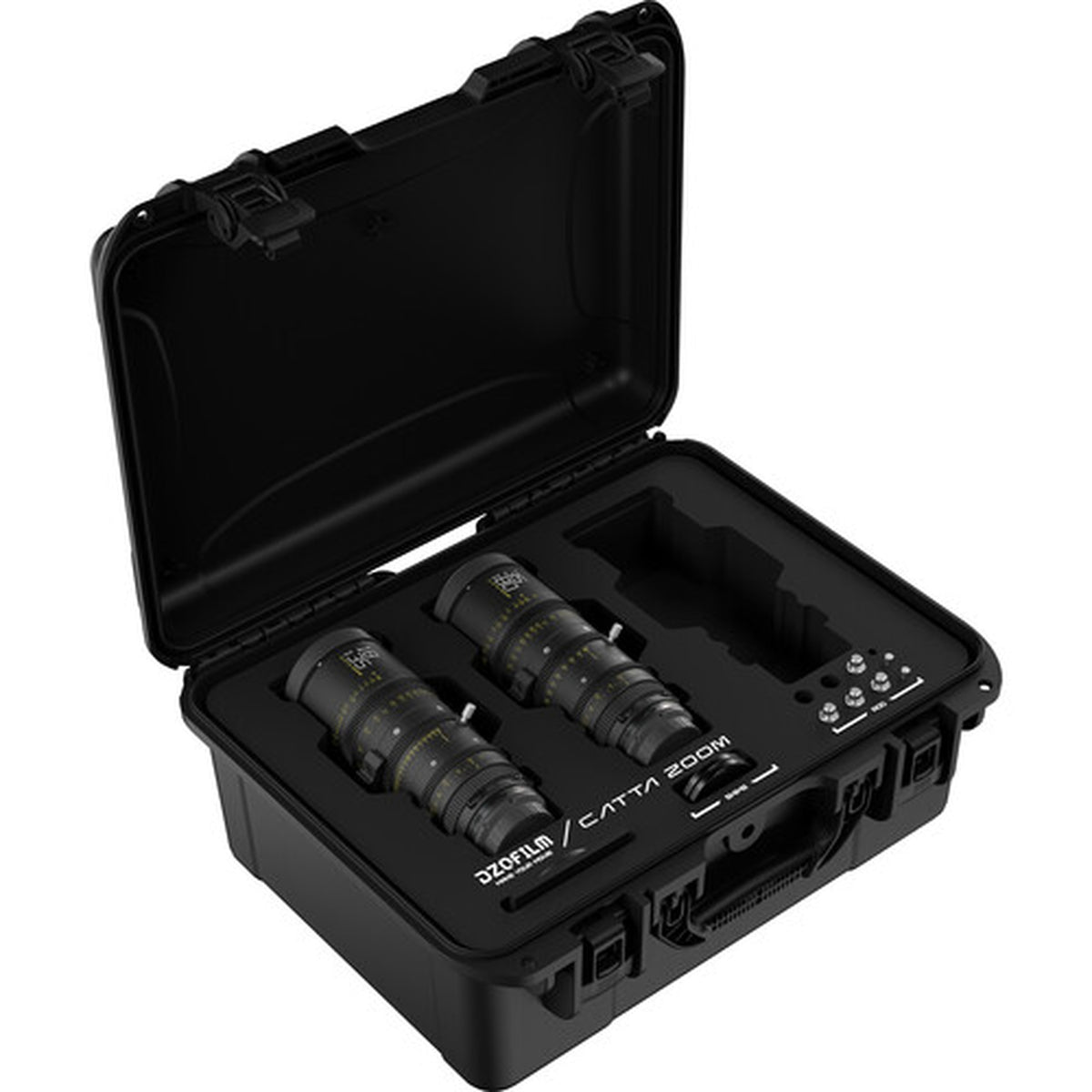

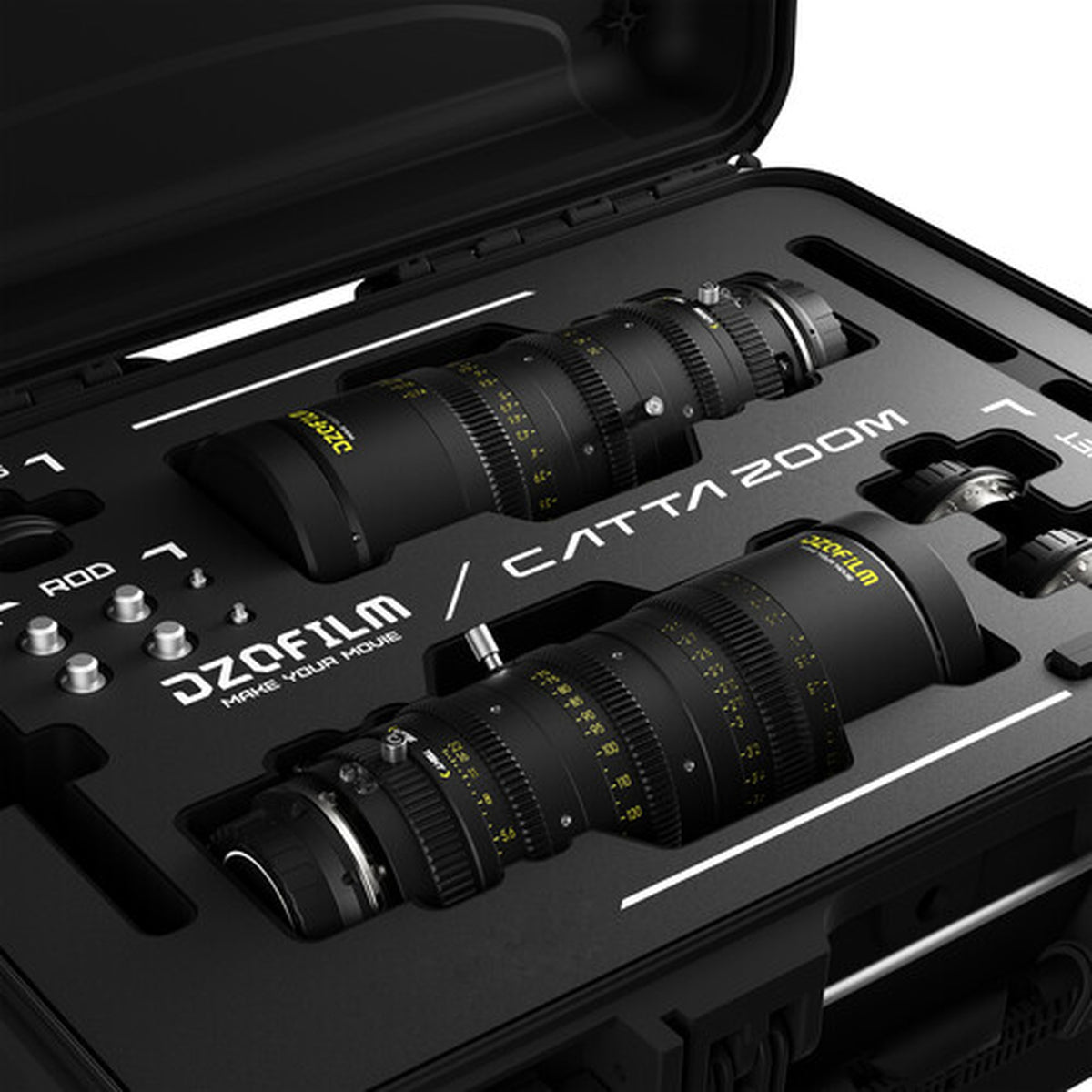

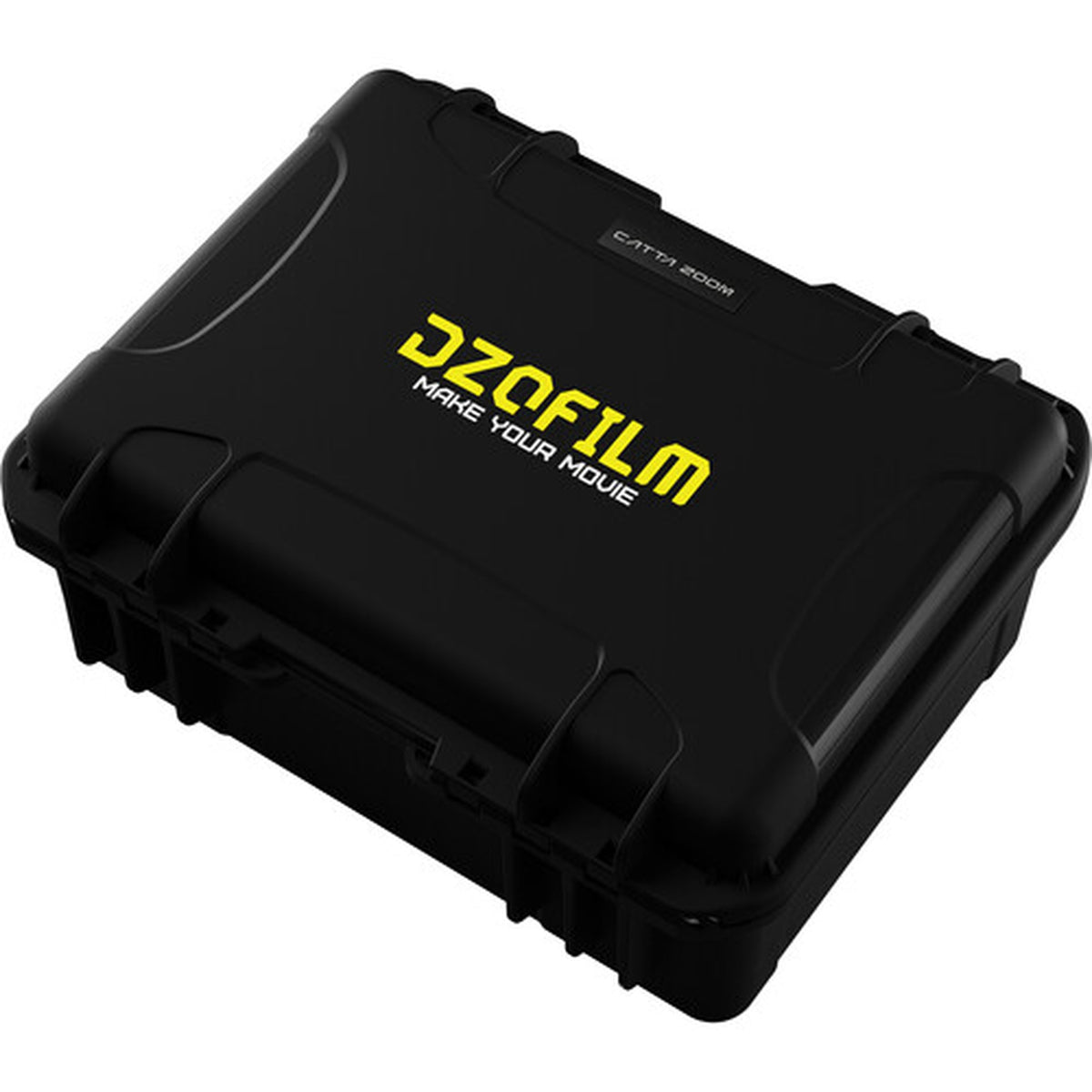

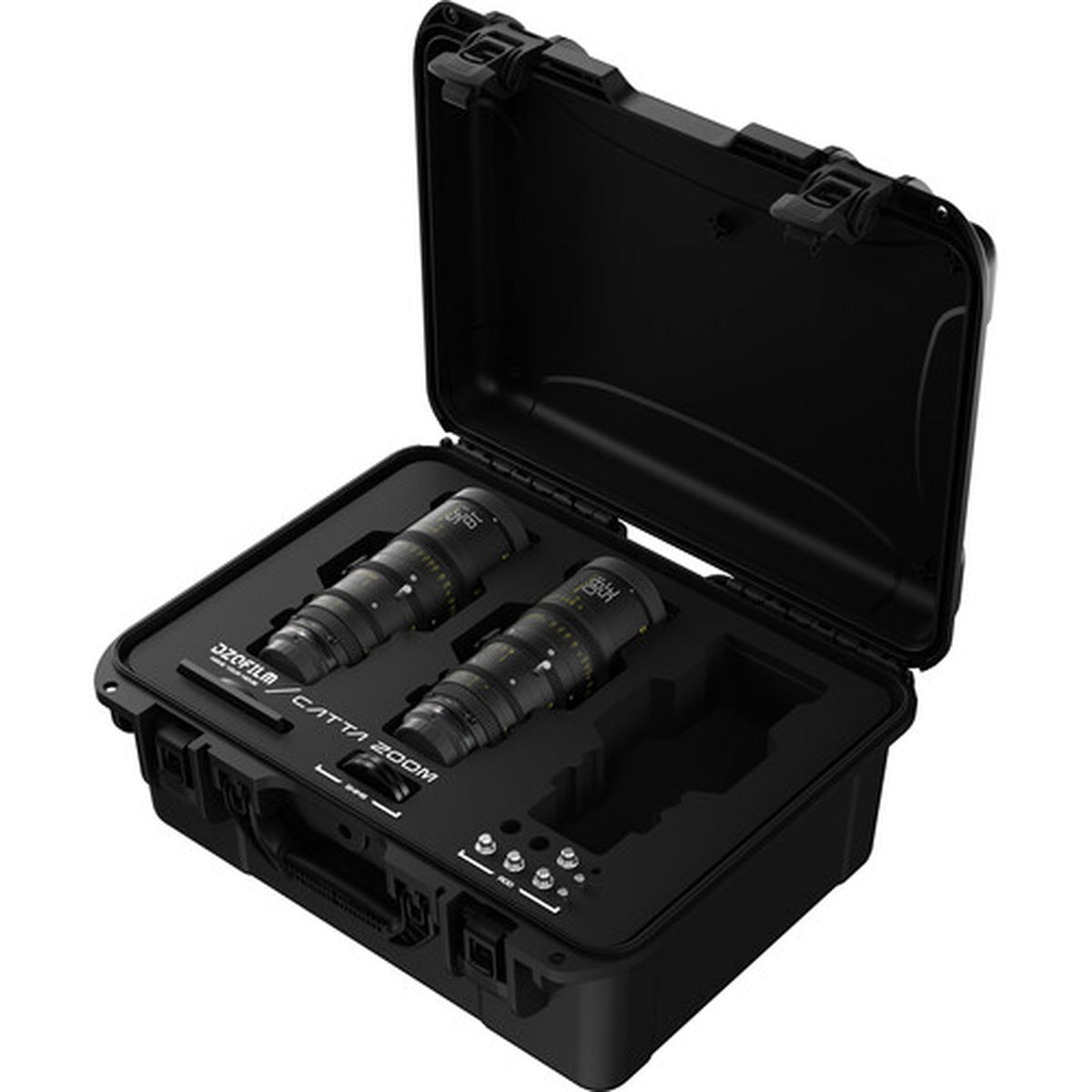

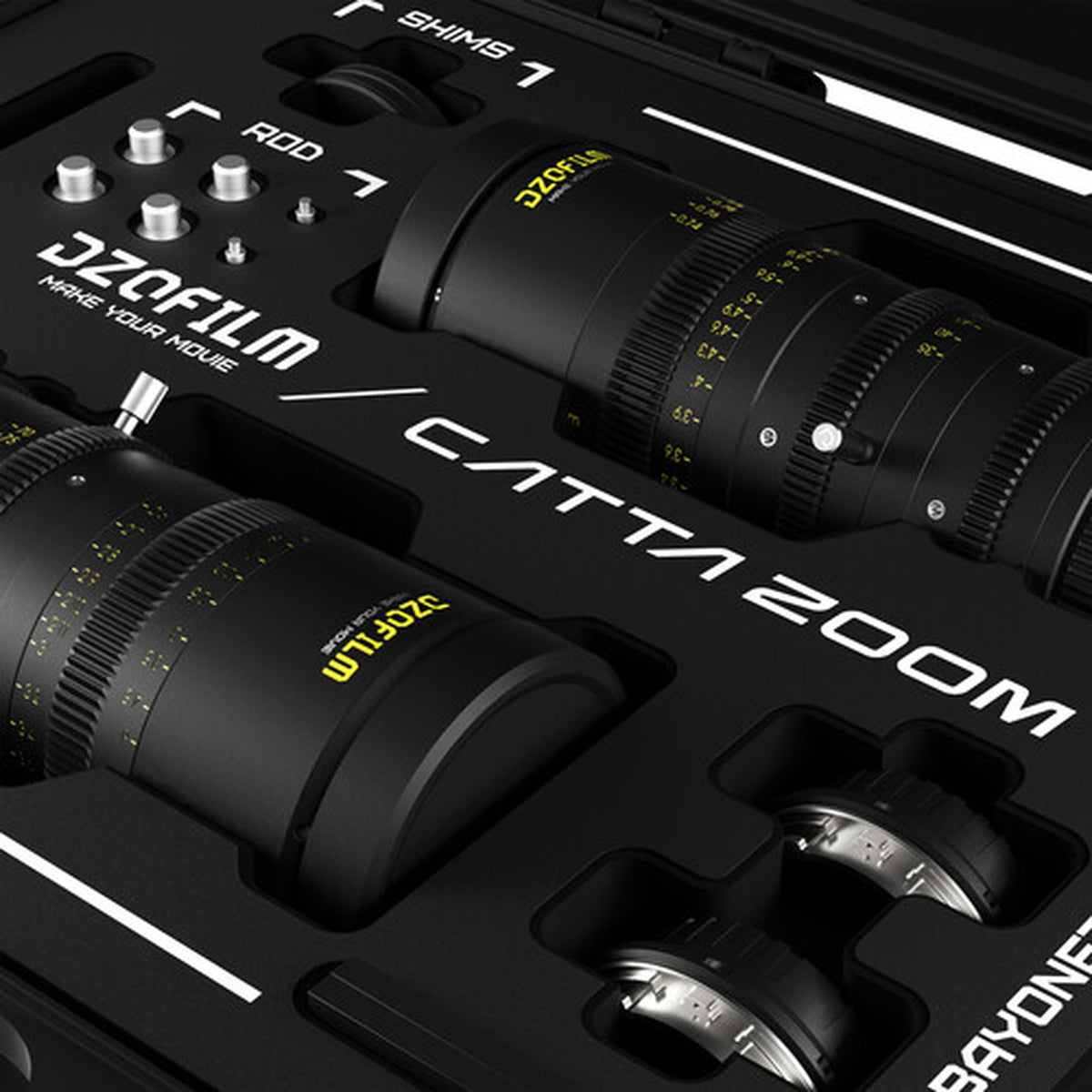

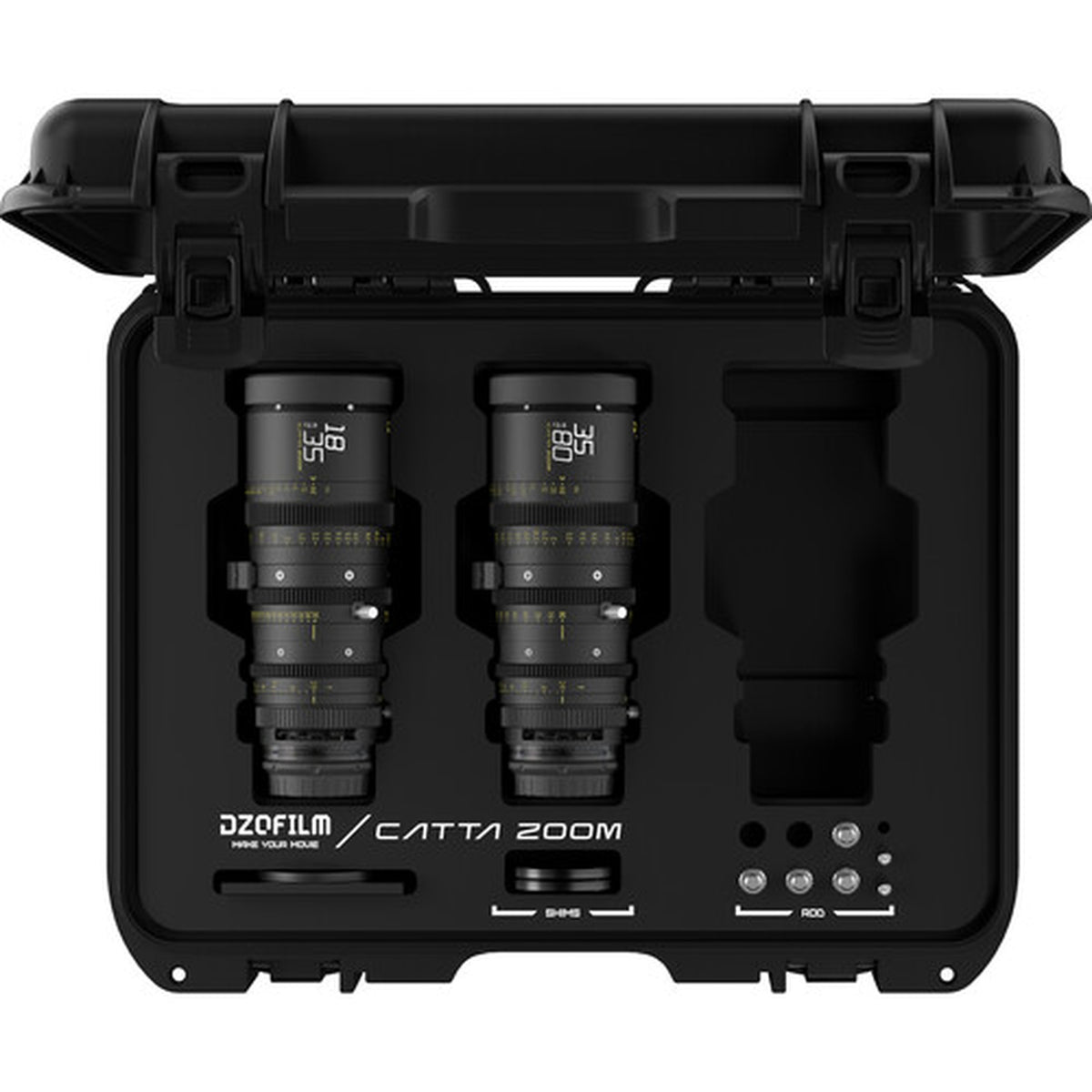

| Hard Case Construction | Hard-Shell Case |
| Hard Case Interior | Laser-Cut Foam Insert |
| Hard Case Capacity | Up to Three Catta Ace Lenses |
| Hard Case Compatibility | DZOFilm states that the listed hard case only fits Catta Ace series lenses. |
What lenses are included in the DZOFilm Catta FF 2-Lens Bundle?
The bundle includes the DZOFilm Catta FF 18-35mm T2.9 cine zoom and the Catta 35-80mm T2.9 cine zoom. Together, they provide wide-to-medium focal length coverage.
Do the Catta lenses maintain focus while zooming?
Yes. Both lenses are designed to maintain focus throughout their respective zoom ranges. They are also specified with minimal breathing for more controlled changes in framing.
What lens mount is included with this Catta bundle?
Both lenses are supplied with Sony E mounts. Optional Canon RF, Leica L, FUJIFILM X, and Nikon Z mounts are available separately for the interchangeable mount system.
What aperture range do the DZOFilm Catta zoom lenses have?
Both Catta zoom lenses have a T2.9 to T22 aperture range and use a 16-blade iris designed for smooth bokeh and gradual focus transitions.
Do the Catta lenses use standard cine lens gearing?
Yes. Both lenses use standard 0.8 MOD gearing for integration with compatible follow-focus systems and motorized lens-control hardware.
How close can the Catta 18-35mm and 35-80mm lenses focus?
The supplied specifications list a 20.1-inch minimum focus distance for the 18-35mm lens and a 29.1-inch minimum focus distance for the 35-80mm lens.
What lenses does the listed DZOFilm hard case support?
The supplied hard case description identifies it as a case for up to three Catta Ace series lenses. DZOFilm states that this particular case only fits Catta Ace series lenses.
Need the Right Catta Zoom Setup for Your Production?
Coremicro is an authorized DZOFilm dealer supporting professional cinematography, documentary, broadcast, commercial, and production workflows. Contact our team to confirm lens mount configuration, camera compatibility, and lens-control accessories for your setup.
