Product Highlights
- 35-80 & 70-135mm Zoom Coverage
- Constant T2.9 Maximum Aperture
- Parfocal Zoom with Minimal Breathing
- Interchangeable Sony E Mount System
DZOFilm Catta 35-80/70-135mm T2.9 Cine 2-Lens Bundle Sony E Black
- SKU:
- DZO-FFCatta2E-BLK
- MPN:
- FFCatta2E-BLK
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The DZOFilm Catta 35-80mm & 70-135mm T2.9 E-Mount Cine Zoom 2-Lens Bundle combines two cinema zoom lenses for documentary, broadcast, and online production. The 35-80mm handles medium focal lengths for general coverage and interviews, while the 70-135mm extends the package into longer framing. Both lenses maintain focus through their zoom ranges, minimize breathing, use a T2.9 to T22 aperture range with 16-blade irises, and provide cine-style geared controls. Both are supplied with Sony E mounts and support optional interchangeable RF, L, X, and Z mounts.
35-80mm and 70-135mm Cine Zoom Pair
The bundle pairs a 35-80mm cine zoom with a 70-135mm cine zoom, providing medium-to-long focal length coverage for documentary, broadcast, and online production.
Maintains Focus Throughout the Zoom Range
Both Catta lenses are designed to maintain focus while zooming. Minimal breathing helps keep framing changes controlled as operators move through each lens's focal range.
T2.9 to T22 Aperture with 16-Blade Iris
Each lens features a T2.9 to T22 aperture range and a 16-blade iris. The iris design supports smooth bokeh along with gradual transitions between focused and defocused areas.
Long Cine-Style Control Rotations
Both lenses provide 270° focus rotation and 100° zoom rotation. The 35-80mm uses a 75° iris rotation, while the 70-135mm uses an 80° iris rotation for manual exposure control.
Standard 0.8 MOD Cine Gearing
Both zooms use 0.8 MOD gears, providing a standard mechanical interface for compatible follow-focus systems and motorized lens-control hardware.
Interchangeable Sony E Mount System
Both lenses are supplied with Sony E mounts. Optional RF, L, X, and Z mounts are available separately for changing the physical mount configuration on supported camera systems.
DZOFilm Catta 35-80mm T2.9 E-Mount Cine Zoom
The 35-80mm covers medium focal lengths for interviews, general production coverage, and controlled reframing. It maintains focus throughout the zoom range, minimizes breathing, and uses a 2.3x magnification ratio with a 29.1-inch minimum focus distance.
Cine controls include 270° focus rotation, 100° zoom rotation, 75° iris rotation, an 80mm front diameter, and 0.8 MOD gearing. The lens includes front and rear lens caps, a shim set, support base, support rod, and filter bracket.
DZOFilm Catta 70-135mm T2.9 E-Mount Cine Zoom
The 70-135mm extends the package into longer focal lengths for tighter compositions and subjects positioned farther from the camera. It maintains focus throughout the zoom range, minimizes breathing, and uses a 1.9x magnification ratio with a 29.9-inch minimum focus distance.
Manual controls include 270° focus rotation, 100° zoom rotation, 80° iris rotation, an 80mm front diameter, and 0.8 MOD gearing. Included accessories consist of front and rear lens caps, a shim set, support base, support rod, and filter bracket.
Move from Interview Framing to Longer Subject Coverage
The 35-80mm handles general coverage and interview framing, while the 70-135mm extends the setup for tighter compositions and more distant subjects. Both lenses maintain focus through their zoom ranges and minimize breathing during reframing.
Build Consistent Cine Zoom Control into Camera Rigs
Both lenses use 0.8 MOD gearing with 270° focus rotation and 100° zoom rotation. This provides a familiar mechanical interface for compatible follow-focus systems and motorized lens-control hardware used in professional production.
Cover Medium and Telephoto Framing with Matching Zooms
The 35-80mm and 70-135mm provide complementary focal ranges for interviews, studio work, branded content, and location production. Matching T2.9 maximum apertures and 16-blade iris designs help keep lens operation consistent when switching between the two zooms.
Extend a Cine Zoom Package from Medium to Long Focal Lengths
The two-lens pairing covers medium through longer focal lengths without changing to a different lens family. Smooth focus and defocus transitions, minimal breathing, and cine-style controls support deliberate camera operation during composed shots.
Documentary Crews
Operators who need medium and longer focal lengths for interviews, observational coverage, and location production.
Broadcast Teams
Camera departments using geared cine lenses with compatible follow-focus and motorized lens-control systems.
Cinematographers
Shooters looking for matching T2.9 cine zooms with consistent manual controls across medium and telephoto focal ranges.
Online Production Teams
Crews producing interviews, branded content, and studio or location projects that need flexible medium-to-long framing.
Sony E-Mount Shooters
Camera operators using Sony E systems who want cine zoom lenses with an interchangeable physical mount design.
Production Companies
Teams building reusable lens packages for documentary, broadcast, commercial, online, and narrative production.
DZOFilm Support
Both Catta zoom lenses are supplied with Sony E mounts and support DZOFilm's interchangeable mount system. Optional RF, L, X, and Z mounts are available separately. Coremicro can help confirm mount configuration, compatible lens-control accessories, and the appropriate setup for a specific production camera package.
| Specification | Detail |
|---|---|
| Product Name | DZOFilm Catta 35-80mm & 70-135mm T2.9 E-Mount Cine Zoom 2-Lens Bundle |
| Included Lenses | 35-80mm T2.9 Cine Zoom · 70-135mm T2.9 Cine Zoom |
| Included Lens Mount | Sony E |
| Optional Lens Mounts | Canon RF · Leica L · FUJIFILM X · Nikon Z |
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Iris Blades | 16 |
| Gear Standard | 0.8 MOD |
| 35-80mm Zoom Range | 35–80mm |
| 35-80mm Zoom Design | Maintains Focus Throughout Zoom Range · Minimal Breathing |
| 35-80mm Magnification Ratio | 2.3x |
| 35-80mm Minimum Focus Distance | 29.1 in |
| 35-80mm Focus Rotation | 270° |
| 35-80mm Zoom Rotation | 100° |
| 35-80mm Iris Rotation | 75° |
| 35-80mm Front Diameter | 80mm |
| 35-80mm Included Accessories | Front Lens Cap · Rear Lens Cap · Shim Set · Support Base · Support Rod · Filter Bracket |
| 70-135mm Zoom Range | 70–135mm |
| 70-135mm Zoom Design | Maintains Focus Throughout Zoom Range · Minimal Breathing |
| 70-135mm Magnification Ratio | 1.9x |
| 70-135mm Minimum Focus Distance | 29.9 in |
| 70-135mm Focus Rotation | 270° |
| 70-135mm Zoom Rotation | 100° |
| 70-135mm Iris Rotation | 80° |
| 70-135mm Front Diameter | 80mm |
| 70-135mm Included Accessories | Front Lens Cap · Rear Lens Cap · Shim Set · Support Base · Support Rod · Filter Bracket |

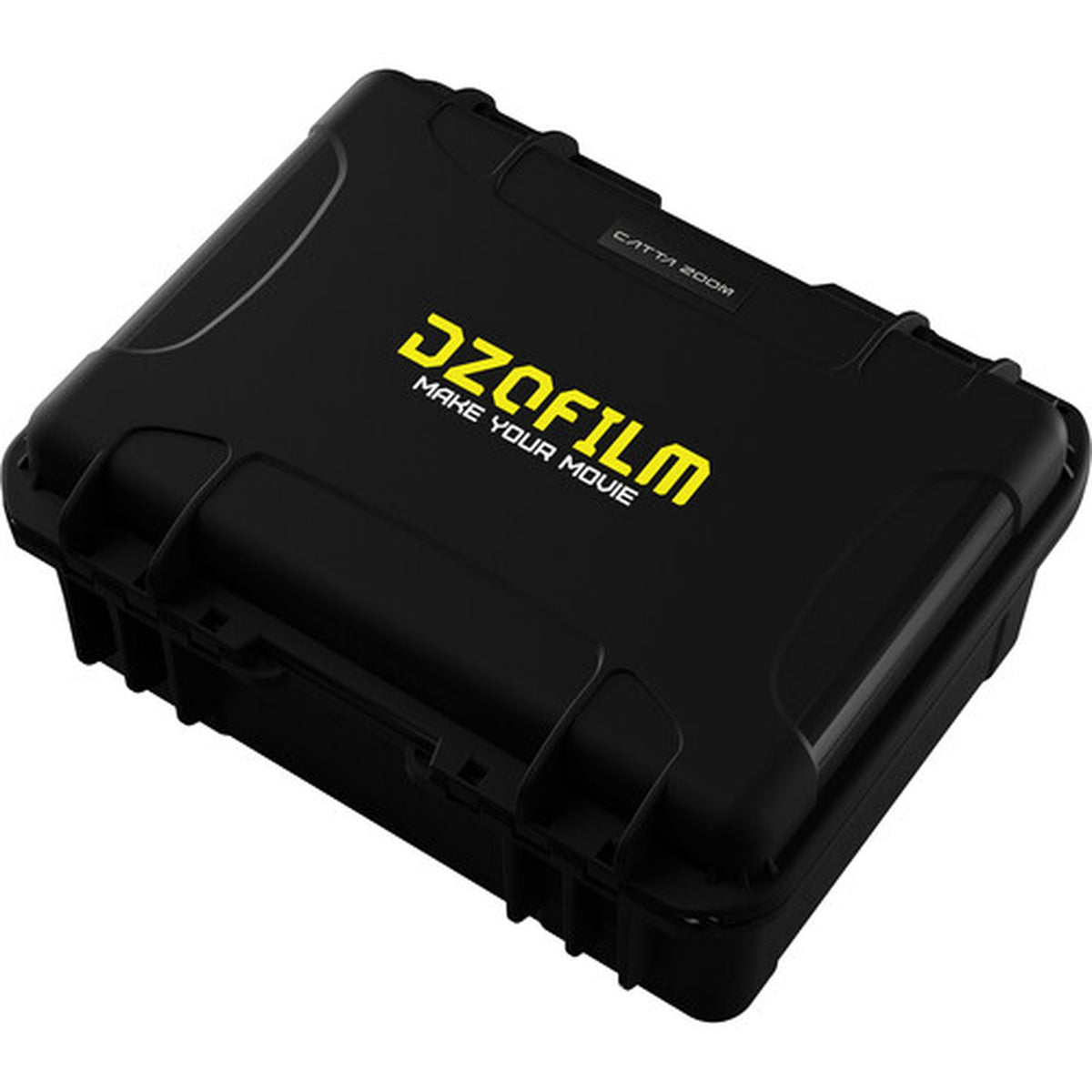

| Hard Case Construction | Hard-Shell Exterior with Hinged Top Lid |

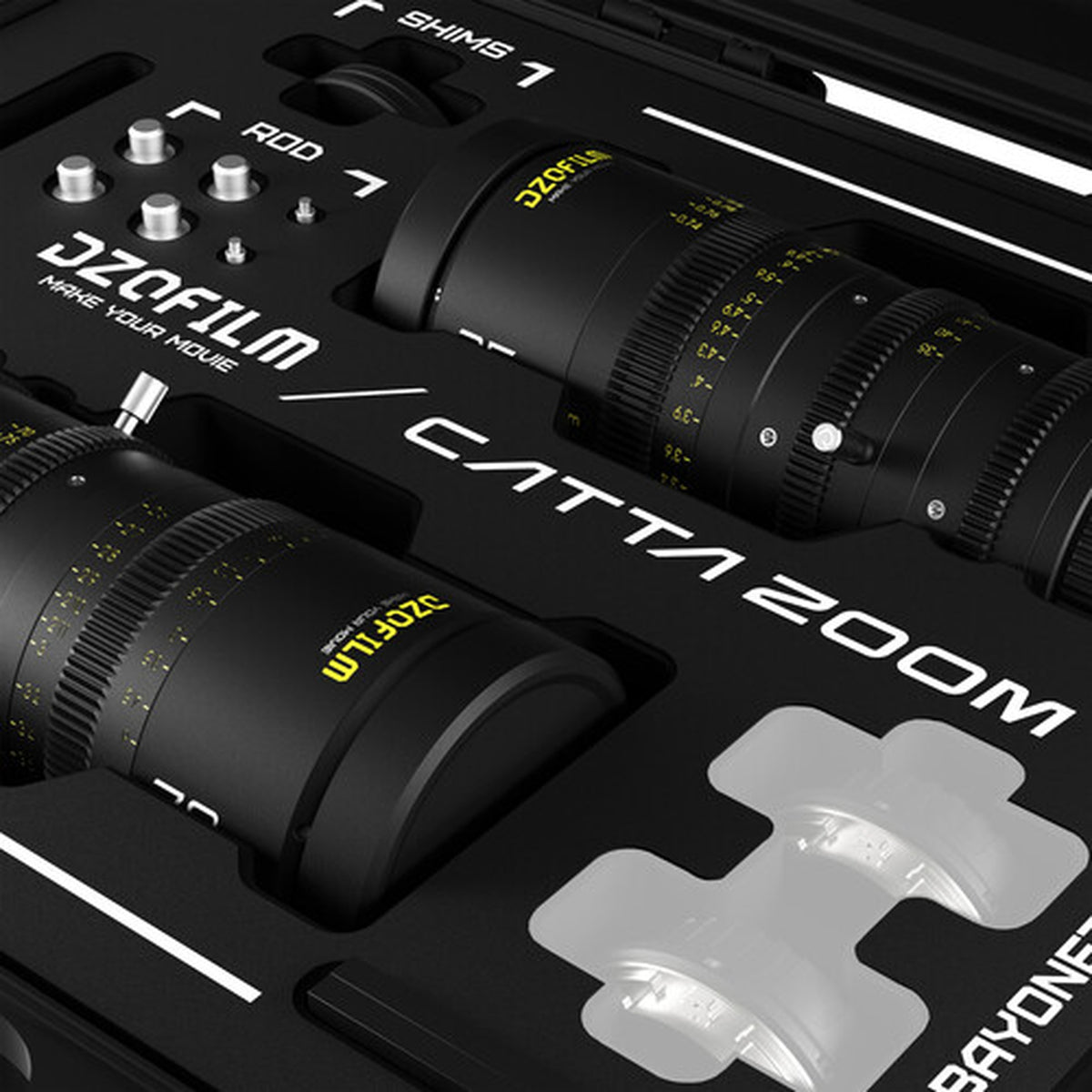

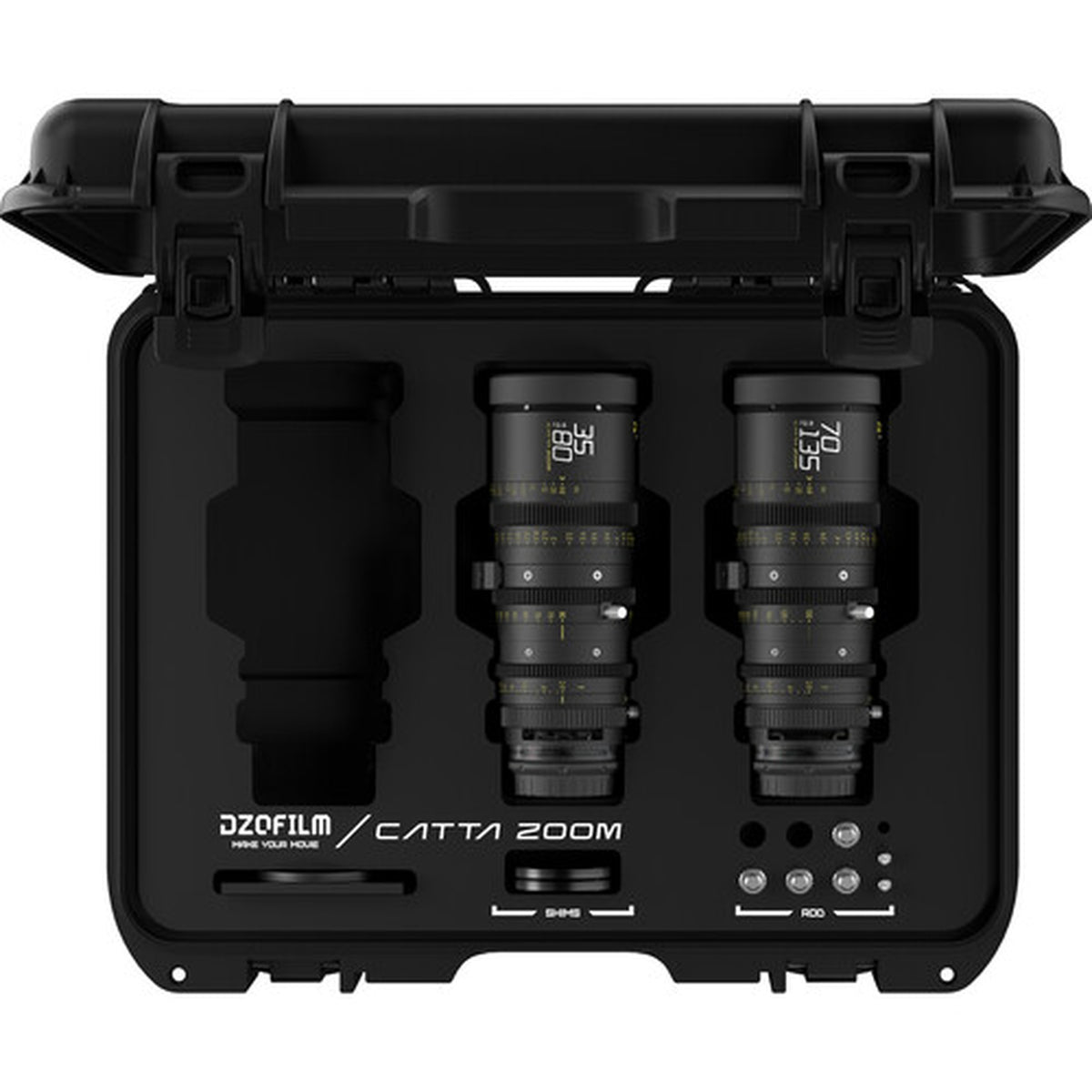

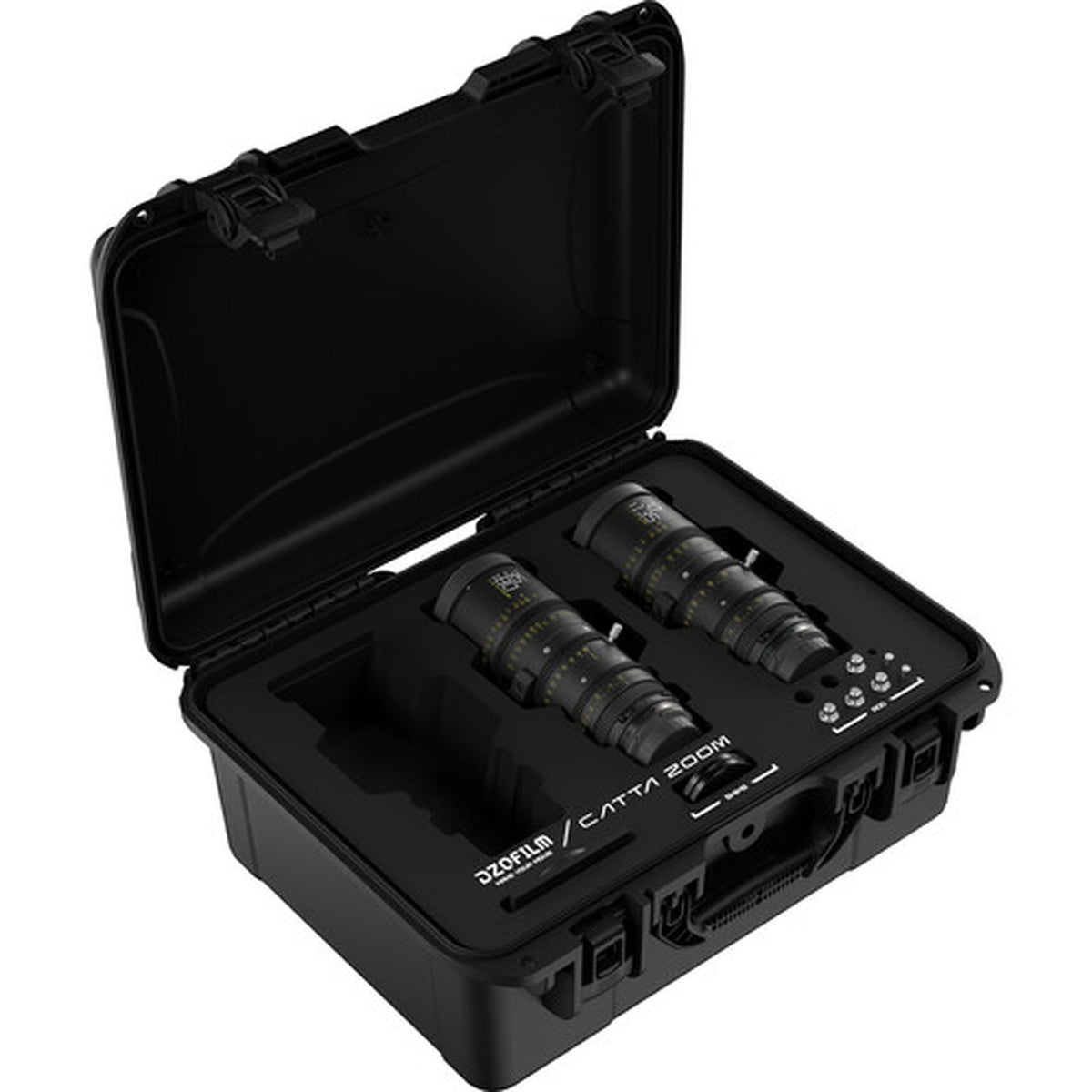

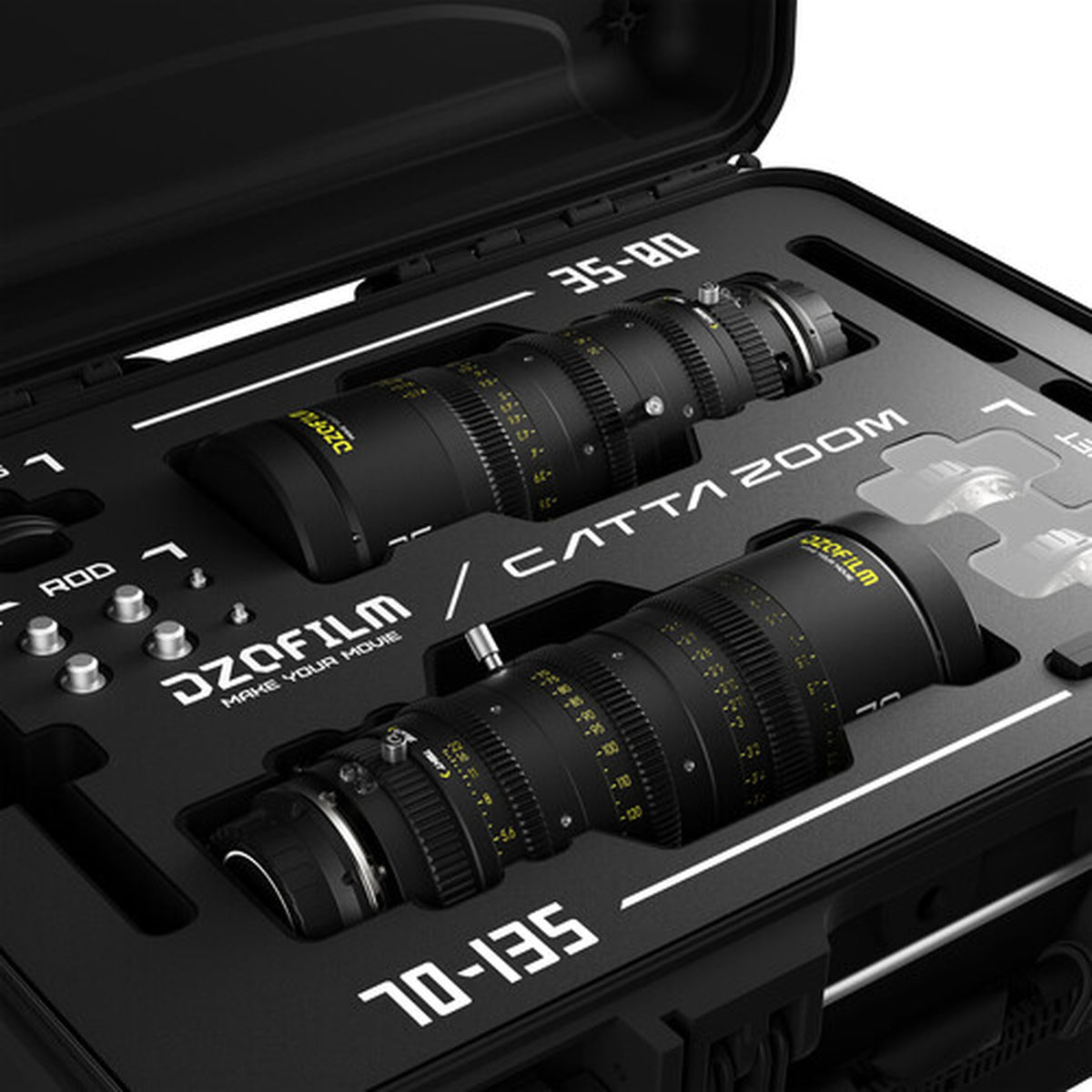

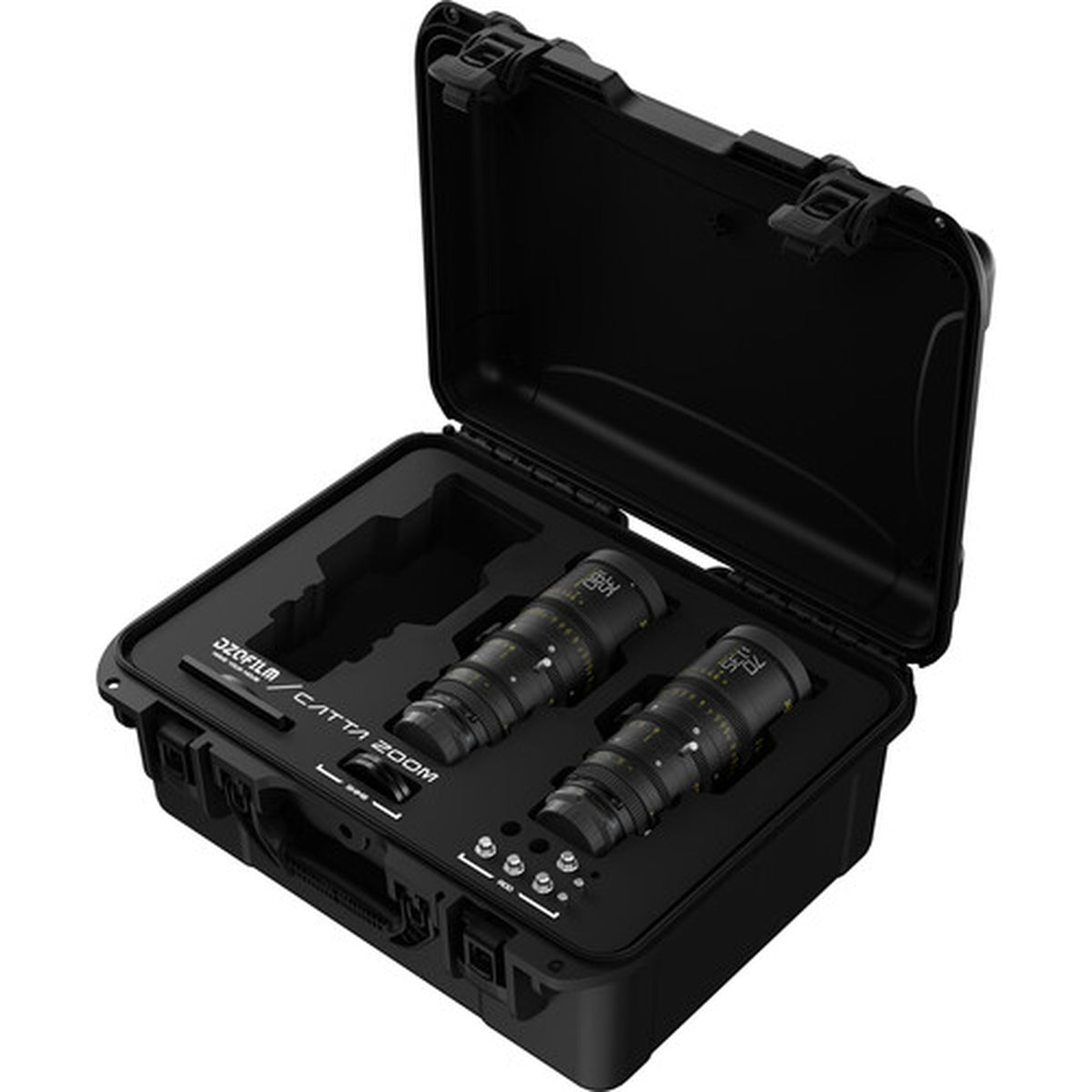

| Hard Case Interior | Custom Interior for Catta Zoom Lenses |
| Hard Case Capacity | Up to Three Catta Zoom Lenses |
| Hard Case Compatible Lenses | DZO-FF1835E-BLK · DZO-FF3580E-BLK · DZO-FF70135E-BLK |
What lenses are included in the DZOFilm Catta 2-Lens Bundle?
The bundle includes the DZOFilm Catta 35-80mm T2.9 cine zoom and the Catta 70-135mm T2.9 cine zoom. Together, they provide medium-to-telephoto focal length coverage.
Do the DZOFilm Catta lenses maintain focus while zooming?
Yes. Both lenses are designed to maintain focus throughout their respective zoom ranges and are specified with minimal breathing during changes in framing.
What aperture range do the Catta zoom lenses have?
Both lenses have a T2.9 to T22 aperture range and use a 16-blade iris for smooth bokeh and gradual focus-to-defocus transitions.
What lens mount is included with this Catta bundle?
Both lenses are supplied with Sony E mounts. Optional Canon RF, Leica L, FUJIFILM X, and Nikon Z mounts are available separately.
What is the difference between the 35-80mm and 70-135mm lenses?
The 35-80mm covers medium focal lengths for general production and interview framing, while the 70-135mm extends the package into longer focal lengths for tighter compositions.
Do both lenses use standard cine gearing?
Yes. Both Catta zoom lenses use standard 0.8 MOD gearing and provide 270° focus rotation with 100° zoom rotation for cine-style manual control.
Which Catta lenses fit the included hard case?
The hard case accommodates the DZOFilm Catta FF 18-35mm, 35-80mm, and 70-135mm T2.9 lenses. It is designed to hold up to three Catta zoom lenses.
Need the Right Catta Zoom Setup for Your Production?
Coremicro is an authorized DZOFilm dealer supporting professional cinematography, documentary, broadcast, commercial, and online production workflows. Contact our team to confirm lens mount configuration, camera compatibility, and lens-control accessories for your setup.
Talk to a SpecialistSpecifications
