Product Highlights
- 14, 21, 40, 135, 180mm Primes
- T1.6 / T2.2 / T2.8 Apertures
- Full Frame / VistaVision Coverage
- Warm Amber Halation Character
){kind=link}
DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)
- SKU:
- DZO-APG5BIPL
- MPN:
- APG5BIPL
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The DZOFilm Arles Lustre Cinema Prime 5-Lens Kit combines 14mm, 21mm, 40mm, 135mm, and 180mm Full Frame and VistaVision primes in an ARRI PL cinema set. The focal-length range extends from ultra-wide coverage through normal perspective and long telephoto framing while retaining the Lustre family's soft highlight bloom, warm halation, and vintage-inspired image character.
Warm Halation with Soft Highlight Bloom
DZOFilm's Lustre optical design creates soft highlight bloom and subtle warm halation, giving digital cinema images a more character-driven, vintage-inspired appearance across the set.
Wide-to-Telephoto Coverage in One Set
The 14mm and 21mm extend coverage into wide perspectives, the 40mm provides a more natural field of view, and the 135mm and 180mm bring the same Lustre character into longer, tighter framing.
Standardized Setup for Cine Accessories
A standardized 95mm front diameter and unified focus and iris gear positions support faster lens changes while maintaining compatibility with matte boxes, follow-focus systems, and professional cine accessories.
Kit Focal Lengths
14 · 21 · 40 · 135 · 180mm
Maximum Apertures
T1.6 · T2.2 · T2.8
Format Coverage
Full Frame / VistaVision
Reviving Vintage Glow for Modern Narratives
The Lustre optical design introduces soft highlight bloom and subtle warm halation to modern digital cinema capture. Bright sources and backlit scenes can take on a softer, vintage-inspired character while the five focal lengths remain part of the same visual family.
Nostalgic Glow for Poetic Imagery
The Lustre look gives bright highlights and practical sources a warmer, softer presence. Its amber flare character can add romantic warmth and a dreamlike quality when flare becomes part of the composition.
Shaping Light, Enhancing Immersion
Warm halation and expressive flare allow practical lights and bright sources to become visible parts of the image character. The effect gives cinematographers another way to shape atmosphere across wide, normal, and telephoto focal lengths.
Aesthetic Harmony with Modernity
Warm flaring combines with bluish-purple tones to balance nostalgic warmth with a cooler contemporary character. The combination supports flexible visual styling without leaving the recognizable Lustre aesthetic.
VistaVision Format for Expansive Imagery
The Arles Lustre series is designed for Full Frame and VistaVision sensors. This five-lens configuration extends that coverage from the ultra-wide 14mm through the 180mm telephoto while maintaining the series' shared optical character.
The 16-blade aperture design of Lustre lenses creates soft and richly layered bokeh, paired with amber flares that add a romantic warmth or a dreamy feel. This optical character carries across the five-lens set from the 14mm ultra-wide through the 180mm telephoto.
Kit Focal Lengths
14 · 21 · 40 · 135 · 180mm
Front Diameter
95mm
Front Filter
M86 Except 14mm
Maximum Apertures
T1.6 · T2.2 · T2.8
Consistent Controls Across Five Focal Lengths
The DZO-APG5BIPL set uses cine-style 0.8 MOD focus and iris gearing with a common 95mm front outside diameter. Consistent mechanical positioning helps reduce matte-box and lens-control adjustments when moving between the 14mm, 21mm, 40mm, 135mm, and 180mm primes.
Focus Rotation
270°
Gear Standard
0.8 MOD
Front Diameter
95mm
Filter Thread
14mm: None · Others: M86
Native Mount
ARRI PL
Included Alternate Mount
Canon EF
Kit Configuration
Imperial
Rear Filter System
DZOFilm KOOP Compatible
14mm
T2.2 · 28cm MFD · Approx. 1.64kg
21mm
T1.6 · 33cm MFD · Approx. 1.50kg
40mm
T1.6 · 40cm MFD · Approx. 1.50kg
135mm
T2.2 · 98cm MFD · Approx. 1.84kg
180mm
T2.8 · 1.07m MFD · Approx. 1.67kg
From Ultra-Wide Frames to Long-Lens Coverage
The 14mm and 21mm cover expansive perspectives, the 40mm provides a more natural field of view, and the 135mm and 180mm extend the set into tighter long-lens framing while retaining the Lustre image character.
Warm Optical Character In Camera
Amber halos, warm flare, and soft highlight behavior give cinematographers an optical starting point for dream sequences, retro-inspired work, music videos, and other productions built around a deliberately expressive lens character.
Consistent Mechanics for Rigged Cameras
Shared 95mm fronts, 0.8 MOD gearing, similar mechanical positioning, and 270° focus rotation help simplify lens changes on cameras equipped with matte boxes, follow-focus units, and lens-control motors.
Cinematographers
Directors of photography looking for character-driven primes spanning ultra-wide through long telephoto perspectives.
Narrative Productions
Film and episodic crews building wide, natural, and compressed perspectives around the same warm Lustre rendering.
Commercial Crews
Advertising, fashion, and branded productions that want a distinctive optical character rather than completely neutral modern rendering.
Music Video Teams
Creative productions using flare, amber halos, and practical lighting as deliberate parts of the final image.
Rental Houses
Rental operations extending Arles Lustre coverage with wide and long focal lengths while maintaining consistent cinema mechanics.
DZOFilm Support
Coremicro can help confirm camera compatibility, matte-box requirements, follow-focus systems, lens motors, filtration, and support accessories when integrating the Arles Lustre 5-Lens Kit into a professional cinema package.
| Specification | Detail |
|---|---|
| Product Name | DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL) |
| Model | DZO-APG5BIPL |
| Lens Type | Cinema Prime 5-Lens Kit |
| Included Focal Lengths | 14mm · 21mm · 40mm · 135mm · 180mm |
| Maximum Apertures | 14mm: T2.2 · 21mm: T1.6 · 40mm: T1.6 · 135mm: T2.2 · 180mm: T2.8 |
| Minimum Aperture | T22 |
| Native Lens Mount | ARRI PL |
| Included Alternate Mount | Canon EF |
| Kit Configuration | Imperial |
| Focus Scale System | Interchangeable Imperial / Metric |
| Format Coverage | Full Frame / VistaVision |
| Image Circle | 46.5mm |
| 14mm Optical Design | 15 Elements in 12 Groups |
| 21mm Optical Design | 14 Elements in 12 Groups |
| 40mm Optical Design | 13 Elements in 11 Groups |
| 135mm Optical Design | 12 Elements in 8 Groups |
| 180mm Optical Design | 12 Elements in 9 Groups |
| 14mm Angle of View | 116° Diagonal · 109° Horizontal · 72° Vertical |
| 21mm Angle of View | 96° Diagonal · 89° Horizontal · 54° Vertical |
| 40mm Angle of View | 61° Diagonal · 56° Horizontal · 31° Vertical |
| 135mm Angle of View | 19° Diagonal · 17° Horizontal · 9° Vertical |
| 180mm Angle of View | 15° Diagonal · 13° Horizontal · 7° Vertical |
| 14mm Minimum Focus | 280mm (11 in) |
| 21mm Minimum Focus | 330mm (13 in) |
| 40mm Minimum Focus | 400mm (15.7 in) |
| 135mm Minimum Focus | 980mm (3.2 ft) |
| 180mm Minimum Focus | 1.07m (3.51 ft) |
| Iris Blades | 16 |
| Iris Rotation | 14mm: 65° · 21mm: 77° · 40mm: 83° · 135mm: 88° · 180mm: 88° |
| Focus Rotation | 270° |
| Gear Standard | 0.8 MOD Focus / Iris |
| Front Outside Diameter | 95mm |
| 14mm Front Filter Thread | None |
| 21 / 40 / 135 / 180mm Filter Thread | M86 / 86mm |
| Rear Filter Compatibility | DZOFilm KOOP Rear-Mount Magnetic Filters |
| Lens Support | 1 x 3/8"-16 via Included Support Foot per Lens |
| Electronic Communication | No |
| Image Stabilization | No |
| 14mm PL-Mount Length | 121.8mm (4.8 in) |
| 21mm PL-Mount Length | 121.8mm (4.8 in) |
| 40mm PL-Mount Length | 121.8mm (4.8 in) |
| 135mm PL-Mount Length | 130.8mm (5.1 in) |
| 180mm PL-Mount Length | 130.8mm (5.1 in) |
| 14mm Weight | 1.64 kg (3.62 lb) |
| 21mm Weight | 1.50 kg (3.3 lb) |
| 40mm Weight | 1.50 kg (3.3 lb) |
| 135mm Weight | 1.84 kg (4.06 lb) |
| 180mm Weight | 1.67 kg (3.68 lb) |
| Included Lenses | 14mm T2.2 · 21mm T1.6 · 40mm T1.6 · 135mm T2.2 · 180mm T2.8 |
| Included Lens Accessories | 5 x Front Lens Cap · 5 x Rear Lens Cap · 5 x Focal Length Sticker for Front Cap · 5 x Support Foot (3/8"-16) · 5 x Lens Support Rod |
| Included Mount Accessories | 5 x Canon EF Mount · 1 x Shim Set |

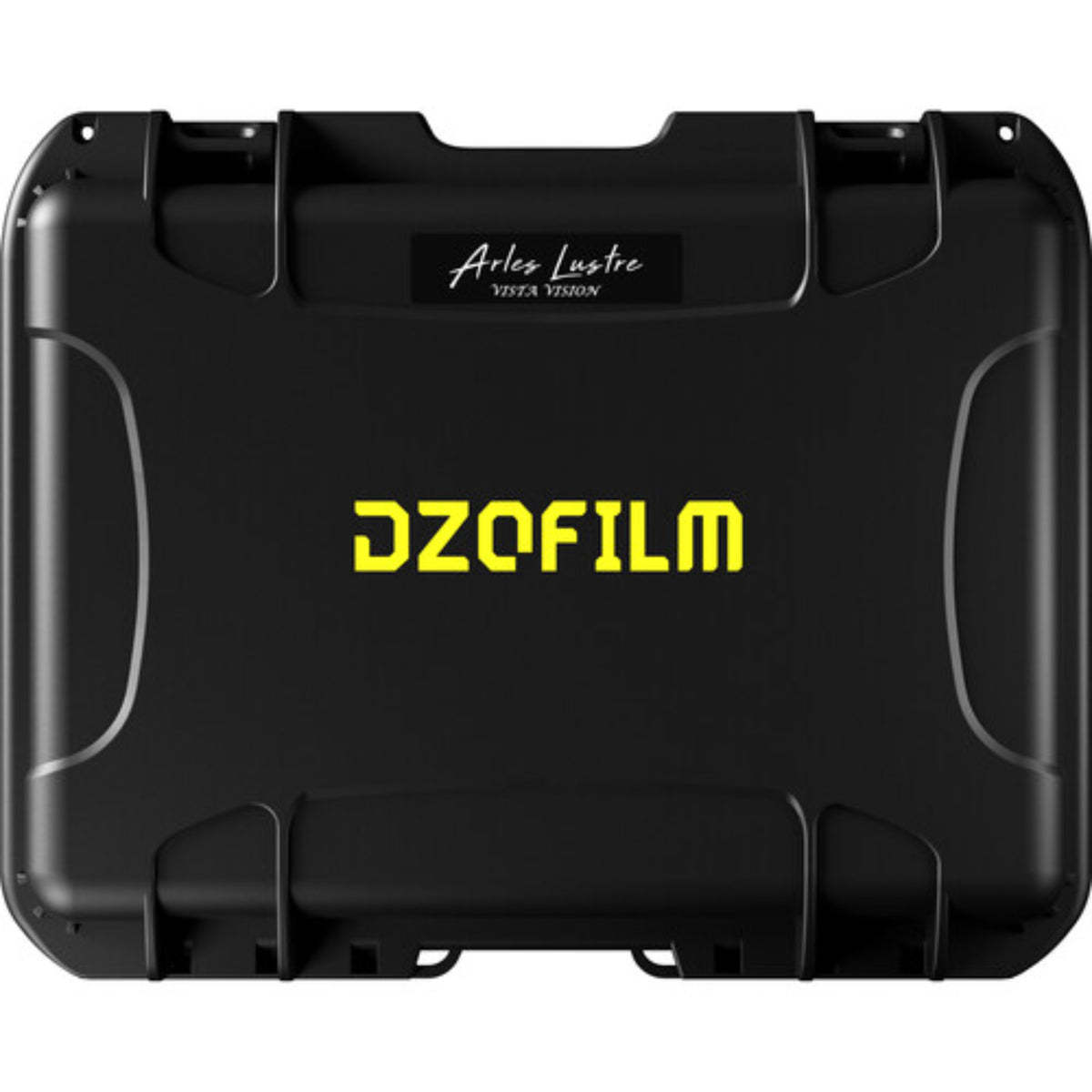

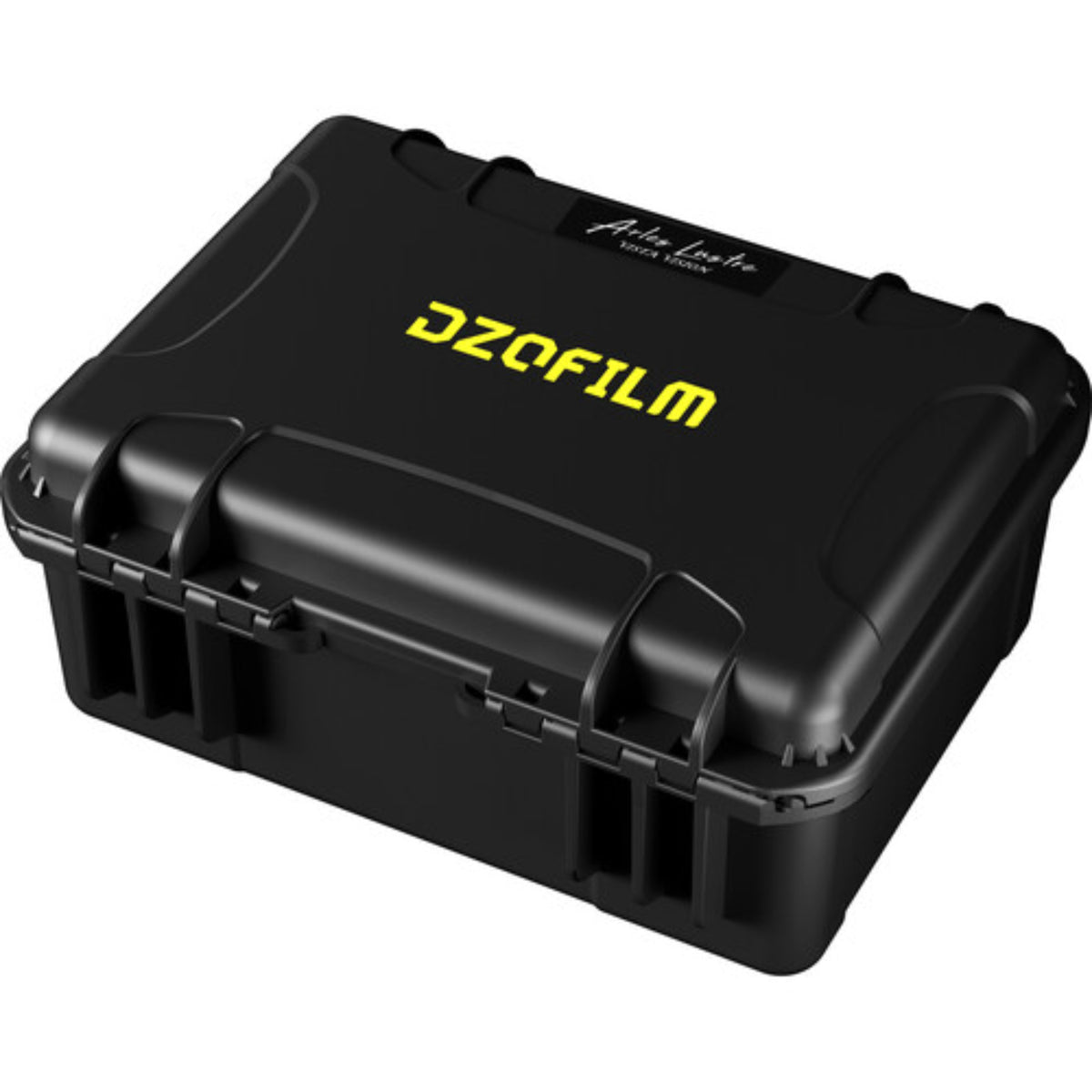

| Included Case | Hard Case with Custom Foam Inlay |
| Manufacturer Warranty | Limited 1-Year Manufacturer Warranty |
Which focal lengths are included in the Arles Lustre 5-Lens Kit?
The DZO-APG5BIPL kit includes 14mm, 21mm, 40mm, 135mm, and 180mm cinema primes. The focal-length range moves from ultra-wide through a more natural 40mm perspective and into long telephoto coverage.
Do all five lenses have the same maximum aperture?
No. The 14mm and 135mm have a T2.2 maximum aperture, the 21mm and 40mm open to T1.6, and the 180mm opens to T2.8. All five lenses stop down to T22.
Does the 5-lens kit cover Full Frame and VistaVision?
Yes. The Arles Lustre series provides large-format coverage compatible with Full Frame and VistaVision-class cinema sensors. The series uses a 46.5mm image circle.
What mount is supplied with DZO-APG5BIPL?
The kit is supplied with interchangeable ARRI PL mounts. Five Canon EF mounts are also included along with a shim set.
Is DZO-APG5BIPL the Imperial version?
Yes. DZO-APG5BIPL is the Imperial configuration of the 14mm, 21mm, 40mm, 135mm, and 180mm five-lens set. The Arles Lustre system also supports interchangeable Imperial and Metric focus-scale components.
Do all five lenses accept an M86 front filter?
No. The 21mm, 40mm, 135mm, and 180mm lenses use M86 front filter threads. The 14mm does not have a front filter thread.
Can the same matte box and lens-control setup be used across the set?
The five lenses share a 95mm front outside diameter, cine-standard 0.8 MOD focus and iris gearing, and consistent series gear positioning. These common mechanical features help reduce accessory changes when switching focal lengths.
What comes with the five-lens kit?

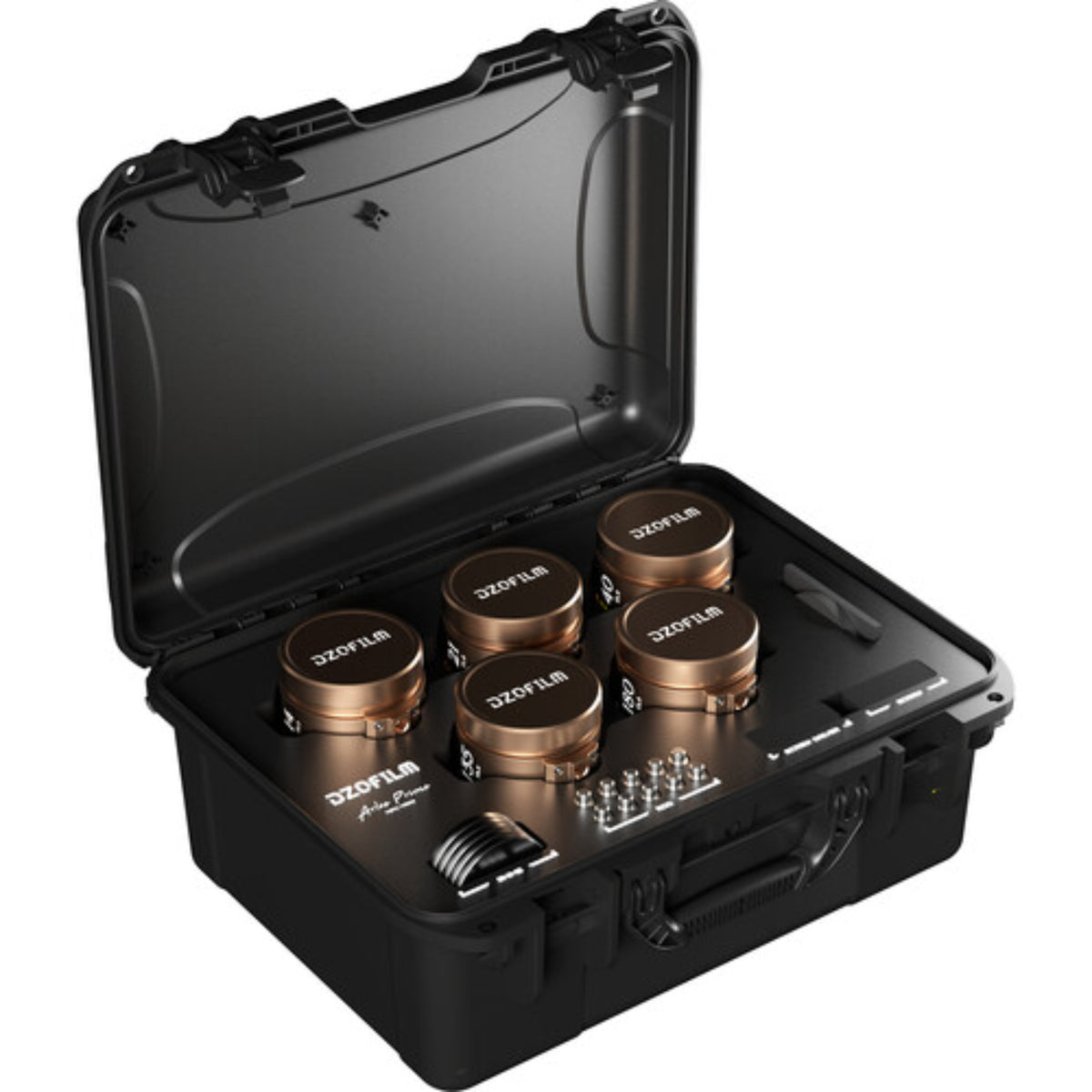

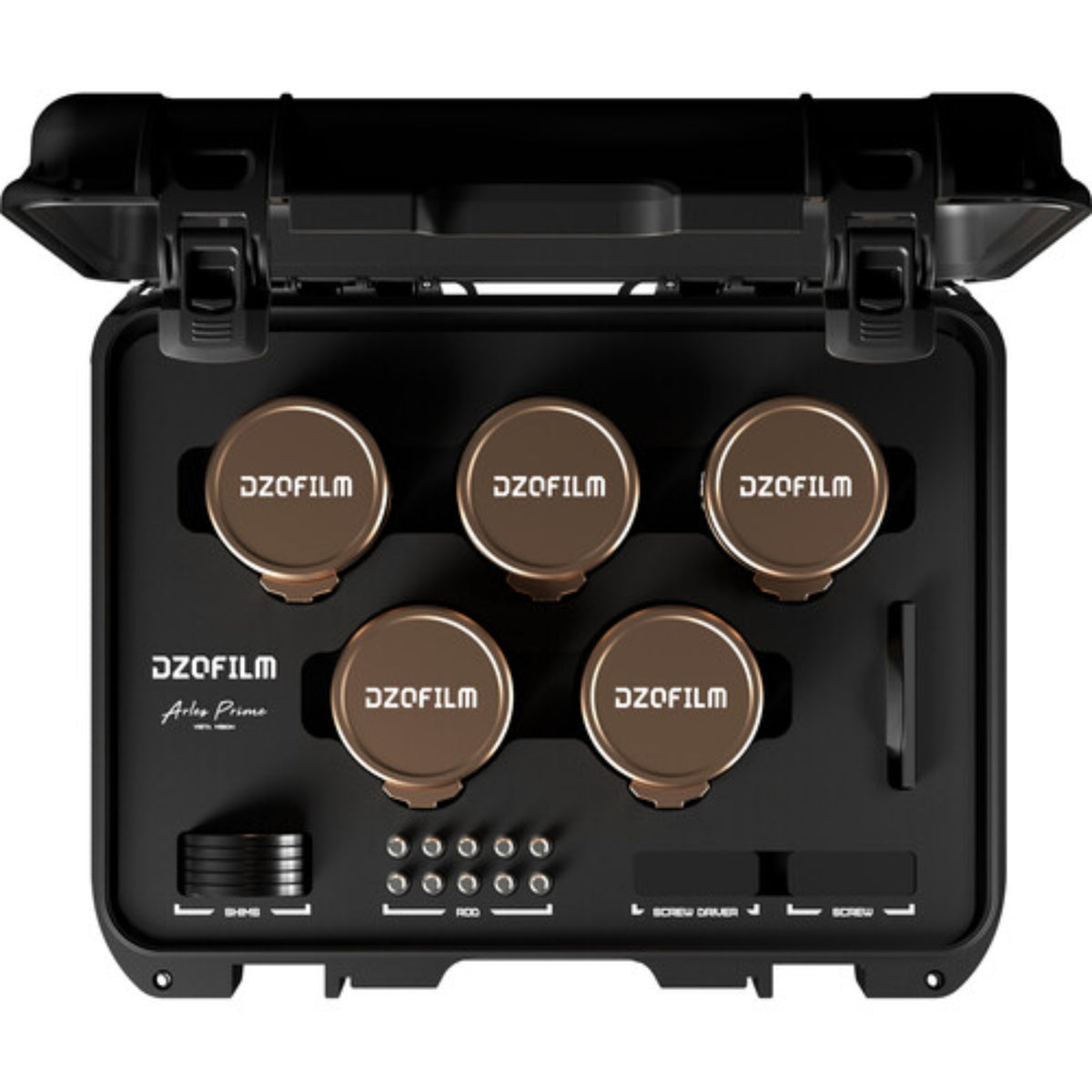

The package includes the five Arles Lustre primes, five front lens caps, five rear lens caps, five focal-length stickers, five support feet, five lens support rods, five Canon EF mounts, a shim set, and a hard case with custom foam inlay.
Build a Wide-to-Telephoto Cinema Package with the Arles Lustre 5-Lens Kit
Coremicro supports professional cinematography, narrative production, commercial production, rental, and camera-department workflows. Contact our team for help integrating the 14mm, 21mm, 40mm, 135mm, and 180mm Arles Lustre primes with cameras, matte boxes, follow-focus systems, lens motors, filtration, and support hardware.
