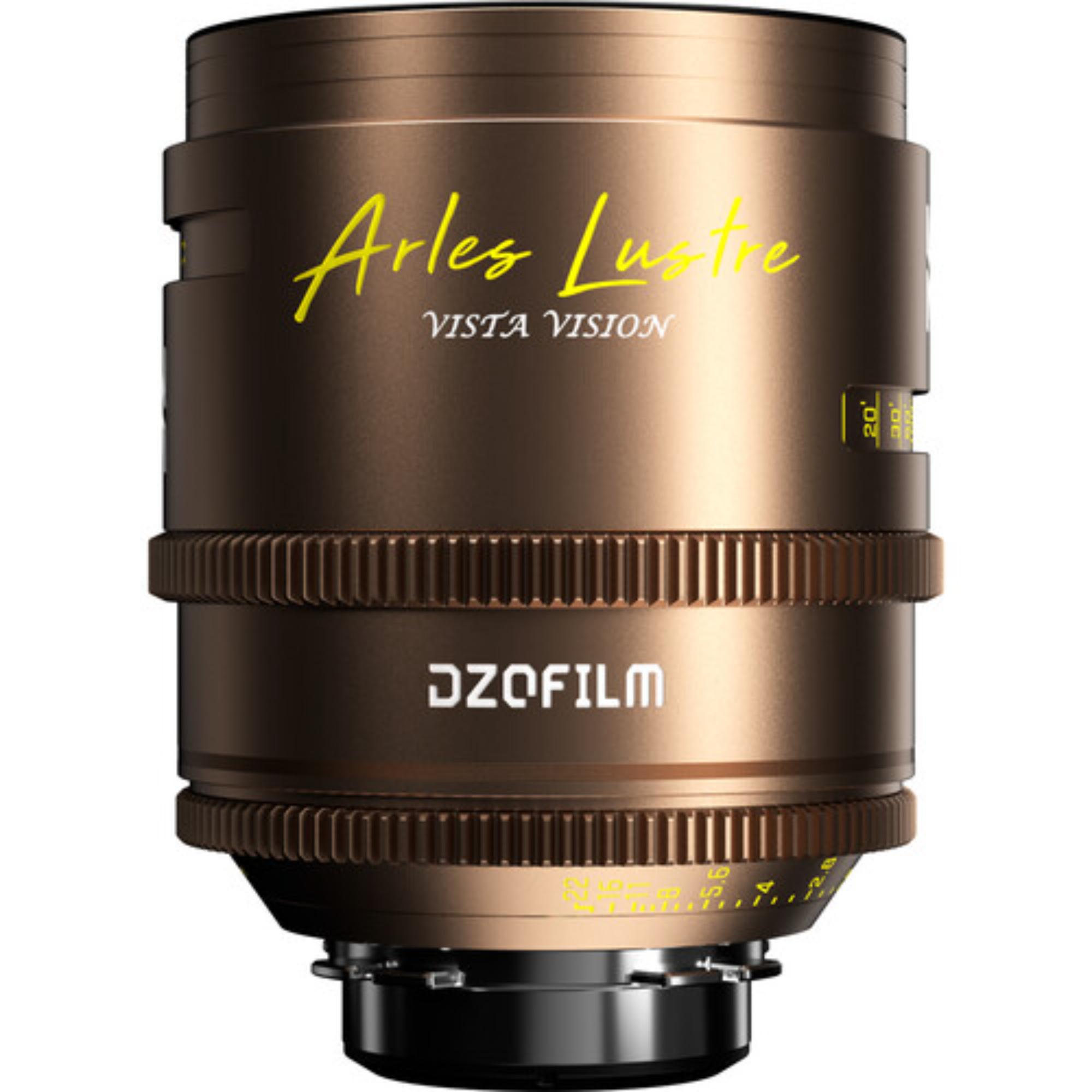

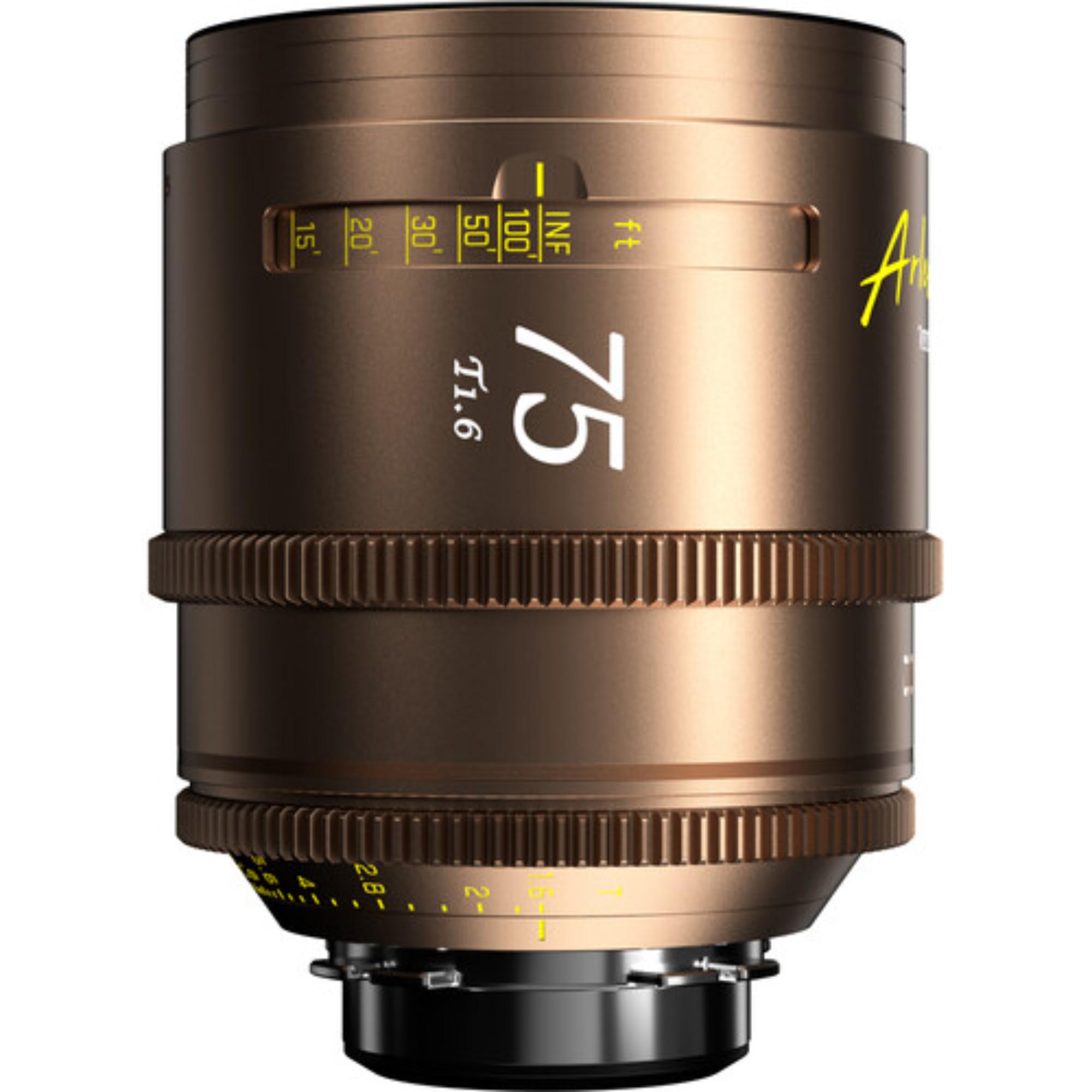

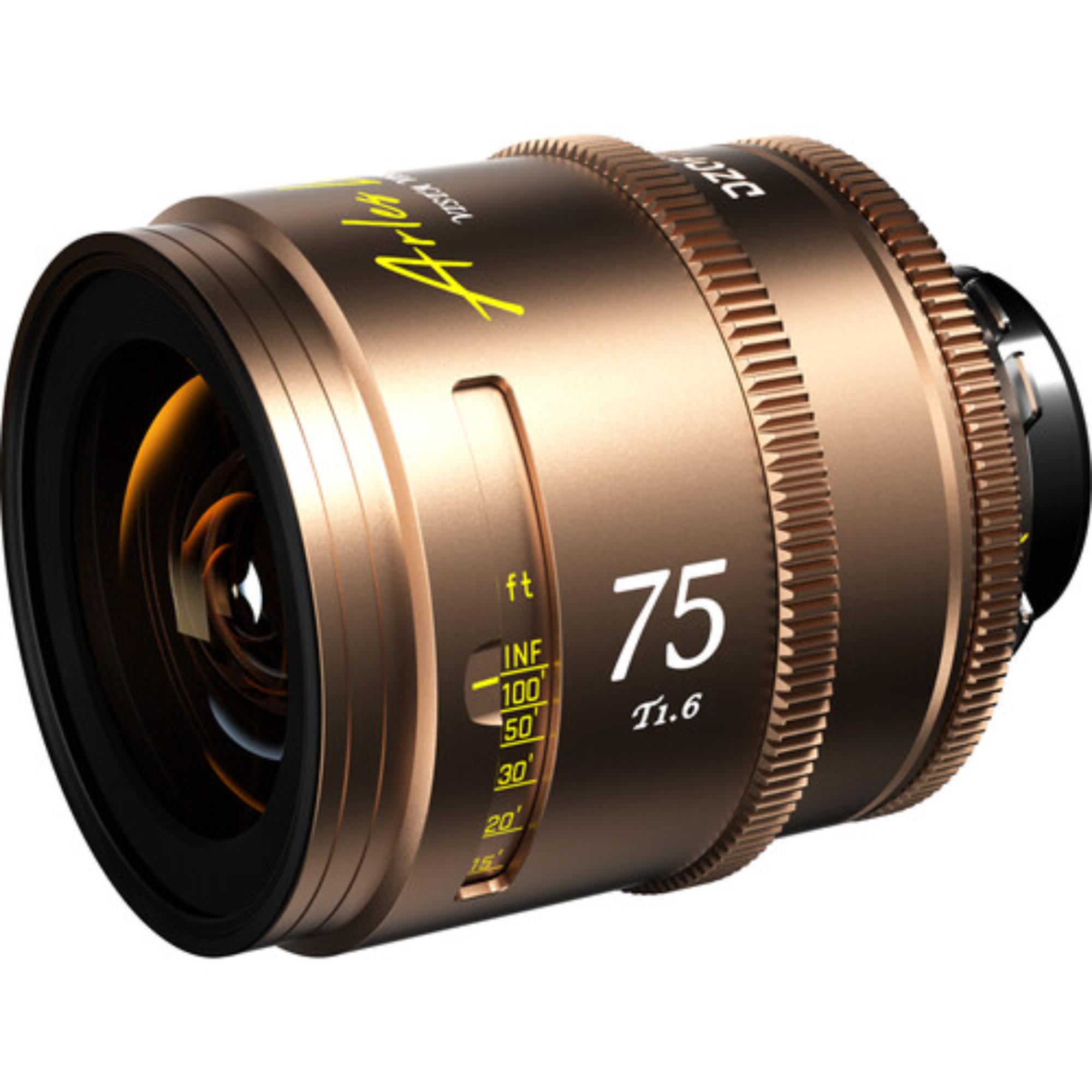

DZOFilm Arles Lustre 75mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)

The DZOFilm Arles Lustre 75mm T1.6 FF/VV Cinema Prime Lens (ARRI PL) is a full-frame cinema prime built around a 46.5mm image circle and a fast T1.6 maximum aperture. On full-frame capture, the 75mm focal length gives a 34° diagonal, 30° horizontal, and 16° vertical angle of view, making it a strong choice for tighter coverage, portrait work, interviews, and compressed subject framing.

The lens carries the Lustre series' warm amber halo character and metallic, retro-style design, while the mechanics are set up for conventional cinema operation. Focus uses 0.8 MOD gearing with a 270° rotation, the focus scale is marked in both metric and imperial units, and the lens keeps a 95mm front diameter with an M86 filter thread. The mount is interchangeable with an ARRI PL mount included, and a support foot is supplied for a more secure rigged camera build.

Highlights

• 75mm full-frame cinema prime lens
• T1.6 maximum aperture and T22 minimum aperture
• 46.5mm image circle
• Creates a warm amber halo effect
• Metallic, retro-style design
• 0.8 MOD cine-style focus gearing
• 270° focus rotation
• 95mm front outside diameter
• M86 front filter thread
• Dual-scale focus marks in feet and meters
• Interchangeable mount with included ARRI PL mount
• Compatible with KooP rear filters

Quick Specs & Uses

• Focal Length: 75mm
• Maximum Aperture: T1.6
• Minimum Aperture: T22
• Lens Mount: Interchangeable Mount with Included ARRI PL
• Format Coverage: Full Frame, 46.5mm Image Circle
• Angle of View: 34° Diagonal / 30° Horizontal / 16° Vertical
• Focus Scales: Metric, Imperial
• Optical Design: 13 Elements in 9 Groups
• Filter Thread: 86mm
• Minimum Focus Distance: 75 cm (2.5')
• Aperture/Iris Blades: 16
• Gear Standard: 0.8 MOD
• Electronic Communication: No
• Image Stabilization: No

Why It Helps

A 75mm prime gives the camera a tighter, more selective field of view without moving into very long-lens territory. That makes it useful for portrait framing, interviews, dialogue coverage, and shots where the operator wants more subject separation and a more compressed perspective than the wider members of the set provide.

The focus mechanics are built around proper cine operation. A 270° focus throw gives the focus puller more physical travel for controlled adjustments, while the 0.8 MOD gear interfaces with standard follow-focus hardware. The 75cm minimum focus distance also gives the lens enough flexibility for closer subject work without sacrificing its longer focal-length character.

From a rigging standpoint, the lens keeps the same practical front-end dimensions used across the Lustre family. The 95mm outside diameter and M86 thread provide familiar accessory points, while the included support foot gives the camera crew a dedicated way to support the lens in a built-up rig. The warm amber halo effect remains part of the lens' identity, giving the 75mm a distinct rendering style instead of a purely neutral look.

System Characteristics

• Lens Type: Cinema Prime
• Focal Length: 75mm
• Format Coverage: Full Frame, 46.5mm Image Circle
• Aperture Range: T1.6 to T22
• Angle of View: 34° Diagonal / 30° Horizontal / 16° Vertical
• Focus Scale: Metric / Imperial
• Optical Design: 13 Elements in 9 Groups
• Minimum Focus Distance: 75 cm (2.5')
• Aperture/Iris Blades: 16
• Focus Gear: 0.8 MOD
• Focus Rotation: 270°
• Lens Mounting: 1 x 1/4"-20 via Included Support Foot
• Electronic Communication: No
• Image Stabilization: No
• Front Diameter: 95 mm (3.7")
• Length: 121.8 mm (4.8")
• Weight: 1.66 kg (3.66 lb)

What's In The Box

• 1 x DZOFilm Arles Lustre 75mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)
• 1 x Front Cap
• 1 x Rear Cap
• 1 x Support Foot
