DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)

The DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL) combines 14, 21, 40, 135, and 180mm primes into a full-frame cinema set that covers a deliberately wide spread of focal lengths. The package moves from ultra-wide and wide-angle work through a more natural 40mm view, then out to 135 and 180mm for tighter, more compressed framing.

The Lustre series is built around a warmer visual character, with an amber halo effect and metallic, retro-style exterior across the set. The lenses share cine-style 0.8 MOD focus and iris gearing, consistent series gear placement, a 95mm front outer diameter, and interchangeable ARRI PL/Canon EF mounts. DZOFilm also includes the support hardware, Canon EF mounts, shim set, and a hard case with custom foam inlay needed to keep the five-lens package organized for production use.

Highlights

• Five-lens cinema prime set with 14, 21, 40, 135, and 180mm focal lengths
• Full-frame format coverage
• Maximum apertures across the set include T1.6, T2.2, and T2.8
• T22 minimum aperture
• Creates a warm amber halo effect
• Metallic, retro-style design
• Cine-style 0.8 MOD focus and iris gearing
• Consistent series gear placement
• 95mm front outer diameter
• M86 front filter thread on 21, 40, 135, and 180mm lenses
• Interchangeable ARRI PL / Canon EF mounts
• Hard case with custom foam inlay included

Quick Specs & Uses

• Lens Set: 5 Cinema Prime Lenses
• Focal Lengths: 14mm, 21mm, 40mm, 135mm, 180mm
• Format Coverage: Full Frame
• Maximum Aperture: T2.2 (14mm), T1.6 (21mm), T1.6 (40mm), T2.2 (135mm), T2.8 (180mm)
• Minimum Aperture: T22
• Focus Scales: Imperial & Metric
• Gear Standard: Focus/Iris 0.8 MOD
• Focus Rotation: 270°
• Front Diameter: 94mm (3.7")
• Lens Mount: Interchangeable ARRI PL with Canon EF Mounts Included
• Electronic Communication: No
• Image Stabilization: No

Why It Helps

This is not a conventional five-lens set built around closely spaced focal lengths. The 14 and 21mm lenses handle broad environmental coverage, the 40mm sits in a more natural middle ground, and the 135 and 180mm extend the package into noticeably tighter framing. For a camera team, that gives the kit a useful spread from very wide to long without carrying a larger prime set.

Mechanical consistency is what makes the set easier to work with during prep and lens changes. All five lenses use 0.8 MOD focus and iris gearing with 270° focus rotation, while the 95mm front diameter keeps the front geometry consistent across the family. The included support feet also give each lens a dedicated 3/8"-16 support point for a more controlled rigged setup.

The Lustre rendering is part of the package rather than an afterthought. DZOFilm describes the lenses as creating a warm amber halo effect, giving the set a distinct visual character alongside its retro metallic design. Interchangeable ARRI PL and Canon EF mounts add flexibility on the camera side, while the custom hard case keeps the full kit together between prep, transport, and shooting days.

System Characteristics

• Lens Type: Cinema Prime
• Number of Lenses: 5
• Focal Lengths: 14mm / 21mm / 40mm / 135mm / 180mm
• Format Coverage: Full Frame
• Aperture Range: T1.6 / T2.2 / T2.8 to T22
• 14mm Angle of View: 116° / 109° / 72°
• 21mm Angle of View: 96° / 89° / 54°
• 40mm Angle of View: 61° / 56° / 31°
• 135mm Angle of View: 19° / 17° / 9°
• 180mm Angle of View: 15° / 13° / 7°
• Focus Scale: Imperial & Metric
• Aperture/Iris Blades: 16
• Gear Standard: Focus/Iris 0.8 MOD
• Focus Rotation: 270°
• 14mm Iris Rotation: 65°
• 21mm Iris Rotation: 77°
• 40mm Iris Rotation: 83°
• 135mm Iris Rotation: 88°
• 180mm Iris Rotation: 88°
• Lens Mounting: 1 x 3/8"-16 via Included Lens Support Foot
• Electronic Communication: No
• Image Stabilization: No
• Front Diameter: 94 mm (3.7")
• 14mm Length: 122 mm (4.8")
• 21mm Length: 122 mm (4.8")
• 40mm Length: 122 mm (4.8")
• 135mm Length: 130 mm (5.1")
• 180mm Length: 130 mm (5.1")
• 14mm Weight: 1.642 kg (3.62 lb)
• 21mm Weight: 1.497 kg (3.3 lb)
• 40mm Weight: 1.497 kg (3.3 lb)
• 135mm Weight: 1.842 kg (4.06 lb)
• 180mm Weight: 1.669 kg (3.68 lb)

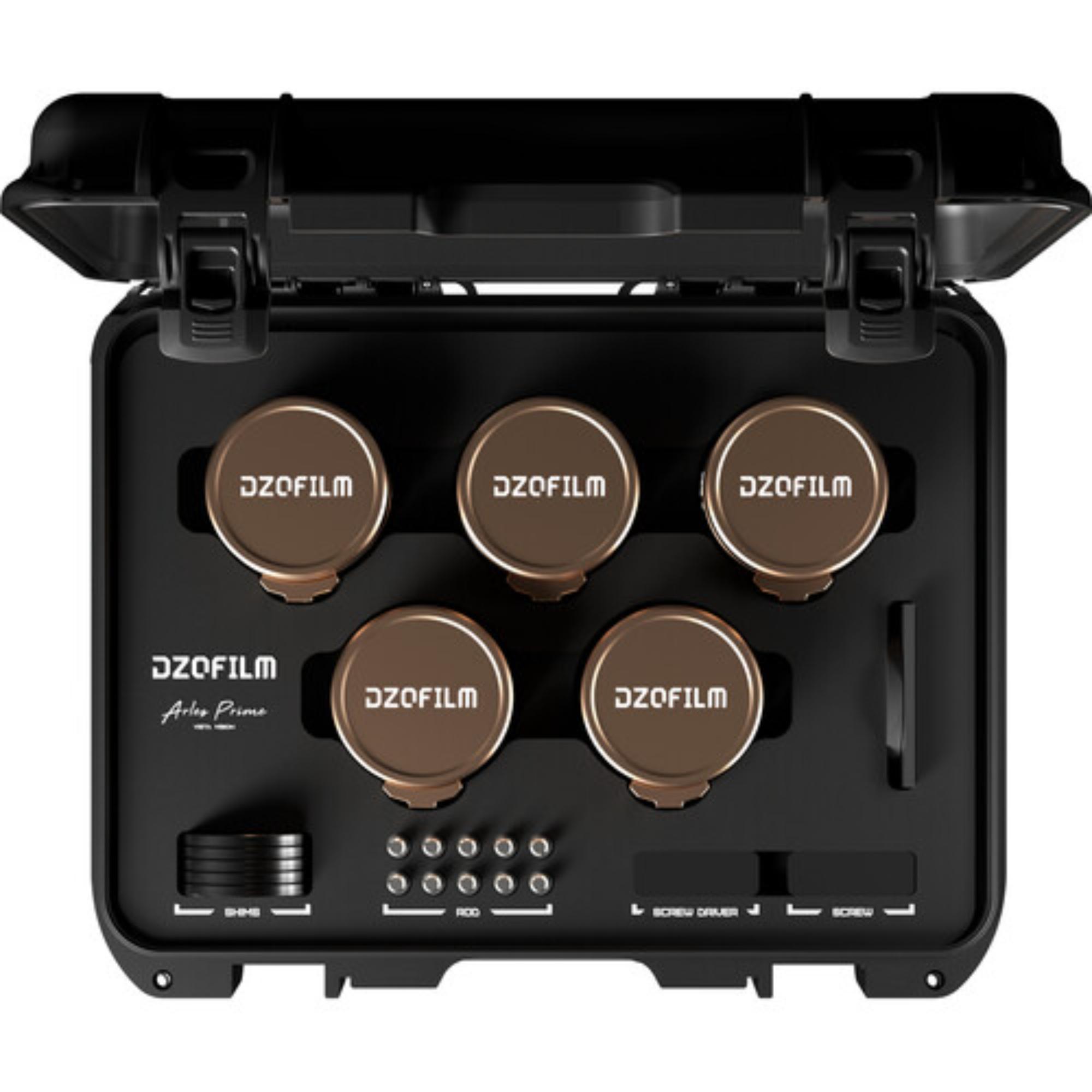

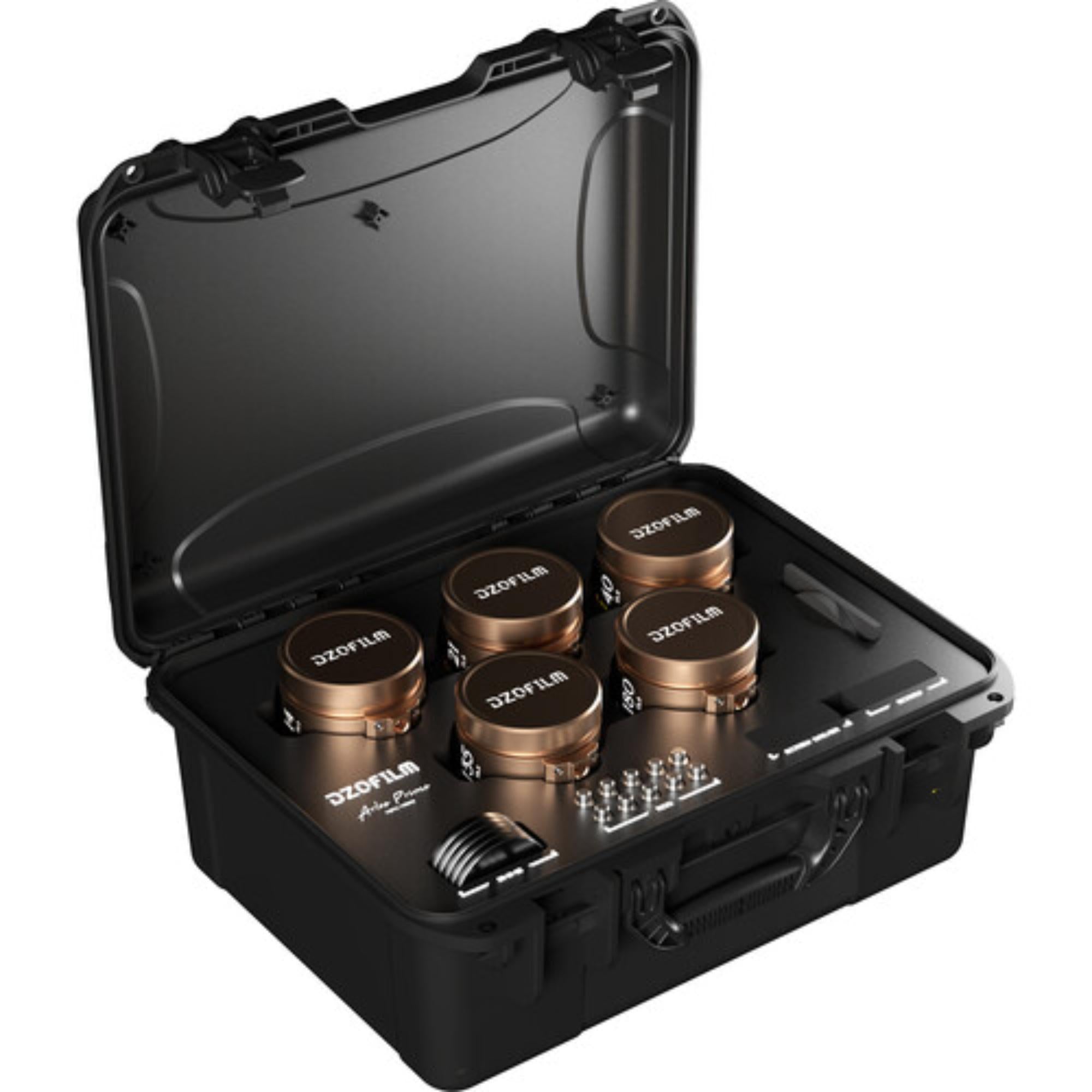

What's In The Box

• 1 x DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)
• 1 x Arles Lustre 14mm T2.2
• 1 x Arles Lustre 21mm T1.6
• 1 x Arles Lustre 40mm T1.6
• 1 x Arles Lustre 135mm T2.2
• 1 x Arles Lustre 180mm T2.8
• 5 x Front Lens Cap
• 5 x Rear Lens Cap
• 5 x Focal Length Sticker for Front Cap
• 5 x Support Foot (3/8"-16)
• 5 x Lens Support Rod
• 5 x Canon EF Mount
• 1 x Shim Set

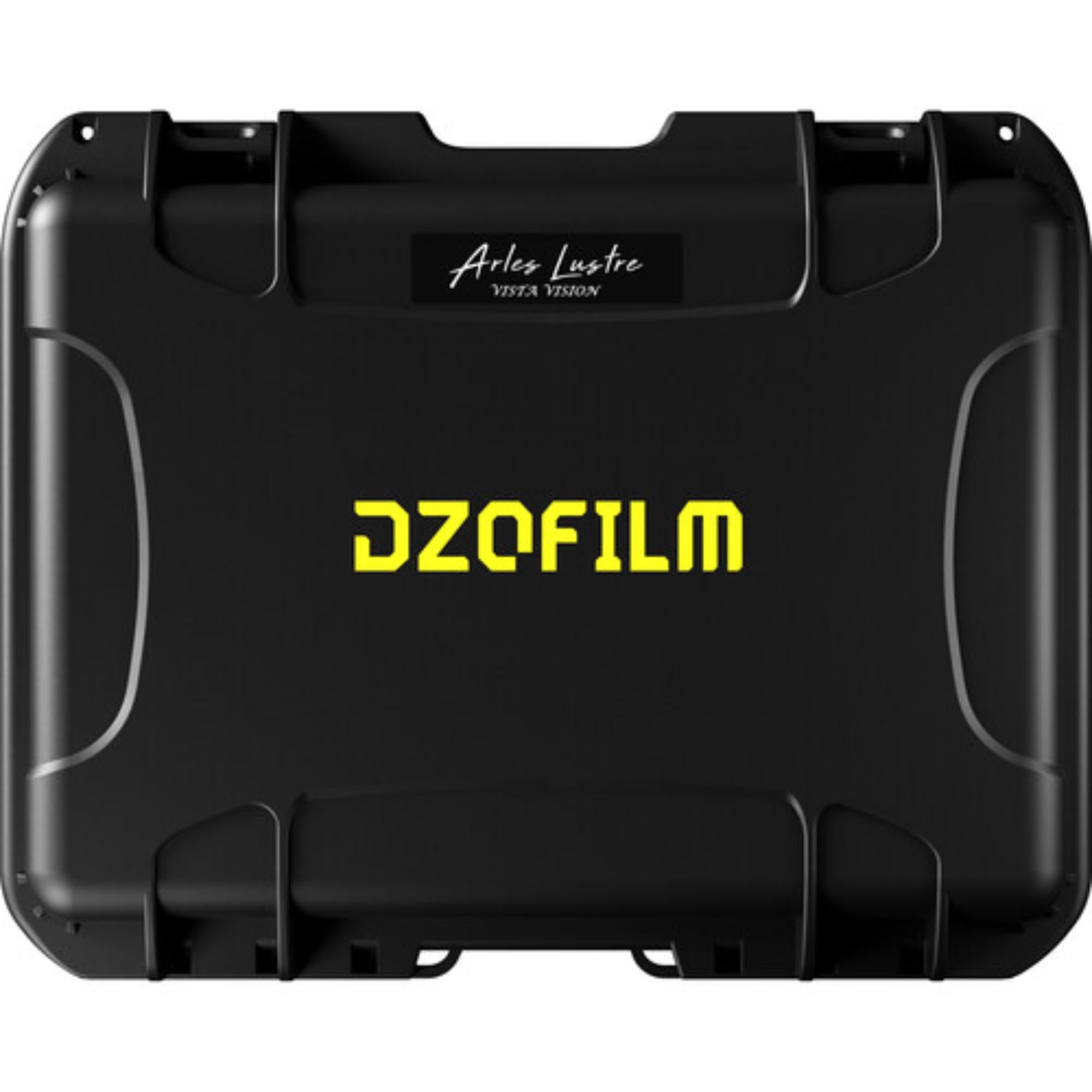

• 1 x Hard Case with Custom Foam Inlay
