DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 4-Lens Kit (ARRI PL)

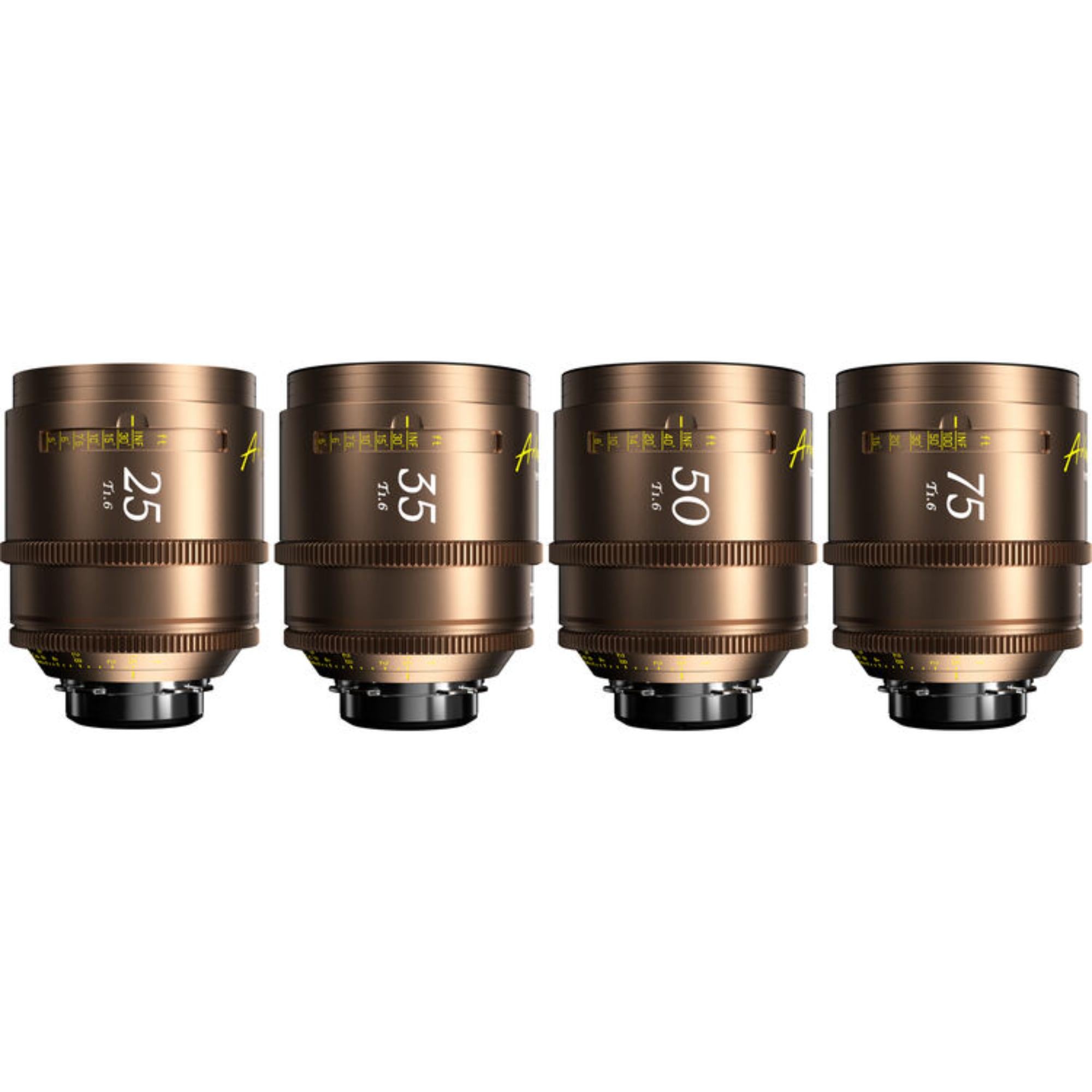

The DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 4-Lens Kit (ARRI PL) brings together 25, 35, 50, and 75mm primes in one full-frame cinema set. Each lens covers a 46.5mm image circle and carries a T1.6 maximum aperture through to T22, giving a camera department four useful focal lengths with a consistent fast-aperture platform.

The Lustre series is designed around a warmer visual character, creating an amber halo effect alongside its metallic, retro-style exterior. Mechanically, the four lenses share cine-style 0.8 MOD gearing, 270° focus rotation, consistent series gear placement, a 95mm front outer diameter, and M86 front filter threads. Their mounts are interchangeable between ARRI PL and Canon EF, while the kit is supplied in a hard case with a custom foam inlay.

Highlights

• Four-lens cinema prime set with 25, 35, 50, and 75mm focal lengths
• Full-frame / VistaVision coverage with 46.5mm image circle
• T1.6 maximum aperture across all four lenses
• T22 minimum aperture
• Warm amber halo effect
• Metallic, retro-style design
• Cine-style 0.8 MOD gearing
• 270° focus rotation
• Consistent series gear placement
• 95mm front outer diameter
• M86 front filter thread
• Interchangeable ARRI PL / Canon EF mounts
• Hard case with custom foam inlay included

Quick Specs & Uses

• Lens Set: 4 Cinema Prime Lenses
• Focal Lengths: 25mm, 35mm, 50mm, 75mm
• Format Coverage: Full Frame / VistaVision, 46.5mm Image Circle
• Maximum Aperture: T1.6
• Minimum Aperture: T22
• Gear Standard: 0.8 MOD
• Focus Rotation: 270°
• Front Outer Diameter: 95mm
• Filter Thread: M86
• Lens Mounts: Interchangeable ARRI PL / Canon EF
• Focus Scales: Imperial & Metric
• Electronic Communication: No

Why It Helps

The 25, 35, 50, and 75mm selection covers a useful working range without asking the camera crew to jump between unrelated lens families. The 25mm handles wider coverage, the 35mm sits comfortably in moderately wide territory, while the 50 and 75mm options move naturally into tighter framing and subject isolation.

What makes the set easier to live with on set is the mechanical consistency. All four lenses use 0.8 MOD gearing and a 270° focus throw, with the gear positions kept consistent across the series. The shared 95mm front diameter and M86 filter thread also make lens changes less disruptive when matte boxes, filters, and follow-focus hardware are already built around the package.

The Lustre look is part of the reason to choose the set in the first place. Its warm amber halo effect gives the four lenses a recognizable visual character, while the interchangeable ARRI PL and Canon EF mount design makes the package easier to move between different camera configurations. The supplied hard case with custom foam keeps the four-lens set together for transport and prep.

System Characteristics

• Lens Type: Cinema Prime
• Number of Lenses: 4
• Focal Lengths: 25mm / 35mm / 50mm / 75mm
• Format Coverage: Full Frame / VistaVision, 46.5mm Image Circle
• Aperture Range: T1.6 to T22
• 25mm Angle of View: 87.44°
• 35mm Angle of View: 67.15°
• 50mm Angle of View: 50.23°
• 75mm Angle of View: 34.1°
• Focus Scale: Imperial & Metric
• Focus Gear: 0.8 MOD
• Focus Rotation: 270°
• 25mm Iris Rotation: 77°
• 35mm Iris Rotation: 80°
• 50mm Iris Rotation: 80°
• 75mm Iris Rotation: 82°
• Aperture/Iris Blades: 16
• Lens Mounting: 1 x 3/8"-16 via Included Lens Support Foot
• Electronic Communication: No
• Image Stabilization: No
• Front Diameter: 94 mm (3.7")
• PL-Mount Length: 122 mm (4.8")
• EF-Mount Length: 130 mm (5.1")
• 25mm Weight: 1.497 kg (3.3 lb)
• 35mm Weight: 1.633 kg (3.6 lb)
• 50mm Weight: 1.678 kg (3.7 lb)
• 75mm Weight: 1.678 kg (3.7 lb)

What's In The Box

• 1 x DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 4-Lens Kit (ARRI PL)
• 1 x DZOFilm Arles Lustre 25mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)
• 1 x DZOFilm Arles Lustre 35mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)
• 1 x DZOFilm Arles Lustre 50mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)
• 1 x DZOFilm Arles Lustre 75mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)
• 1 x Hard Case with Custom Foam Inlay
