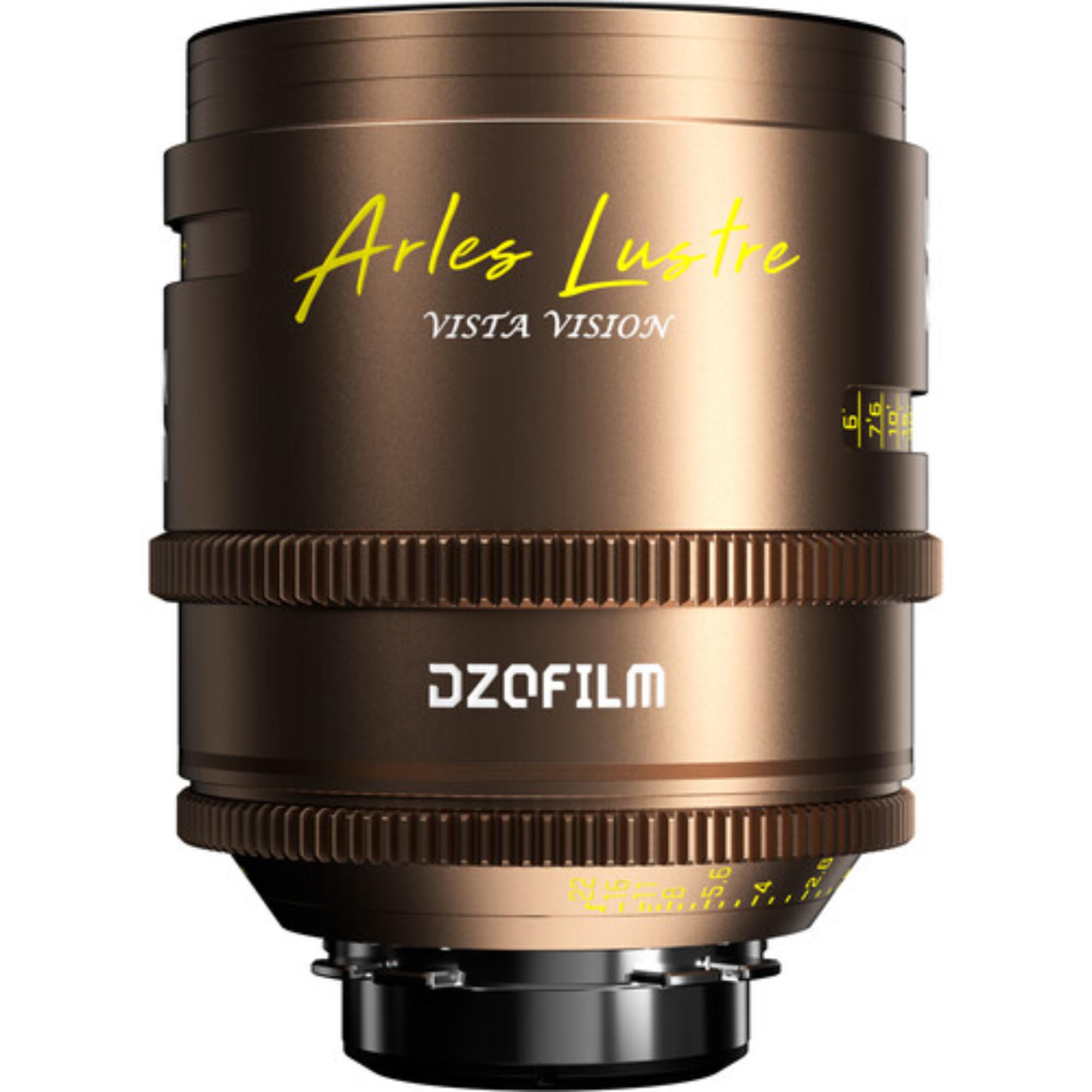

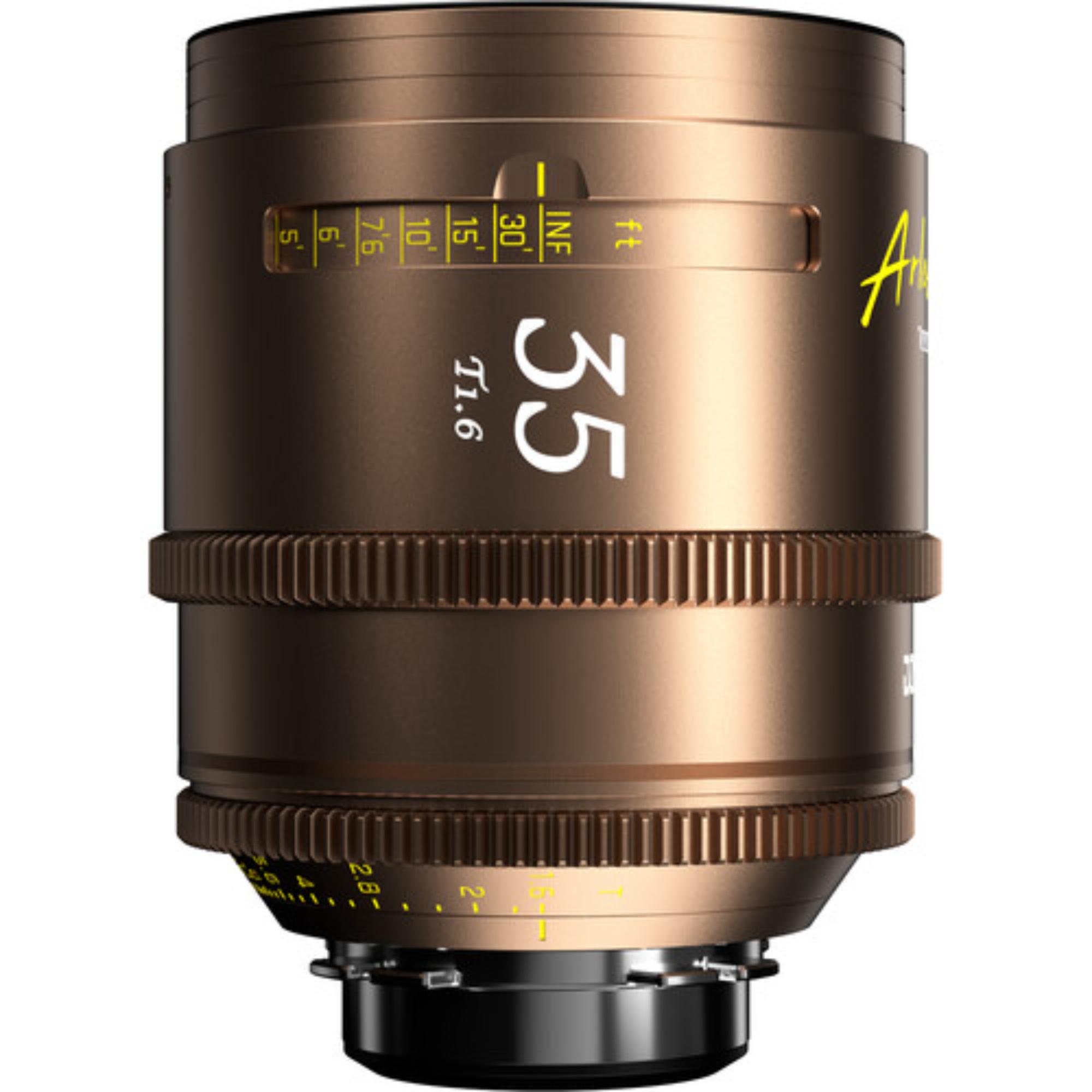

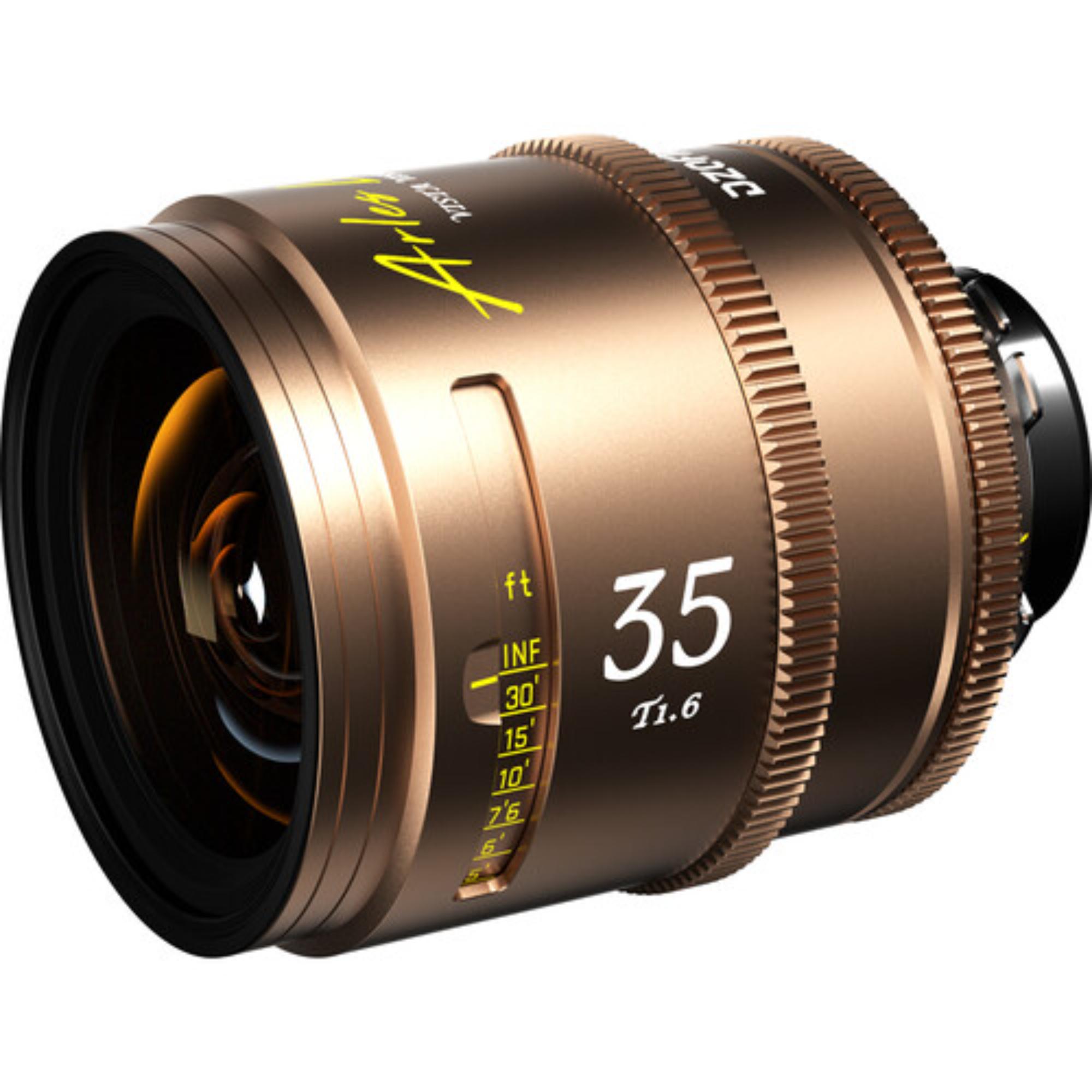

DZOFilm Arles Lustre 35mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)

The DZOFilm Arles Lustre 35mm T1.6 FF/VV Cinema Prime Lens (ARRI PL) is a full-frame cinema prime built around a 46.5mm image circle and a fast T1.6 maximum aperture. On full-frame capture, the 35mm focal length provides a 67° diagonal, 61° horizontal, and 34° vertical angle of view, giving crews a moderately wide perspective that sits comfortably between broad environmental coverage and tighter subject framing.

The Lustre series combines its warm amber halo effect with a metallic, retro-style exterior and a production-focused mechanical layout. The 35mm uses 0.8 MOD focus gearing with a 270° focus rotation, dual-scale focus marks in feet and meters, a 95mm front diameter, and an M86 filter thread. The mount is interchangeable with an ARRI PL mount supplied, while the included 3/8"-16 support foot provides a dedicated point for supporting the lens in a rigged camera build.

Highlights

• 35mm full-frame cinema prime lens
• T1.6 maximum aperture and T22 minimum aperture
• 46.5mm image circle
• Creates a warm amber halo effect
• Metallic, retro-style design
• 0.8 MOD cine-style focus gearing
• 270° focus rotation
• 95mm front outer diameter
• M86 front filter thread
• Dual-scale focus marks in feet and meters
• Interchangeable mount with included ARRI PL mount
• Compatible with KooP rear filters

Quick Specs & Uses

• Focal Length: 35mm
• Maximum Aperture: T1.6
• Minimum Aperture: T22
• Lens Mount: Interchangeable Mount with Included ARRI PL
• Format Coverage: Full Frame, 46.5mm Image Circle
• Angle of View: 67° Diagonal / 61° Horizontal / 34° Vertical
• Optical Design: 14 Elements in 12 Groups
• Minimum Focus Distance: 35 cm (1.1')
• Filter Thread: 86mm
• Aperture/Iris Blades: 16
• Gear Standard: Focus 0.8 MOD
• Electronic Communication: No
• Image Stabilization: No

Why It Helps

A 35mm prime is a useful middle ground for full-frame production. It is wide enough to carry more of the environment into the frame, yet not so wide that the shot immediately takes on an exaggerated perspective. That makes it practical for dialogue coverage, handheld work, interiors, and general narrative shooting where the operator wants some space around the subject without backing the camera too far away.

The mechanical layout is clearly aimed at a working camera crew. The 270° focus rotation gives the focus puller a long physical travel for controlled adjustments, while the 0.8 MOD gear interfaces with standard cine-style focus hardware. A 35cm minimum focus distance also gives the lens useful flexibility when the camera needs to move closer to the subject.

Shared hardware dimensions simplify the rest of the build. The 95mm front diameter, M86 thread, interchangeable mount design, and supplied 3/8"-16 support foot give assistants familiar mounting points for matte boxes, filters, and lens support. At the same time, the warm amber halo effect gives the Lustre 35mm a distinct visual character rather than presenting as a completely neutral cinema prime.

System Characteristics

• Lens Type: Cinema Prime
• Focal Length: 35mm
• Format Coverage: Full Frame, 46.5mm Image Circle
• Aperture Range: T1.6 to T22
• Angle of View: 67° Diagonal / 61° Horizontal / 34° Vertical
• Focus Scale: Imperial
• Optical Design: 14 Elements in 12 Groups
• Minimum Focus Distance: 35 cm (1.1')
• Aperture/Iris Blades: 16
• Focus Gear: 0.8 MOD
• Focus Rotation: 270°
• Lens Mounting: 1 x 3/8"-16 via Included Support Foot
• Electronic Communication: No
• Image Stabilization: No
• Front Diameter: 95 mm (3.7")
• Length: 121.8 mm (4.8")
• Weight: 1.65 kg (3.64 lb)

What's In The Box

• 1 x DZOFilm Arles Lustre 35mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)
• 1 x Front Cap
• 1 x Rear Cap
• 1 x Support Foot (3/8"-16)
