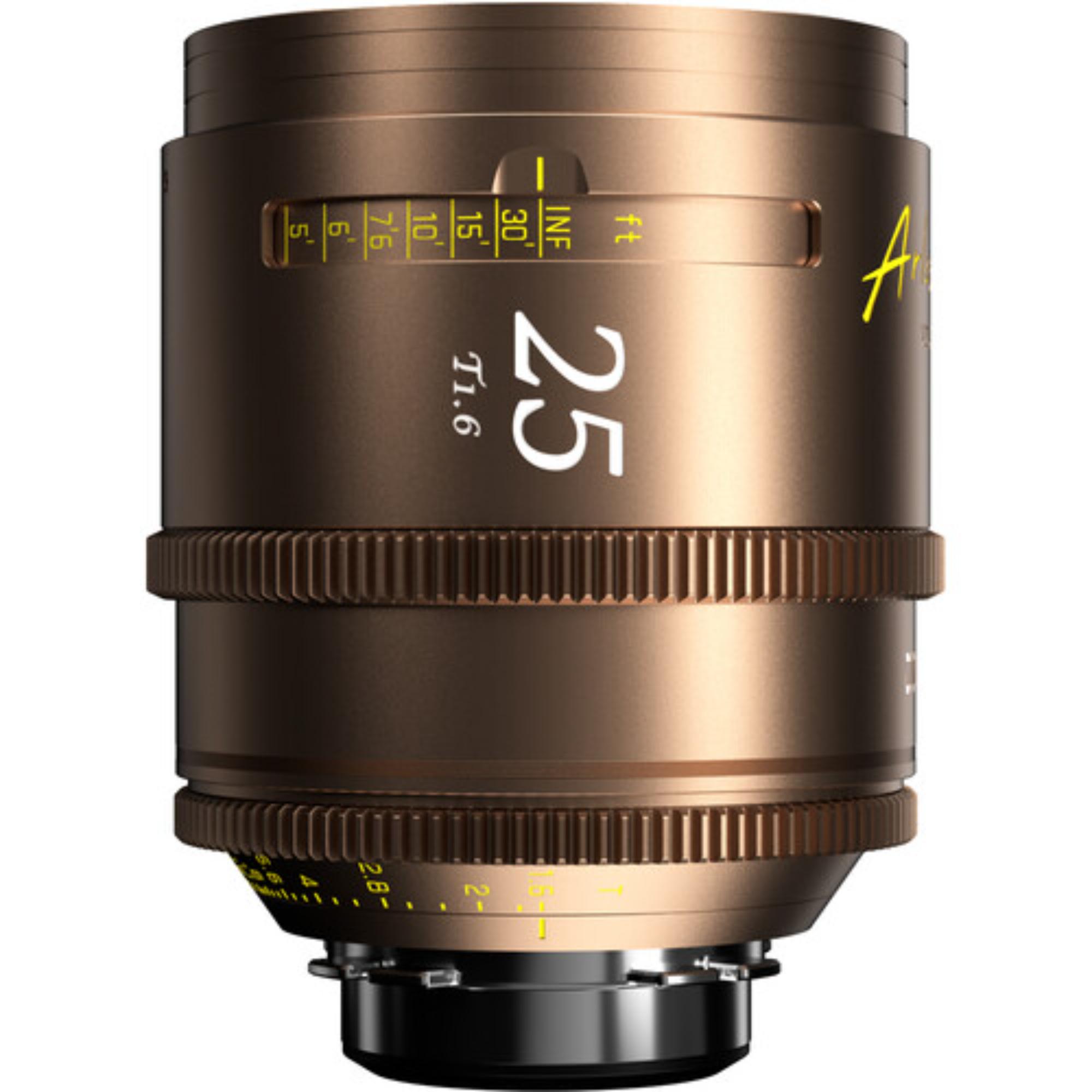

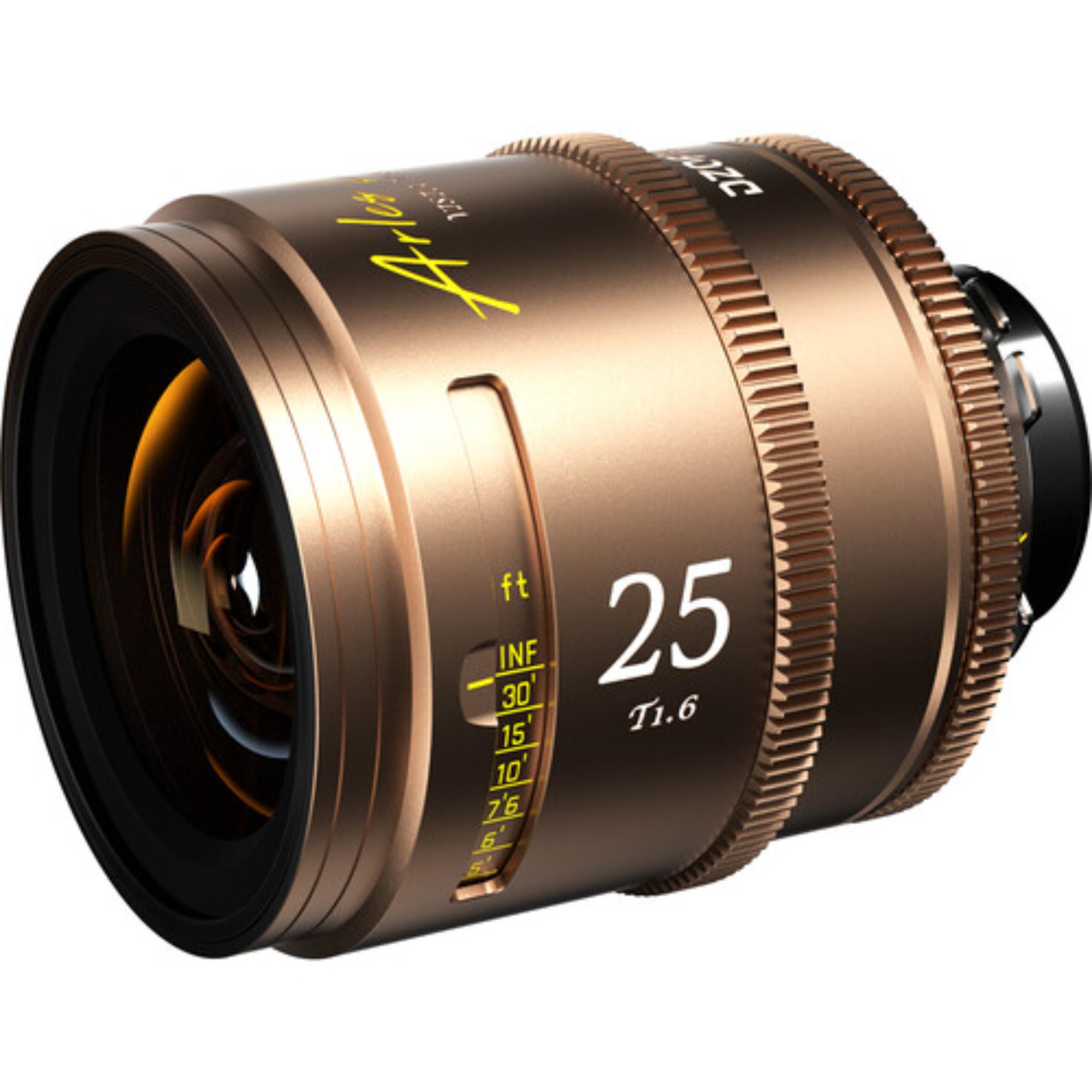

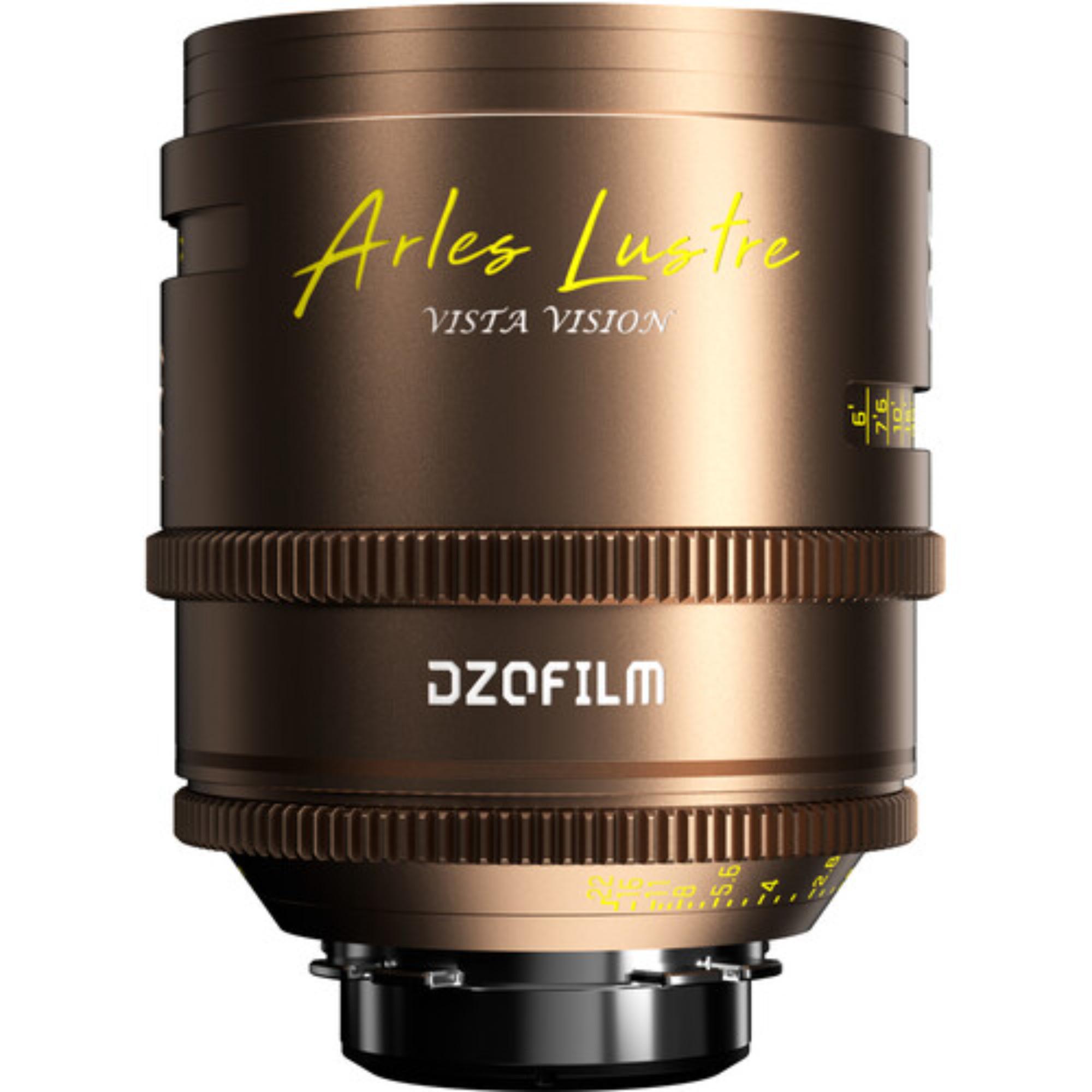

DZOFilm Arles Lustre 25mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)

The DZOFilm Arles Lustre 25mm T1.6 FF/VV Cinema Prime Lens (ARRI PL) is a full-frame cinema prime built around a 46.5mm image circle and a fast T1.6 maximum aperture. Its 25mm focal length delivers an 87° diagonal, 80° horizontal, and 47° vertical angle of view on full-frame capture, giving camera crews a wide perspective without stepping into an extreme ultra-wide field.

Beyond the focal length, the Lustre is designed with a warm amber halo character and a metallic, retro-style exterior. The mechanical layout is production-oriented, with 0.8 MOD focus gearing, 270° focus rotation, 77° iris rotation, a 95mm front diameter, M86 filter thread, and dual-scale focus markings in feet and meters. The supplied ARRI PL mount is interchangeable, and a 3/8"-16 support foot is included for rigging the lens into a supported camera build.

Highlights

• 25mm full-frame cinema prime lens
• T1.6 maximum aperture and T22 minimum aperture
• 46.5mm image circle
• Creates a warm amber halo effect
• Metallic, retro-style design
• 0.8 MOD cine-style focus gearing
• 270° focus rotation
• 77° iris rotation
• 95mm front outer diameter
• M86 front filter thread
• Dual-scale focus marks in feet and meters
• Interchangeable mount with included ARRI PL mount

Quick Specs & Uses

• Focal Length: 25mm
• Maximum Aperture: T1.6
• Minimum Aperture: T22
• Lens Mount: Interchangeable Mount with Included ARRI PL
• Format Coverage: Full Frame, 46.5mm Image Circle
• Angle of View: 87° Diagonal / 80° Horizontal / 47° Vertical
• Minimum Focus Distance: 35 cm (1.1')
• Filter Thread: 86mm
• Aperture/Iris Blades: 16
• Gear Standard: Focus 0.8 MOD
• Electronic Communication: No
• Image Stabilization: No

Why It Helps

A 25mm prime is useful when the camera needs a broad view without going excessively wide. On full frame, this lens provides an 80° horizontal field of view, making it well suited to camera positions where the operator needs to hold more of the environment in frame while still working with a dedicated cinema prime.

The focus mechanics are set up for hands-on production work. A 270° focus throw gives the focus puller a longer physical range for making controlled adjustments, while the 0.8 MOD gearing integrates with standard cine-style focus hardware. The 35cm minimum focus distance also lets the lens move in close when the shot calls for a tighter working distance.

Across a camera package, the shared mechanical details matter. The 95mm front diameter, M86 thread, interchangeable ARRI PL mount, and supplied 3/8"-16 support foot give assistants clearly defined mounting and accessory points. At the same time, the warm amber halo effect gives the Lustre series its own visual character rather than aiming for a completely neutral rendering.

System Characteristics

• Lens Type: Cinema Prime
• Focal Length: 25mm
• Format Coverage: Full Frame, 46.5mm Image Circle
• Aperture Range: T1.6 to T22
• Angle of View: 87° Diagonal / 80° Horizontal / 47° Vertical
• Focus Scale: Feet / Meters
• Minimum Focus Distance: 35 cm (1.1')
• Aperture/Iris Blades: 16
• Focus Gear: 0.8 MOD
• Focus Rotation: 270°
• Iris Rotation: 77°
• Lens Mounting: 1 x 3/8"-16 via Included Support Foot
• Electronic Communication: No
• Image Stabilization: No
• Front Diameter: 95 mm (3.7")
• Length: 121.8 mm (4.8")
• Weight: 1.48 kg (3.26 lb)

What's In The Box

• 1 x DZOFilm Arles Lustre 25mm T1.6 FF/VV Cinema Prime Lens (ARRI PL)
• 1 x Front Cap
• 1 x Rear Cap
• 1 x Support Foot (3/8"-16)
