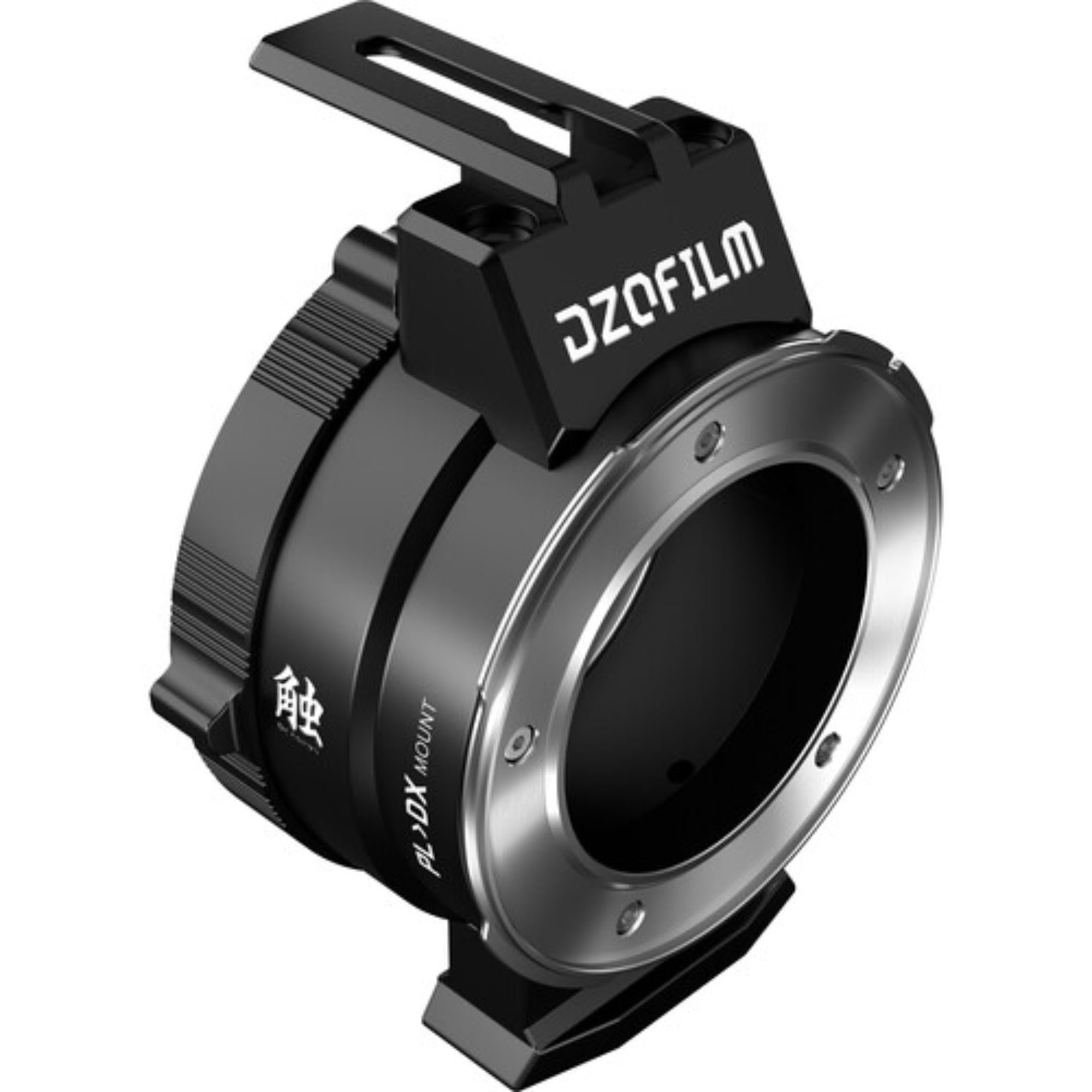

DZOFilm Octopus Lens Adapter (PL to DX)

The DZOFilm Octopus Lens Adapter (PL to DX) is a mechanical mount adapter for using ARRI PL-mount lenses on cameras equipped with the DJI DL mount, including DJI Ronin 4D systems. It gives production crews a direct way to bring PL glass into a DL-mount camera package while maintaining infinity focus.

The adapter uses aluminum and stainless-steel construction, with a flocked interior to help reduce reflections inside the mount path. A 1/4"-20 female support thread is built into the adapter as well, giving the camera build a dedicated point for lens support when additional mechanical stability is needed.

Highlights

• Adapts ARRI PL-mount lenses to DJI DL-mount cameras
• Designed for DJI Ronin 4D camera setups
• Maintains infinity focus
• Flocked interior helps reduce internal reflections
• Stainless-steel mount component
• Aluminum and stainless-steel construction
• 1/4"-20 female thread for lens support
• No electronic communication

Quick Specs & Uses

• Item Type: 1 x Lens Mount Adapter
• Camera Compatibility: DJI DL Mount
• Lens Compatibility: ARRI PL Mount
• Electronic Communication: No
• Mounting: 1/4"-20 Female Thread
• Materials: Aluminum, Stainless Steel
• Weight: 0.167 kg (0.368 lb)
• Primary Use: Mounting PL lenses on DJI DL-mount camera systems

Why It Helps

For crews using PL-mount cinema lenses with a DJI Ronin 4D, this adapter provides the physical conversion needed to place those lenses onto the camera's DL mount. It maintains infinity focus, which helps preserve the expected focusing range after the lens is adapted.

The flocked interior addresses a practical optical concern inside the adapter by helping reduce stray reflections. Mechanically, the adapter also includes a 1/4"-20 female support point, giving assistants and technicians a straightforward way to add lens support into the rig when the lens package calls for it.

There is no electronic communication through the adapter, so its function remains focused on the mechanical mount conversion. The aluminum and stainless-steel build, support thread, and included lens port cap make it a compact solution for integrating PL glass into a DJI DL-mount workflow.

System Characteristics

• Adapter Type: ARRI PL Lens to DJI DL Camera
• Camera Mount: DJI DL
• Lens Mount: ARRI PL
• Electronic Communication: No
• Infinity Focus: Maintained
• Internal Treatment: Flocked Interior
• Lens Support: 1/4"-20 Female Thread
• Materials: Aluminum, Stainless Steel
• Weight: 0.167 kg (0.368 lb)

What's In The Box

• 1 x DZOFilm Octopus Lens Adapter (PL to DX)

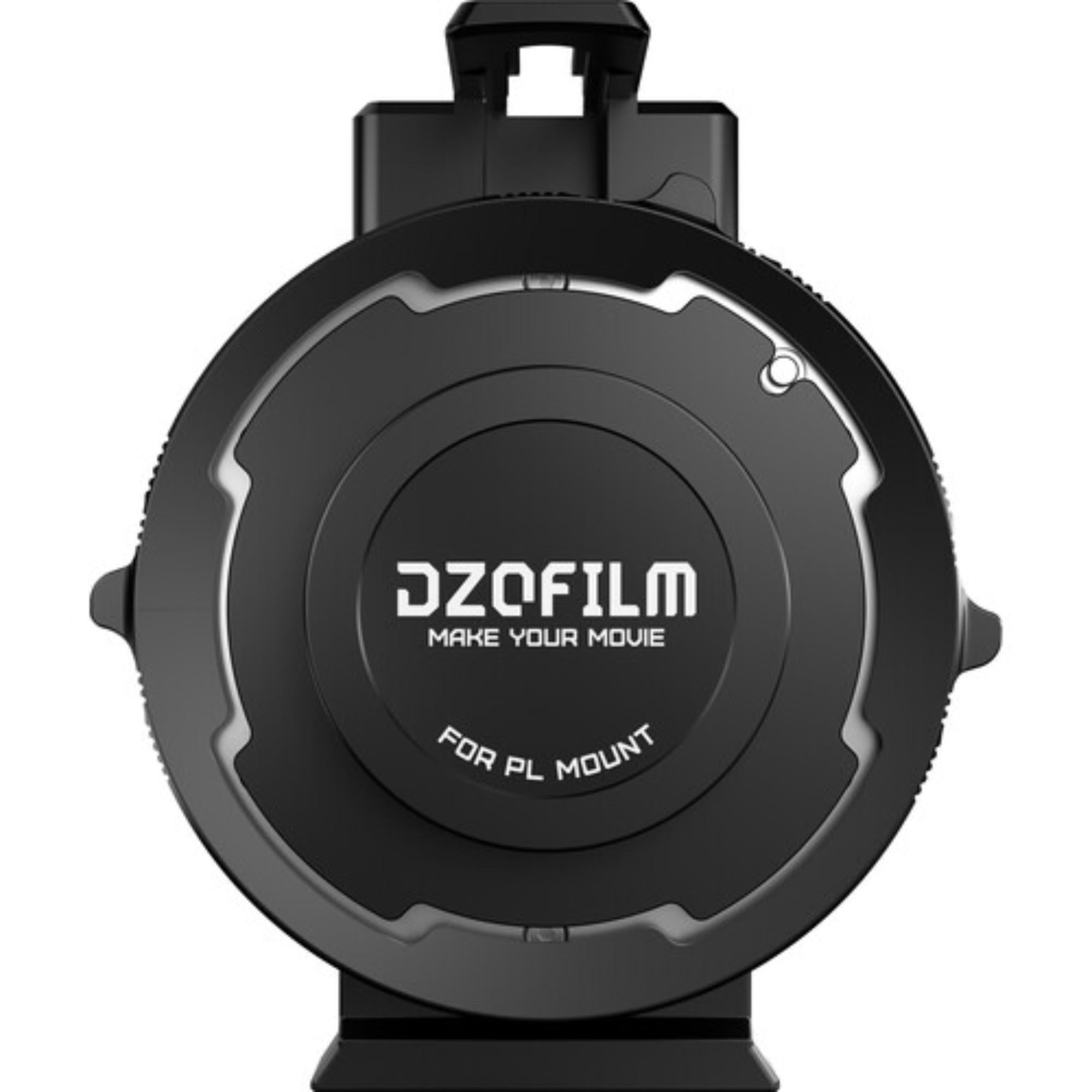

• 1 x Lens Port Cap
