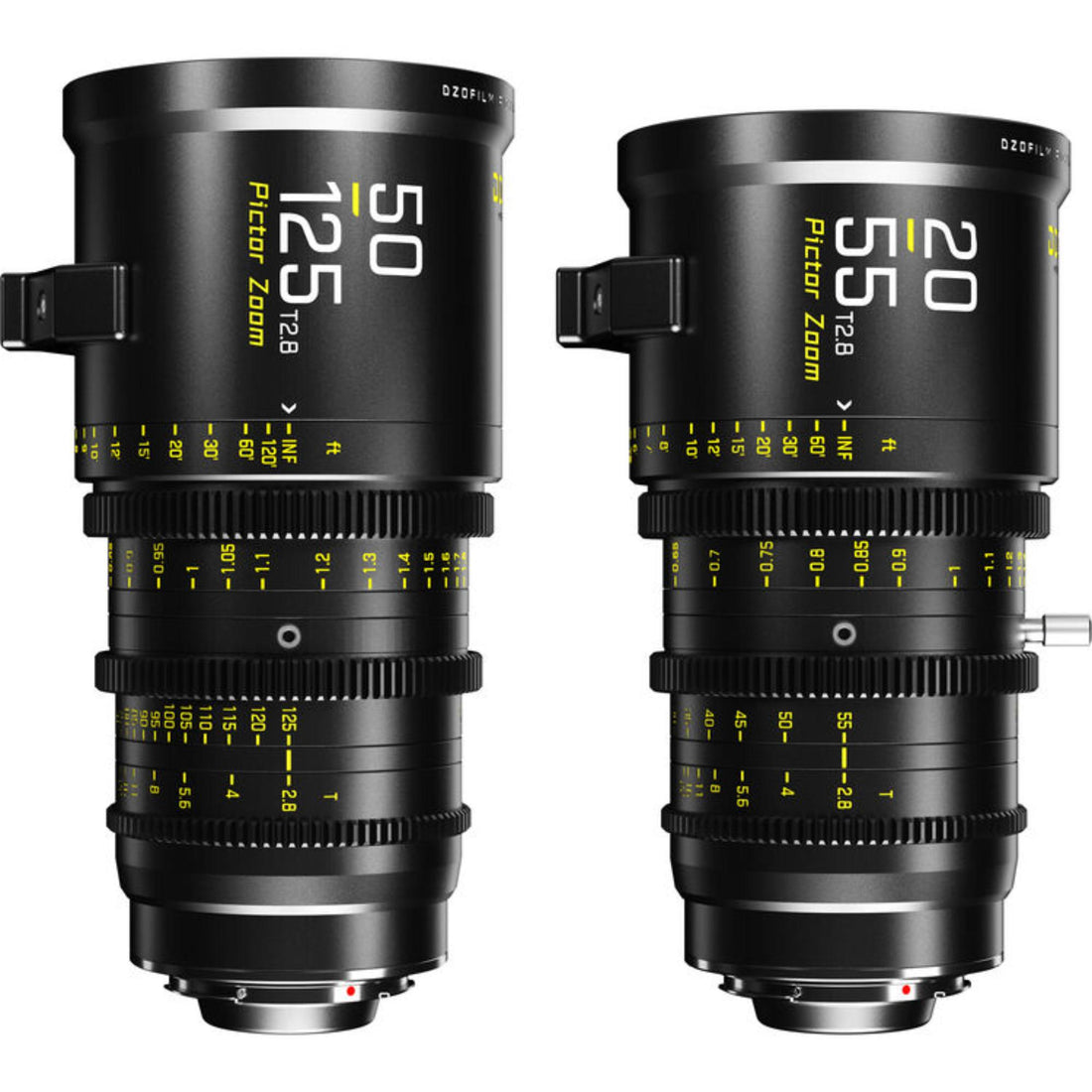

DZOFilm Pictor 20-55mm and 50-125mm T2.8 Super35 Zoom Lens Bundle (PL Mount and EF Mount, Black)

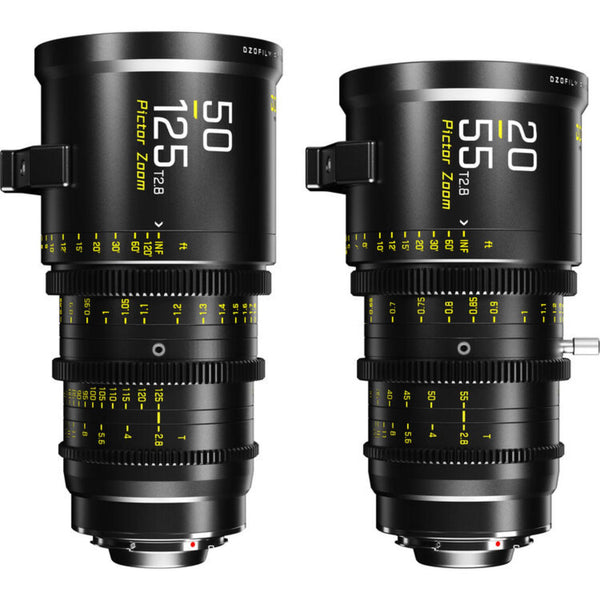

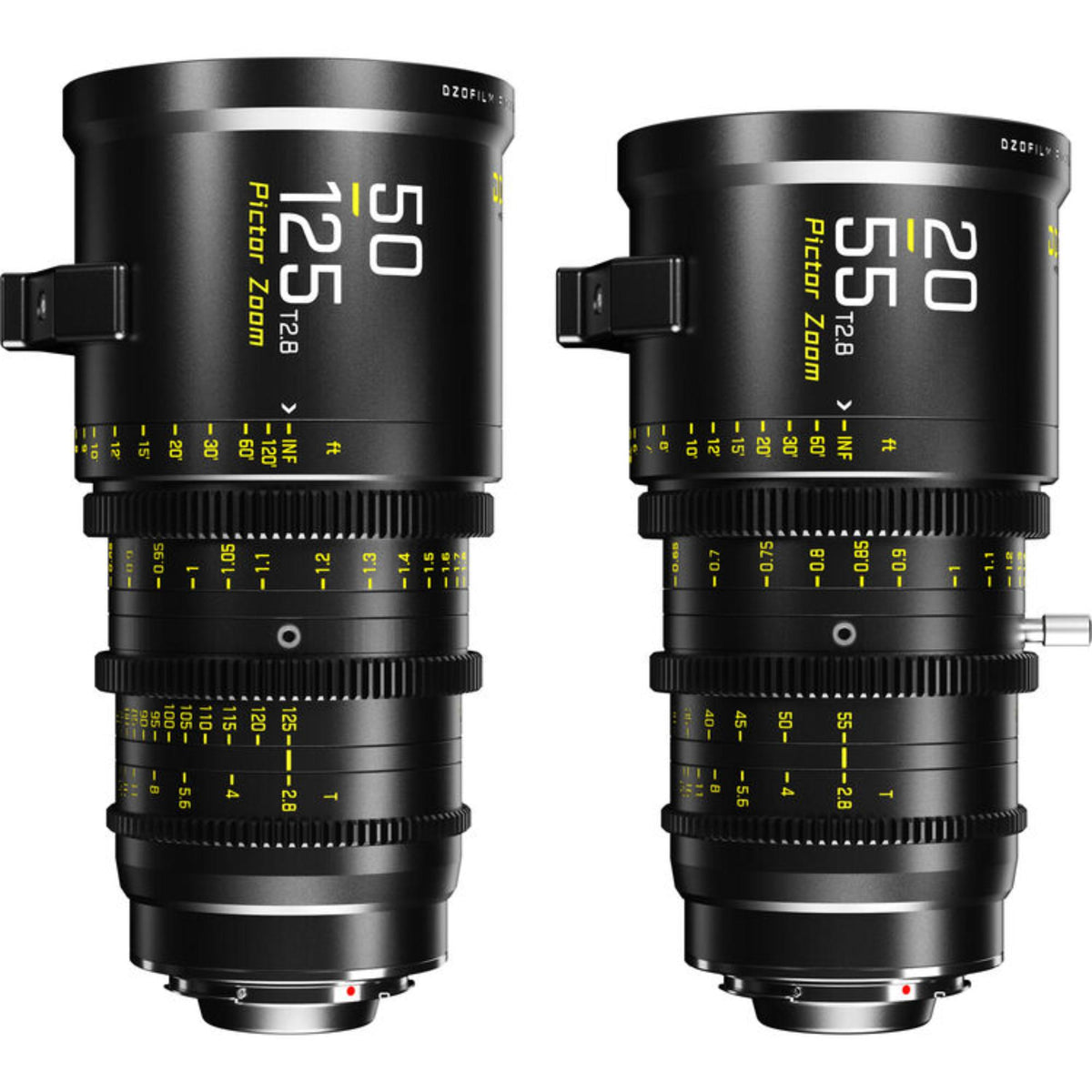

The DZOFilm Pictor 20-55mm and 50-125mm T2.8 Super35 Zoom Lens Bundle (PL Mount and EF Mount, Black) pairs two parfocal cine zooms to cover a broad 20-125mm working range for Super35 and APS-C camera systems. Both lenses hold a T2.8 maximum aperture and use a 31.1mm image circle, giving a camera crew one matched two-lens package for wide, standard, and longer focal-length setups.

The mechanical layout is built around familiar cinema-lens operation. Both lenses use 0.8 MOD gearing, 270° focus rotation, 100° zoom rotation, matching 95mm front diameters, and 86mm filter threads. ARRI PL and Canon EF mounting options are included, while the supplied lens case keeps the two-lens package together for transport and storage.

Highlights

• 20-55mm and 50-125mm T2.8 Super35 parfocal zoom lenses
• Combined 20-125mm focal-length coverage
• T2.8 maximum aperture on both lenses
• Super35/APS-C coverage with 31.1mm image circle
• Interchangeable ARRI PL and Canon EF mounting
• Parfocal design maintains focus through the zoom range
• 0.8 MOD cine-style gearing
• 270° focus rotation and 100° zoom rotation
• 16-blade iris design
• Matching 95mm front diameters
• 86mm filter threads
• Lens case included

Quick Specs & Uses

• 20-55mm Lens: T2.8 to T22, 2.75x zoom ratio
• 50-125mm Lens: T2.8 to T22, 2.5x zoom ratio
• Format Coverage: Super35/APS-C, 31.1mm Image Circle
• Lens Mount: Interchangeable ARRI PL / Canon EF
• Focus Scales: Imperial
• Filter Thread: 86mm
• Front Diameter: 95mm (3.7")
• Aperture/Iris Blades: 16
• Gear Standard: 0.8 MOD
• Focus Rotation: 270°
• Zoom Rotation: 100°
• Image Stabilization: No
• Electronic Communication: No

Why It Helps

For a Super35 camera package, the practical advantage is range without having to build around a large set of individual focal lengths. The 20-55mm handles the wider end of the package, while the 50-125mm takes over for tighter framing. Together they provide continuous working coverage from 20 to 125mm.

Both lenses are parfocal, so focus is maintained while changing focal length through the zoom range. That matters when zooming during a take, but it also makes reframing quicker when the camera position stays fixed. Matching 95mm fronts, 86mm filter threads, and similar control placement also make moving between the two lenses more straightforward for an established camera build.

The mechanical controls are laid out for cine operation rather than electronic lens control. A 270° focus throw gives the focus puller a broad adjustment range, the zoom rings rotate through 100°, and 0.8 MOD gearing supports standard geared lens-control hardware. With both PL and Canon EF mounts supplied, the same lens package can also be configured around either of those mounting systems.

System Characteristics

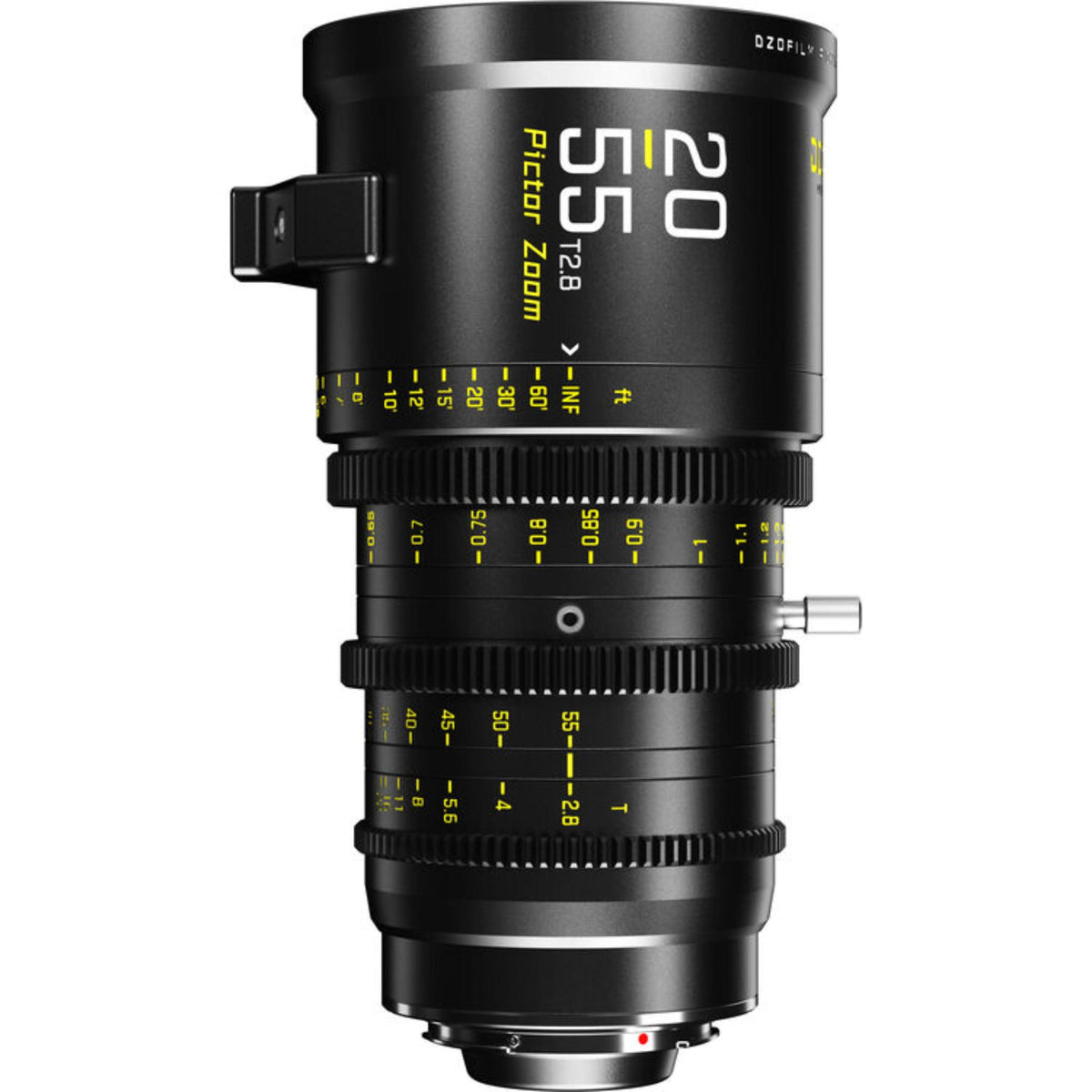

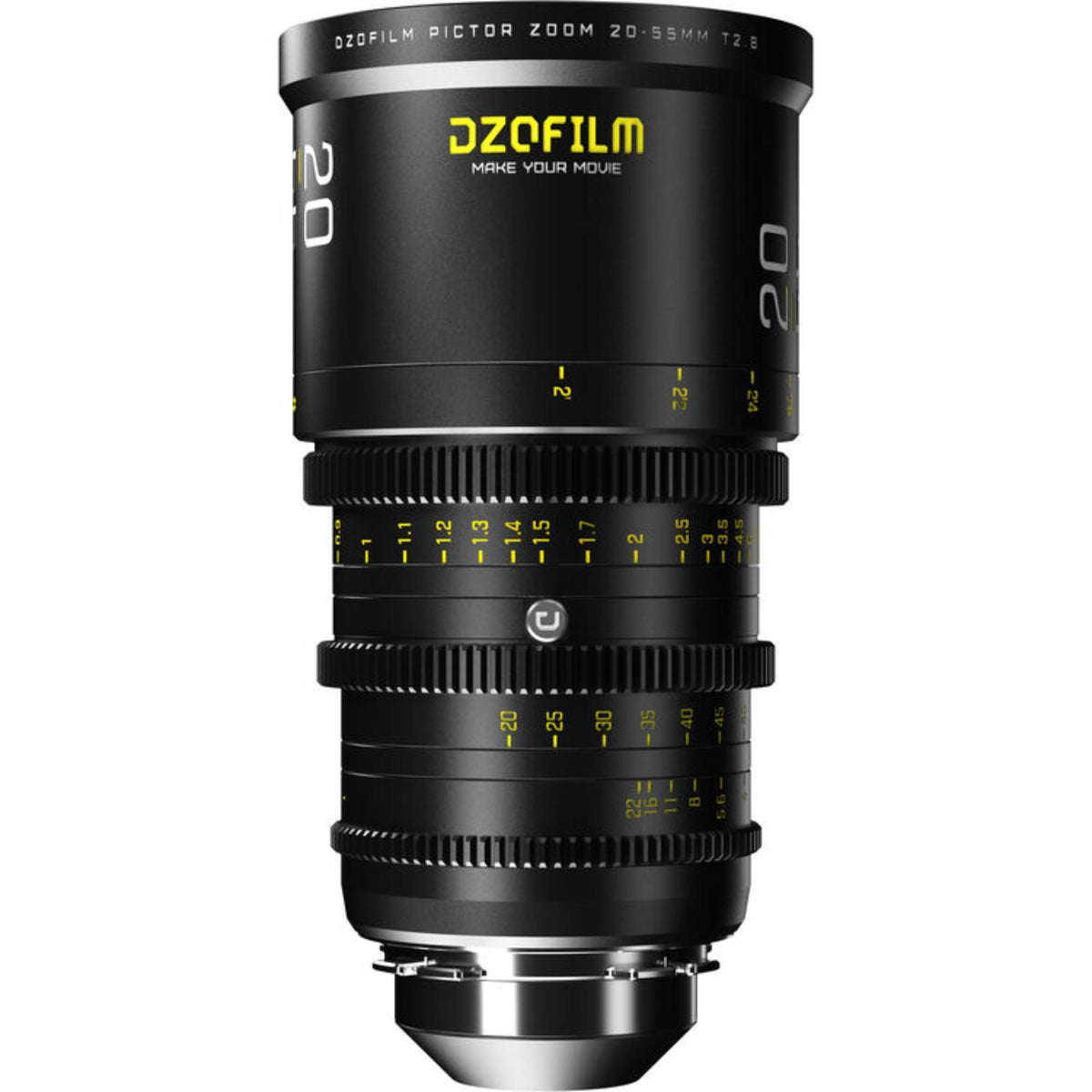

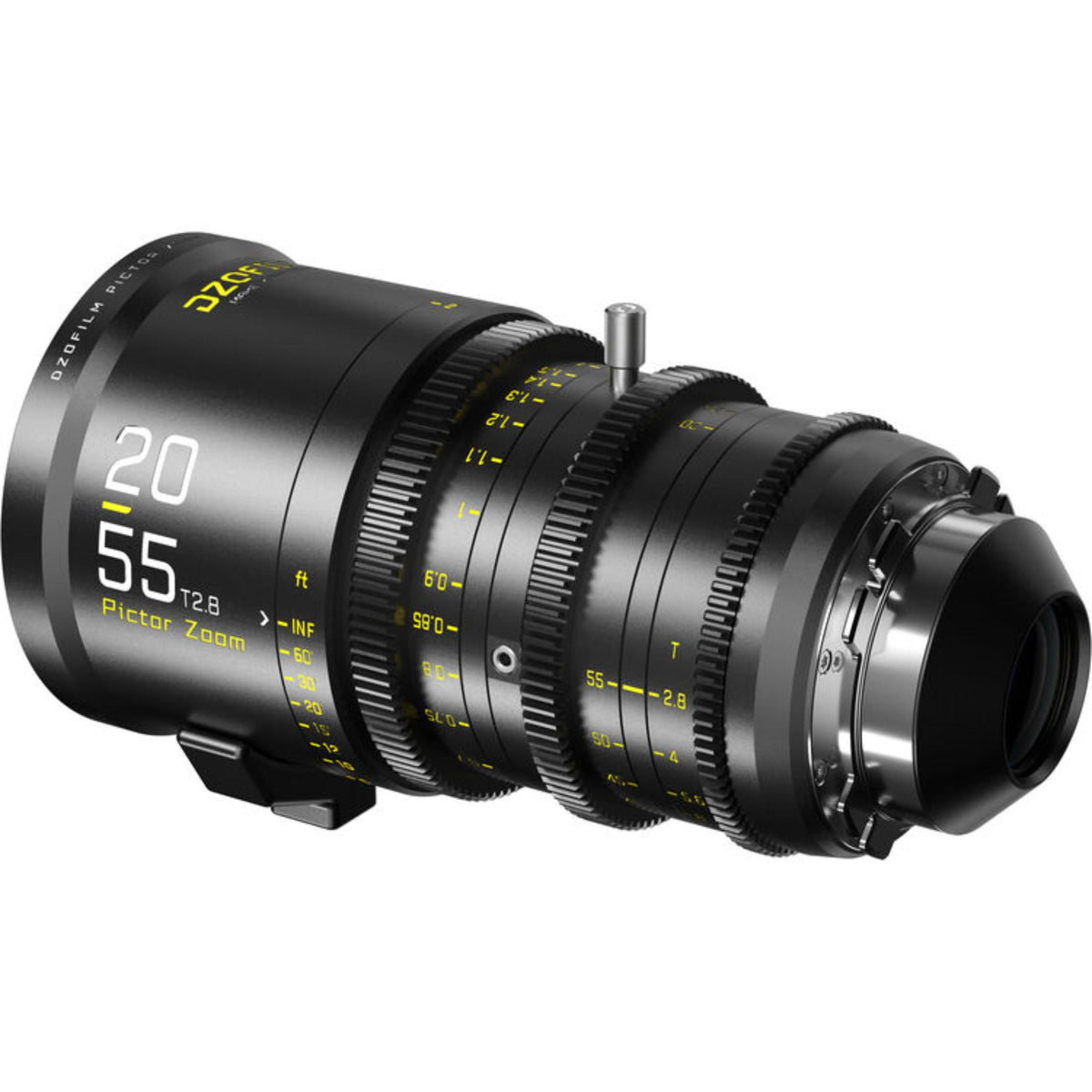

• 20-55mm Focal Length: 20 to 55mm
• 20-55mm Zoom Ratio: 2.75x
• 20-55mm Length: 164 mm (6.46")
• 20-55mm Weight: 1.52 kg (3.35 lb)

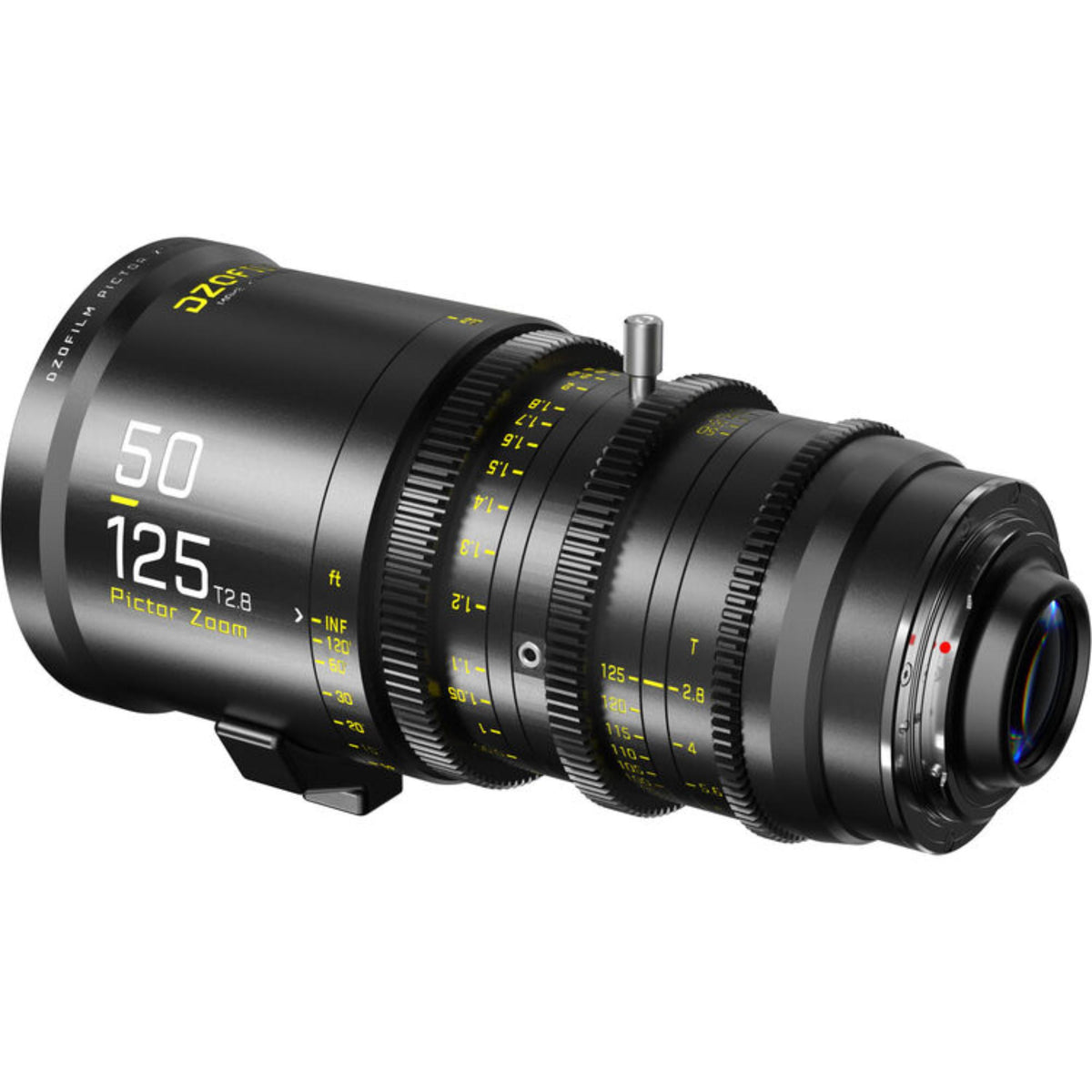

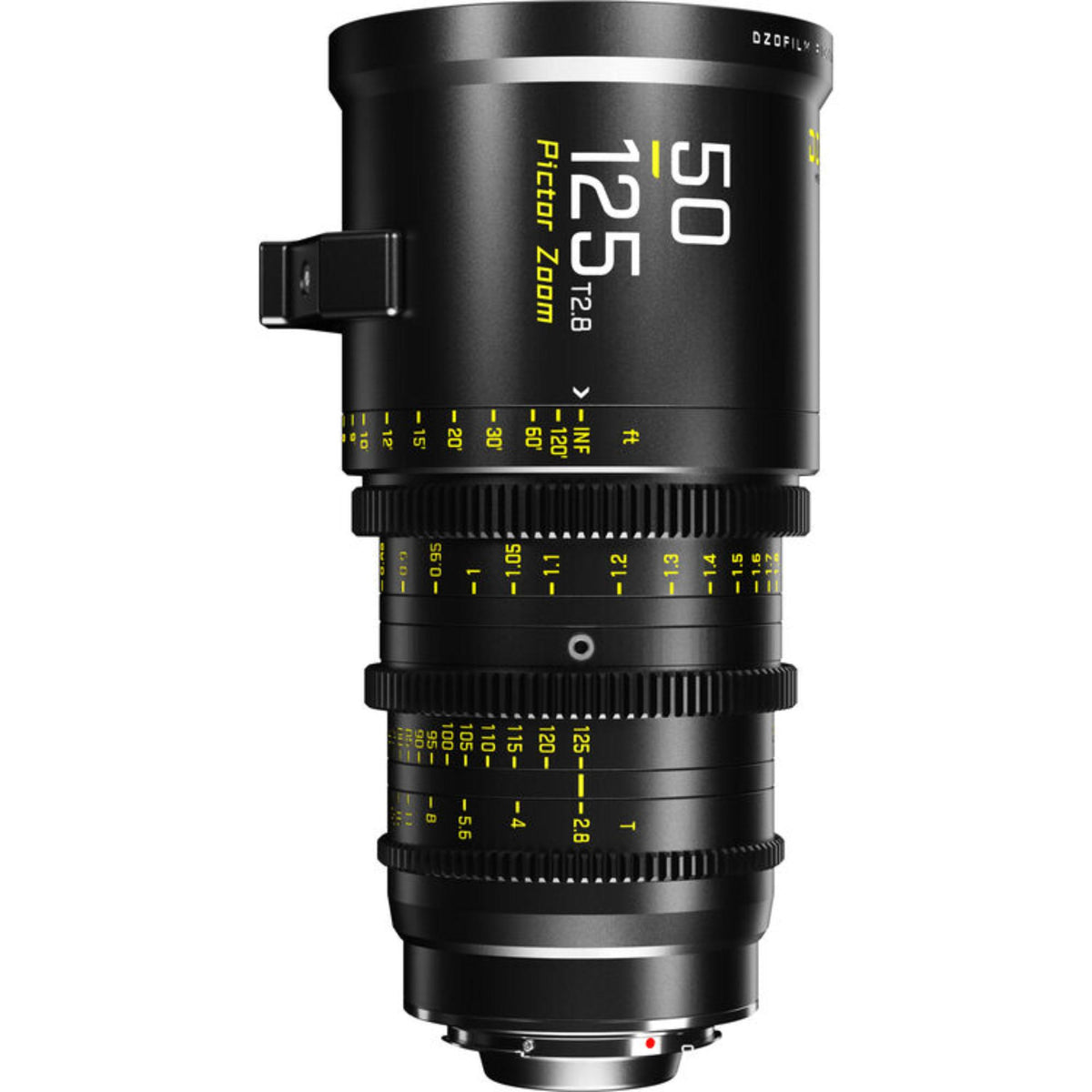

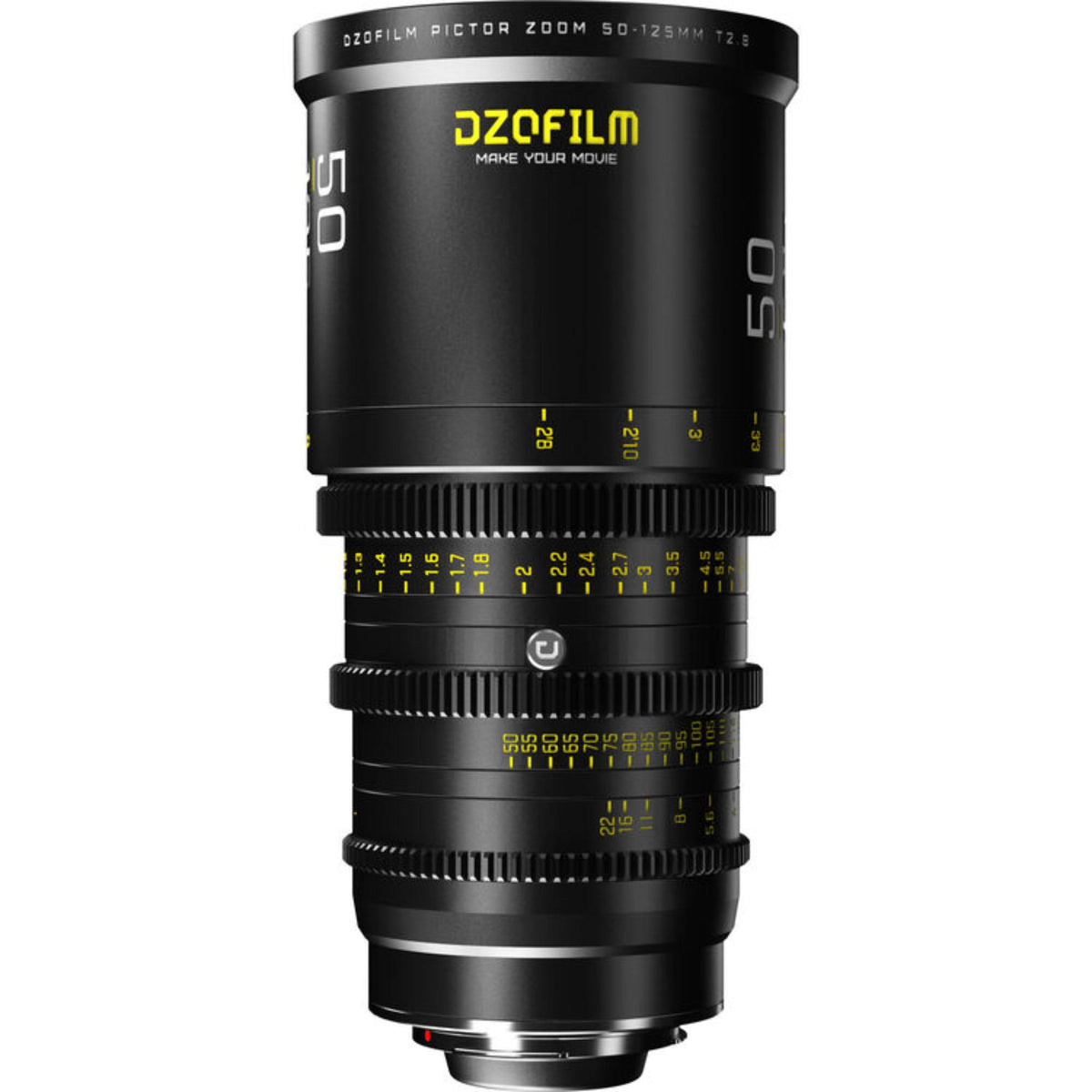

• 50-125mm Focal Length: 50 to 125mm
• 50-125mm Zoom Ratio: 2.5x
• 50-125mm Length: 175 mm (6.9")
• 50-125mm Weight: 1.7 kg (3.7 lb)
• Maximum Aperture: T2.8
• Minimum Aperture: T22
• Format Coverage: Super35/APS-C, 31.1mm Image Circle
• Lens Mount: Interchangeable ARRI PL / Canon EF
• Focus Scale: Imperial
• Aperture/Iris Blades: 16
• Gear Standard: 0.8 MOD
• Focus Rotation: 270°
• Zoom Rotation: 100°
• Lens Mounting: 1 x 1/4"-20 via Included Support Foot
• Front Diameter: 95 mm (3.7")
• Filter Thread: 86mm
• Electronic Communication: No
• Image Stabilization: No

What’s In The Box

• 1 x DZOFilm Pictor 20-55mm T2.8 Super35 Zoom Lens (PL Mount & EF Mount, Black)
• 1 x Front Lens Cap for 20-55mm Lens
• 1 x Rear Lens Cap for 20-55mm Lens
• 1 x Zoom Stick for 20-55mm Lens

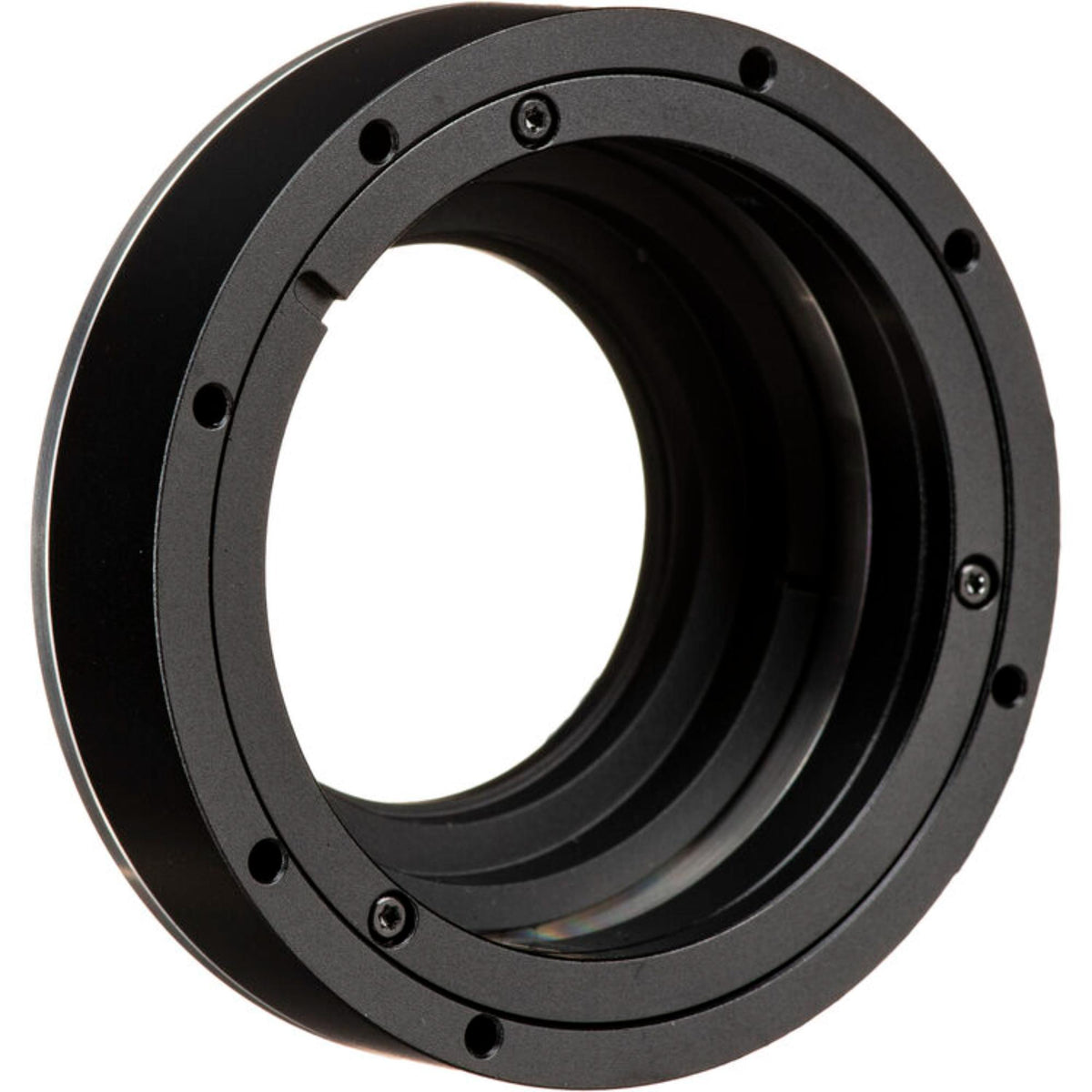

• 1 x Canon EF Mount with Cap for 20-55mm Lens
• 1 x DZOFilm Pictor 50-125mm T2.8 Super35 Zoom Lens (PL Mount & EF Mount, Black)
• 1 x Front Lens Cap for 50-125mm Lens
• 1 x Rear Lens Cap for 50-125mm Lens
• 1 x Zoom Stick for 50-125mm Lens
• 1 x ARRI PL Mount with Cap for 50-125mm Lens
• 1 x Canon EF Mount with Cap for 50-125mm Lens

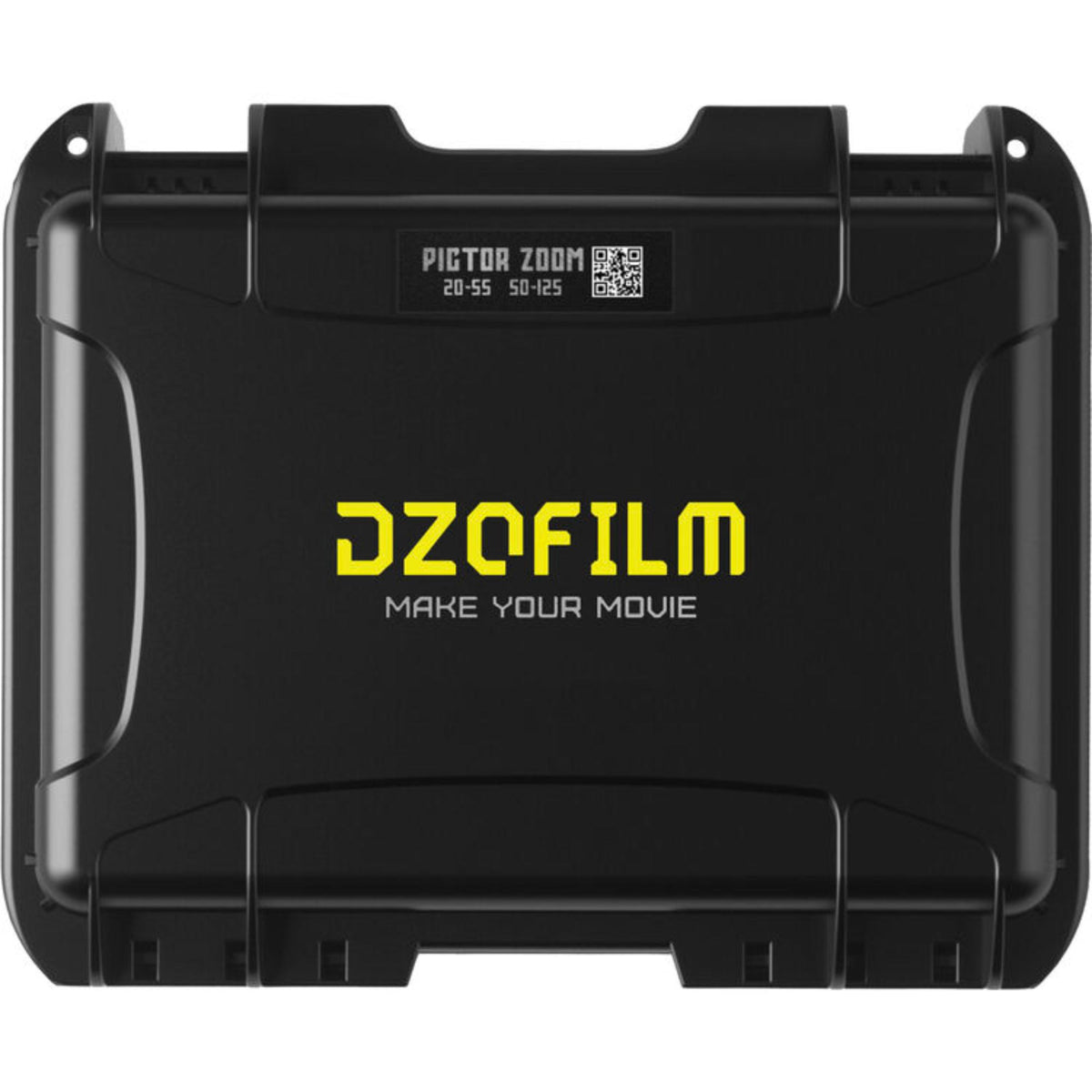

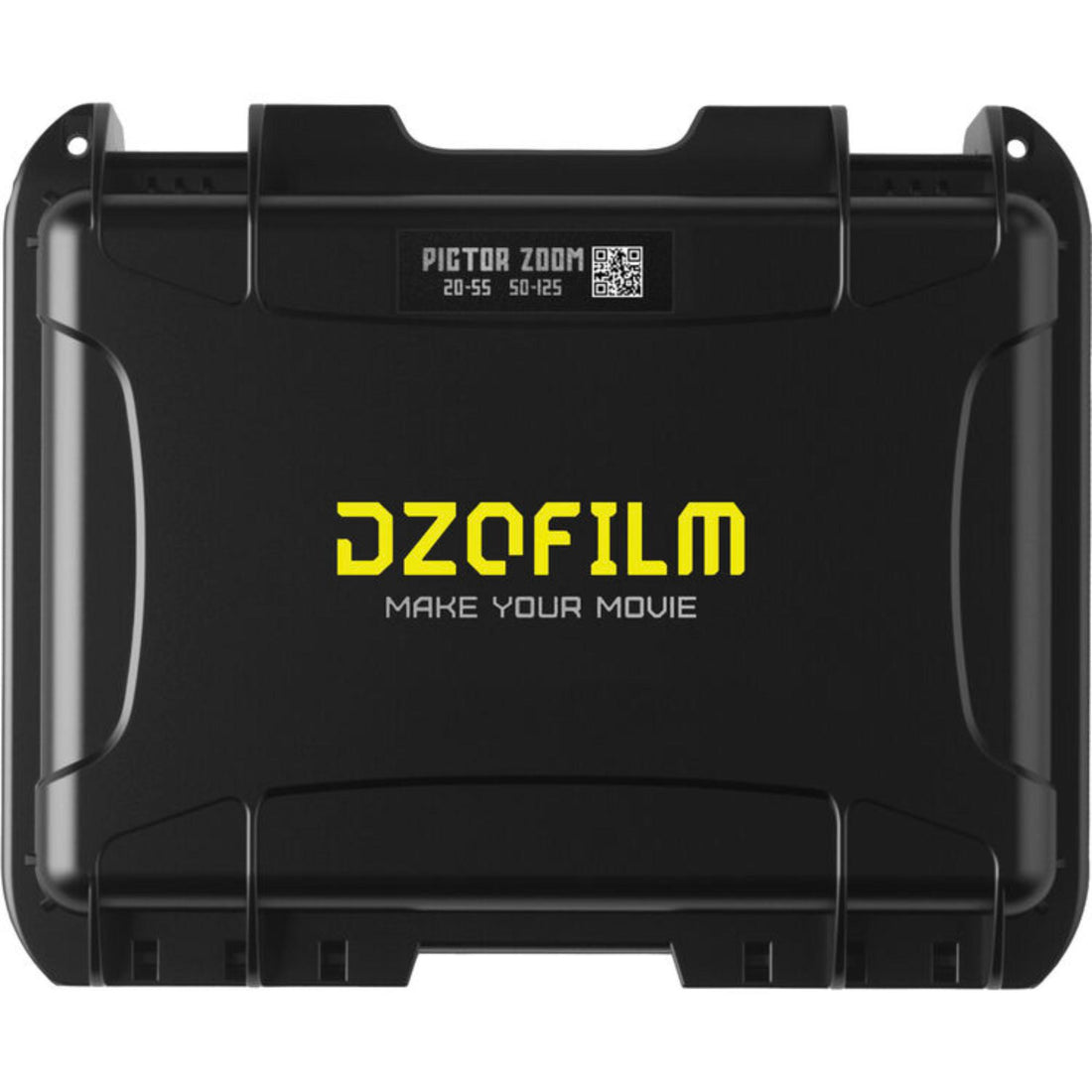

• 1 x Lens Case
