DZOFilm Pictor T2.8 Super35 Zoom 3-Lens Kit (PL & EF Mount, Black)

The DZOFilm Pictor T2.8 Super35 Zoom 3-Lens Kit (PL & EF Mount, Black) combines the 12-25mm, 20-55mm, and 50-125mm Pictor zooms in one production-ready lens package. The three ranges overlap where it counts, giving a camera crew coverage from a 12mm wide shot through 125mm without moving outside the Pictor family.

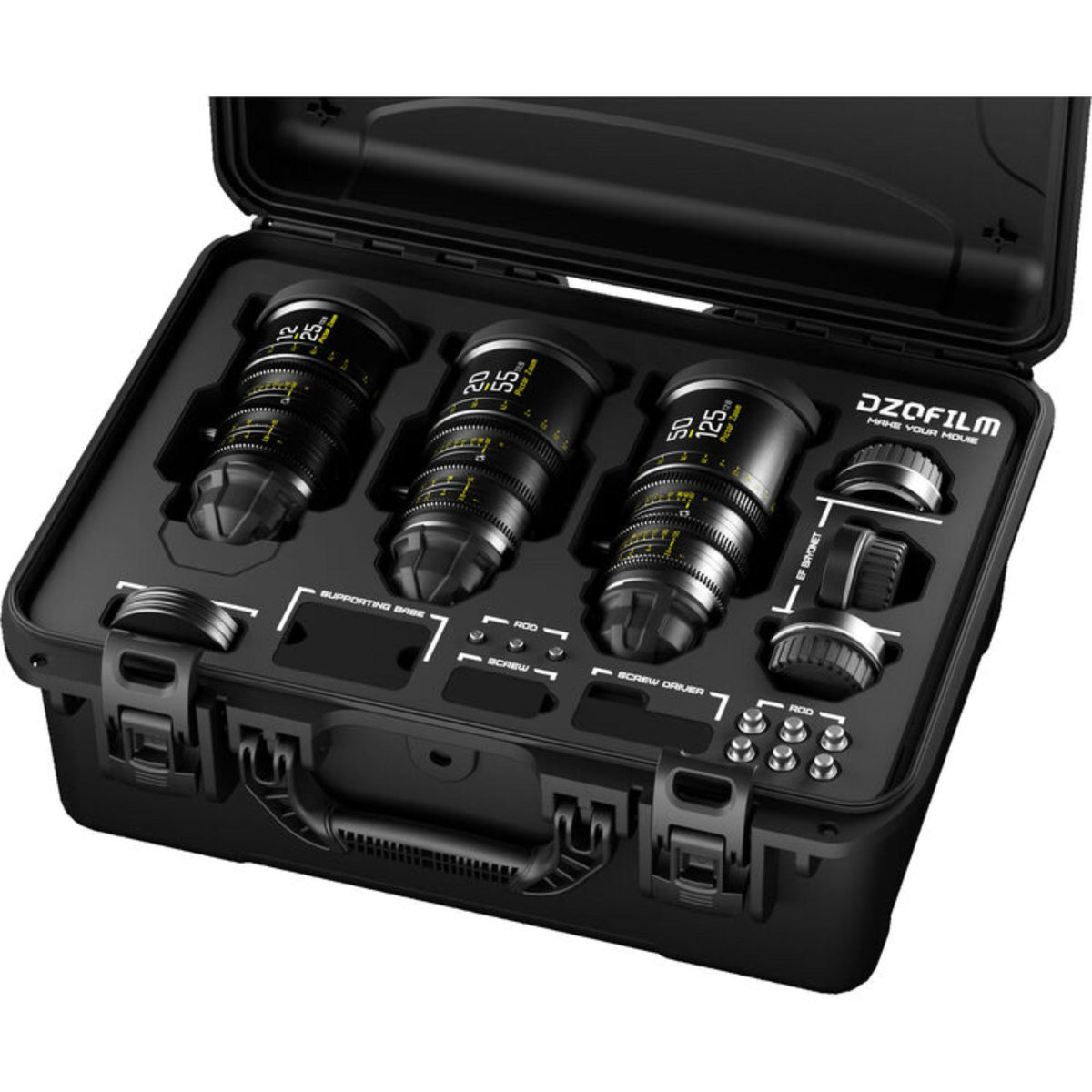

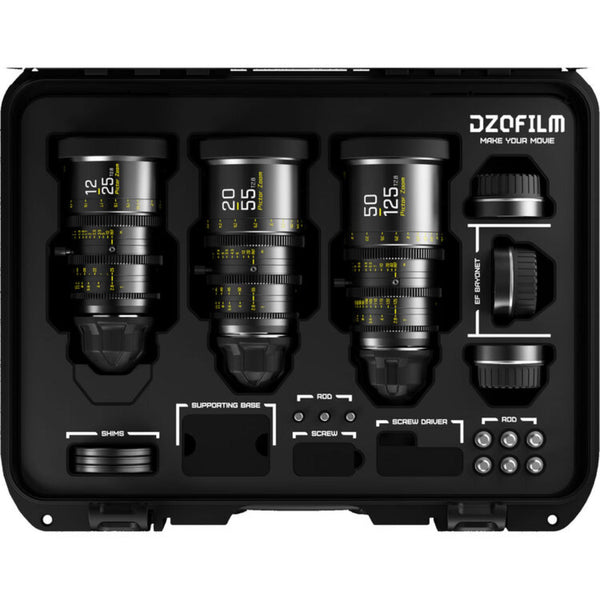

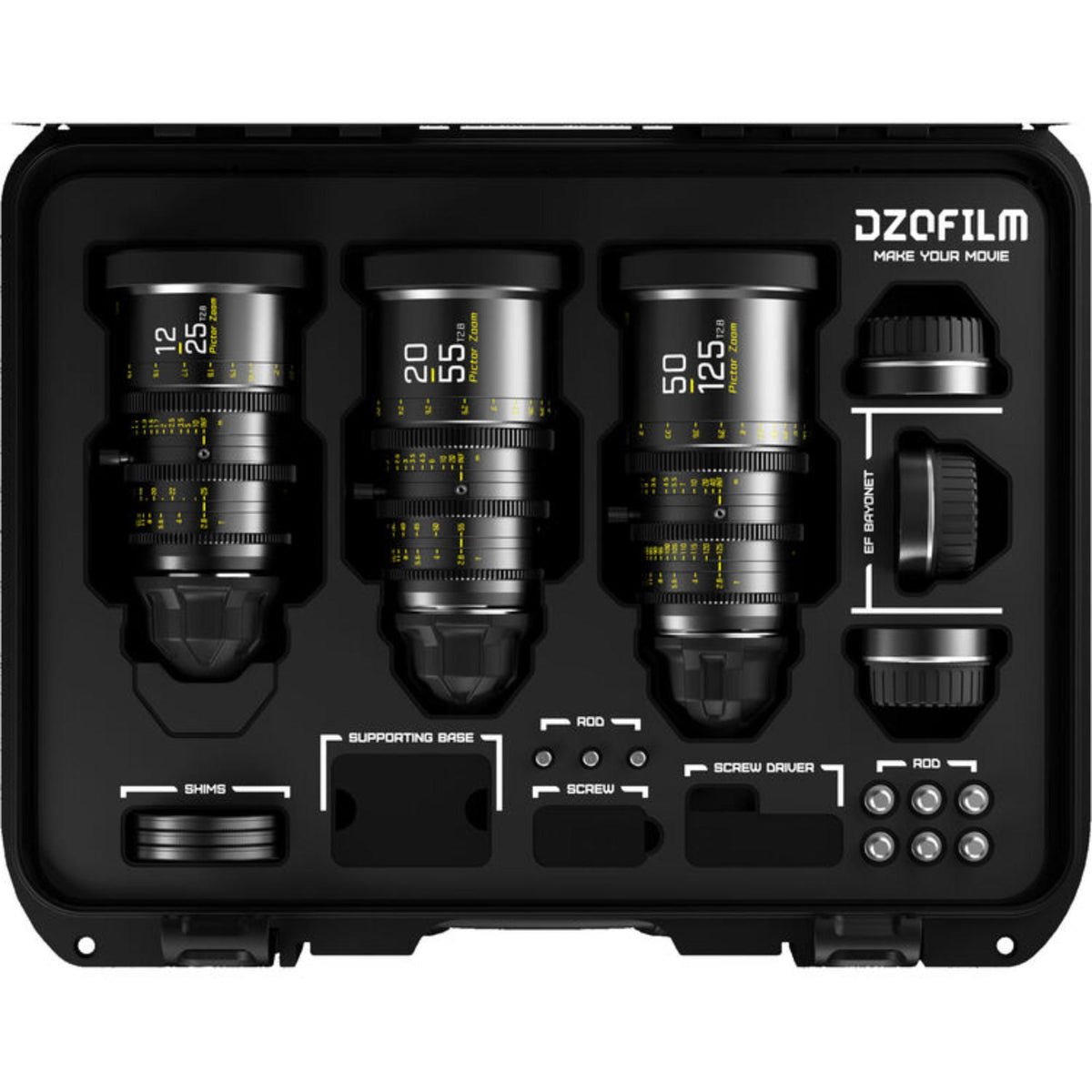

Each lens carries a T2.8 maximum aperture and is built for Super35/APS-C capture, with interchangeable ARRI PL and Canon EF mounting. The mechanical layout stays familiar across the set, including 0.8 MOD gearing, 270° focus travel, 100° zoom travel, a 95mm front diameter, and a 16-blade iris. A dedicated three-lens hard case with a custom-compartment interior keeps the package together for storage and transport.

Highlights

• Three-lens T2.8 Super35 parfocal zoom kit
• 12-25mm, 20-55mm, and 50-125mm focal ranges
• Combined focal-length coverage from 12mm through 125mm
• T2.8 maximum aperture across all three lenses
• Super35/APS-C format coverage
• Interchangeable ARRI PL and Canon EF mounting
• 0.8 MOD cine-style gearing
• 270° focus rotation across the set
• 100° zoom rotation across the set
• 16-blade iris design
• Matching 95mm front diameters
• Hard case with custom-compartment interior included

Quick Specs & Uses

• 12-25mm Lens: T2.8 to T22, Super35/APS-C with 31.5mm image circle
• 20-55mm Lens: T2.8 to T22, Super35/APS-C with 31.1mm image circle
• 50-125mm Lens: T2.8 to T22, Super35/APS-C with 31.1mm image circle
• Lens Mount: Interchangeable ARRI PL / Canon EF
• Focus Scales: Imperial
• Gear Standard: 0.8 MOD
• Focus Rotation: 270°
• Zoom Rotation: 100°
• Front Diameter: 95 mm (3.7 in)
• Aperture/Iris Blades: 16
• Image Stabilization: No
• Electronic Communication: No

Why It Helps

The three zoom ranges give the camera department a practical progression from wide-angle work into longer framing. The 12-25mm handles the widest end of the kit, the 20-55mm covers the middle, and the 50-125mm extends the package into tighter shots. The overlap between ranges also gives the operator some room to choose a lens without working right at the end of its zoom range.

Just as important on a built camera, the operating layout remains consistent. All three lenses use 0.8 MOD gearing, 270° focus rotation, 100° zoom rotation, and a 95mm front diameter. That common mechanical arrangement makes lens changes more straightforward when the camera is already configured with external focus or zoom hardware.

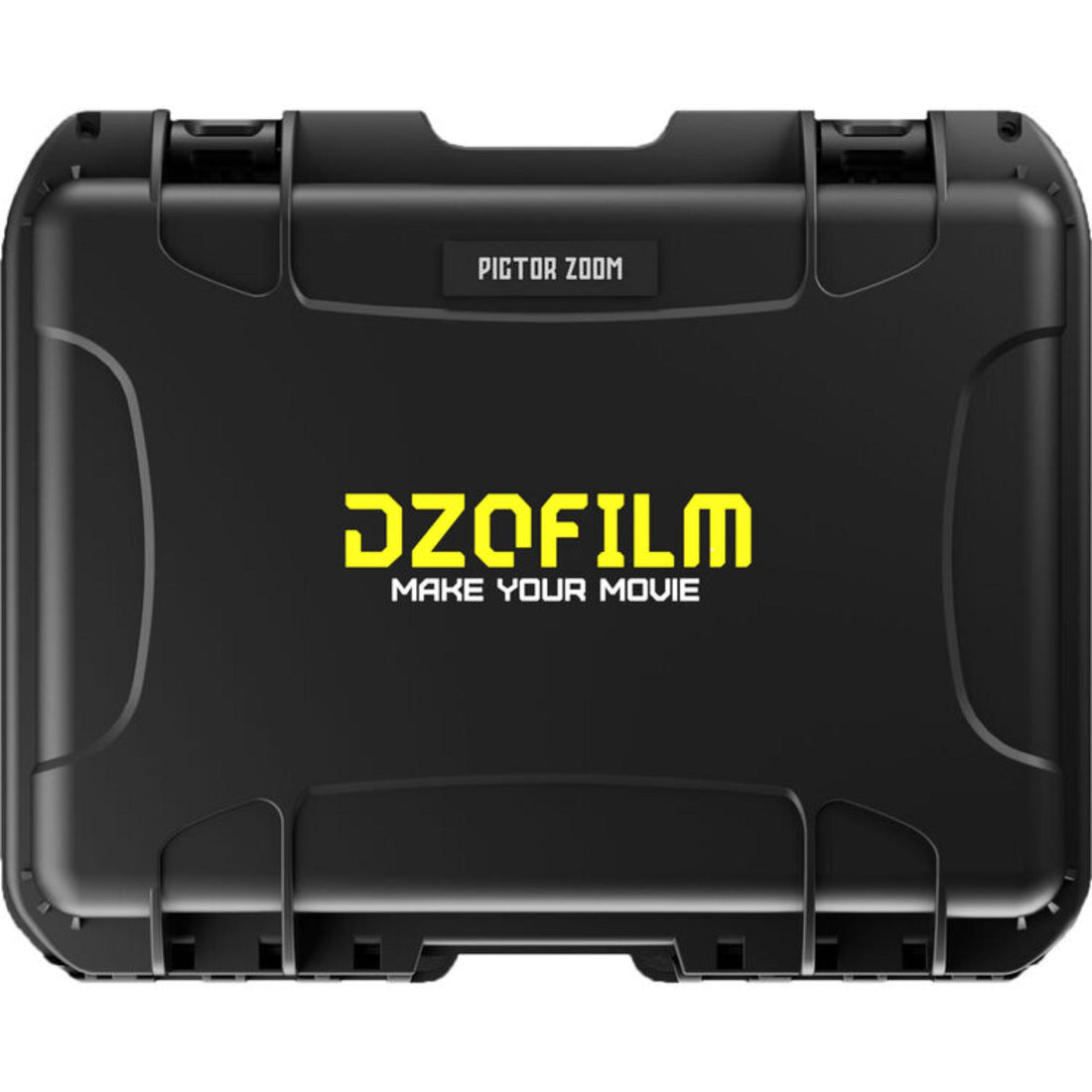

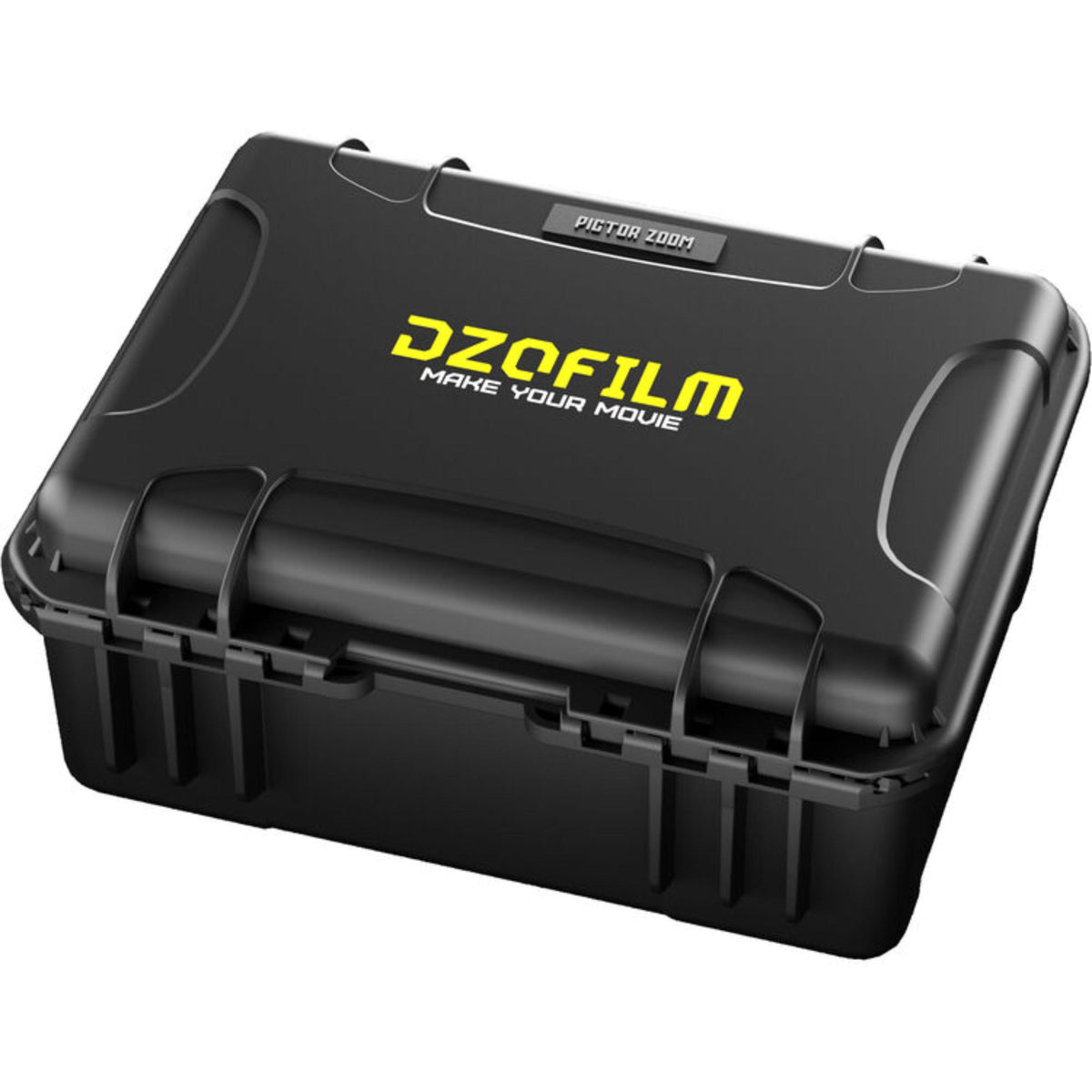

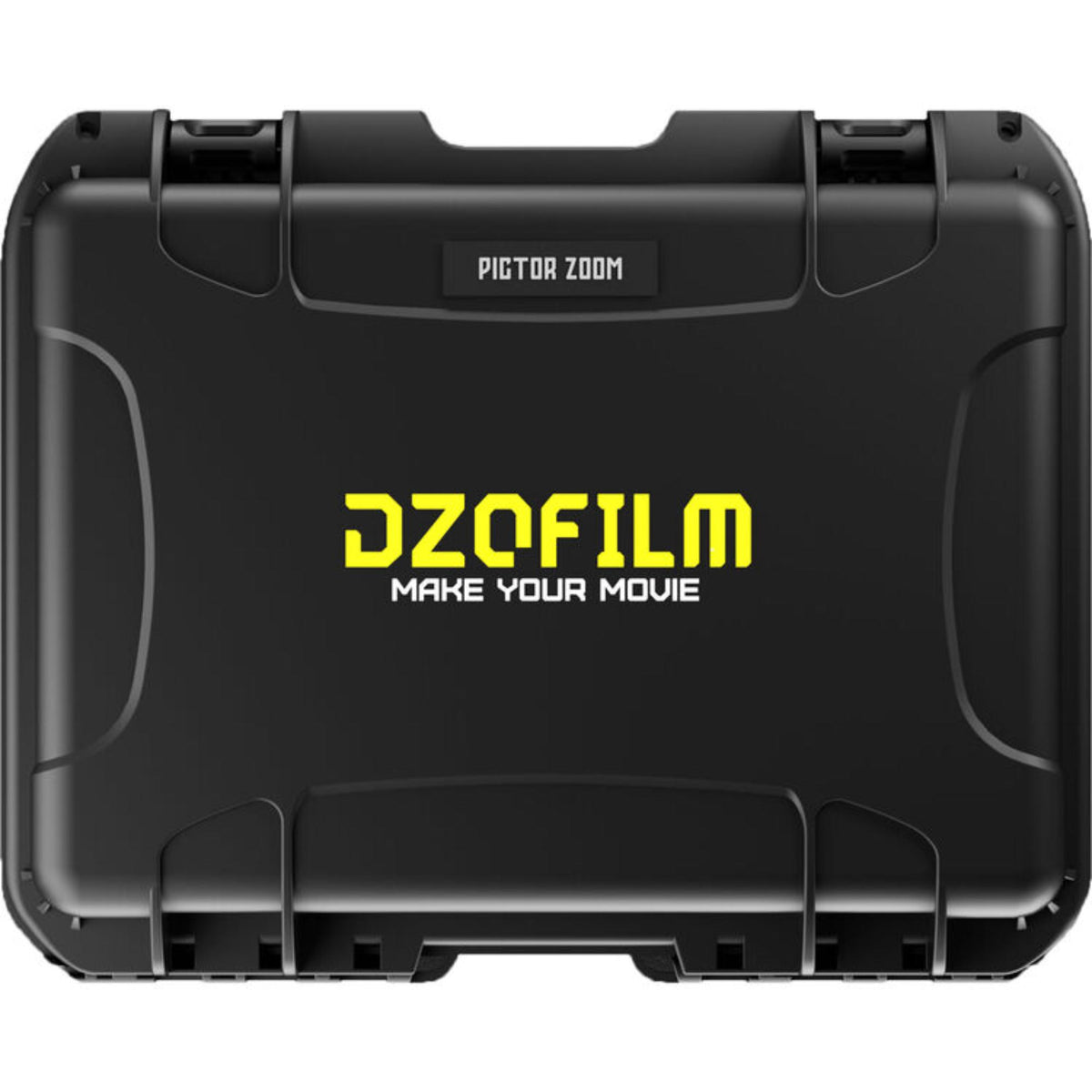

The interchangeable PL and EF mounting gives the kit flexibility across compatible camera configurations, while the supplied hard case keeps all three lenses in one dedicated transport package. Its custom-compartment interior, waterproof construction, handle, latch closure, and pressure/purge valve make it a practical part of the kit rather than an afterthought.

System Characteristics

• 12-25mm Focal Length: 12 to 25mm
• 12-25mm Maximum Aperture: T2.8
• 12-25mm Minimum Aperture: T22
• 12-25mm Format Coverage: Super35/APS-C, 31.5mm Image Circle
• 12-25mm Optical Design: 21 Elements in 15 Groups
• 12-25mm Filter Thread: 86 mm x 0.75
• 12-25mm Minimum Focus Distance: 40 cm (15.7 in)
• 12-25mm Iris Rotation: 64.4°
• 12-25mm Length: 159 mm (6.3 in)
• 12-25mm Weight: 1.6 kg (3.5 lb)
• 20-55mm Focal Length: 20 to 55mm
• 20-55mm Maximum Aperture: T2.8
• 20-55mm Minimum Aperture: T22
• 20-55mm Format Coverage: Super35/APS-C, 31.1mm Image Circle
• 20-55mm Zoom Ratio: 2.75x
• 20-55mm Filter Thread: 86mm
• 20-55mm Length: 164 mm (6.46 in)
• 20-55mm Weight: 1.52 kg (3.35 lb)
• 50-125mm Focal Length: 50 to 125mm
• 50-125mm Maximum Aperture: T2.8
• 50-125mm Minimum Aperture: T22
• 50-125mm Format Coverage: Super35/APS-C, 31.1mm Image Circle
• 50-125mm Zoom Ratio: 2.5x
• 50-125mm Filter Thread: 86mm
• 50-125mm Length: 175 mm (6.9 in)
• 50-125mm Weight: 1.7 kg (3.7 lb)
• Lens Mount: Interchangeable ARRI PL / Canon EF
• Focus Scales: Imperial
• Aperture/Iris Blades: 16
• Gear Standard: 0.8 MOD
• Focus Rotation: 270°
• Zoom Rotation: 100°
• Front Diameter: 95 mm (3.7 in)
• Image Stabilization: No
• Electronic Communication: No
• Hard Case Color: Black
• Hard Case Carry/Transport: Handle
• Hard Case Closure: Latch
• Hard Case Interior: Insert with Custom Compartments
• Hard Case Water Resistance: Waterproof
• Hard Case Pressure/Purge Valve: Yes
• Hard Case Security Lock: No
• Hard Case ATA Compliant: No
• Hard Case Exterior: Molded Plastic

What’s In The Box

• 1 x DZOFilm Pictor 12-25mm T2.8 Super35 Parfocal Zoom Lens (PL/EF, Black)
• 1 x Front Lens Cap for 12-25mm Lens
• 1 x Rear Lens Cap for 12-25mm Lens
• 1 x Zoom Stick for 12-25mm Lens
• 1 x Shim Set
• 1 x Canon EF-Mount with Cap for 12-25mm Lens
• 1 x DZOFilm Pictor 20-55mm T2.8 Super35 Zoom Lens (PL Mount & EF Mount, Black)
• 1 x Front Lens Cap for 20-55mm Lens
• 1 x Rear Lens Cap for 20-55mm Lens
• 1 x Zoom Stick for 20-55mm Lens
• 1 x Canon EF-Mount with Cap for 20-55mm Lens
• 1 x DZOFilm Pictor 50-125mm T2.8 Super35 Zoom Lens (PL Mount & EF Mount, Black)
• 1 x Front Lens Cap for 50-125mm Lens
• 1 x Rear Lens Cap for 50-125mm Lens
• 1 x Zoom Stick for 50-125mm Lens
• 1 x ARRI PL Mount with Cap for 50-125mm Lens
• 1 x Canon EF Mount with Cap for 50-125mm Lens
• 1 x DZOFilm Empty Hard Case for Pictor Zoom Lenses (3-Lens)
• 1 x Interior Foam
