DZOFilm Pictor T2.8 Super35 Zoom 3-Lens Bundle (PL & EF Mount, Black)

The DZOFilm Pictor T2.8 Super35 Zoom 3-Lens Bundle (PL & EF Mount, Black) puts the 14-30mm, 20-55mm, and 50-125mm Pictor zooms into one matched production package. Together, the three lenses cover focal lengths from 14mm through 125mm, with T2.8 maximum apertures and Super35/APS-C coverage based around a 31.1mm image circle.

These are parfocal cine zooms built around manual lens operation. All three use interchangeable ARRI PL and Canon EF mounting, 0.8 MOD gearing, 270° focus rotation, 100° zoom rotation, 16-blade irises, 95mm front diameters, and 86mm filter threads. The bundle also includes a three-lens hard case with an interior foam insert, keeping the complete set together between camera builds and transport.

Highlights

• Three-lens Pictor T2.8 Super35 parfocal zoom package
• 14-30mm, 20-55mm, and 50-125mm focal ranges
• Combined coverage from 14mm through 125mm
• T2.8 maximum aperture across all three lenses
• Super35/APS-C coverage with 31.1mm image circle
• Interchangeable ARRI PL and Canon EF mounting
• 0.8 MOD cine-style gearing
• 270° focus rotation across the set
• 100° zoom rotation across the set
• 16-blade iris design
• Matching 95mm front diameters and 86mm filter threads

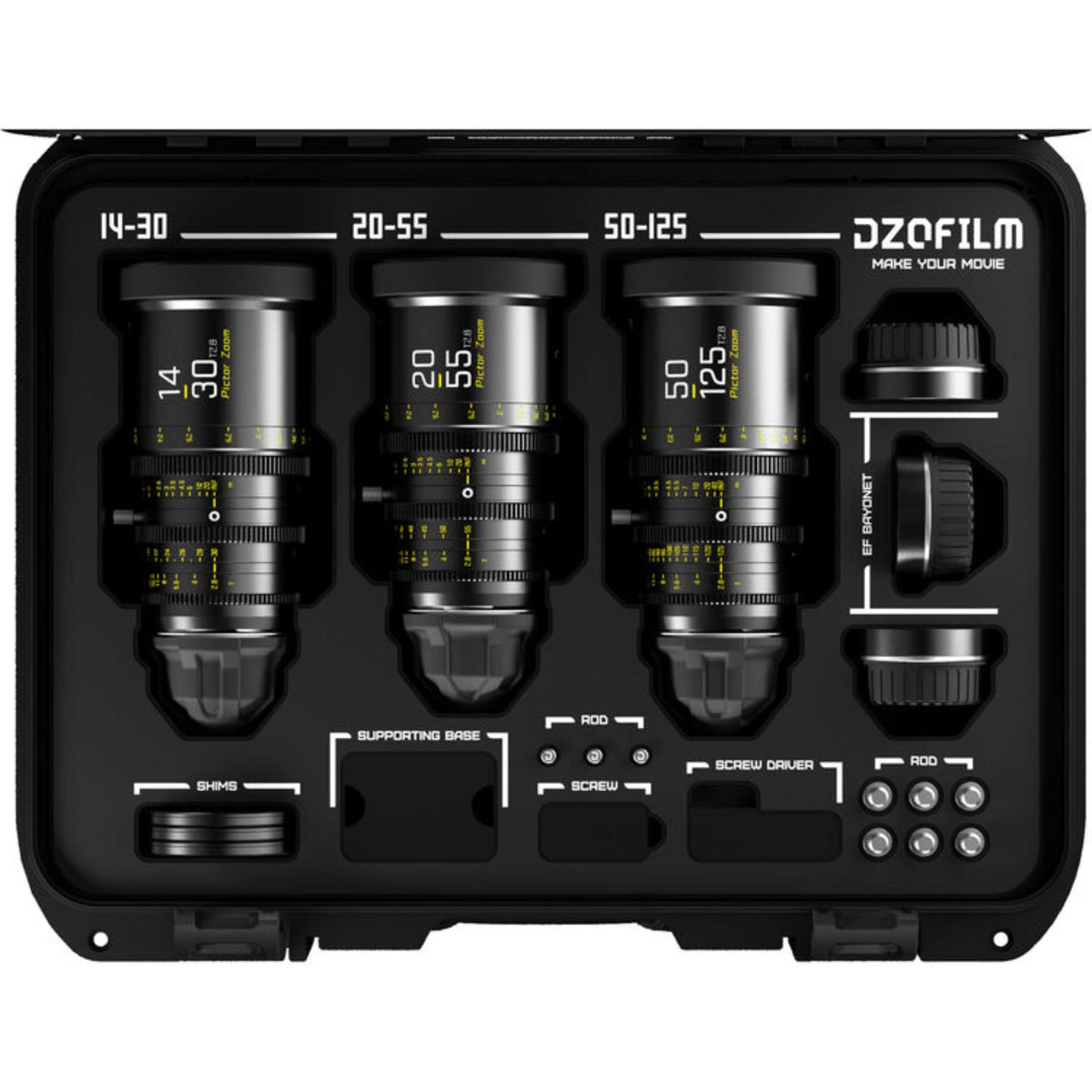

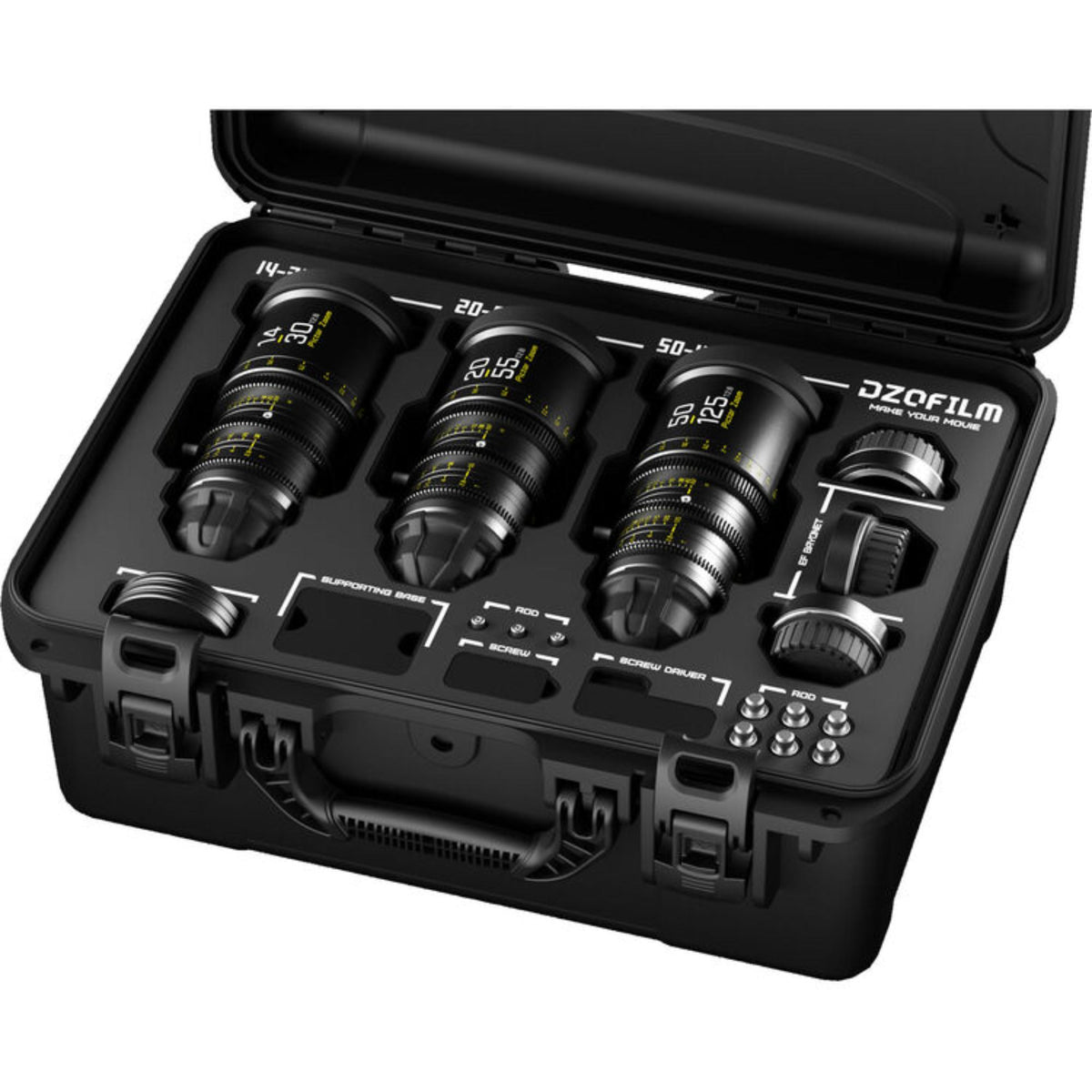

• Three-lens hard case with interior foam included

Quick Specs & Uses

• 14-30mm Lens: T2.8 to T22, 2.14x zoom ratio
• 20-55mm Lens: T2.8 to T22, 2.75x zoom ratio
• 50-125mm Lens: T2.8 to T22, 2.5x zoom ratio
• Format Coverage: Super35/APS-C, 31.1mm Image Circle
• Lens Mount: Interchangeable ARRI PL / Canon EF
• Focus Scales: Imperial
• Filter Thread: 86mm
• Front Diameter: 95 mm (3.7 in)
• Aperture/Iris Blades: 16
• Gear Standard: 0.8 MOD
• Focus Rotation: 270°
• Zoom Rotation: 100°
• Image Stabilization: No
• Electronic Communication: No

Why It Helps

With three overlapping zoom ranges in one kit, a camera department can move from a 14mm wide frame through the midrange and out to 125mm without leaving the Pictor set. The 14-30mm handles the wide end, the 20-55mm covers a useful middle range, and the 50-125mm takes over when tighter framing is required.

The matching mechanical layout makes the set easier to work with as a system. Each lens has a 95mm front, an 86mm filter thread, 0.8 MOD gearing, 270° focus travel, and 100° zoom travel. That consistency is useful when changing lenses on a configured camera because the basic lens-control arrangement remains familiar from one focal range to the next.

Parfocal operation keeps focus maintained while the focal length changes, which is useful for an intentional zoom during a shot as well as quick reframing from a fixed camera position. The interchangeable PL and EF mounting adds another practical option when the lens package needs to move between compatible camera configurations, while the supplied hard case gives the complete three-lens set a dedicated place for storage and transport.

System Characteristics

• 14-30mm Focal Length: 14 to 30mm
• 14-30mm Zoom Ratio: 2.14x
• 14-30mm Minimum Focus Distance: 0.6 m (2 ft)
• 14-30mm Optical Design: 21 Elements in 17 Groups
• 14-30mm Iris Rotation: 61°
• 14-30mm Length: 173 mm (6.8 in)
• 14-30mm Weight: 1.88 kg (4.1 lb)
• 20-55mm Focal Length: 20 to 55mm
• 20-55mm Zoom Ratio: 2.75x
• 20-55mm Length: 164 mm (6.46 in)
• 20-55mm Weight: 1.52 kg (3.35 lb)
• 50-125mm Focal Length: 50 to 125mm
• 50-125mm Zoom Ratio: 2.5x
• 50-125mm Length: 175 mm (6.9 in)
• 50-125mm Weight: 1.7 kg (3.7 lb)
• Maximum Aperture: T2.8
• Minimum Aperture: T22
• Format Coverage: Super35/APS-C, 31.1mm Image Circle
• Lens Mount: Interchangeable ARRI PL / Canon EF
• Focus Scale: Imperial
• Aperture/Iris Blades: 16
• Gear Standard: 0.8 MOD
• Focus Rotation: 270°
• Zoom Rotation: 100°
• Front Diameter: 95 mm (3.7 in)
• Filter Thread: 86mm
• Image Stabilization: No
• Electronic Communication: No
• Hard Case Color: Black
• Hard Case Carry/Transport: Handle
• Hard Case Closure: Latch
• Hard Case Interior: Insert with Custom Compartments
• Hard Case Water Resistance: Waterproof
• Hard Case Pressure/Purge Valve: Yes
• Hard Case Exterior: Molded Plastic

What’s In The Box

• 1 x DZOFilm Pictor 20-55mm T2.8 Super35 Zoom Lens (PL Mount & EF Mount, Black)
• 1 x Front Lens Cap for 20-55mm Lens
• 1 x Rear Lens Cap for 20-55mm Lens
• 1 x Zoom Stick for 20-55mm Lens
• 1 x Canon EF-Mount with Cap for 20-55mm Lens
• 1 x DZOFilm Pictor 50-125mm T2.8 Super35 Zoom Lens (PL Mount & EF Mount, Black)
• 1 x Front Lens Cap for 50-125mm Lens
• 1 x Rear Lens Cap for 50-125mm Lens
• 1 x Zoom Stick for 50-125mm Lens
• 1 x ARRI PL Mount with Cap for 50-125mm Lens
• 1 x Canon EF Mount with Cap for 50-125mm Lens
• 1 x DZOFilm Pictor 14-30mm T2.8 Super35 Parfocal Zoom Lens (PL and EF Mounts, Black)
• 1 x Front Lens Cap for 14-30mm Lens
• 1 x PL Rear Lens Cap for 14-30mm Lens
• 1 x Shim Set
• 1 x Support Rod
• 1 x Canon EF-Mount Bayonet
• 1 x EF Rear Lens Cap

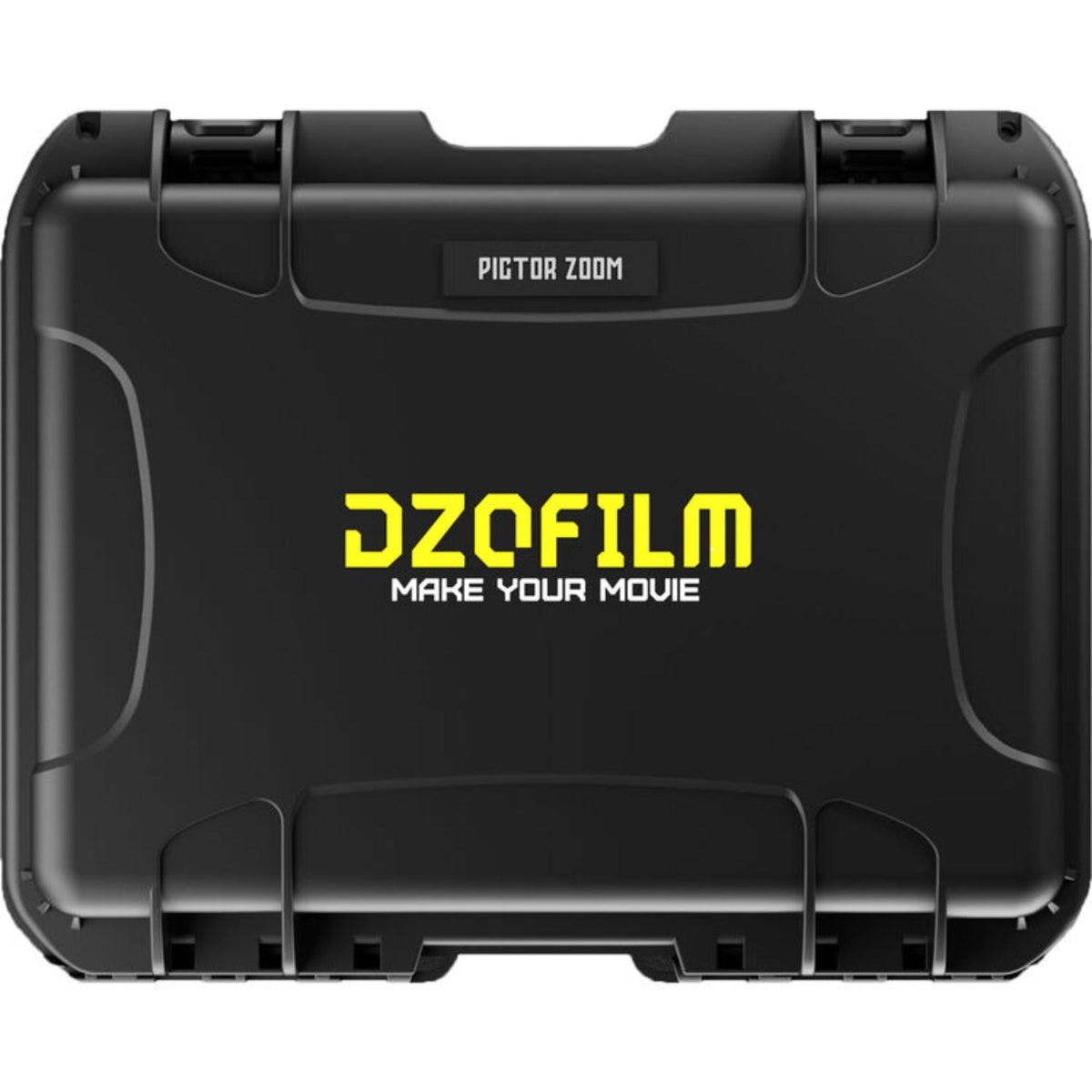

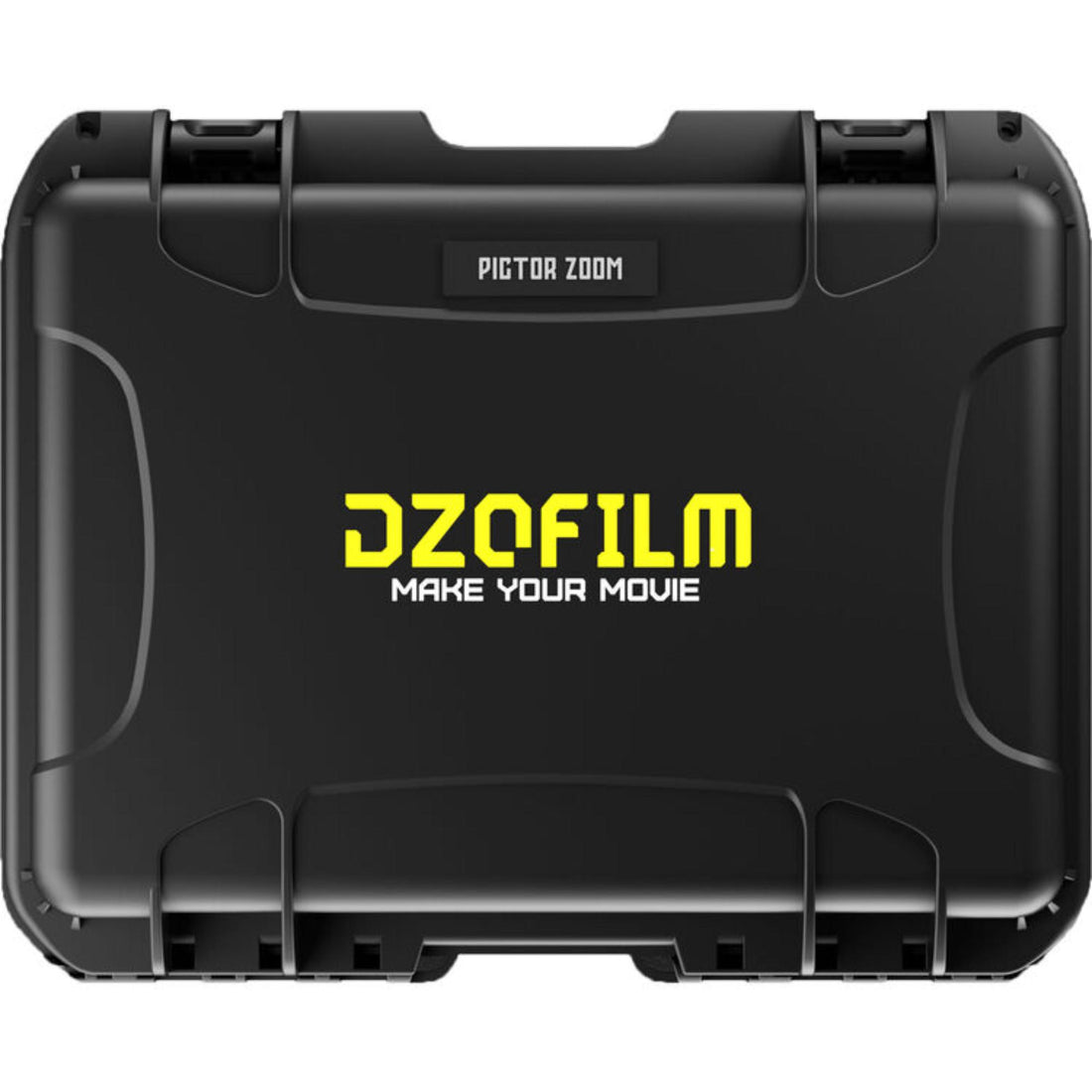

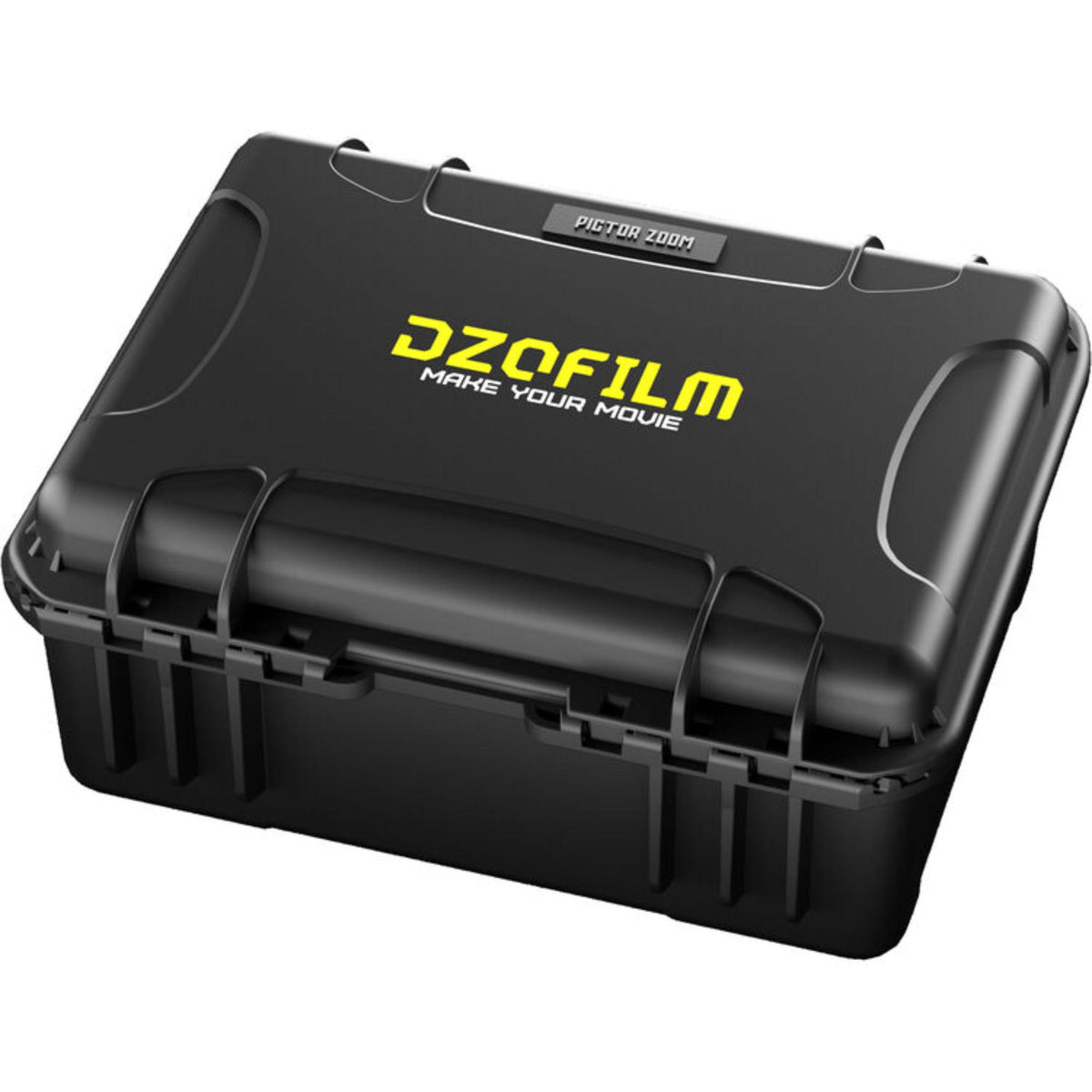

• 1 x DZOFilm Empty Hard Case for Pictor Zoom Lenses (3-Lens)
• 1 x Interior Foam
