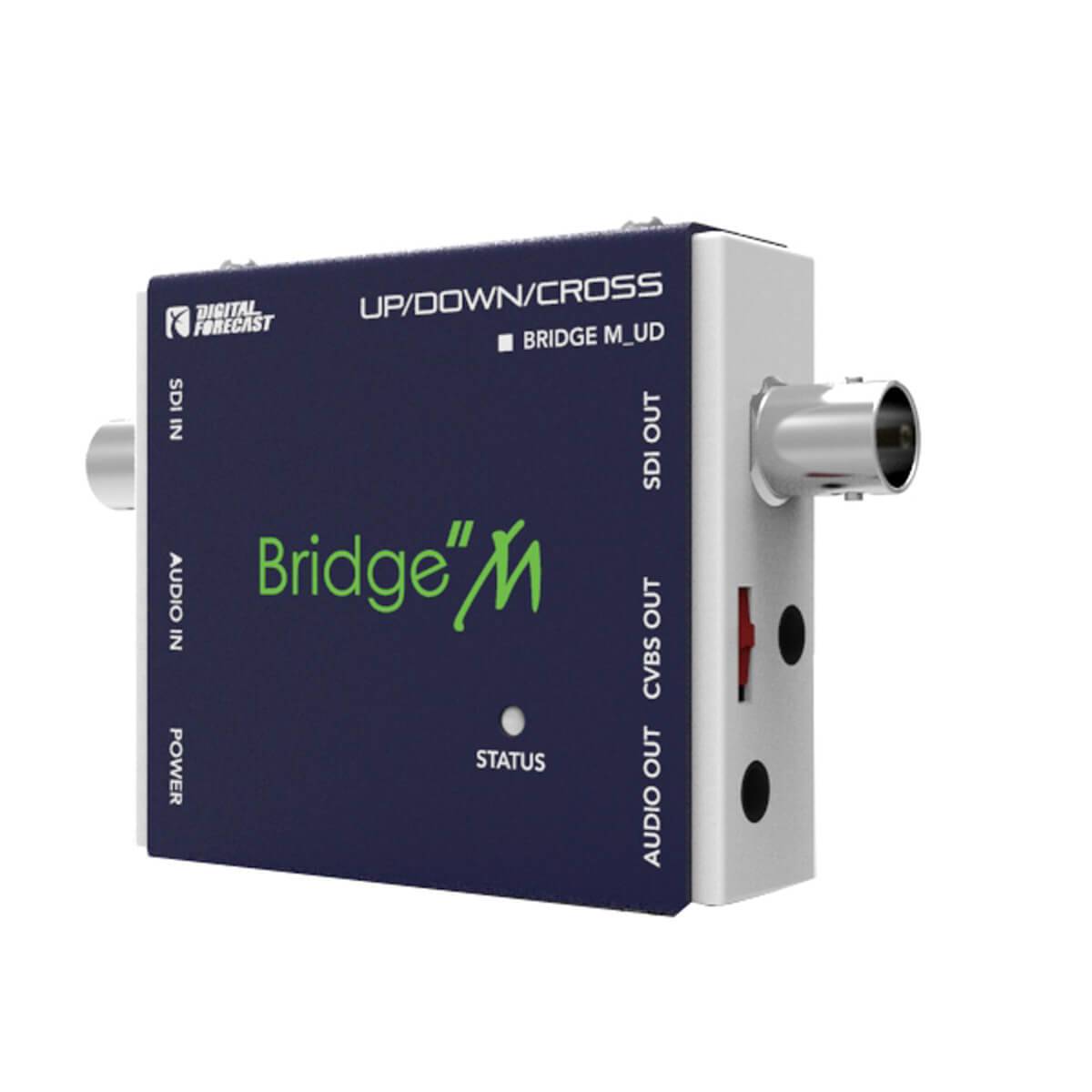

Digital Forecast Bridge M_UD Up/Down/Cross Converter

The Digital Forecast Bridge M UD Up/Down/Cross Converter is an Up/Down/Cross/Scan converter with monitoring CVBS. This converter comes with several inputs such as (1) BNC, SD/HD/3G-SDI, (1) 3.5mm stereo analog audio, 1 USB, and 1 DC power. As for the outputs, there are (1) BNC, SD/HD/3G-SDI, (1) 3.5mm composite video, and (1) 3.5mm stereo analog audio.

Among other plus sides of this Bridge M_UD Micro-Type, the file format compatibility is also part of it, which covers the most-used SDI formats: SMPTE 424M, SMPTE 292M, SMPTE 274M, SMPTE 296M, and SMPTE 125M. As for power supply, the standard for this device should be at 12 VDC and the power consumption is ranging from 4.37 W to 5 W.
