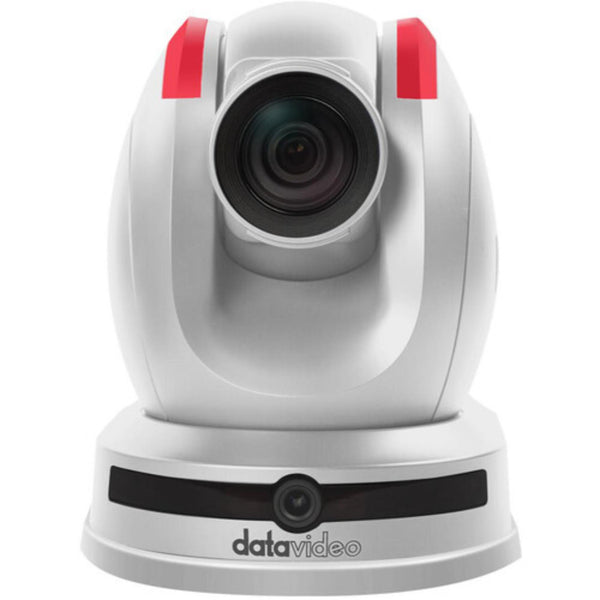

DATAVIDEO PTC-155T HDBaseT 1080p SDI/HDMI/IP Tracking PTZ Camera with 30x Zoom (White)

DATAVIDEO PTC-155T HDBaseT 1080p SDI/HDMI/IP Tracking PTZ Camera with 30x Zoom (White) is built for installed environments where long cable runs, flexible outputs, and dependable tracking matter more than unnecessary extras. Based on the source details, it combines HDBaseT transport, HDMI, 3G-SDI, USB-C, NDI output, and 1080p60 capture in one PTZ platform, making it a practical fit for conference rooms, classrooms, worship spaces, lecture capture, and smaller live production systems.

Highlights

• Subject auto-tracking PTZ camera designed for installed AV and production workflows
• 30x optical zoom with 16x digital zoom for longer-range framing
• Video, control, power, and tally over one cable through HDBaseT infrastructure
• HDMI, 3G-SDI, USB-C, HDBaseT, and NDI output support for flexible system integration
• 255 presets with broad control protocol compatibility for repeatable daily operation

Quick Specs & Uses

• Product name: DATAVIDEO PTC-155T HDBaseT 1080p SDI/HDMI/IP Tracking PTZ Camera with 30x Zoom (White)
• Image sensor: 1/2.8 inch CMOS
• Effective resolution: 2.14 MP
• Focal length: 5.5 to 150.43 mm
• Maximum aperture: f/1.66 to 4.99
• Optical zoom: 30x
• Digital zoom: 16x
• Field of view: 54 degrees horizontal
• Shutter speed: 1/10000 to 1/30 second
• Minimum illumination: 0.5 lux at f/1.8
• Signal-to-noise ratio: 55 dB
• Video outputs: 1 x HDMI 1.3, 1 x 3G-SDI BNC, 1 x USB-C 2.0, 1 x RJ45 HDBaseT, 1 x RJ45 NDI
• Audio I/O: 1 x 3.5 mm TRS stereo mic/line input/output
• Other I/O: 1 x RJ45 RS-232/RS-422
• IP streaming: 320 x 240 to 1920 x 1080
• Recording: internal microSD recording up to 1080p
• Compression support: H.264, H.265
• Embedded audio: HDMI, LAN, NDI, SDI, USB
• Presets: 255
• Pan and tilt range: pan 300 degrees, tilt 145 degrees from -15 to 90 degrees
• Tally light: Yes
• Power input: PoE 802.3at or 12VDC barrel input
• Power consumption: 21 W
• Operating conditions: 32 to 104°F / 0 to 40°C
• Mounting: 1 x 1/4"-20 female
• OS compatibility: Android/iOS
• Dimensions: 7.2 x 9 x 7.6 in / 184 x 228.5 x 194 mm
• Weight: 6.2 lb / 2.8 kg body only

Why It Helps

In a real installation, the camera has to work with the room, the cable path, and the control system at the same time. That is where this model makes sense. The long zoom range gives it the reach needed for back-of-room placement, while HDBaseT helps simplify infrastructure by carrying multiple functions through a single cable path. Add the available SDI, HDMI, USB-C, and NDI outputs, and the camera becomes much easier to fit into mixed modern workflows.

System Characteristics

• 30x optical zoom gives the camera practical reach for lecture halls, sanctuaries, and larger conference rooms
• HDBaseT support helps reduce cabling complexity in installed systems
• Multiple output paths make integration easier across AV, broadcast, and IP-based environments
• 255 presets and tracking support help simplify repeatable day-to-day operation
• PoH power and internal recording add flexibility for cleaner infrastructure and backup capture

What’s In The Box

Please refer to the Specifications tab for the exact included items.
