DATAVIDEO PTC-145 HD-SDI/HDMI 20x PTZ Camera with Auto Tracking (White)

DATAVIDEO PTC-145 HD-SDI/HDMI 20x PTZ Camera with Auto Tracking (White) is built for rooms and production spaces where the camera needs to follow the subject reliably without turning every shot change into a manual adjustment. Based on the source details, it combines 1080p60 output, auto tracking, 20x optical zoom, and HD-SDI, HDMI, and IP video output in a compact PTZ platform that fits well in corporate AV, education, worship, and smaller live production environments.

Highlights

• Auto-tracking PTZ camera designed for presentation, education, worship, and live production workflows
• 20x optical zoom with 10x digital zoom for practical room coverage
• HD-SDI, HDMI, and IP output for flexible system integration
• H.264 and H.265 streaming support across common network workflows
• 255 presets with broad control support for repeatable day-to-day operation

Quick Specs & Uses

• Product name: DATAVIDEO PTC-145 HD-SDI/HDMI 20x PTZ Camera with Auto Tracking (White)
• Image sensor: 1/2.8 inch CMOS
• Effective resolution: 2.07 MP
• Focal length: 5.05 to 91.49 mm
• Maximum aperture: f/1.8 to 2.9
• Optical zoom: 20x
• Digital zoom: 10x
• Field of view: 60 degrees horizontal

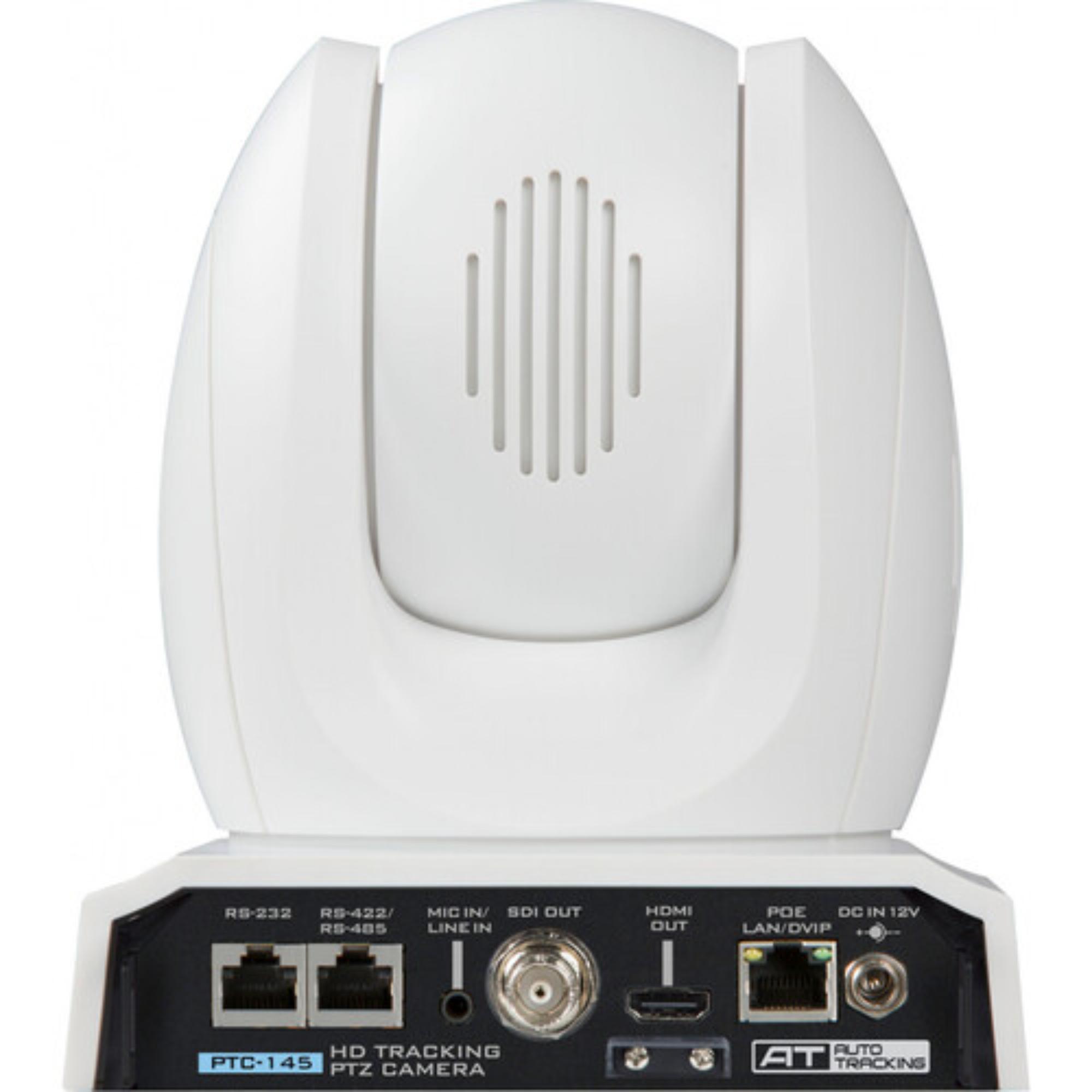

• Video outputs: 1 x 3G-SDI BNC, 1 x HDMI, 1 x RJ45 IP
• Output formats: up to 1920 x 1080 at 60 fps
• Streaming codecs: H.264, H.265
• Streaming protocols: ONVIF, RTMP, RTMPS, RTSP, SRT, TCP
• Control protocols: VISCA, Pelco-D, Pelco-P, DVIP, ONVIF, RS-232, RS-422, RS-485
• Presets: 255 via IP, IR, RS-232, VISCA
• Audio input: 1 x 3.5 mm TRS stereo line input
• Power: PoE 802.3af or 12VDC barrel input
• Mounting: 1 x 1/4"-20 female
• Weight: 56.4 oz / 1.6 kg body only

Why It Helps

In a real installation, the camera has to do more than produce a clean image. It also has to follow the presenter smoothly, fit the signal path already in place, and remain easy to manage over time. This model makes sense in that environment because it combines practical zoom range, auto tracking, and flexible output options in one PTZ platform without adding unnecessary complexity.

System Characteristics

• 20x optical zoom gives the camera useful reach for classrooms, meeting rooms, and platform coverage
• Auto tracking helps maintain framing when a presenter moves through the space
• SDI, HDMI, and IP output make integration easier across AV, broadcast, and streaming systems
• 255 presets and broad control compatibility support repeatable operation in managed environments
• PoE support and compact body design help simplify installation

What’s In The Box

Please refer to the Specifications tab for the exact included items.
