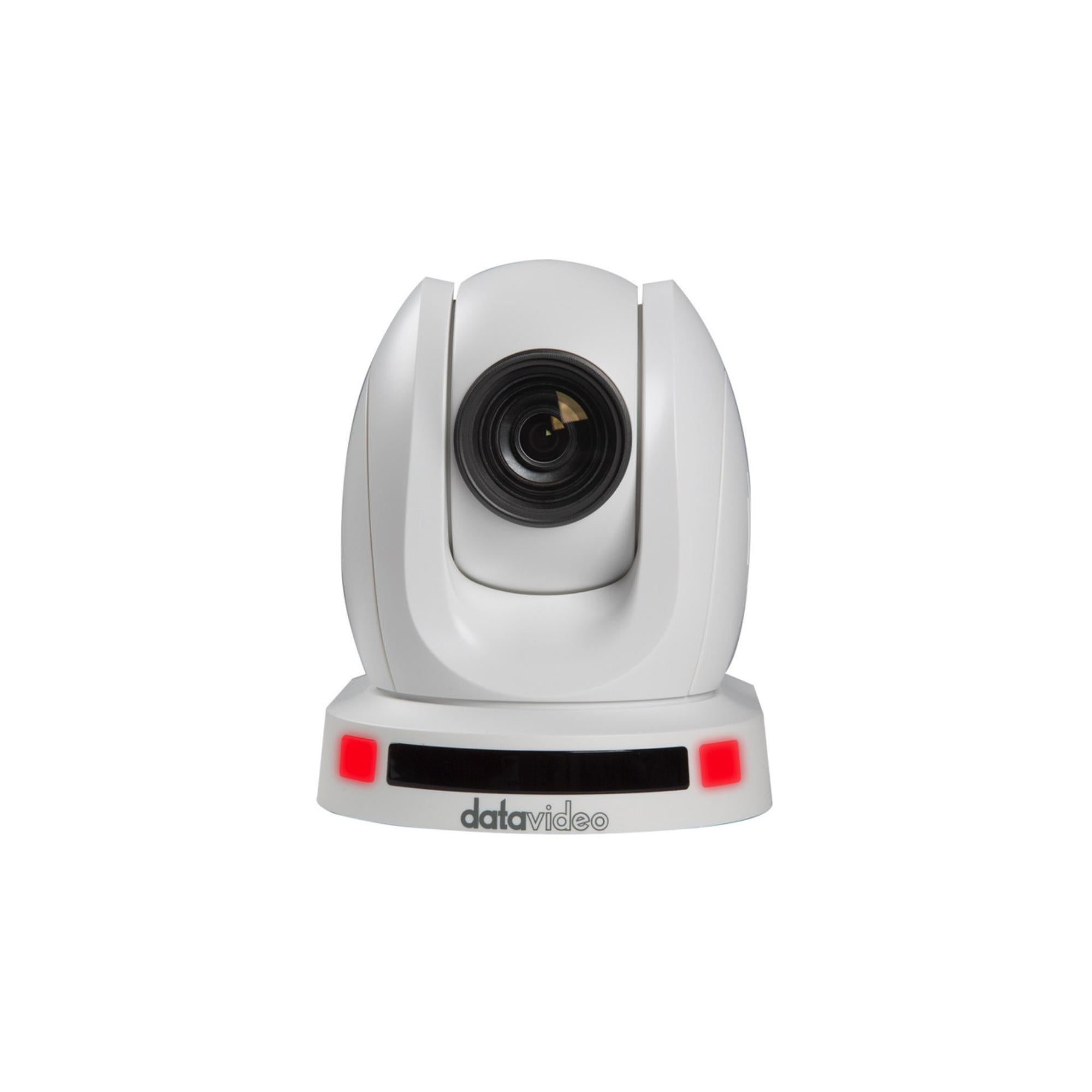

DATAVIDEO PTC-145TW 20x HDBaseT 1080p, 3G-SDI, and HDMI Tracking PTZ Camera without receiver (White)

DATAVIDEO PTC-145TW 20x HDBaseT 1080p, 3G-SDI, and HDMI Tracking PTZ Camera without receiver (White) is built for installed environments where clean cabling, dependable subject tracking, and practical signal transport matter more than unnecessary complexity. Based on the source details, it combines Full HD video, 20x optical zoom, auto tracking, and HDBaseT transport in a PTZ platform that fits well in classrooms, conference rooms, houses of worship, and lecture capture systems.

Highlights

• Tracking PTZ camera designed for fixed AV and production-style installations
• 20x optical zoom with 8x digital zoom for practical room coverage
• HDBaseT one-cable transport for power, HD video, control, and tally
• H.264, H.265, and MJPEG streaming support across common IP workflows
• 255 presets with broad control protocol compatibility for repeatable operation

Quick Specs & Uses

• Product name: DATAVIDEO PTC-145TW 20x HDBaseT 1080p, 3G-SDI, and HDMI Tracking PTZ Camera without receiver (White)
• Image sensor: 1/2.8 inch HD CMOS
• Effective resolution: 2.07 MP
• Video formats: 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
• Focal length: 5.05 mm to 91.49 mm
• Maximum aperture: f/1.8 wide to f/2.9 tele
• Optical zoom: 20x
• Digital zoom: 8x
• Field of view: 60 degrees horizontal
• Minimum illumination: 0.5 lux at F1.8 with AGC on
• S/N ratio: 50 dB or greater
• Electronic shutter: 1/30s to 1/10000s

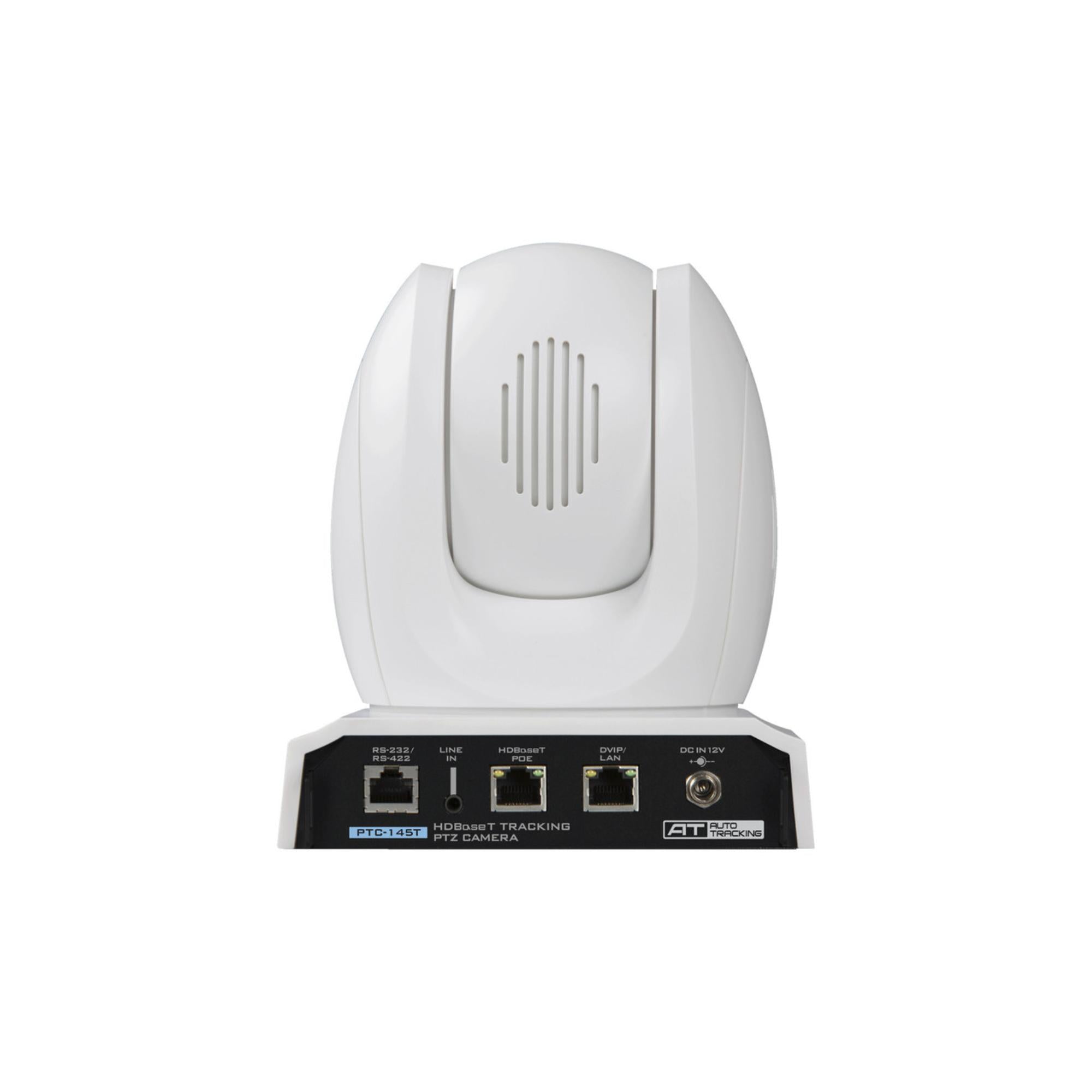

• Video outputs: 1 x HDBaseT, 1 x RJ45 IP
• Audio input: 1 x 3.5 mm line in
• Streaming protocols: RTSP, RTMP(S), ONVIF, SRT, Multicast
• Compression formats: H.264, H.265, MJPEG
• Control protocols: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
• Presets: 255 positions
• Tally LED: dual color red and green
• Power: IEEE 802.3af PoE or DC 12V
• Transmission distance: up to 100 m through HDBaseT receiver side
• Tripod mount: 1/4-20 UNC
• Dimensions: 156 x 184 x 186 mm
• Weight: 1.6 kg

Why It Helps

In a real installation, the camera has to work with the room, the cable path, and the control system all at once. That is where this model makes sense. The tracking features help keep the presenter framed without constant operator input, while HDBaseT simplifies infrastructure by carrying multiple functions over a single cable path. For fixed systems, that can make the install cleaner and easier to support later.

System Characteristics

• 20x optical zoom gives the camera enough reach for lecture halls, sanctuaries, and larger meeting spaces
• HDBaseT transport reduces cabling complexity by carrying power, video, control, and tally together
• Custom tracking and speed adaptation help movement look smoother and more controlled
• Dual-stream encoding and IP protocol support make the camera easier to integrate into streaming workflows
• Broad control compatibility helps the camera fit into established AV and PTZ control systems

What’s In The Box

Please refer to the Specifications tab for the exact included items.
