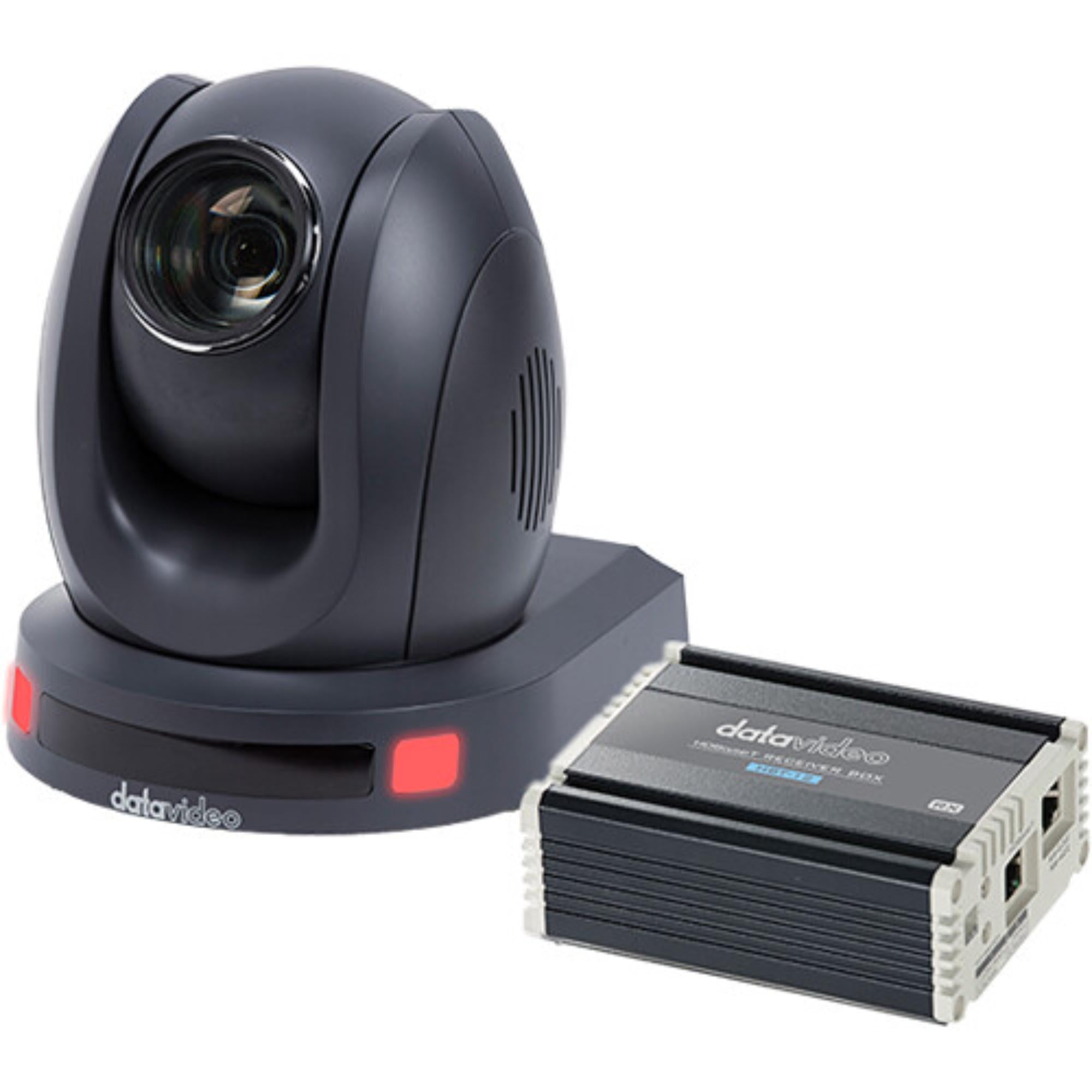

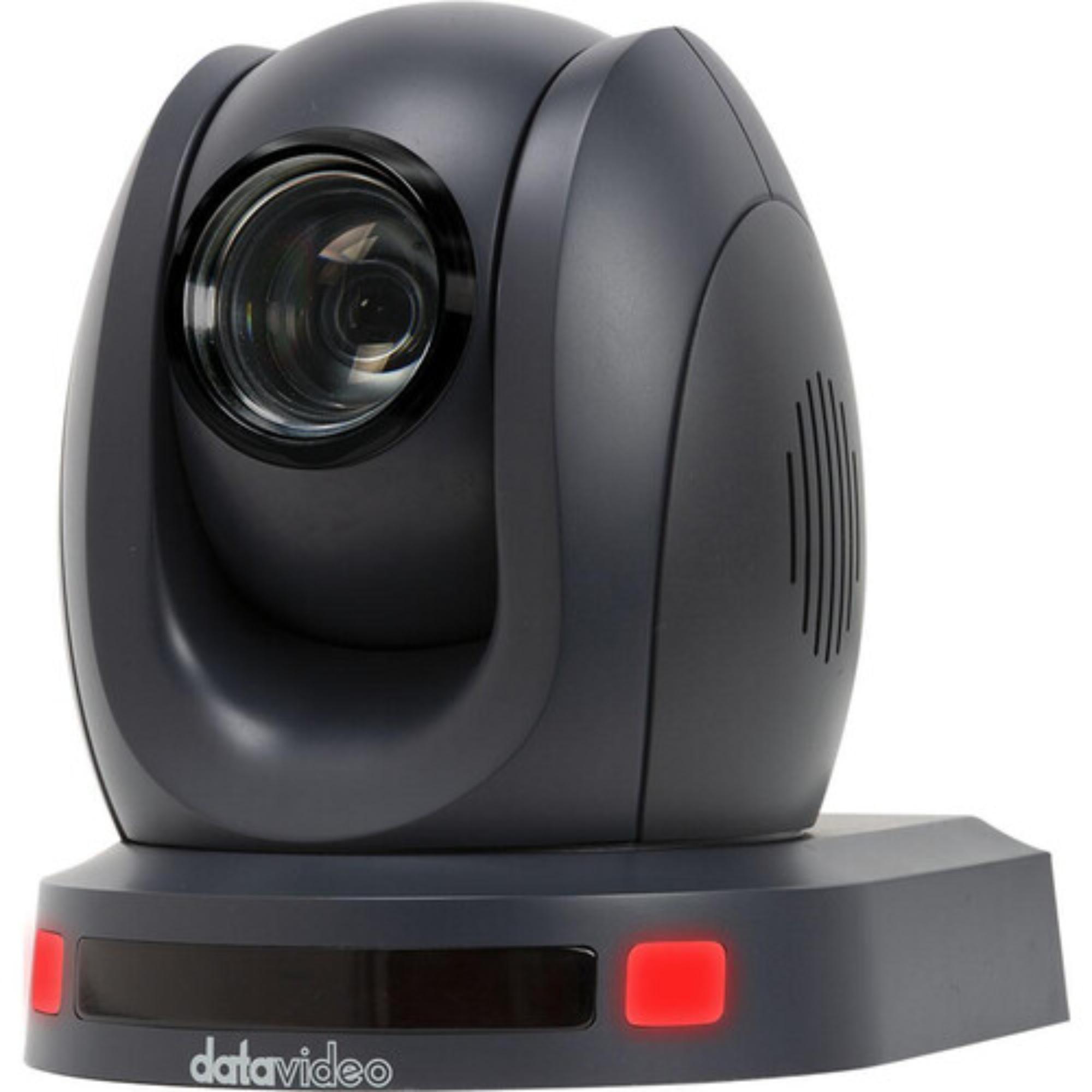

DATAVIDEO HDBaseT PTZ Camera with 20x Optical Zoom and HBT-12 HDBaseT Receiver Box (Black)

DATAVIDEO HDBaseT PTZ Camera with 20x Optical Zoom and HBT-12 HDBaseT Receiver Box (Black) is built for installed environments where the camera and the signal path need to work together cleanly. Based on the source details, this bundle combines a Full HD PTZ camera, a dedicated HBT-12 HDBaseT receiver, 20x optical zoom, 3G-SDI and HDMI output, and HDBaseT transport in one package that makes sense for conference rooms, lecture halls, training spaces, and other fixed AV environments.

Highlights

• Full HD PTZ camera bundle with included HBT-12 HDBaseT receiver for installed AV workflows
• 20x optical zoom with 10x digital zoom for practical long-range room coverage
• Single-cable HDBaseT transport for power, video, audio, and camera control
• 3G-SDI, HDMI, and IP streaming support for flexible signal integration
• 255 preset positions with included mounting hardware for repeatable operation

Quick Specs & Uses

• Product name: DATAVIDEO HDBaseT PTZ Camera with 20x Optical Zoom and HBT-12 HDBaseT Receiver Box (Black)
• Image sensor: 1/2.8 inch CMOS
• Effective resolution: 2.07 MP
• Focal length: 5.2 to 98 mm
• Maximum aperture: f/1.6 to 3.5
• Optical zoom: 20x
• Digital zoom: 10x
• Field of view: horizontal 54.7 to 3.3 degrees
• Minimum illumination: 0.5 lux
• Signal-to-noise ratio: 55 dB
• Video outputs: 1 x 3G-SDI BNC, 1 x HDMI
• Streaming codecs: H.264, H.265
• Streaming protocols: TCP, SRT, RTSP, RTMP
• Output formats: up to 1920 x 1080 at 60 fps
• Presets: 255 via IR, RS-232, VISCA
• Audio input: 1 x 3.5 mm TRS stereo line input
• Power input: 1 x 12VDC barrel
• Power consumption: 12 W
• Mounting: 1 x 1/4"-20 female, 1 x WM-1 wall mount
• Transmission distance: Full HD video and audio up to 196 feet
• Certifications: FCC Part 15
• OS compatibility: Android/iOS
• Dimensions: 6.1 x 7.3 x 7.2 in / 15.6 x 18.6 x 18.2 cm
• Weight: 3.5 lb / 1.6 kg body only

Why It Helps

In a real installation, the camera is only part of the job. The transport path matters just as much. This bundle makes sense because it pairs the PTZ camera with the HBT-12 receiver, giving the system a cleaner way to move signal and control over distance without turning the cable plan into a patchwork of separate runs. That is especially useful in conference rooms, lecture halls, and other spaces where the camera is mounted away from the display or control point.

System Characteristics

• 20x optical zoom gives the camera enough reach for medium and larger installed spaces

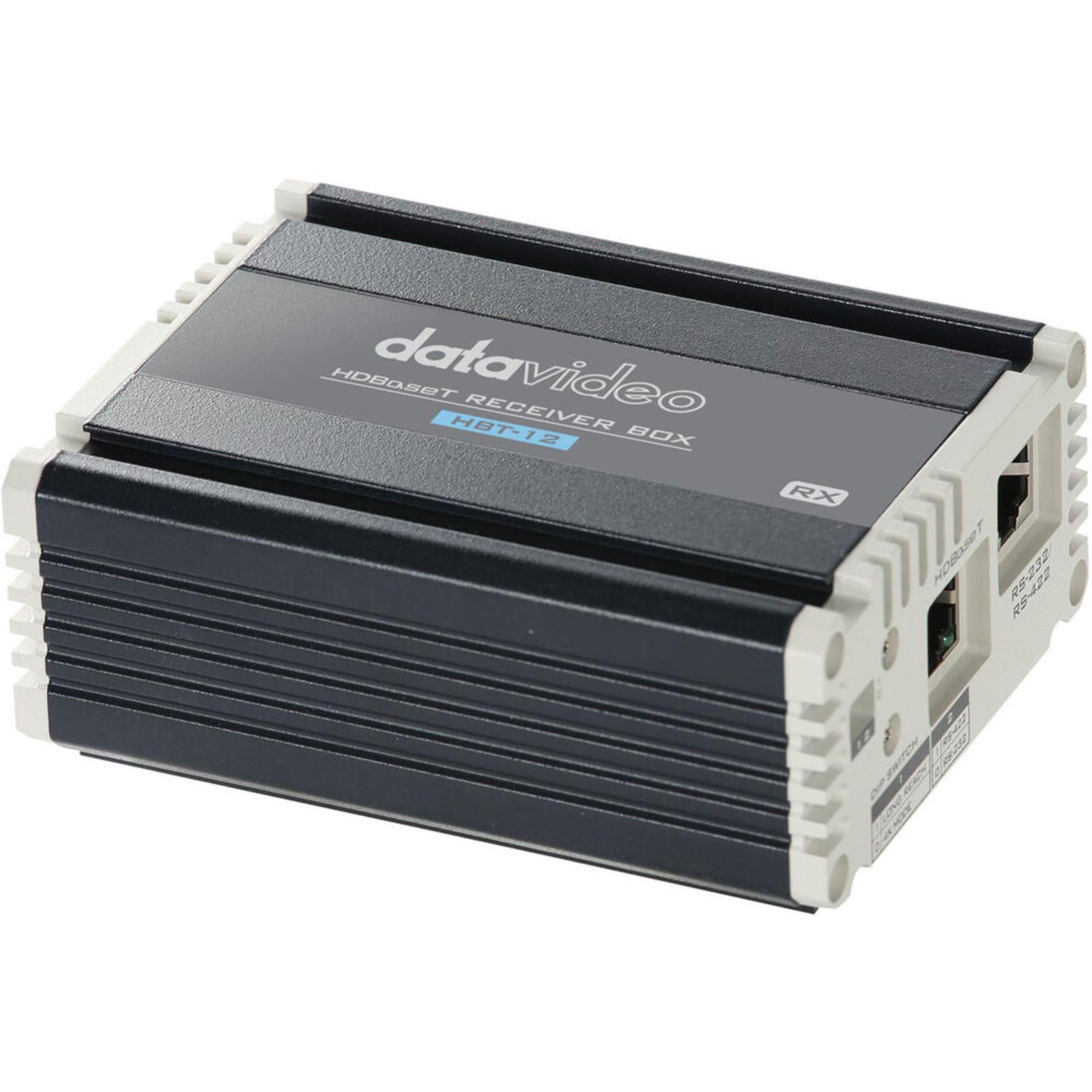

• Included HBT-12 receiver helps simplify HDBaseT deployment without sourcing separate transport hardware
• Single-cable transport reduces infrastructure complexity for power, video, audio, and control
• SDI, HDMI, and IP streaming support make the bundle easier to integrate into mixed workflows
• Preset recall and included installation accessories support repeatable operation and faster deployment

What’s In The Box

Please refer to the Specifications tab for the exact included items.
