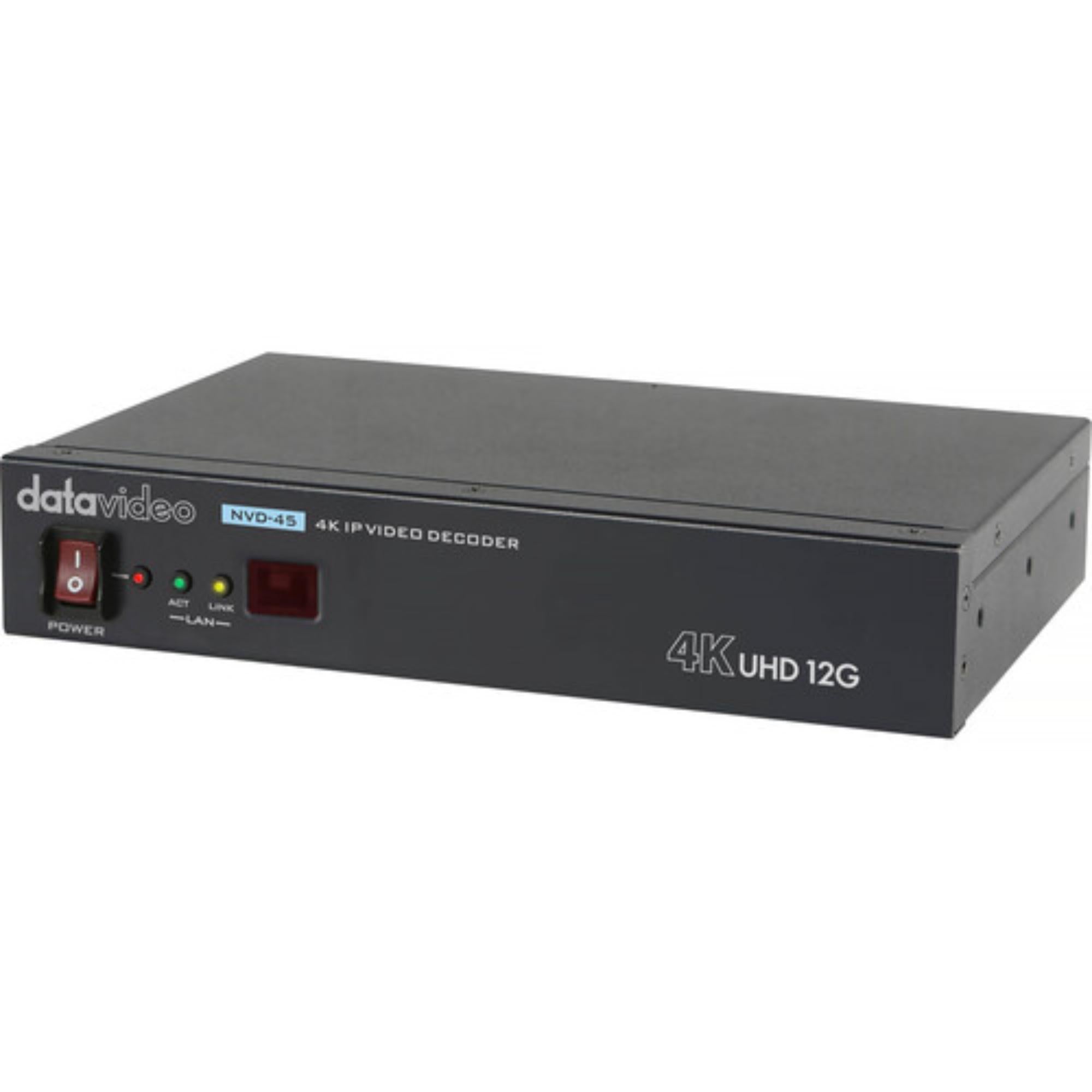

DATAVIDEO NVD-45 4K Streaming IP Video Decoder with 12G-SDI Output

DATAVIDEO NVD-45 4K Streaming IP Video Decoder with 12G-SDI Output is built for systems that need to take IP video in and hand it back off as a proper baseband signal without turning the workflow into a science project. Based on the source details, this is a 4K streaming decoder designed to accept network-delivered video over RJ45 and output it through dual 12G-SDI plus composite video, making it a practical fit for broadcast plants, live production rooms, contribution workflows, corporate AV, and other environments where IP transport still has to land in familiar signal paths.

Highlights

• 4K IP video decoder built for broadcast and AV signal conversion workflows
• Dual 12G-SDI outputs plus composite output for mixed infrastructure support
• H.264 and H.265 decoding with output up to UHD 4K60
• HLS, MJPEG, RTMP, RTSP, SRT, and UDP support for broad IP stream compatibility
• Embedded SDI audio and stereo RCA output for flexible audio handoff

Quick Specs & Uses

• Product name: DATAVIDEO NVD-45 4K Streaming IP Video Decoder with 12G-SDI Output
• Video input: 1 x RJ45 female
• Audio inputs: none

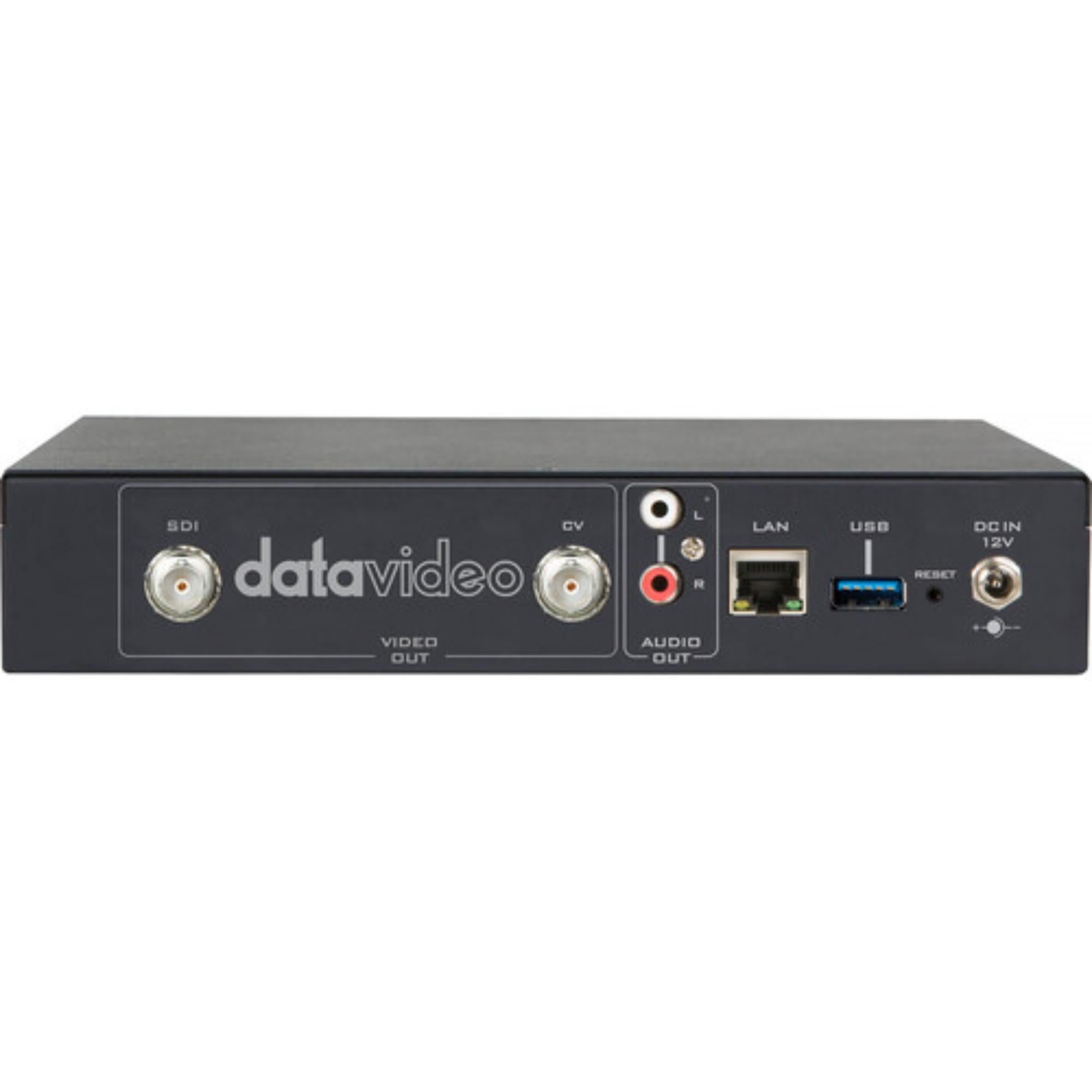

• Video outputs: 2 x BNC 12G-SDI, 1 x BNC composite
• Audio outputs: 1 x 2RCA stereo analog female
• Other I/O: 1 x RJ45 LAN input/output, 1 x USB-A
• Embedded audio: SDI
• Input format support: UHD 4K, 1080p, 1080i, 720p, 576i, 480i over RJ45
• Output format support: UHD 4K, 1080p, 1080i, 720p, 576i, 480i over SDI
• Decoding codecs: H.264, H.265
• Video IP decoding: HLS, MJPEG, RTMP, RTSP, SRT, UDP up to 3840 x 2160 at 50p/60p
• HDR support: no
• Tally light: yes
• Wireless: no
• Power input: 1 x barrel 12 VDC at 1 A
• Power supply: 100 to 240 VAC
• Operating temperature: 32 to 104°F / 0 to 40°C
• Storage temperature: -4 to 140°F / -20 to 60°C
• Dimensions: 8.7 x 5.6 x 1.9 in / 220 x 143 x 47 mm
• Weight: 2.2 lb / 1 kg

Why It Helps

IP transport is useful, but many real-world systems still need the signal to come back out as SDI or composite before it can be routed, switched, monitored, or distributed. That is where the NVD-45 makes sense. It gives production teams a practical way to decode network-delivered video and hand it off to downstream gear in a form the rest of the facility can use.

System Characteristics

• Dual 12G-SDI outputs support higher-bandwidth 4K workflows and redundant signal distribution
• Composite output helps the decoder fit legacy monitoring or infrastructure paths
• Broad protocol support allows the unit to work across multiple IP delivery methods
• 4K, HD, and SD format support makes integration easier in mixed-standard facilities
• Embedded and analog audio output gives the decoder flexible audio routing options

What’s In The Box

Please refer to the Specifications tab for the exact included items.
